Product Description
S201 G1/2 Hall Water Flow Sensor DC 5V Liquid Flow Meter for Water Purifier Heater Vending Machine Application
S201 G1/2 Hall Water Flow Sensor DC 5V Liquid Flow Meter for Water Purifier Heater Vending Machine Application1.NOTE:
1.To prevent particles or debris from entering the sensor, a filter screen must be installed at the water inlet.
2.The flow sensor should be installed indoors or within enclosed equipment. Avoid exposure to outdoor environments, high humidity, extreme temperatures, or harsh conditions. For accurate measurement, ensure the installation location is free from vibration or shaking.
3.Keep the sensor away from magnetic materials or any devices that generate magnetic fields, as these can interfere with its performance.
Model | Connection | Flow Range | Material | Power Supply | Feature |

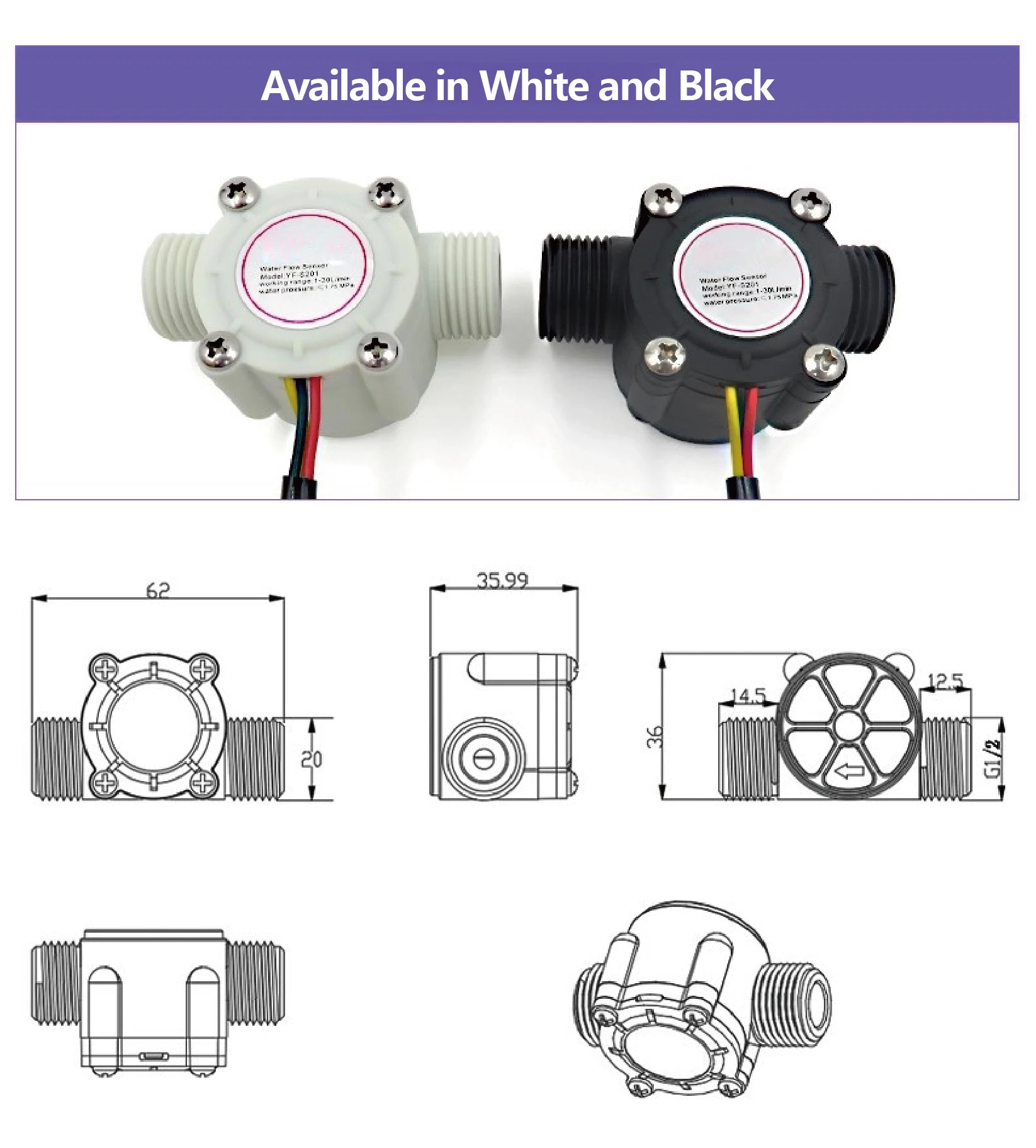

S201 | G1/2 | 1–30 L/min | Nylon (Black/White ) | DC 3.5–24V | Color option |
S201A | G1/2 | 1–30 L/min | Black Ceramic Shaft | DC 3.5–24V | Enhanced Shaft |

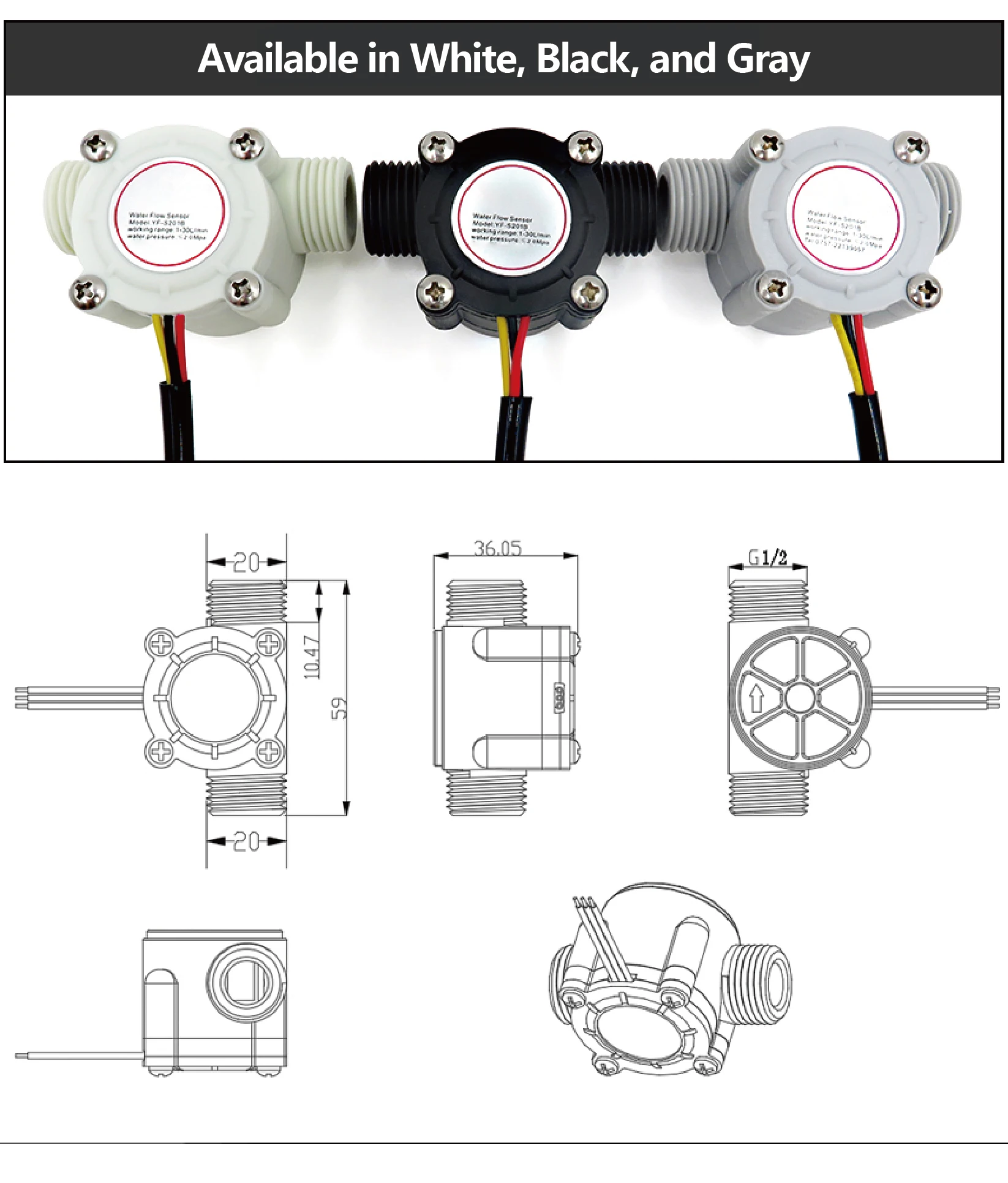

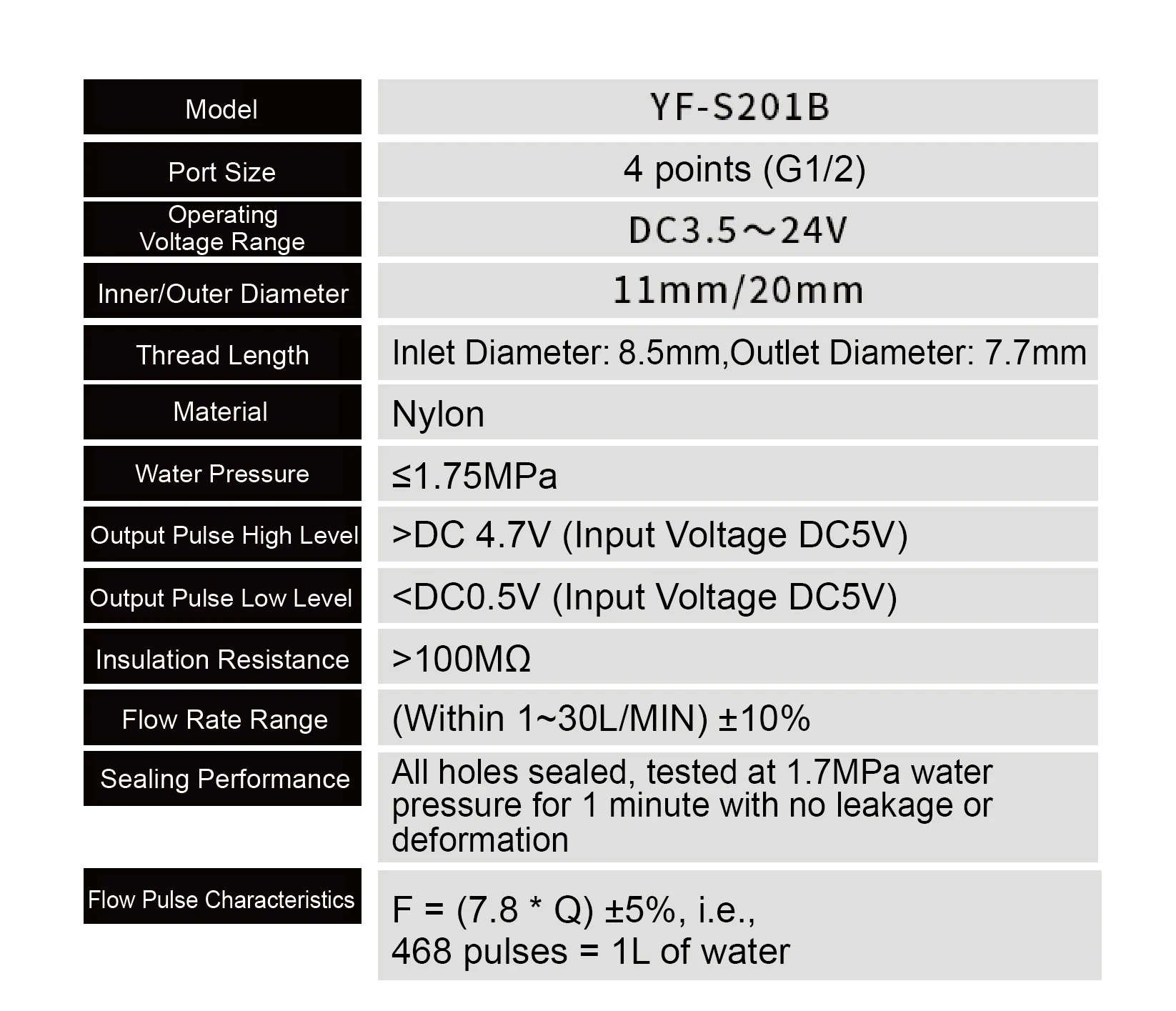

S201B | G1/2 | 1–30 L/min | Nylon(White / Black / Gray) | DC 3.5–24V | Color option |

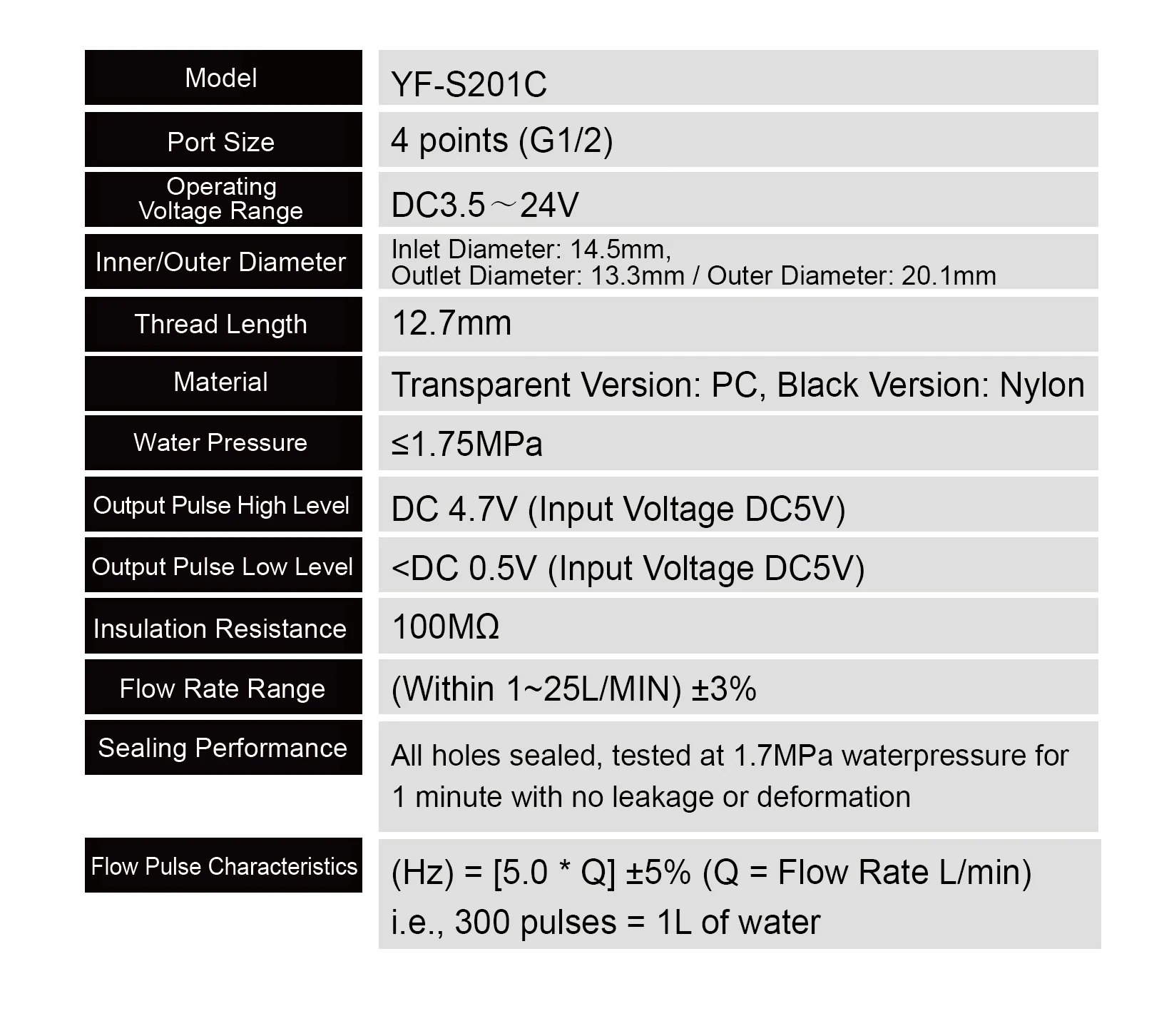

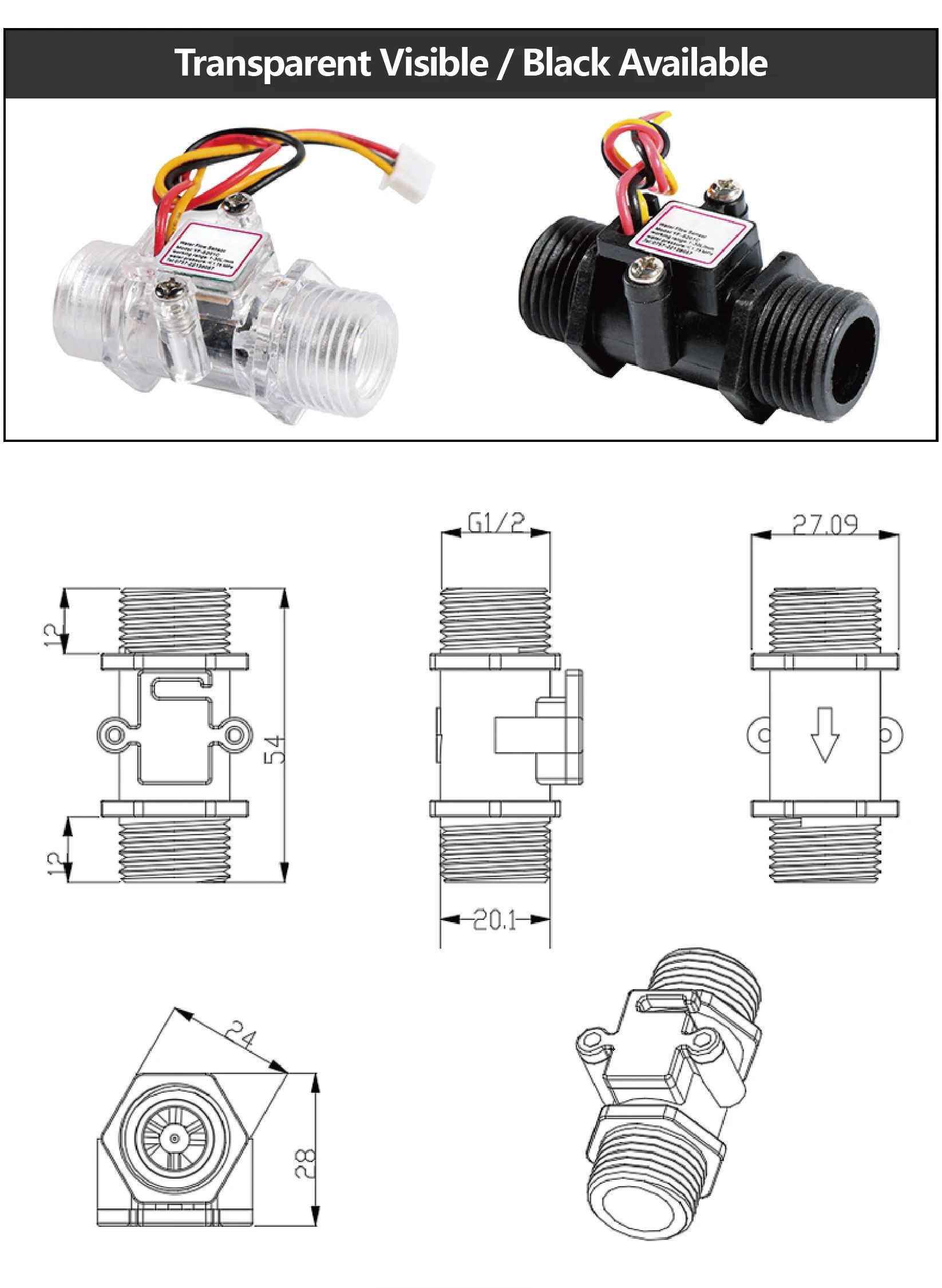

S201C | G1/2 | 1–25 L/min | Nylon or PC | DC 3.5–24V | Material Option |
YS168 | G1/2 | 0.5–10 L/min | Nylon | DC 5–18V | Waterproof |

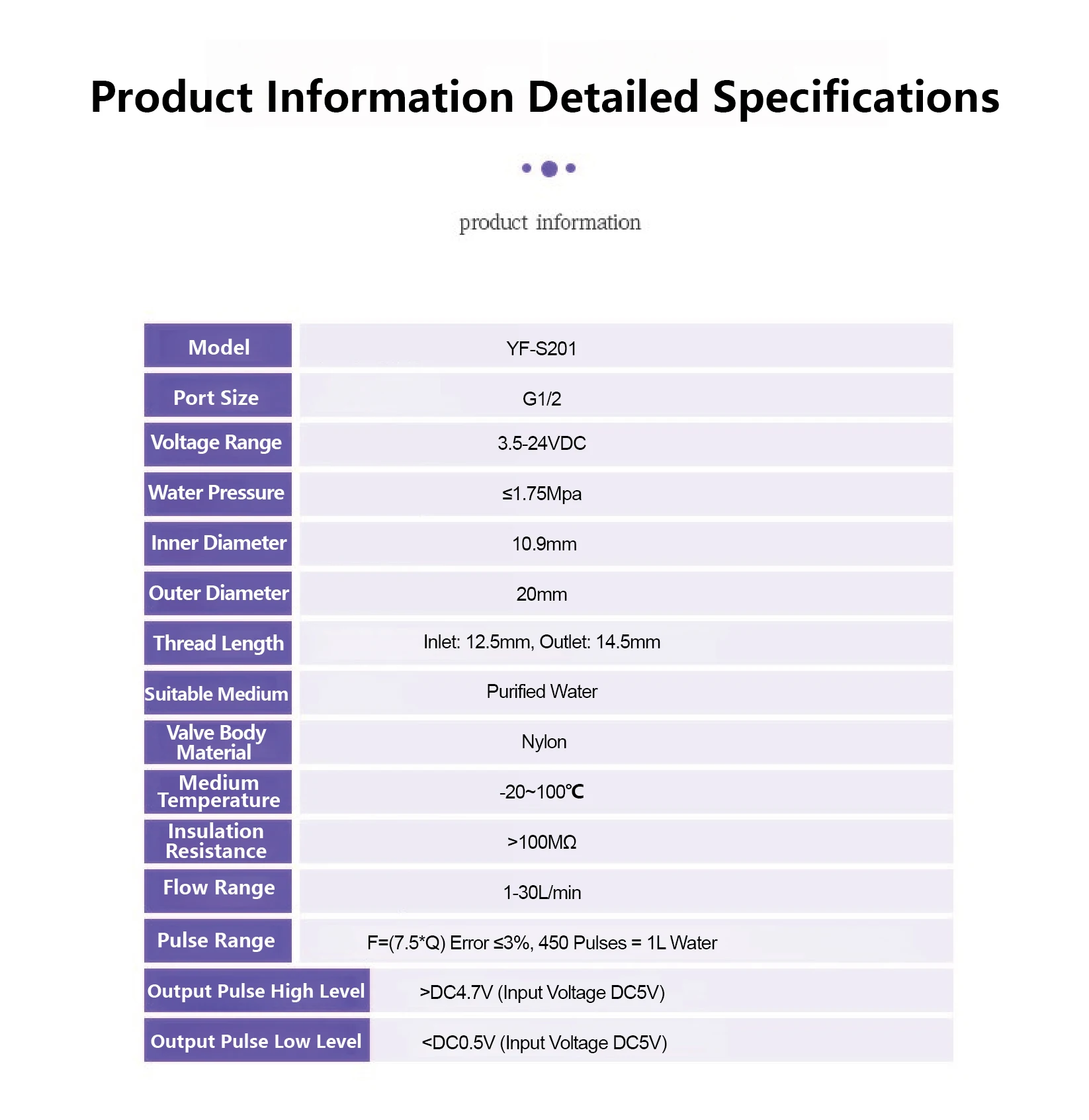

2.Parameters
Parameter | YF-S201 | YF-S168 |
Model | YF-S201 | YF-S168 |
Thread Size | G1/2 | G1/2 |
Voltage Range | 3.5–24VDC | 5–18VDC |
Inner Diameter | 10.9 mm | 12.8 mm |
Outer Diameter | 20 mm | 20.2 mm |
Thread Length | Inlet: 12.5 mm / Outlet: 14.5 mm | 18 mm |
Pressure Resistance | ≤1.75 MPa | ≤1.75 MPa |
Suitable Medium | Purified water | Purified water |
Body Material | Nylon | Nylon |
Medium Temperature | -20°C ~ 100°C | -20°C ~ 100°C |
Insulation Resistance | >100MΩ | >100MΩ |
Flow Range | 1–30 L/min | 0.5–10 L/min |

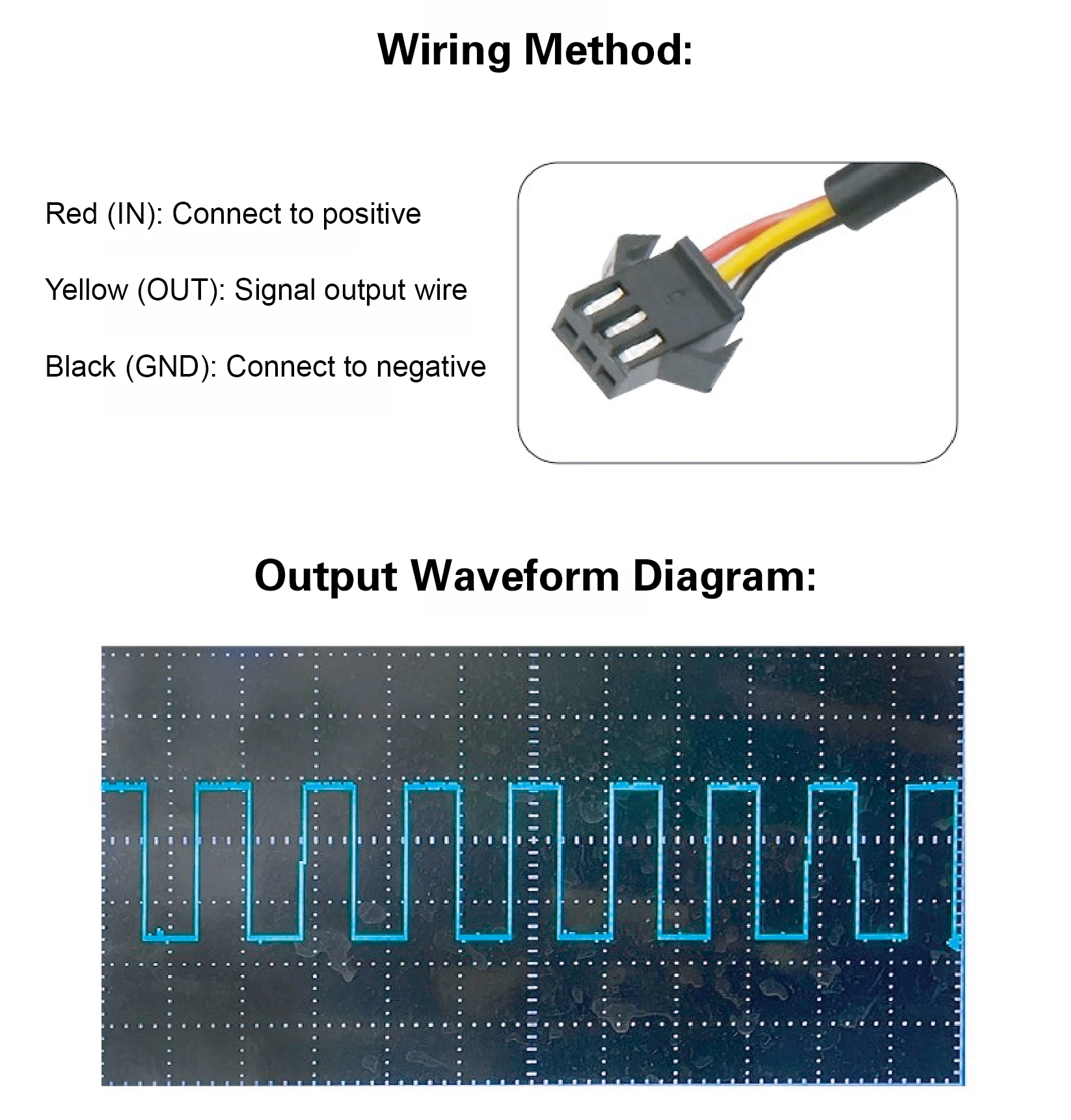

Pulse Output Formula | F = 7.5 × Q (±3%) | F = 11 × Q + 2 (±3%) |
Pulses per Liter | ≈ 450 pulses/L | ≈ 662 pulses/L |
Output High Level | > DC4.7V (at DC5V input) | > DC4.7V (at DC5V input) |
Output Low Level | < DC0.5V (at DC5V input) | < DC0.5V (at DC5V input) |
Pulse Duty Cycle | Not specified | 50% ±10% |
3.Features
Wide Voltage Compatibility
Compatible with 3.5V–24V input (YF-S201), allowing flexible integration into a wide range of circuit designs.
High Flow Accuracy
Delivers stable pulse output for precise flow rate measurements with an accuracy of ±3%.
Durable Nylon Construction
Built with high-strength nylon, resistant to pressure and high temperatures, ensuring long-lasting performance.
Compact G1/2 Thread Design
Features standard G1/2 threading for easy installation and wide compatibility with various systems.
Low Starting Flow
The YF-S168 model detects flow as low as 0.5 L/min, making it ideal for low-flow and sensitive applications.
4.Applications
Water Purification Systems
Ensures accurate flow monitoring to support effective filtration and system efficiency.
Household Water Heaters
Provides reliable flow detection for safe and energy-efficient operation.
Self-Service Water Vending Machines
Enables precise flow measurement for accurate dispensing and billing.
Smart Campus Shower Card Systems
Supports intelligent water usage tracking and control in shared facilities.
5.FAQs
Q1: Can I install this sensor outdoors?
A1: No. The sensor should be installed indoors or in a dry, controlled environment. Exposure to humidity, high temperatures, or vibration can impact its accuracy and performance.
Q2: Can I replace my old flow sensor directly with this model?
A2: If you haven’t used this specific structural model before, we recommend testing for compatibility first or contacting us for guidance.
Q3: Do I need a filter with this sensor?
A3: Yes. A filter is required at the water inlet to prevent debris from entering and damaging the sensor.
