Name: USR-W610 RS485/RS232 support Port Modbus TCP/RTU Industrial WiFi Serial to Ether
Brand: Prime Living
SKU: H-168340228384
Price: 129.99 CAD
Availability: InStock

Product Description

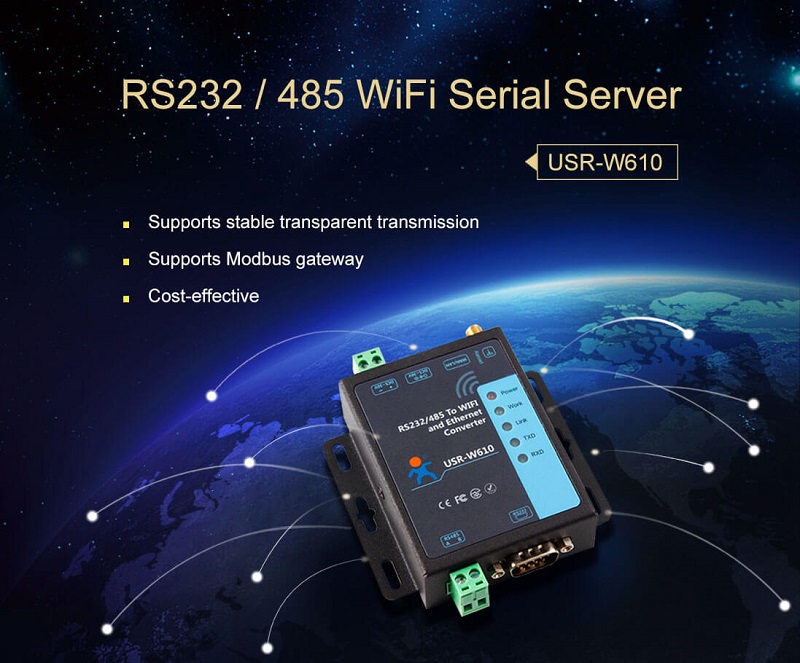

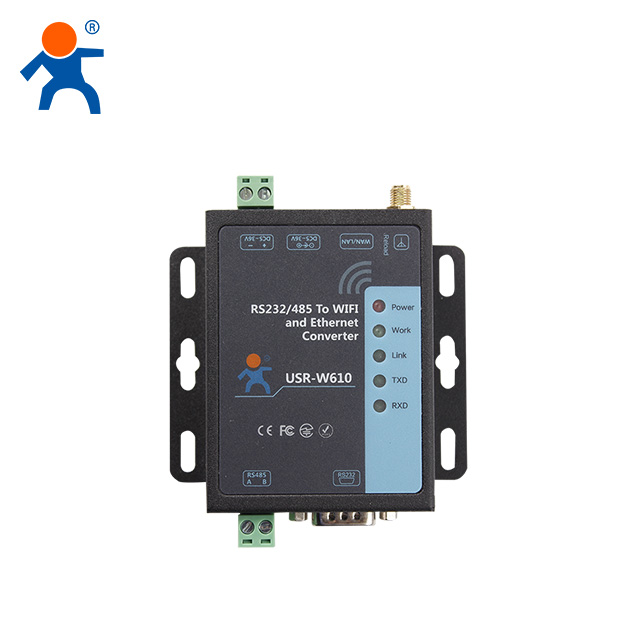

USR-W610 RS485/RS232 support Port Modbus TCP/RTU Industrial WiFi Serial to Ethernet Converter

Product Description

WiFi Serial Server, Serial To Wifi /Ethernet Converter Support Modbus Gateway

Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter.

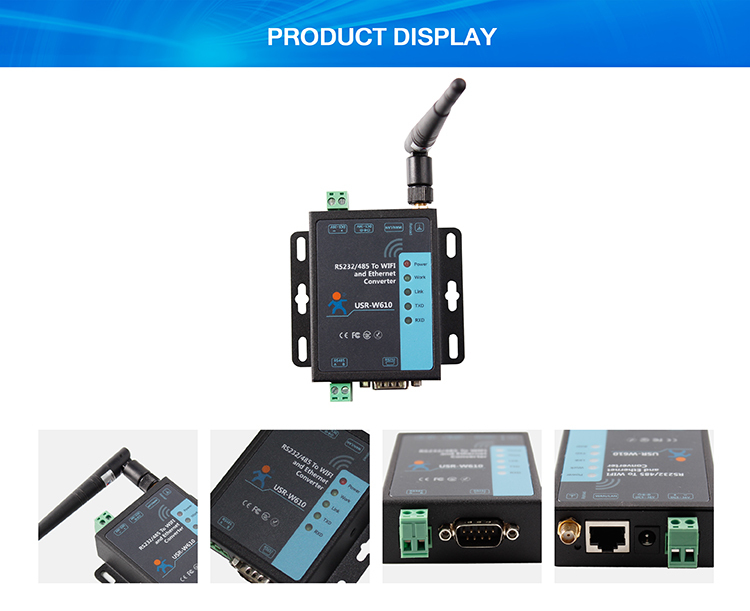

Detailed Images

Characters

1. WIFI 2.4GHz 802.11b/g/n wireless standards.
2.TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
3.AP, STA, AP+STA.
4.Modbus gateway.

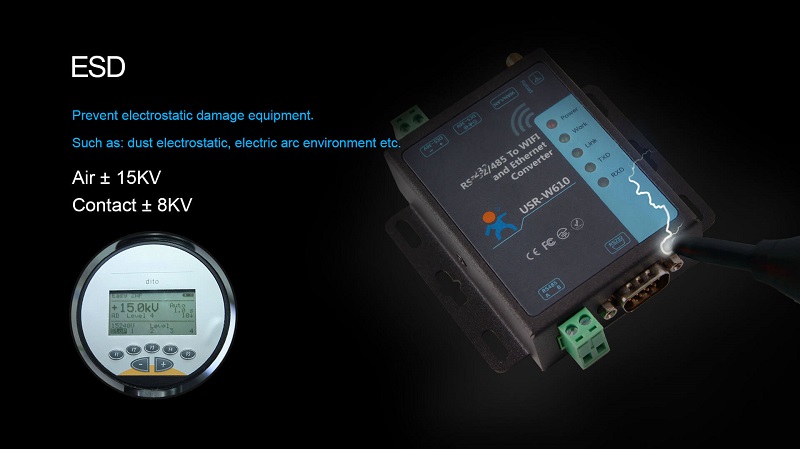

5.Electrostatic protection

6.WatchDog, 24 hours stable operation.
7. Identity packet function.
8. Heartbeat packet function.
9.Websocket function.
10.Timeout reset function, timing reset function.
11.Web Server, setup software, serial/network AT command to configure module.
12. Hardware reload.
13. Usrlink.

EFT: Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged. Power: 2KV, Ethernet interface 232 485: 2KV

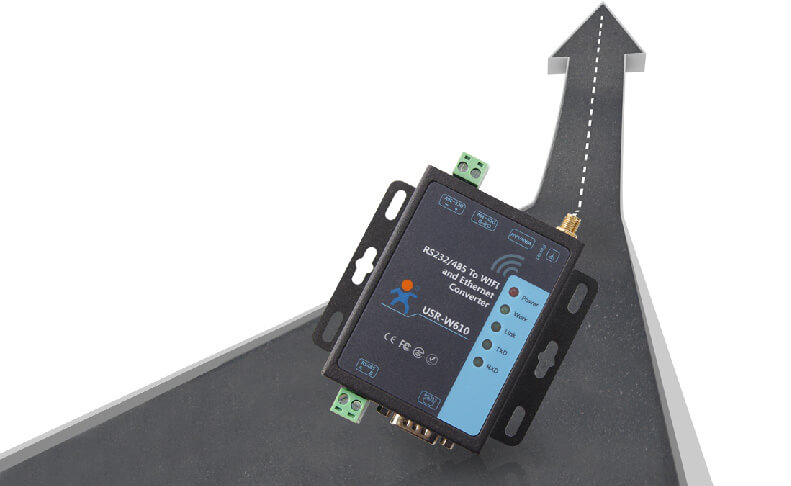

Products Iteration

Dual power interface & Modbus polling function.

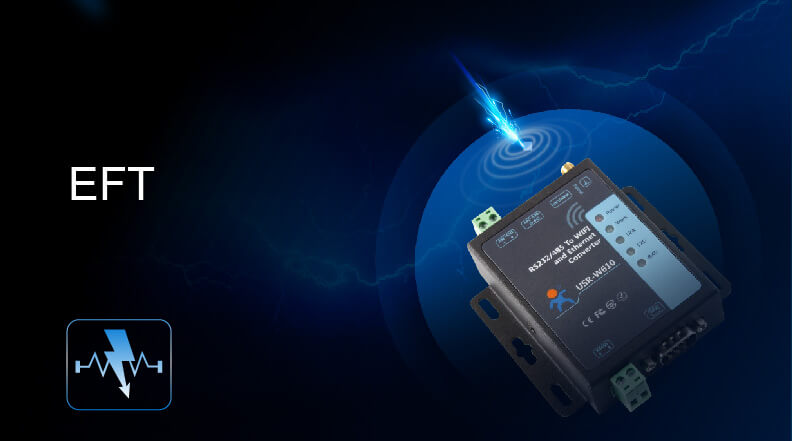

EFT

RS232 to WiFi converter/RS485 to WiFi converter USR-W610 has passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged.
Power: 2KV
Ethernet interface 232 485: 2KV

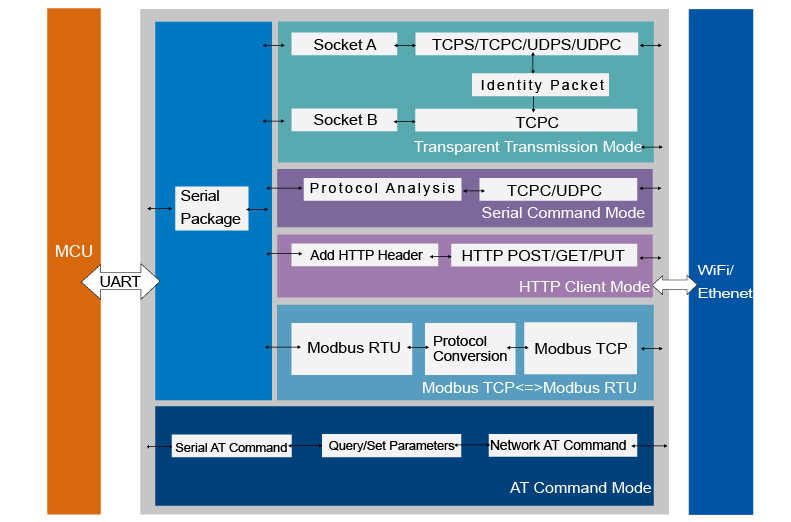

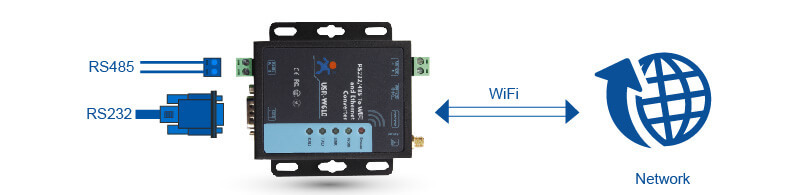

Transparent Transmission Mode

In this mode, all transmitted/received data is not parsed between the serial port and the WiFi interface. It minimizes the
complexity of user usage.

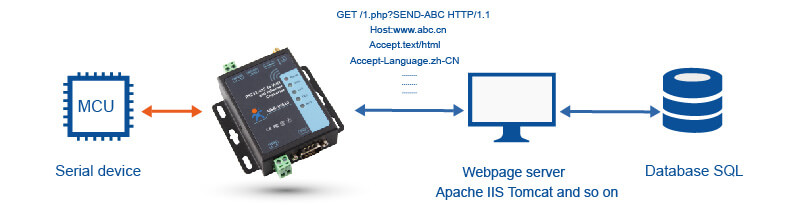

https Client Mode

In this mode, serial data will be submitted to the https server via https GET/POST/PUT requesting method.

AT Command Mode

In this mode, user can query/set parameters via serial AT commands or network AT commands.

Special Features

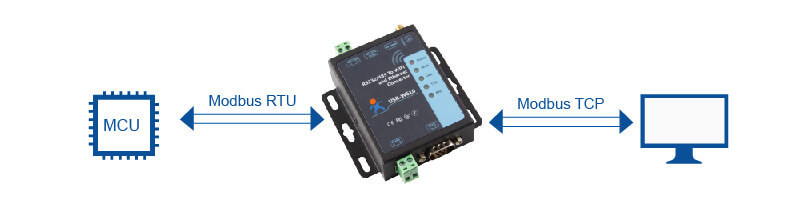

Modbus Polling Mode

In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.

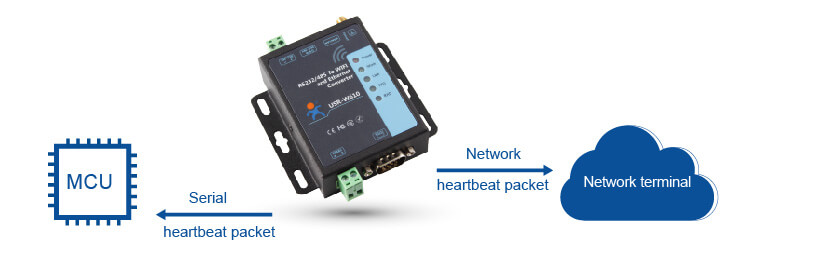

Heartbeat Packet Function

RS232 to WiFi converter/RS485 to WiFi converter USR-W610 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W610 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.

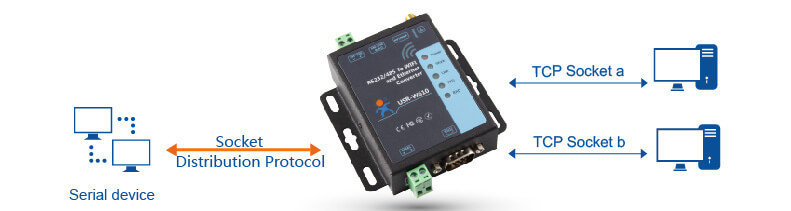

Socket Distribution Protocol

USR-W610 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header.The data received from different socket will be added different header before they are sent to serial.

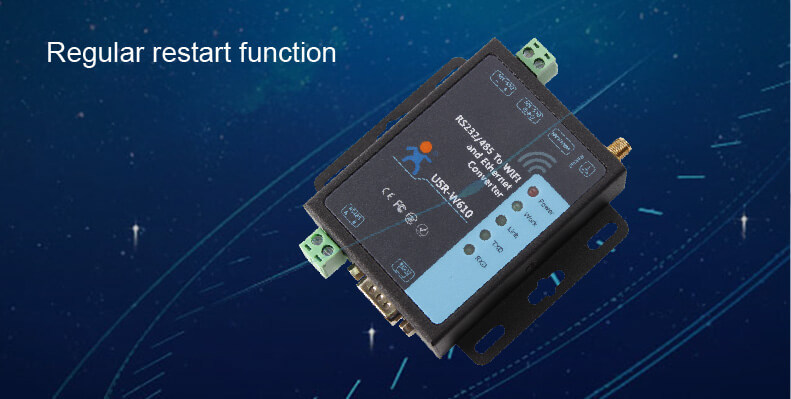

Regular Restart Function

USR-W610 supports timing and timeout restart function, which makes the system run more stable.

Applications

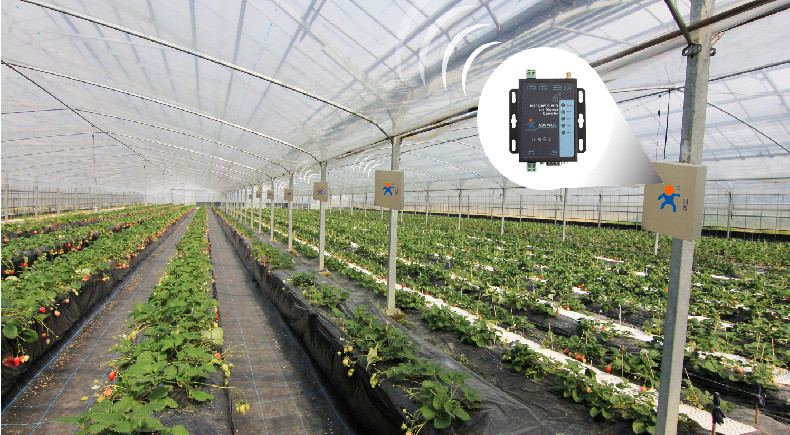

Smart Agriculture
1.Monitoring the situation in the greenhouse,such as utilization rate about water resources, fertilizers and so on.
2. To obtain farmland information and monitor sudden natural disasters.
3. Fully automated operation without human intervention, achieving the precise control of agriculture.

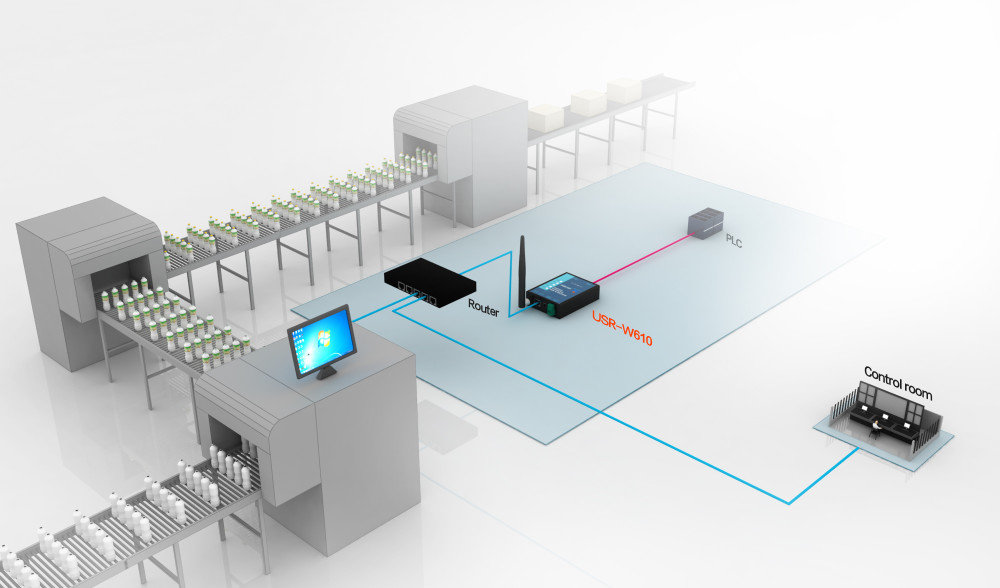

Industrial Detection
1. According to the site environment to choose WiFi or wired networking.
2. Real-time detection of air leakage products mixed in

bottle buckles.
3. High sensitivity transmission monitoring data, the accurate data can ensure that monitoring without omission.

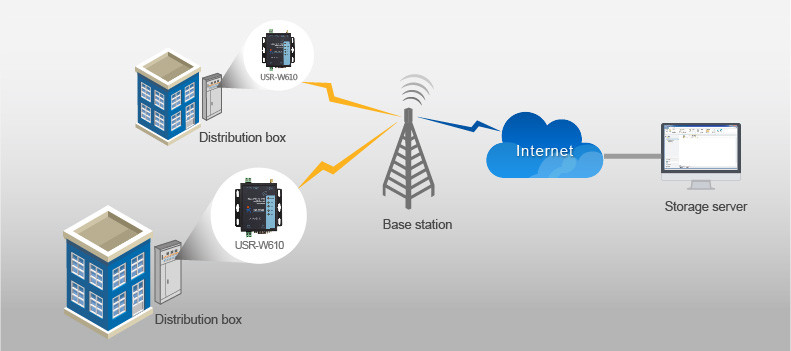

Intelligent Power Data Acquisition Solutions
1. Build-in routing function, supports wired or WiFi networking method.
2. Remotely monitoring meter data, it not only saves manpower and resources, facilitates the sudden response measure.
3. Rapid collection of data in the monitoring and management platform, it facilitates the city electricity management

then to achieve smart city.
