Product Description

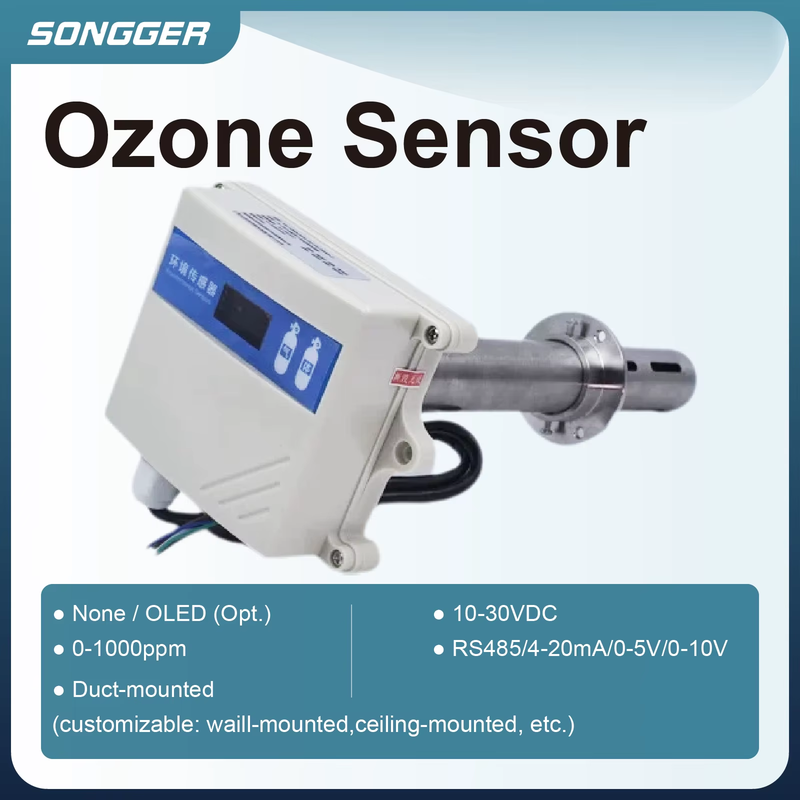

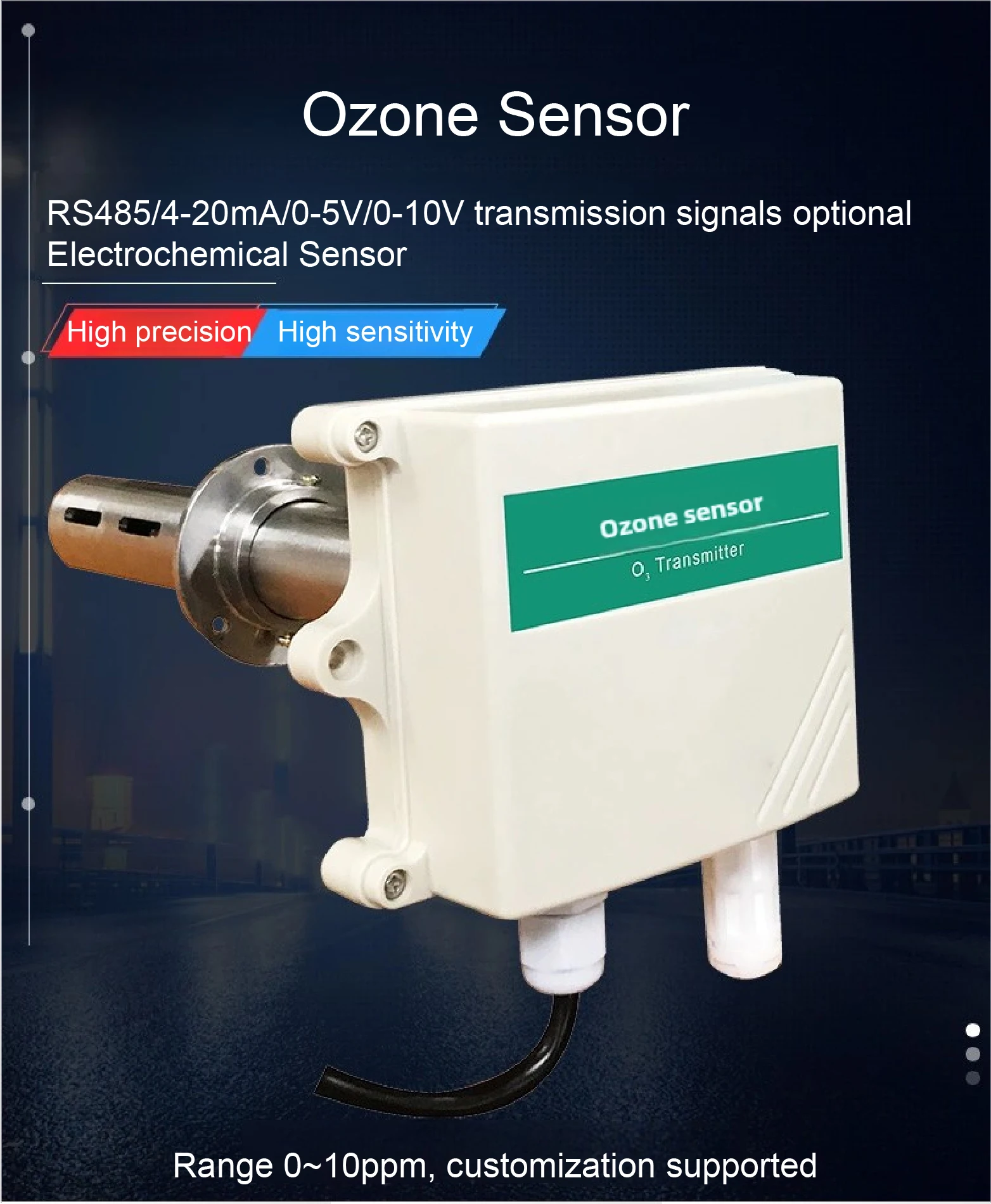

QT-G10QS Duct Type Ozone Sensor Transmitter RS485 4-20mA 0-10V O3 Detector Range 0-10ppm 0-100ppm IP65 Fixed Transmitter
QT-G10QS Duct Type Ozone Sensor Transmitter RS485 4-20mA 0-10V O3 Detector Range 0-10ppm 0-100ppm IP65 Fixed Transmitter1. NOTE
Installation Type: This sensor supports various installation types, including pipe-mounted, wall-mounted, portable, ceiling-mounted, and louver-box designs. Each option is tailored for specific application needs, ensuring flexibility and easy integration.
Measurement Range: Standard ranges of 0-10ppm and 0-100ppm are available, with customizable options to suit diverse industrial scenarios.
Signal Transmission: A variety of output formats, including RS485, 4-20mA, 0-10V, 4G, WiFi, Ethernet, NB-IoT, and Lora, enable seamless connectivity with your monitoring systems.
Customization: If you need custom specifications or additional features, please feel free to contact us directly.
If the online shipping cost appears high, and you plan to purchase in bulk or large-sized items, we can
offer more cost-effective shipping options and routes. Please contact us for detailed arrangements.

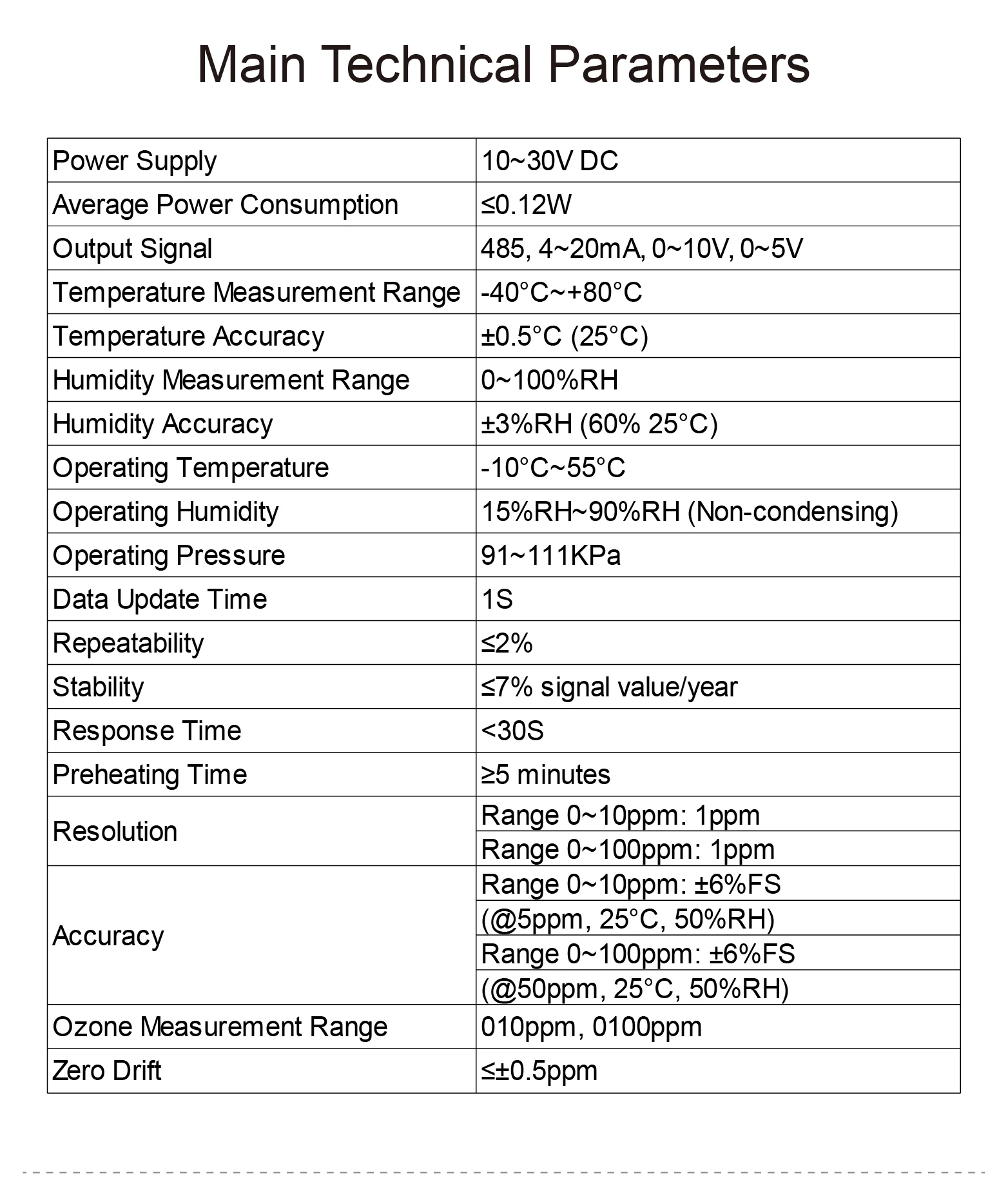

2. PARAMETERS
Specifications | Details |
Power Supply | 10~30VDC |
Power Consumption | ≤0.12W |
Output Signal | RS485, 4-20mA, 0-10V |
Measurement Range | 0-10ppm, 0-100ppm (Customizable) |
Accuracy | ±6%FS (@50ppm, 25℃, 50%RH) |
Temperature Range | -10℃~55℃ |
Humidity Range | 15%RH-90%RH (No condensation) |
Response Time | ≤30s |
Data Update Interval | 1s |
Protection Level | IP65 |
3. APPLICATION
Disinfection monitoring in exhaust systems.
Environmental protection compliance testing.
Chemical and pharmaceutical production facilities.
4. FEATURES
High Precision Measurement: Equipped with PE waterproof probe for accurate readings.
Customizable Outputs: Supports RS485, 4-20mA, 0-10V, and other output formats.

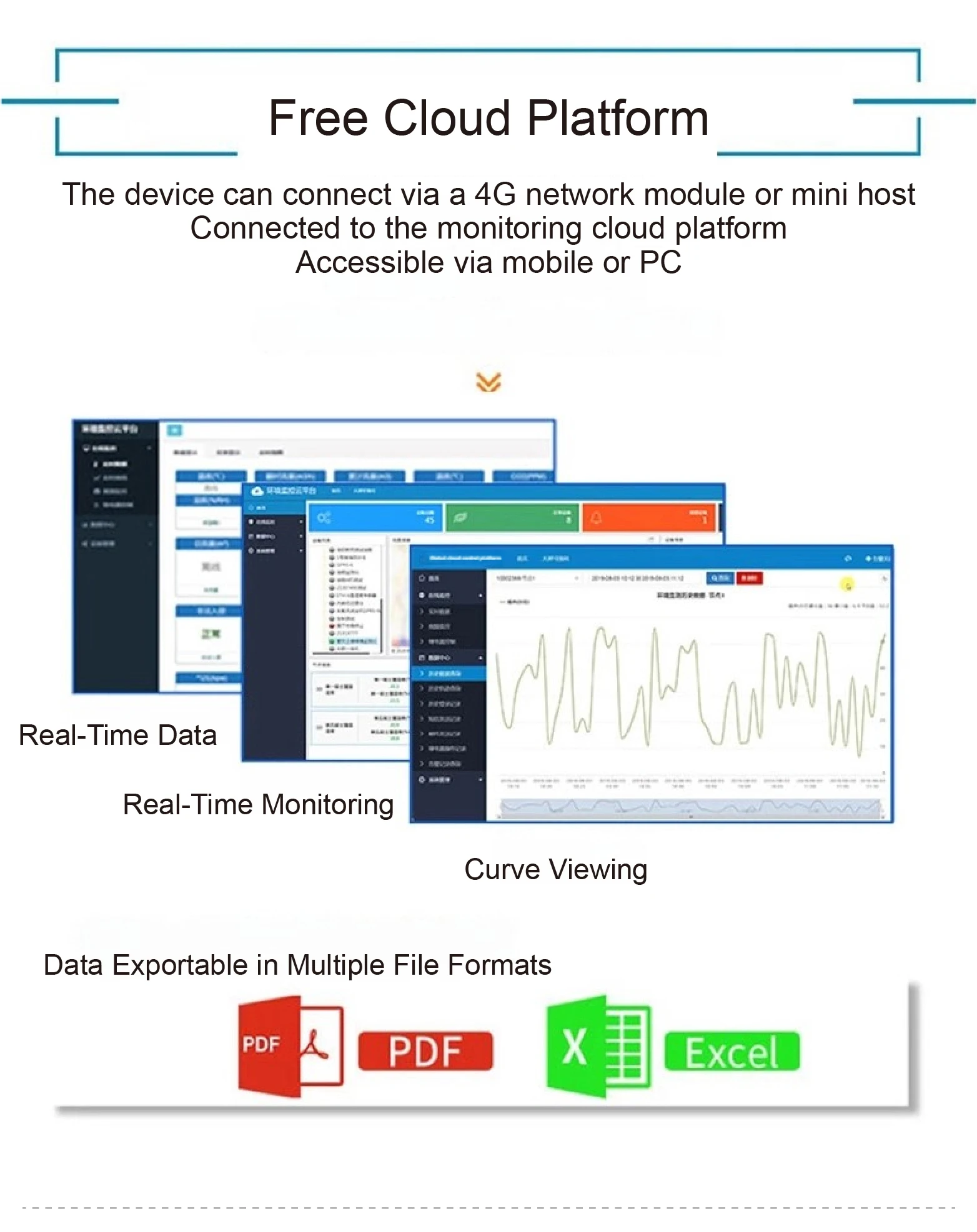

Real-Time Monitoring: Optional 4G cloud connectivity with mobile app integration.

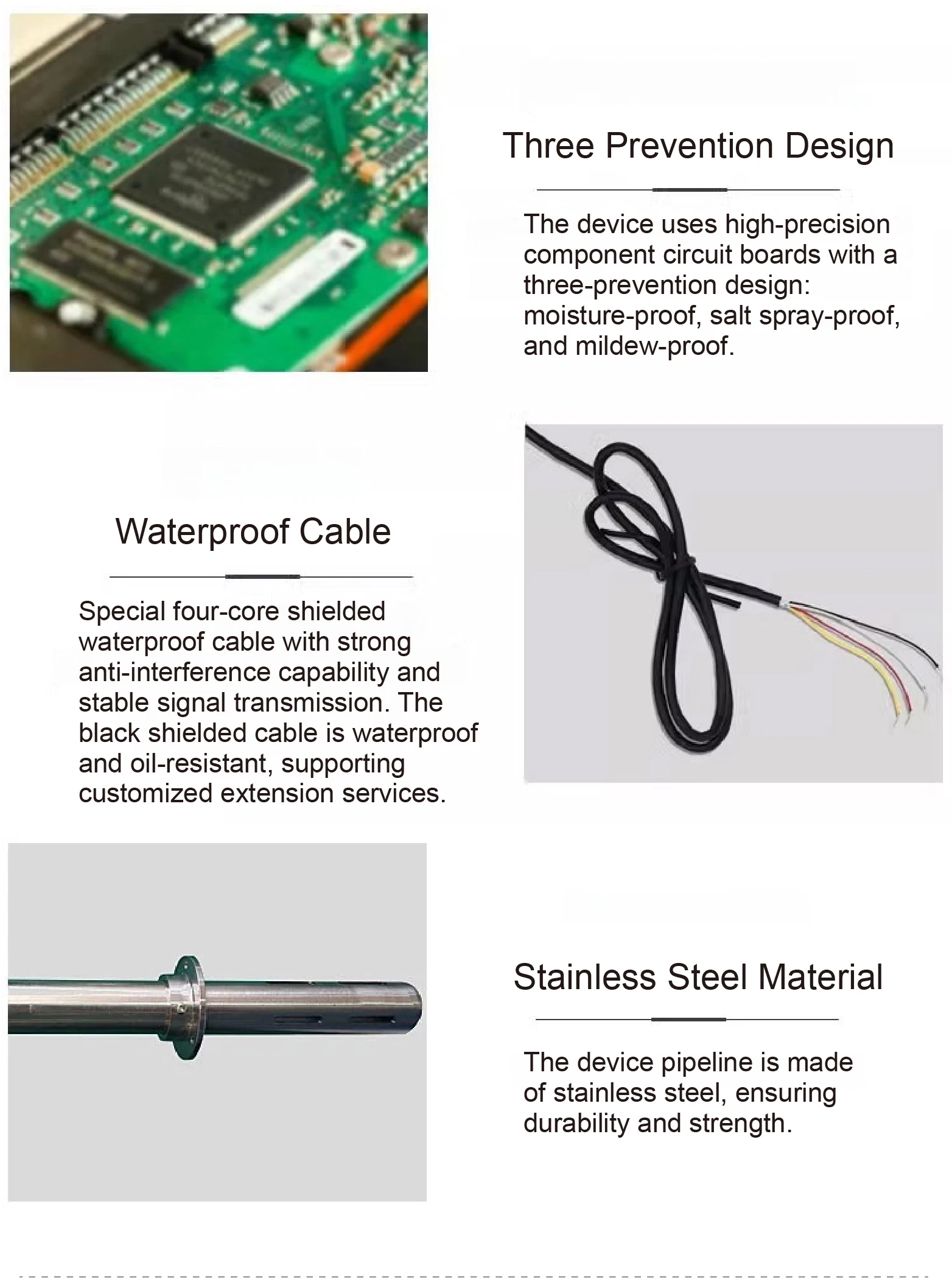

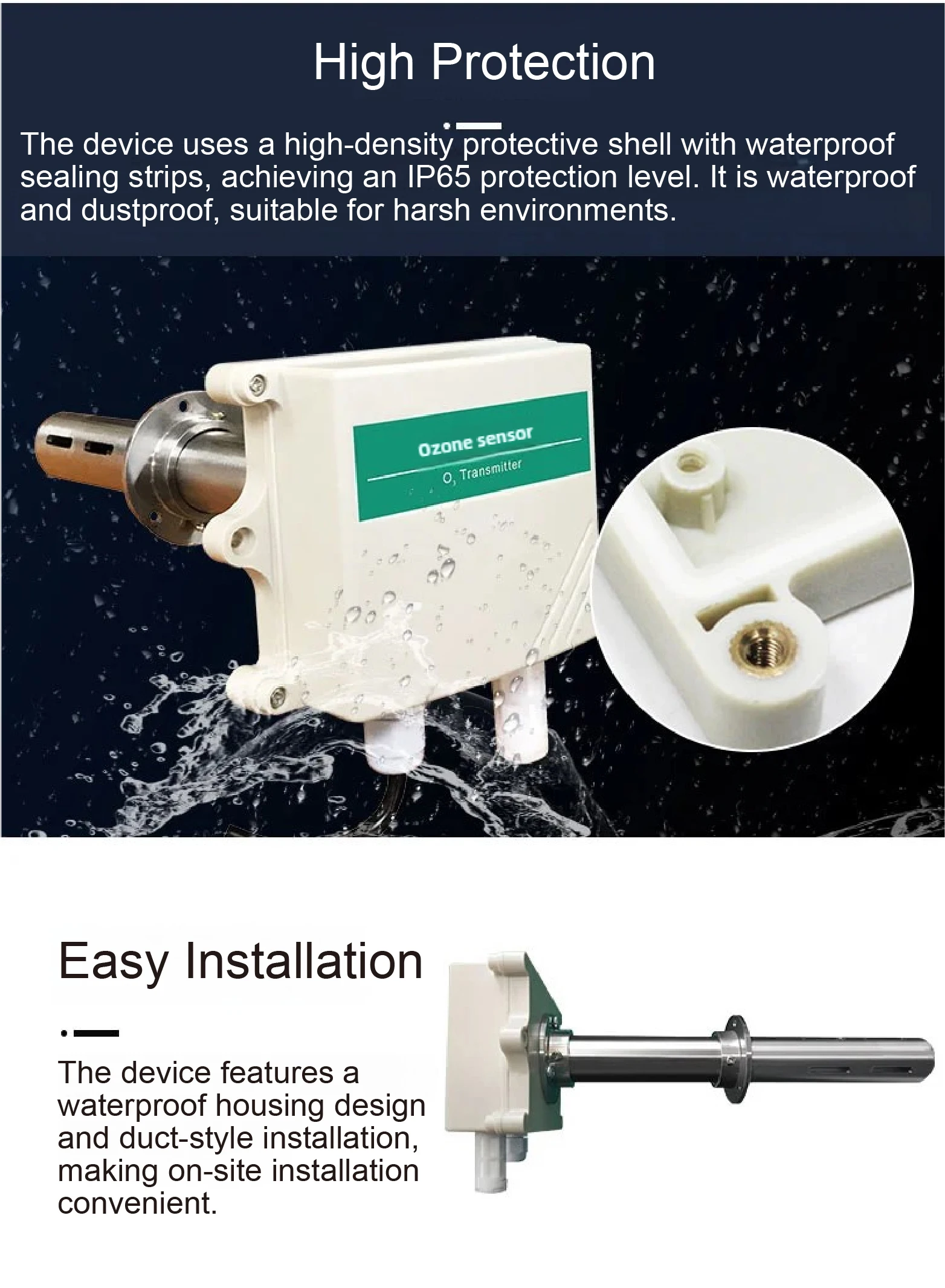

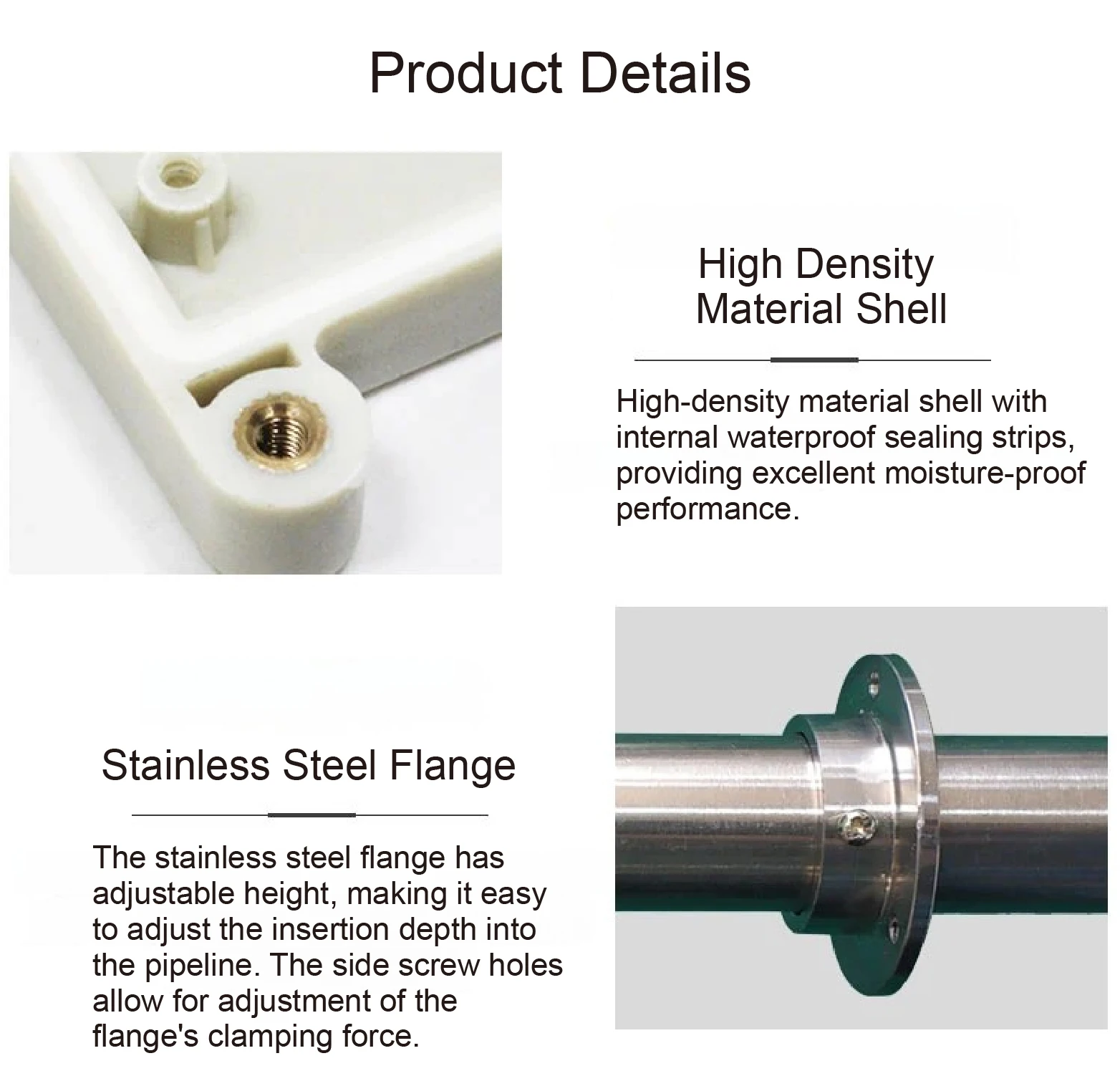

Durable Design: Waterproof housing and anti-corrosion stainless steel construction.
5. FAQ
Q: Can I customize the output type or range for specific applications?
A: Yes, we offer customizable ranges and output types (e.g., 0-5V, RS485) upon request.
Q: Does the sensor require additional setup?

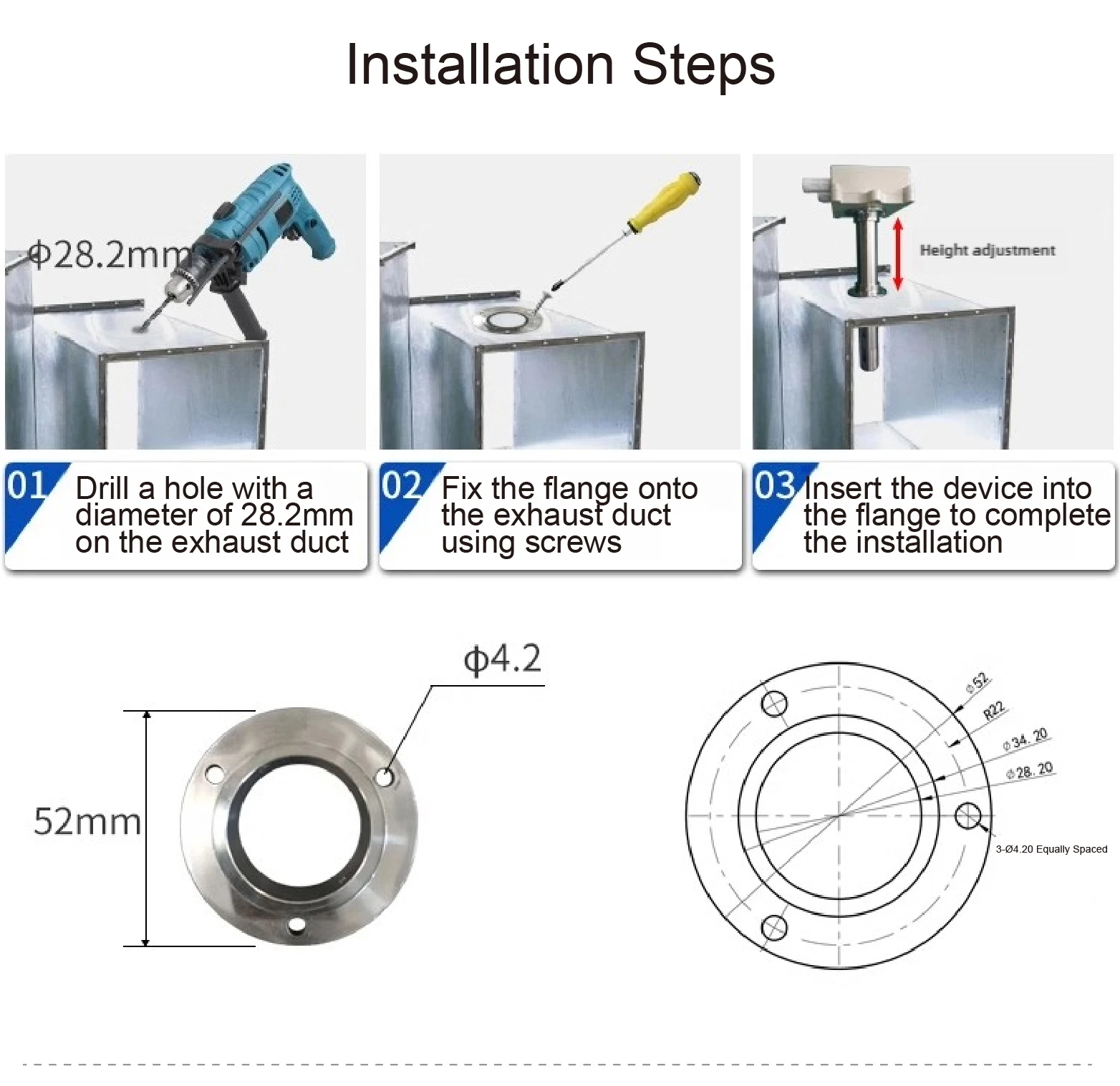

A: No, the device comes pre-configured. Simply mount it to the pipe and connect the power supply.
Q: Can I monitor the sensor data remotely?
A: Yes, with the 4G module, data can be uploaded to a cloud platform for real-time access via PC or smartphone.
