Industrial Grade Two Master One Slave Hub RS485 Repeater Buffer Photoelectric Is

Product Description

Product Introduction:

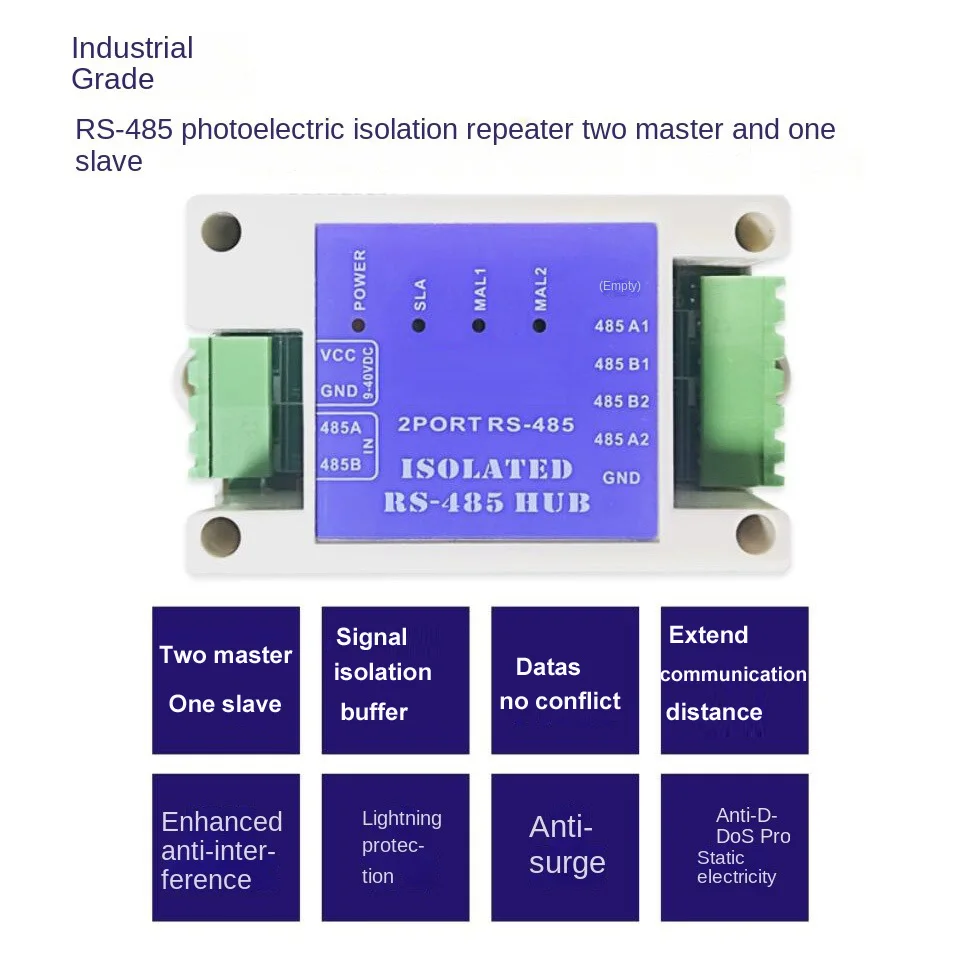

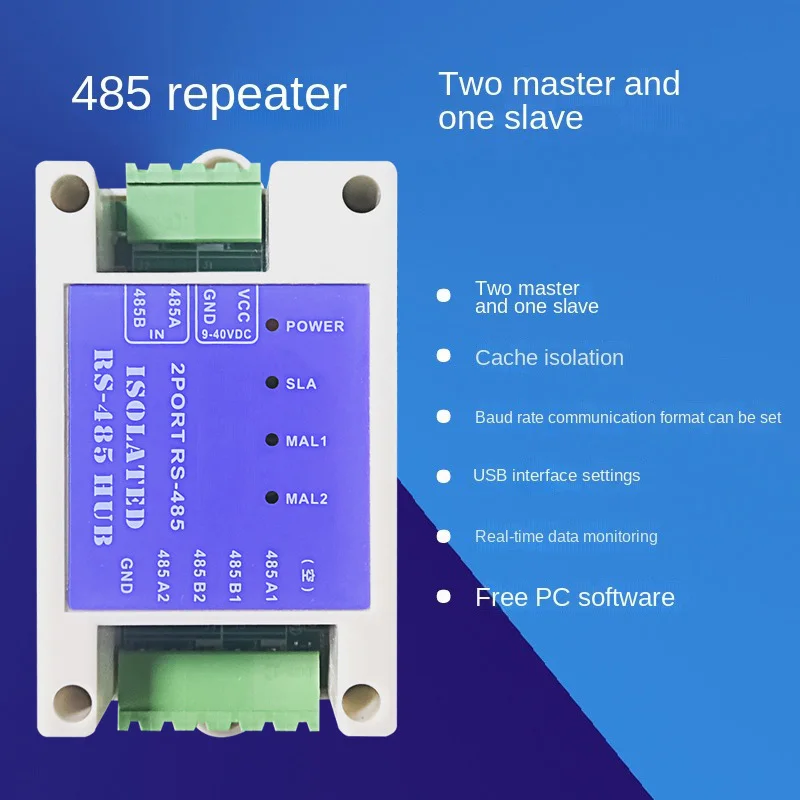

PH-6021 (ZC) Two way cache isolated RS485 hub is a communication device that supports two ways of RS485 master station equipment and one or multiple ways of RS485 slave station equipment. It is used to solve the problem of communication conflicts when two master stations communicate with the slave station at the same time. When querying the slave station data, Master Station 1 will only return to Master Station 1 and not to Master Station 2, Similarly, querying data from master station 2 will only return to master station 2 and not to master station 1. Optoelectronic isolation technology is used between the master station and slave station interfaces to protect the master station equipment from interference. The circuit design includes 15KV ESD protection and 5KA lightning surge protection devices, which can effectively isolate the harm caused by lightning and static electricity to the equipment. Each of the three communication interfaces has a communication indicator light, which can visually see the status of each communication interface. Transparent data transmission between the master and slave interfaces, communication format and baud rate can be set through software

This product is suitable for integrated RS485 communication systems such as automation control systems, monitoring systems, alarm systems, access control systems, IC card charging, meter reading, all-in-one card, parking lot charging, etc.

Functional characteristics

·Power input DC9-36V with overcurrent and reverse protection

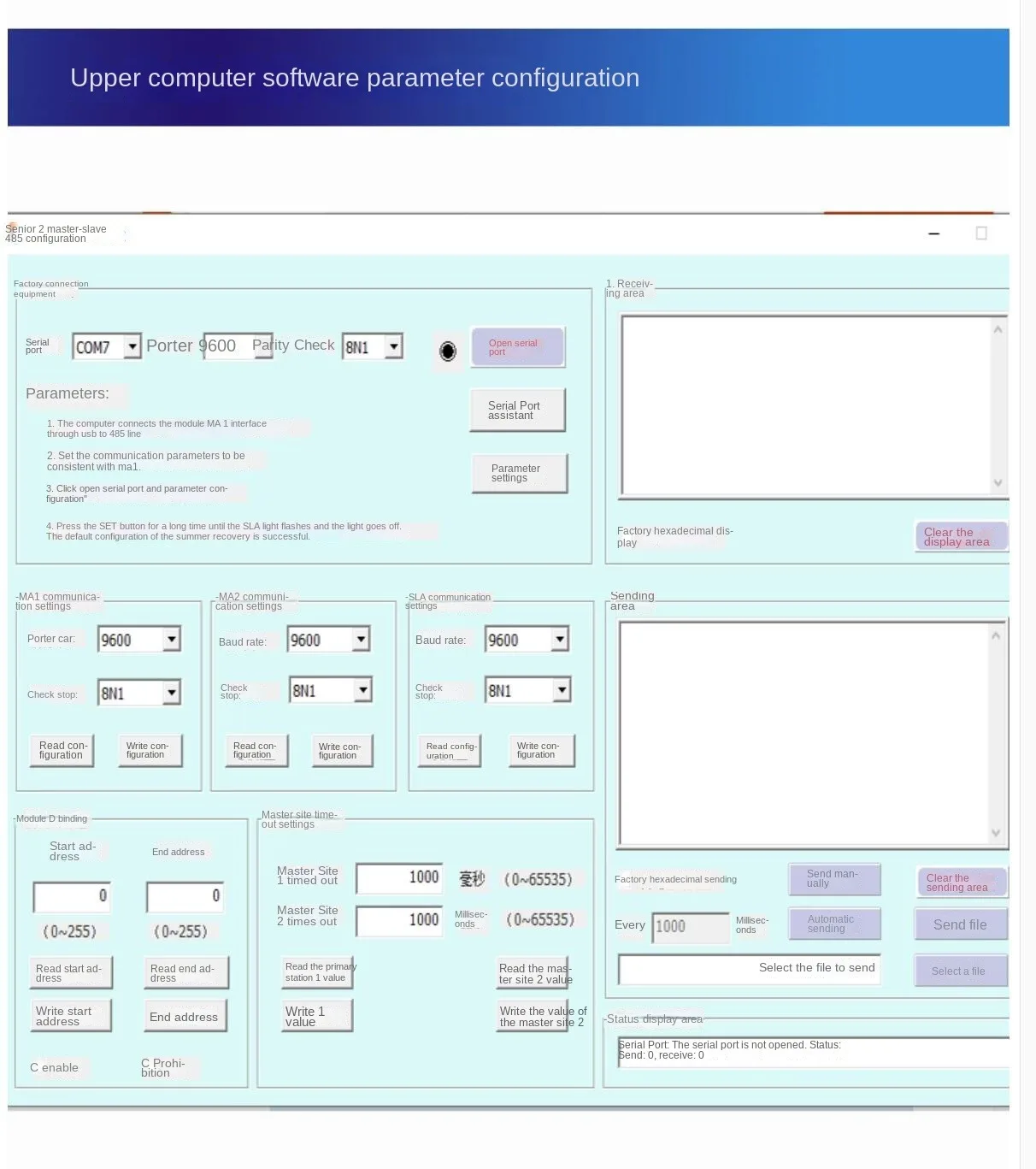

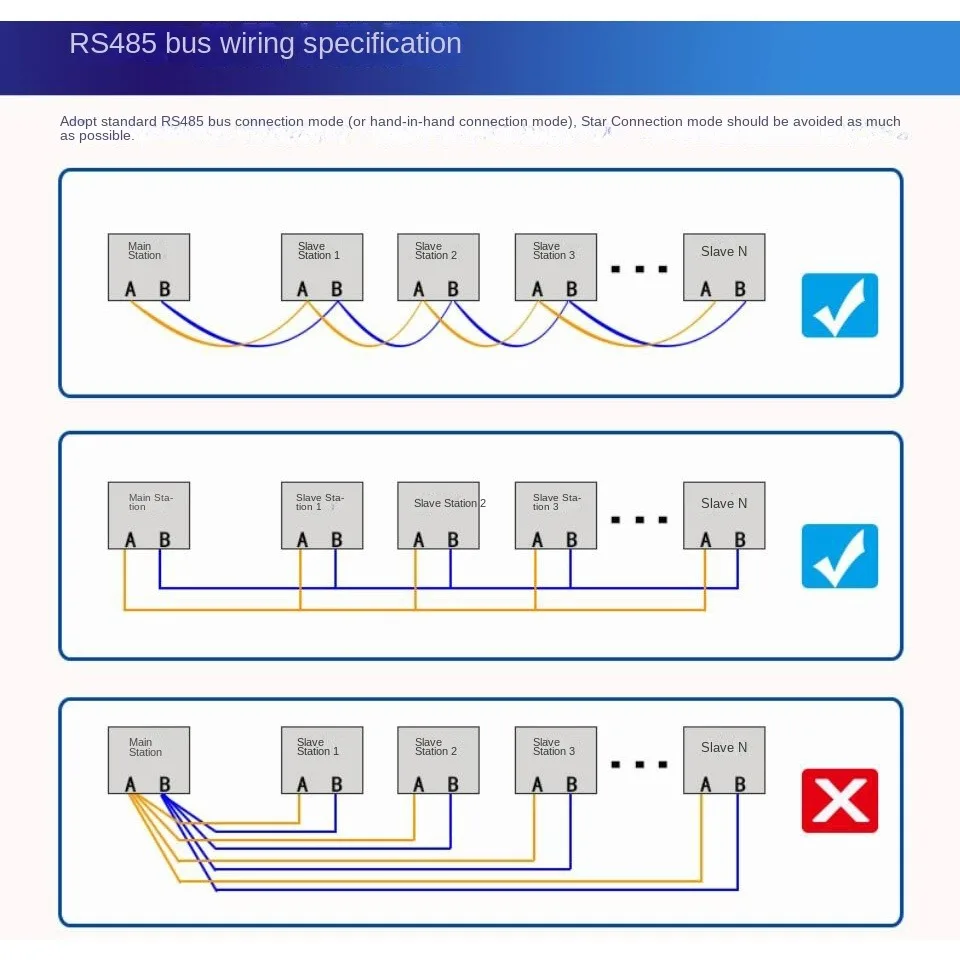

·Supports communication between two RS485 master station devices and one or more RS485 slave station devices. The baud rate and communication format can be set

·The signal interface has protection against static electricity, lightning strikes, and surges

·The communication and power supply between the master and slave interfaces are completely isolated

·Adopting 32-bit MCU and high-speed optocoupler, with a baud rate of up to 115200

·The slave communication port supports a maximum of 120 nodes

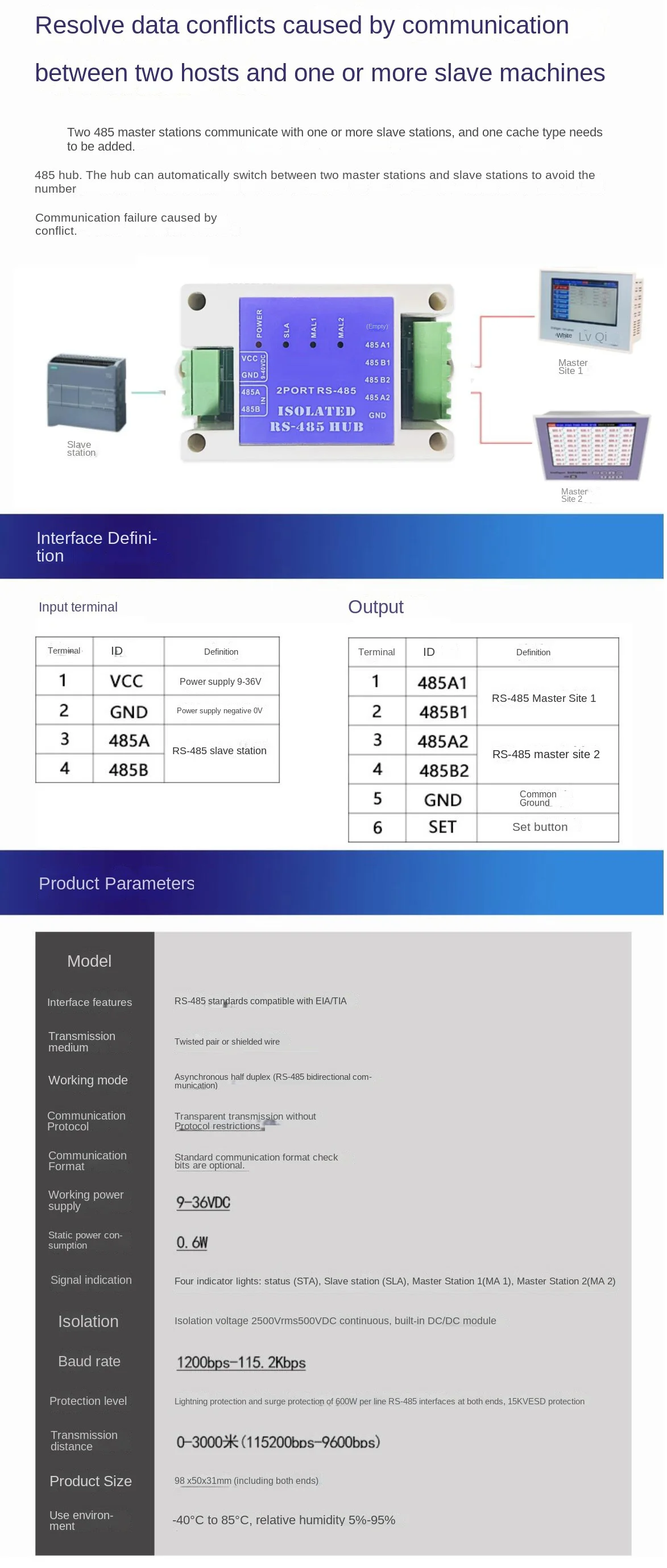

Product parameters:

Model: PH-6021 (ZC)

Interface characteristics: compatible with EIA/TIA RS-485 standard

Transmission medium: twisted pair or shielded wire

Working mode: Asynchronous half duplex (RS-485 bidirectional communication)

Communication protocol: Transparent transmission without protocol restrictions

Communication format: Standard communication format with optional check bits

Working power supply: 9-36VDC

Static power consumption: 0.6W

Signal indication: four indicator lights, status (STA), slave station (SLA), master station 1 (MA1), master station 2 (MA2)

Isolation degree: Isolation voltage 2500Vrms 500VDC continuous. Built-in DC/DC module

Baud rate: 1200bps -115.2Kbps

Protection level: 600W lightning surge protection for each line of RS-485 interfaces at both ends, 士15KV ESD protection

Transmission distance: 0-3000 meters (115200bps-9600bps)

Product size: 98x50x31mm (including both ends)

Operating environment: -40 ° C to 85 ° C, relative humidity 5% -95%

Communication speed:

1.Firstly, it should be noted that communication speed is mainly related to baud rate and data length: the higher the baud rate, the shorter the data length, and the faster the communication speed; On the contrary, the slower the speed.

In addition, it also depends on the response speed of the slave station. The faster the slave station responds, the higher the overall communication speed.

2. Use MODBUS protocol to read 1 at 9600 baud rate

1 register as an example:. Upper computer query instruction

01030000000b040d lower computer responds to commands

01031600d7006f00630042003700600023004e004200600002 a8 d8

As shown in the figure, it can be seen from the sampling image measured by the oscilloscope that (1) the entire communication process takes approximately 100ms

(2) The module forwarding (-- receive send) time consumption is about 38ms
