Product Description

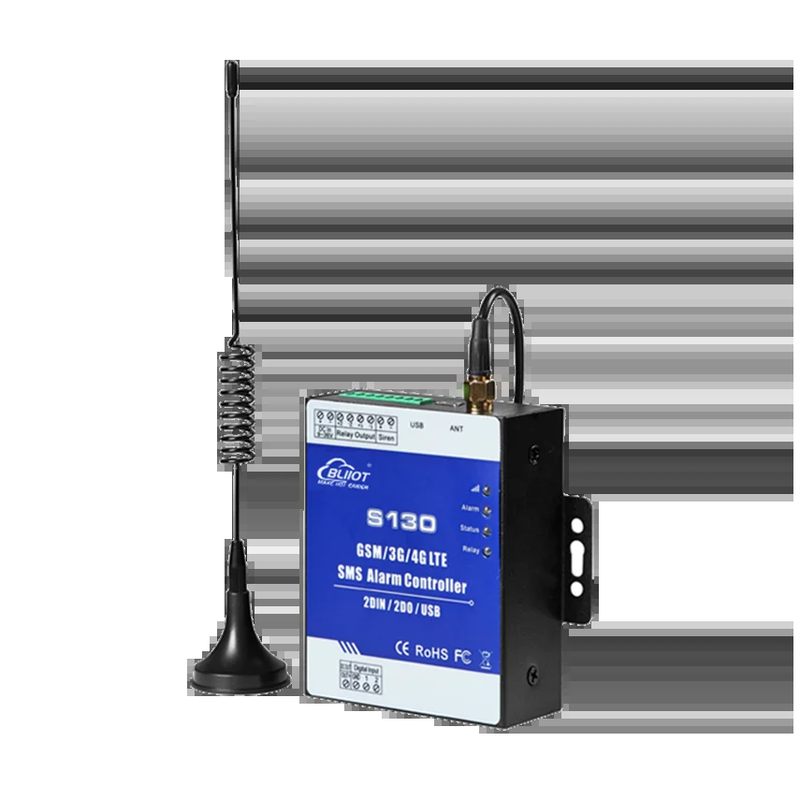

Wireless gsm 2 Relay outputs/2 Digital inputs SMS Alarm Controller S130
Wireless gsm 2 Relay outputs/2 Digital inputs SMS Alarm Controller S130Brief Introduction
Digital input 4G GSM alarm module with 2 output relay for home automation and M2M, USB programmable, 2G 4G gsm sms alarm module Automatic controller are special for remote switch on/off machine, equipments, and also it supports digital inputs for different detectors like water level detectors, PIR motion detectors and so on.One of the advantages of them is when the inputs recovery can alert by SMS, and with one interlock Relay output, one SMS Command switch on/off relay output.
When alarm occurrence, will send definition SMS text and dial the user mobile phones.
Package includes
GSM Controller * 1 Power supply adapter * 1 USB Cable * 1 GSM Antenna * 1 CD (Pc programmer tool) * 1Mainly Features
* Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;* 3G UMTS/HSDPA/4G Modules are optional.;
* 32 bit MCU, reliable performance with in-built watchdog;
* Support 2 relay outputs;
* Alarm-Link Output Relaycan be switch on 0-120minutes if controller unit triggered;
* 2 Alarm logicdigital inputs, NC or NO and EOL is optional;
* Compatible with the Wet Contact, Reverse protection, to avoid the wrong connection damage;
* 1 Siren output, can connect to the siren directly, once alarm occurred, will trigger the siren;
* 3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message;
* Supports armed, disarmed, inquiry status, switch on or off Independent Output Relay by SMS Commands;
* Password protected, prevents unauthorized user;
* Can be set up and programmed from PC Configurator by USB cable;
* In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
* Support Android/IOS APP, easily & friendly for use/configuration.
* Support USB configure parameters, load profiles, andupgrade the firmware via PC;
* Wall mount or 35mm standard DIN rail Design, convenient installation,
* Metalliccover, small size, exterior dimension is L70*W88*H30mm.
Typically Applications
:1. Security Alarm System applications;2. Supervision and monitoring alarm systems;
3. Automatic monitoring system;
4. Vending Machines security protection;
5. Buildings and Real Estate;
6. Weather Stations;
7. River Monitoring and Flood Control;
10. Temperatures, water leakage applications;
11. Wellheads, boat, vehicle;
12. Energy saving, street lights control system;
13. Valve controls;
14. Transformer stations;
15. Unmanned machine rooms;
16. Control room application;
17. Automation System, M2M;
18. GSM Access Control System, Gate Opener
