2CH Ethernet Relay Module MQTT Modbus Wifi CAN RS485 TCP Digital Input Web Acces

Product Description

Overview

Digital Input/Output

Support multiple channel relay, On/Off/Delay/Jog

Support multiple interface RJ45/RS485/CAN

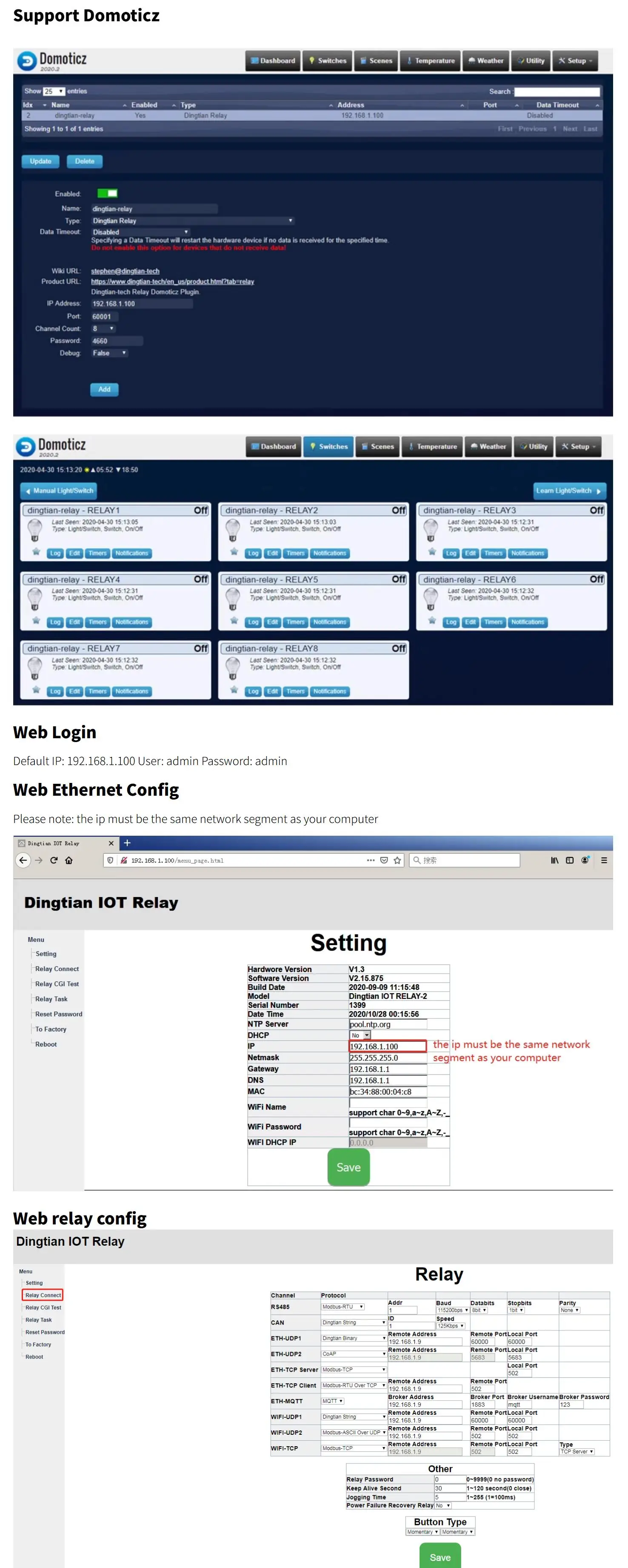

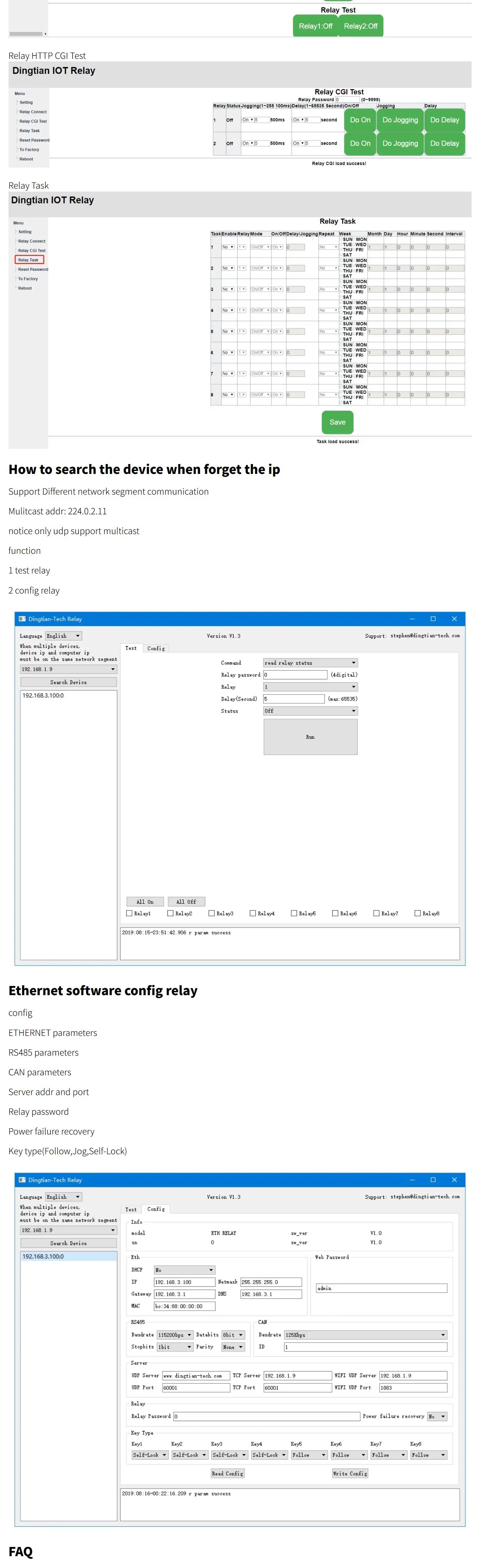

PC app config and control

WEB config and control

Support password Button control

MQTT/Modbus/CoAP/HTTP GET/UDP/TCP

Technical parameters

Interface RJ45/ RS485/CAN

Protocol MQTT/Modbus/CoAP/TCP server/client,UDP server/client,RS485,CAN

Operating temperature 0~+55°C

Storage temperature -40~+125°C

Relative humidity 5~95% RH, no condensation

Power supply 9-40V Non-polar

Current 1A@12V DC

Power consumption <5W

Relay parameters

Relay Power AC 250V/10A,DC 30V/10A

Delay 1~65535 seconds

Jogging in 0.5 seconds, automatically release

Q: Why cannot find the device when connect ethernet?

A:Please check if it the same network segment as your computer

Q:Saves relay status after power off/on on board?

A:Yes, it can save the status

Q: Support Modbus Protocol?

A: Yes, support Modbus-RTU/ASCII/TCP/UDP RS485: Modbus-RTU/ASCII CAN: Modbus-RTU(0x03,0x06) Ethernet/WiFi: Modbus-RTU/ASCII/TCP/UDP

Q:Support url relay commands?

A:Yes, it support HTTP GET CGI API

Q:Does it DI or AI?

A:It is digital input/output

Q:Do you have sdk?

A:Yes, if needed, contact us, it will be sent with a link to download
