Product Description

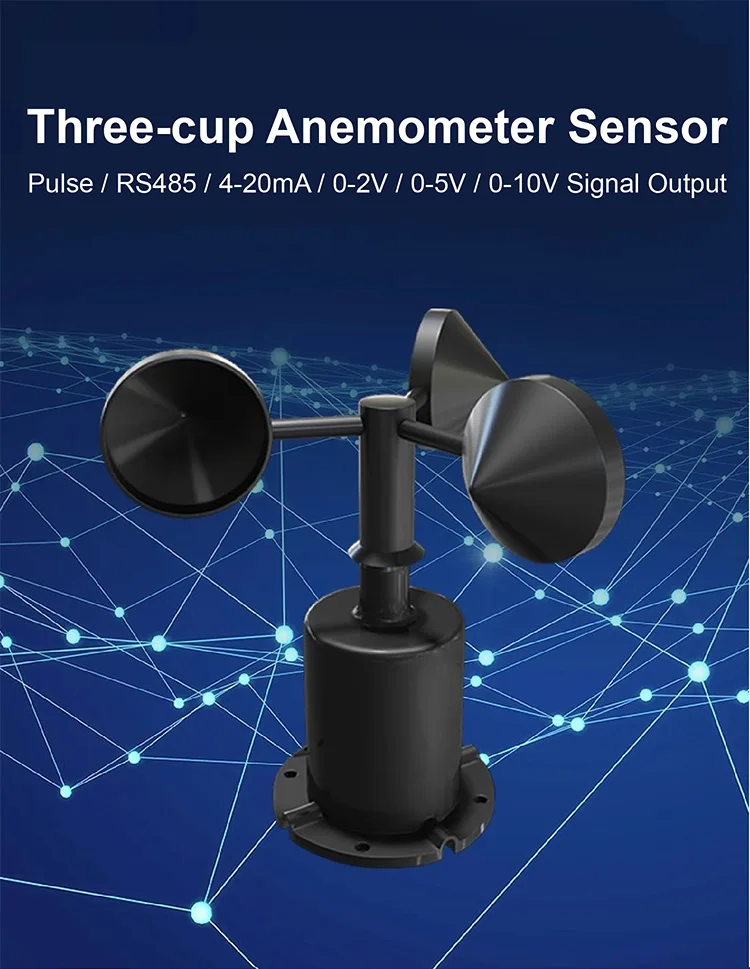

ZTS-3000 Wind Speed and Direction Sensor RS485 Cup Anemometer 4-20mA Output for Outdoor Weather Monitoring
ZTS-3000 Wind Speed and Direction Sensor RS485 Cup Anemometer 4-20mA Output for Outdoor Weather Monitoring1. Descriptions
Default Parameters
Power Supply: 10–30 VDC
Output Options: RS485 / 4–20 mA (optional)
Material Options:
Polycarbonate housing，Aluminum alloy housing
Wind Speed Range:
Aluminum Alloy Housing: 0–60 m/s
Polycarbonate Housing: 0–70 m/s
Wind Direction Measurement Range:
8 directions/16 directions，360°
Customizable Parameters
Wind Speed Output Options:0–2V / 0–5V / 0–10V, NPN, PNP, LoRa output (model: Y)
Wind Direction Output Options:0–5V / 0–10V
Default cable outlet is on the side. If top outlet is needed, please leave a note when placing the order.
Note: Due to page limitations, not all configurations are listed. Please contact us for more details if needed.

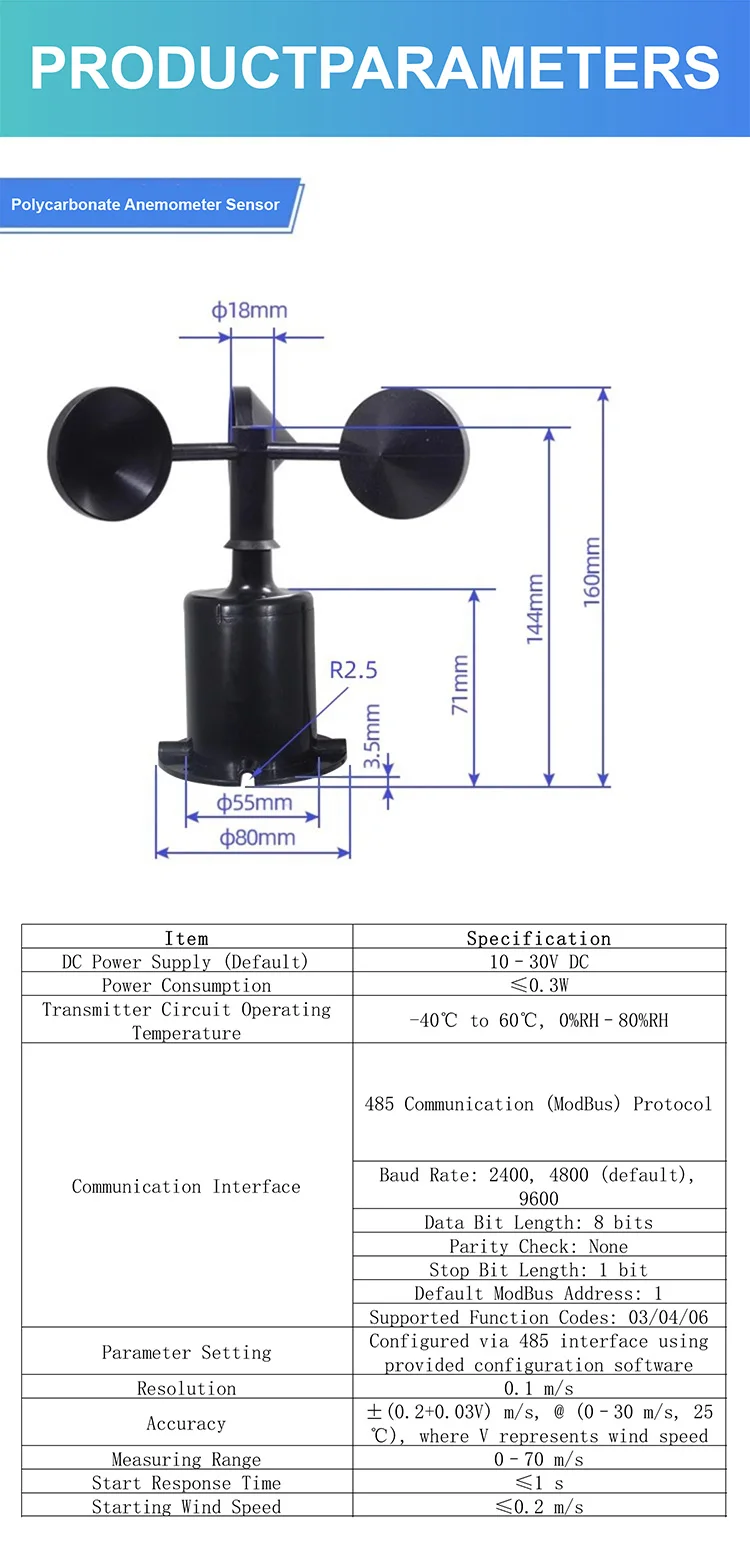

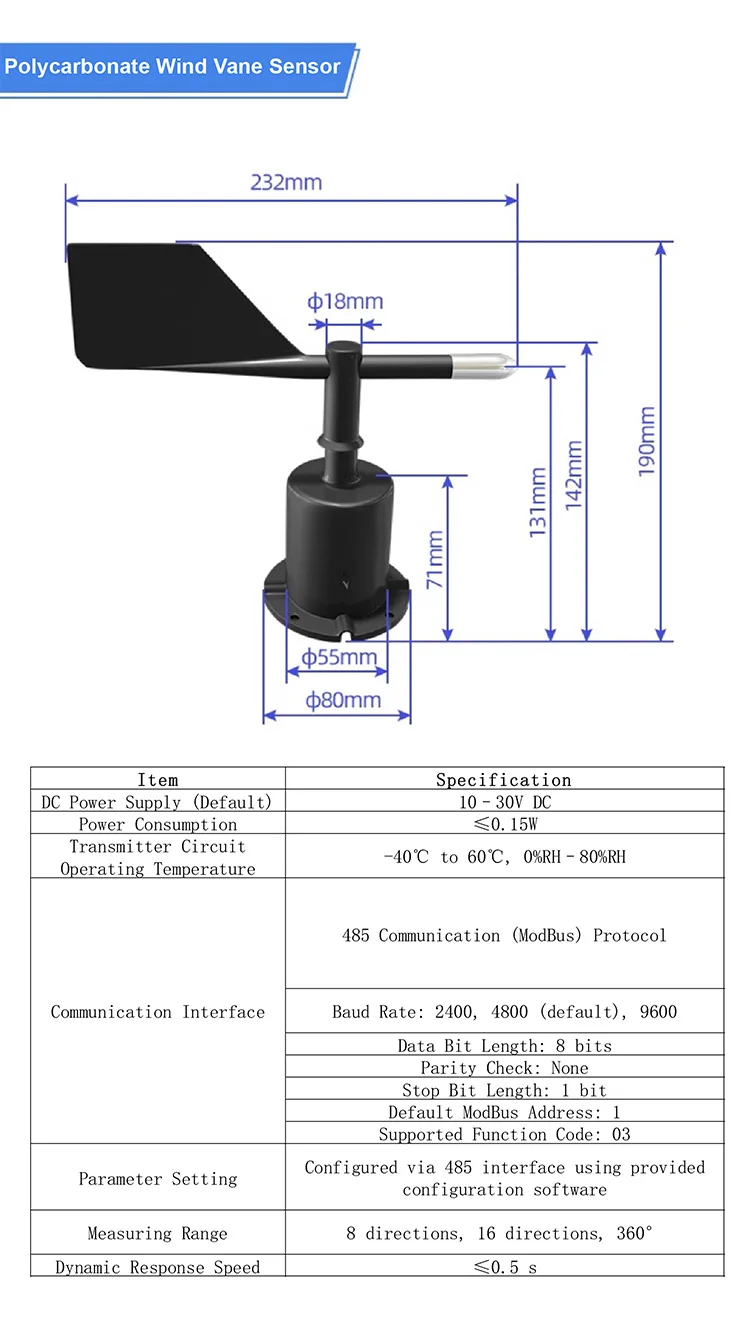

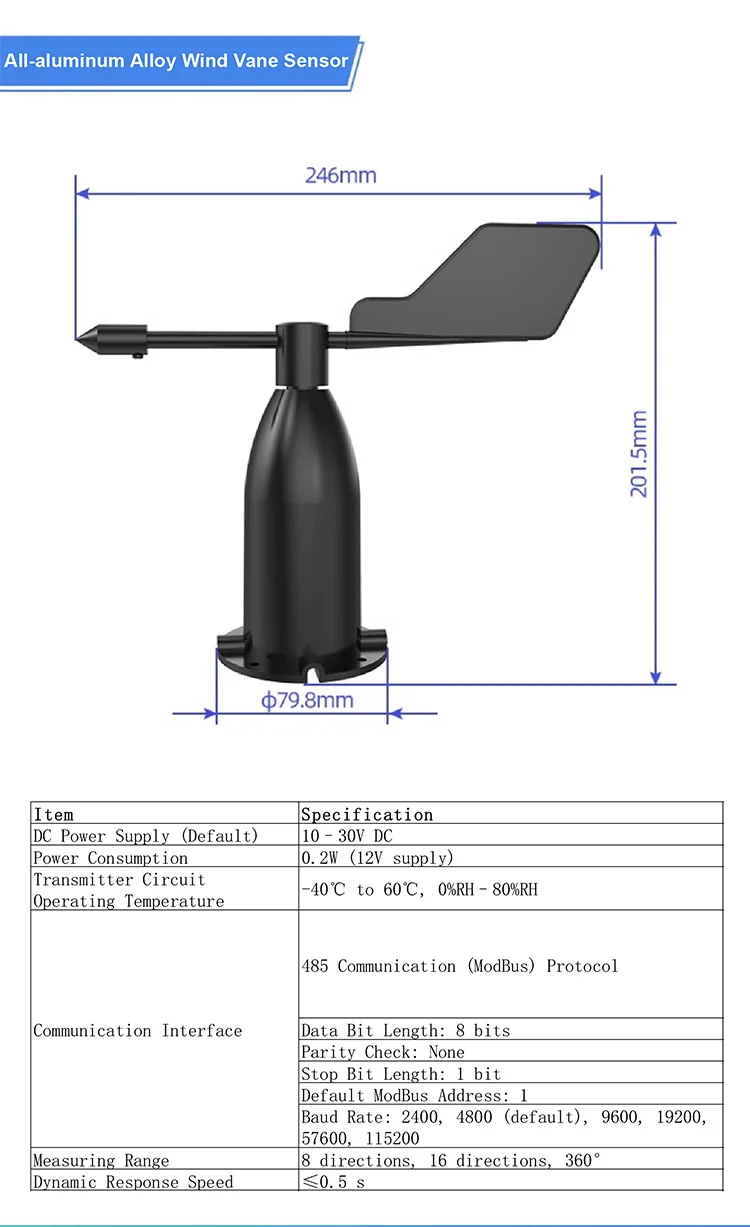

2. Parameters

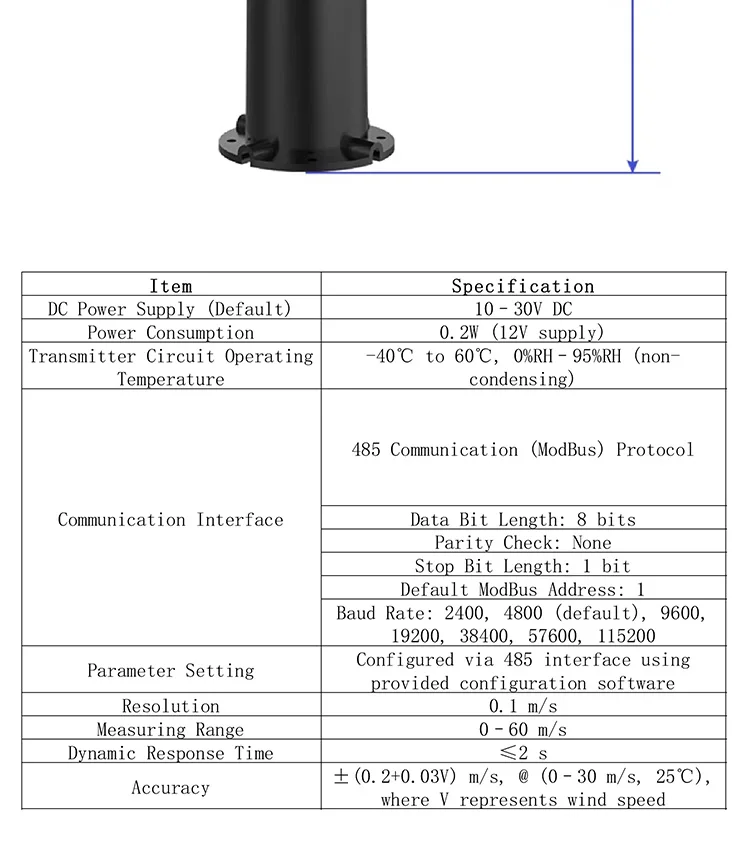

Parameter | Specification |
Power Supply | 10–30V DC |
Power Consumption | ≤0.3W (Polycarbonate) / 0.2W (Aluminum) |
Output Signal | RS485, 4–20mA, 0–2V / 0–5V / 0–10V, RJ45, LoRa, WiFi, 4G, NB-IoT |

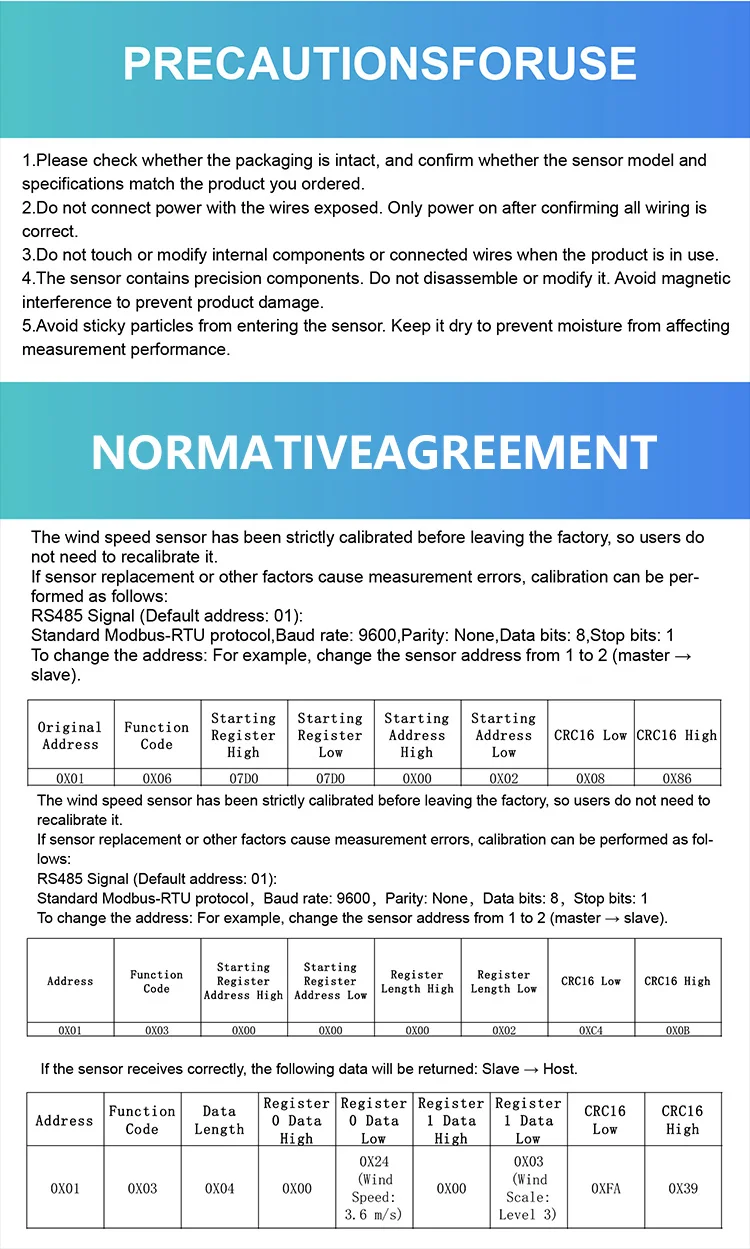

Communication Protocol | ModBus (default address: 1) |
Baud Rate | 2400 / 4800 (default) / 9600 / 19200 / 38400 / 57600 / 115200 |
Measurement Range (Wind Speed) | 0–60 m/s (Aluminum), 0–70 m/s (Polycarbonate) |
Measurement Range (Direction) | 8 directions / 16 directions / 360° |
Accuracy (Wind Speed) | ±(0.2 + 0.03V) m/s (@0–30m/s, 25°C) |
Resolution | 0.1 m/s |
Startup Wind Speed | ≤0.2 m/s |
Response Time | ≤1s (PC), ≤2s (Aluminum), ≤0.5s (Direction) |
Operating Temperature | -40°C to +60°C |
Humidity Range | 0–80% RH (PC), 0–95% RH (Aluminum, non-condensing) |
3. Features
High Accuracy Wind Measurement
Measures wind speed and direction with high precision, ensuring reliable environmental data.
Multiple Output Options
Supports RS485, 4-20mA, 0–2/5/10V, RJ45, and wireless (LoRa, 4G, WiFi, NB-IoT) for versatile integration.

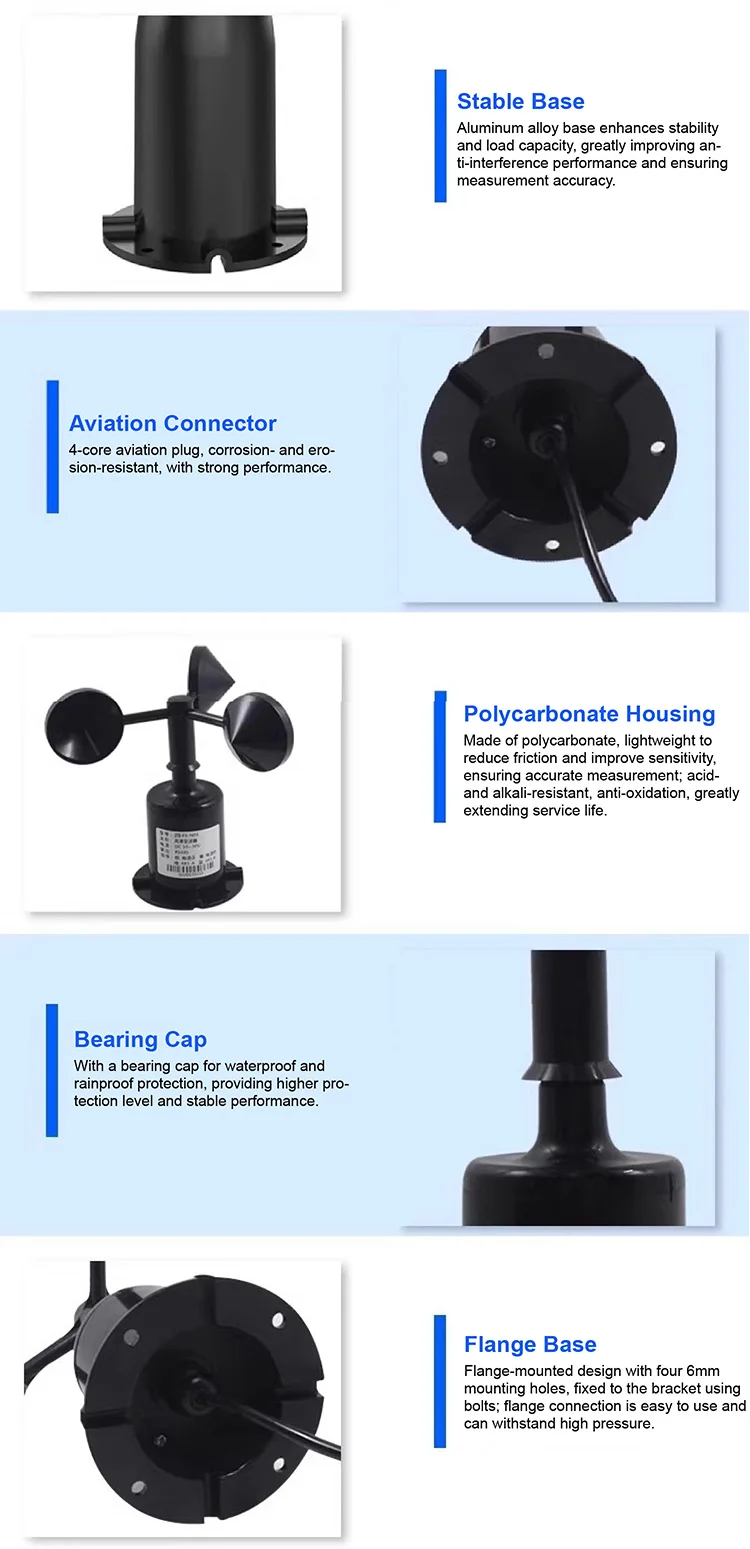

Durable Construction
Aluminum alloy or polycarbonate shell with anti-corrosion and waterproof treatment for long-term use.

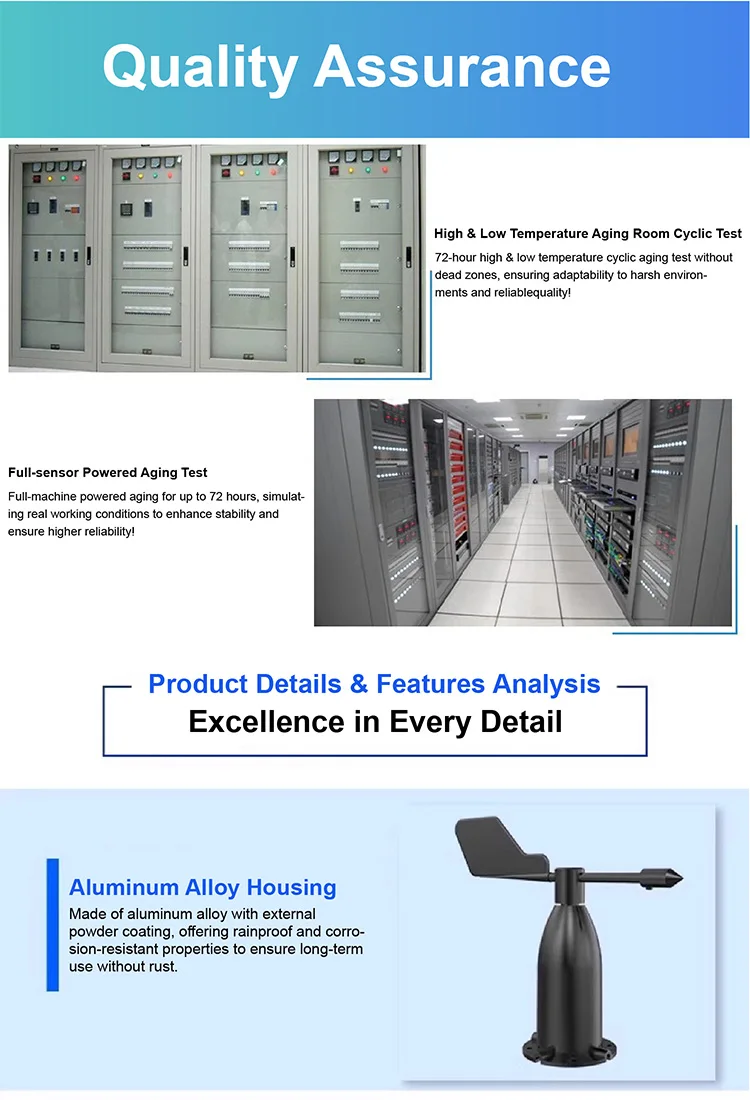

Extreme Environment Tested
72-hour high-low temperature cycling and powered aging tests ensure long-term stability and reliability.

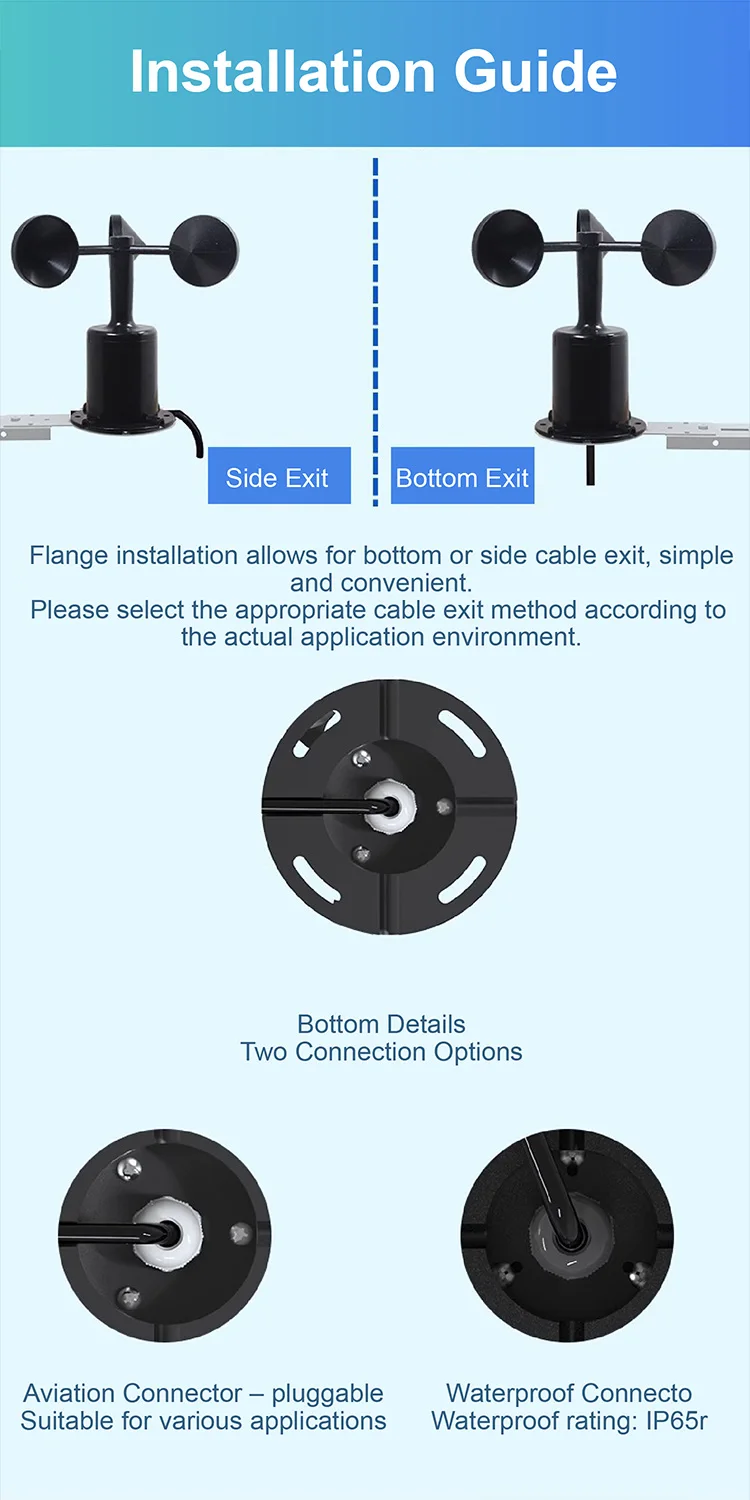

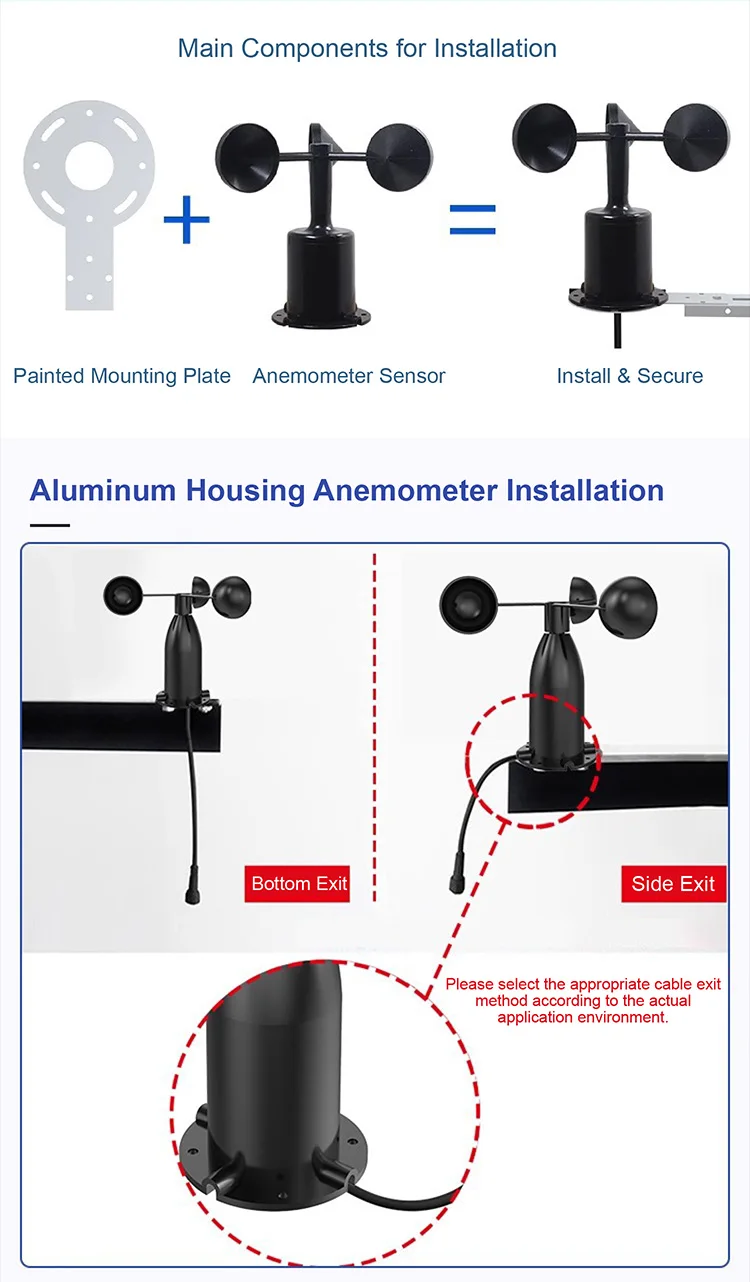

Flexible Installation
Flange mounting base with 4 bolt holes allows stable and secure setup on poles or flat surfaces.
Lightweight & Sensitive (PC Model)
Compact polycarbonate design reduces friction and enhances sensitivity for accurate wind detection.
4. Applications
Ideal for use in meteorological stations, construction machinery (cranes, tower cranes), ports, railways, greenhouses, smart agriculture, HVAC systems, environmental monitoring, and clean rooms.
5. FAQs

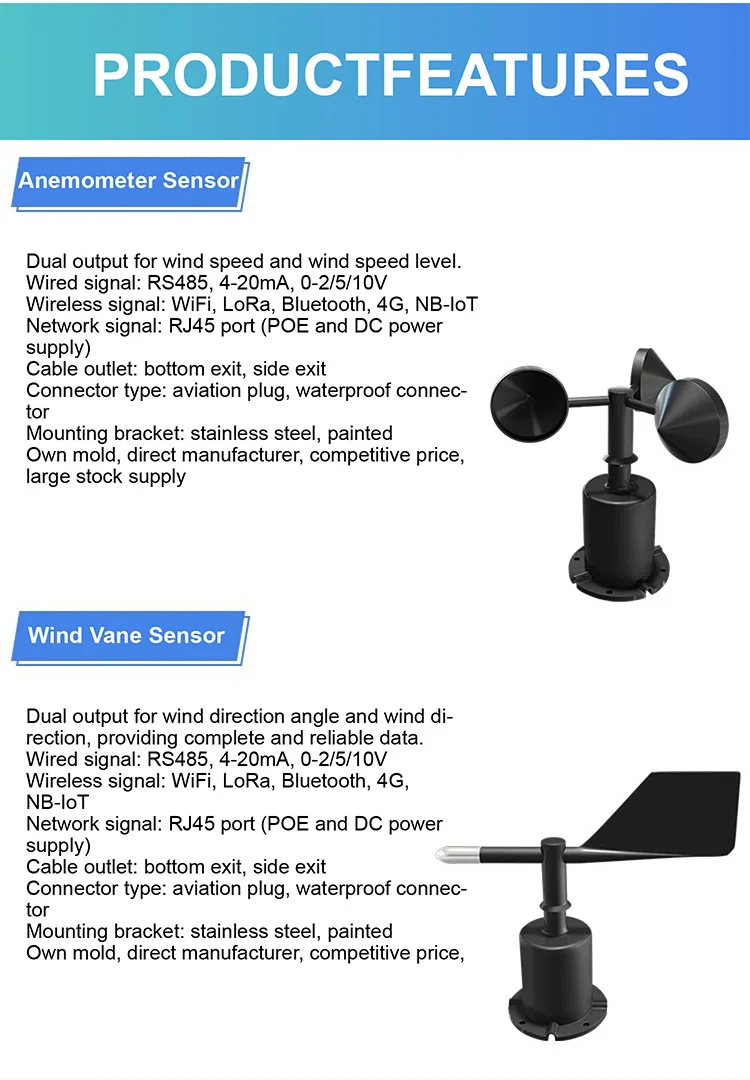

Q1: Does the sensor support both wind speed and direction?
A1: Yes. Models are available with both wind speed and direction outputs.
Q2: Is the sensor suitable for outdoor harsh environments?
A2: Yes. It features waterproof, corrosion-resistant housing and has been tested under extreme temperatures.

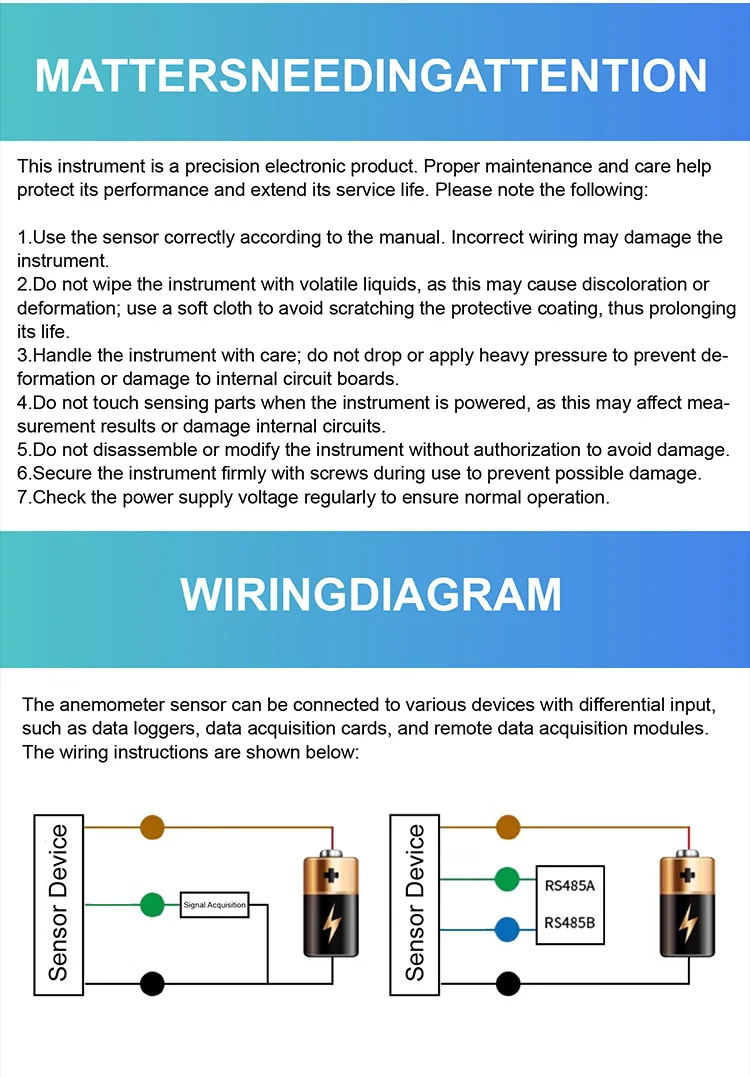

Q3: How is the sensor installed and connected?
A3: It uses a flange base with 4 mounting holes and connects via aviation or waterproof connectors.
