Product Description

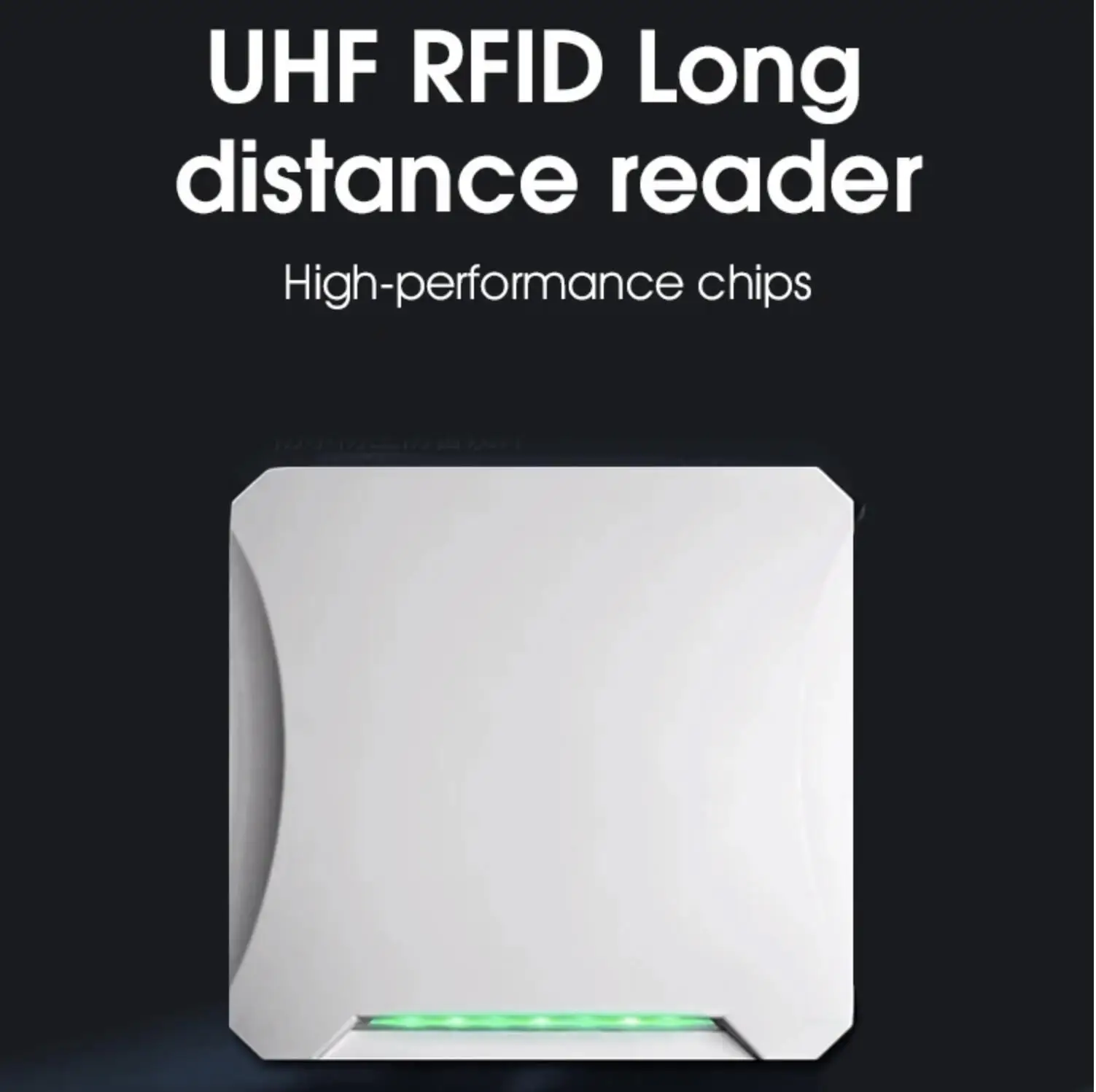

UHF Long Ranger Reader 20M 902MHz-928MHz for Vehicle Management
UHF Long Ranger Reader 20M 902MHz-928MHz for Vehicle ManagementUHF-202420 is a fixed compact reader, compatible with ISO 18000-6C and ISO 18000-6B standards, with an operating frequency of 902MHz~928MHz, exquisite appearance, and outstanding reading and writing performance. The reader can be widely used in warehousing logistics management, retail logistics center management, enterprise transportation management and automated production line management.
Application areas:
Logistics and warehousing management: flow and warehousing management of goods, as well as flow management of mail, parcels, and transport luggage;
Intelligent parking management: parking lot management and charging automation;
Production line management: identification of fixed points in production processes;
Product anti-counterfeiting detection: using the write protection function of the memory in the tag to identify the authenticity of the product;
Other areas: It has been widely used in club management, library, student enrollment, consumption management, attendance management, dining management, swimming pool management and other systems.
Product features:
Adopt high-performance modules;
Low power consumption, stable and reliable reading and writing distance;
Fast data reading rate; Read more than 200 tags per second
Tag wake-up recognition;
Multi-area multi-tag reading;
Multi-protocol compatibility;
Waterproof appearance design;
Product Parameter | Parameter Description |
Model | UHF-202420 |
Product Name | UHF RFID Long Range Card Reader |
Dimension | 260x260x70mm |
Recognition distance | Up to 20 meters |

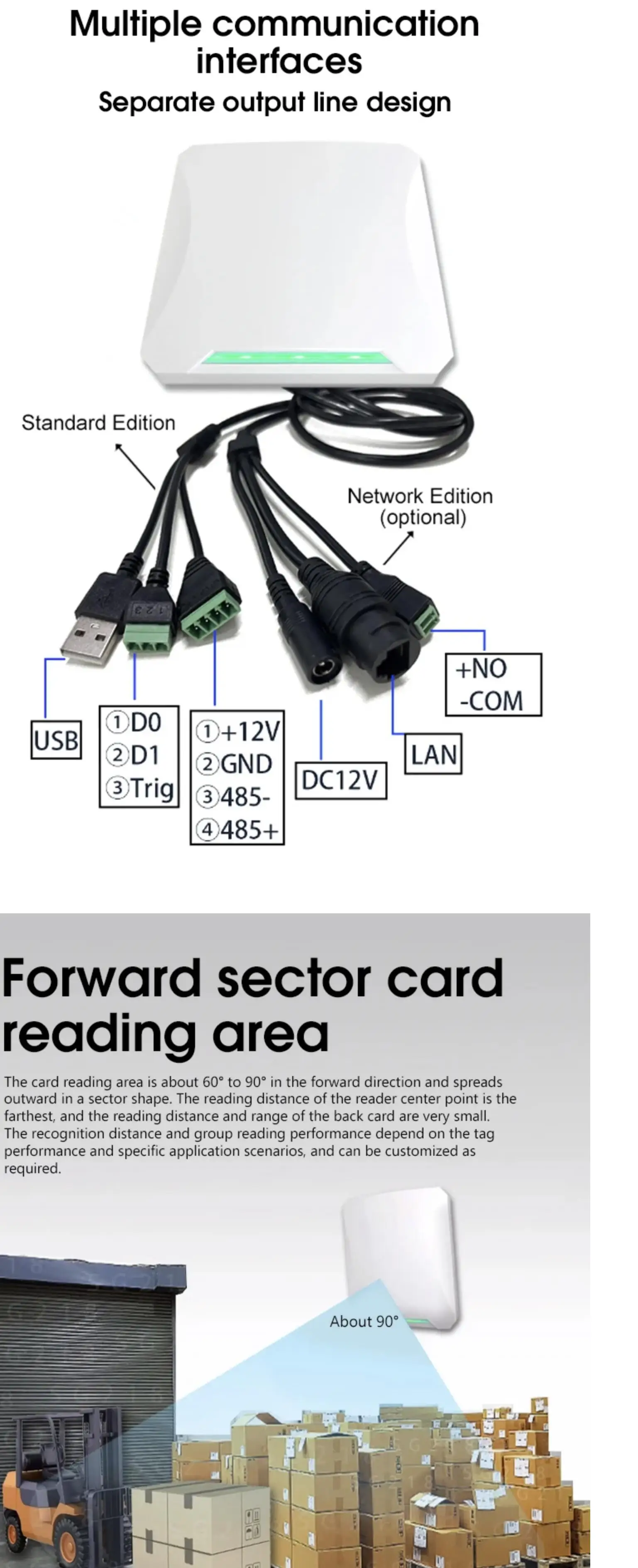

Default communication interface | Wiegand26, Wiegand34, RS485 |
Option customized | RS232,RJ45 ( Ethernet ), WiFi, Relay |
System parameters | ARM7 |
Working frequency | National standard (920~925MHz) |
Group reading performance | <200 tags |
Tag protocol | Support IS01 8000-6B, IS018000-6C (EPC GEN2) protocol electronic tags |
Frequency hopping mode | Broad spectrum frequency hopping FHSS) or fixed frequency, can be set by software; |
Working mode | Active mode, response mode, passive mode, etc. |
RF power | 0-33dBm (power software adjustable) |
Antenna parameters | 9dBi linear polarization antenna (built-in) |
Working voltage | +12V |
Recognition prompt | Buzzer or LED flashing |
Power consumption | <12W |
Working temperature | -20℃ ～ +70℃ (customization required if out of range) |
Working humidity | 20％ ～ 95％ (no condensation) |
Storage temperature | -40℃ ～ +125℃ |
Appearance/packaging size | 260*260*70mm/ 355*260*80mm |
Net weight | 2400G |
Gross weight | 3700KG |

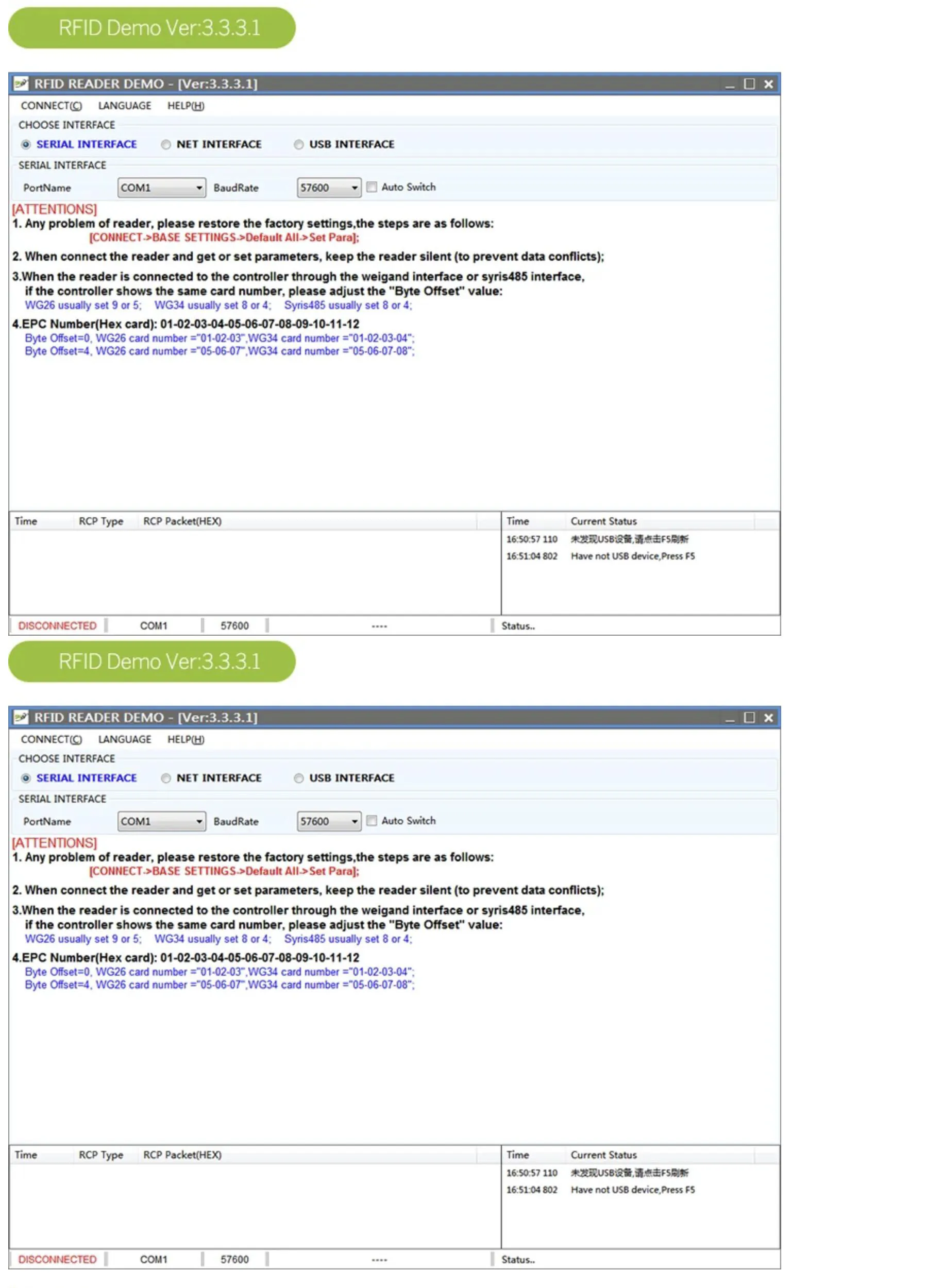

Secondary development | Provide dynamic link library (DLL) and demonstration software source code to support secondary development. |
Remarks | The recognition distance and group reading performance depend on the tag performance and specific application scenarios, and can be customized as required |
