Product Description

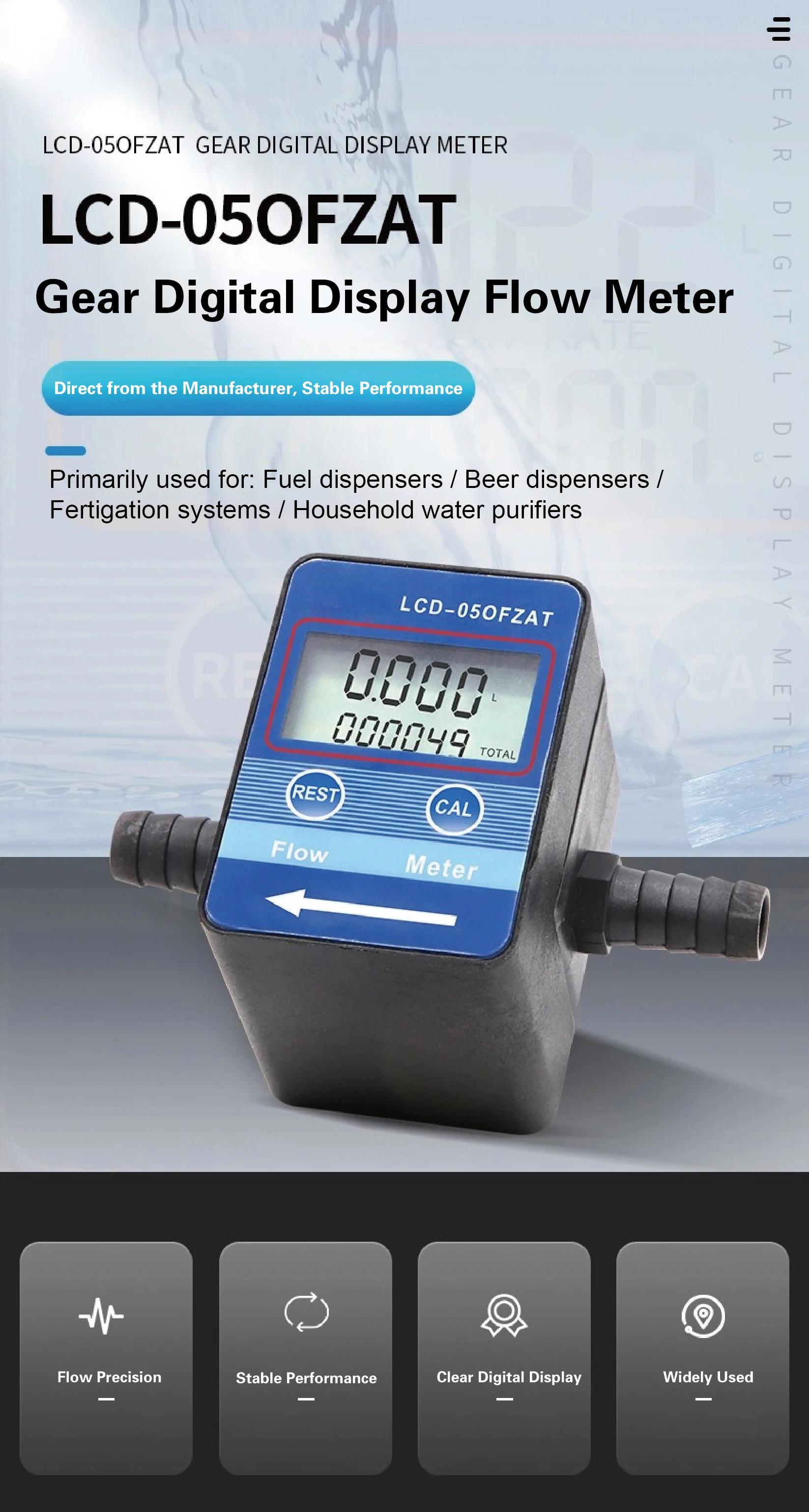

Digital Gear Flow Meter LCD Display G1/2 G3/4 Inline Industrial Gear Type Flow Sensor for Water Oil Milk Chemical Resistant
Digital Gear Flow Meter LCD Display G1/2 G3/4 Inline Industrial Gear Type Flow Sensor for Water Oil Milk Chemical Resistant1. NOTE
This Gear Digital Flow Meter delivers precise liquid flow measurements, making it ideal for a wide range of industrial and commercial applications. For best performance and extended service life, avoid using it with high-viscosity liquids or those containing solid particles.
Default Configuration:
Interface Sizes: G3/8, G1/2, G3/4
Material: PPS (Polyphenylene Sulfide)
Flow Range: 30–3600 L/H
Pressure Range: ≤1.0 MPa
Power Supply: 2 AAA batteries
Accuracy: ±5%
Output Signal: Pulse (50%)
Operating Temperature: -25°C to 80°C
Due to international shipping regulations, we are unable to ship products with batteries to certain regions. If your delivery address falls within these restricted areas, the product will be shipped without batteries by default. You will need to purchase the appropriate batteries locally.
Please verify the required battery specifications before purchasing to ensure proper operation. If you have any questions, feel free to contact us. Thank you for your understanding and support.

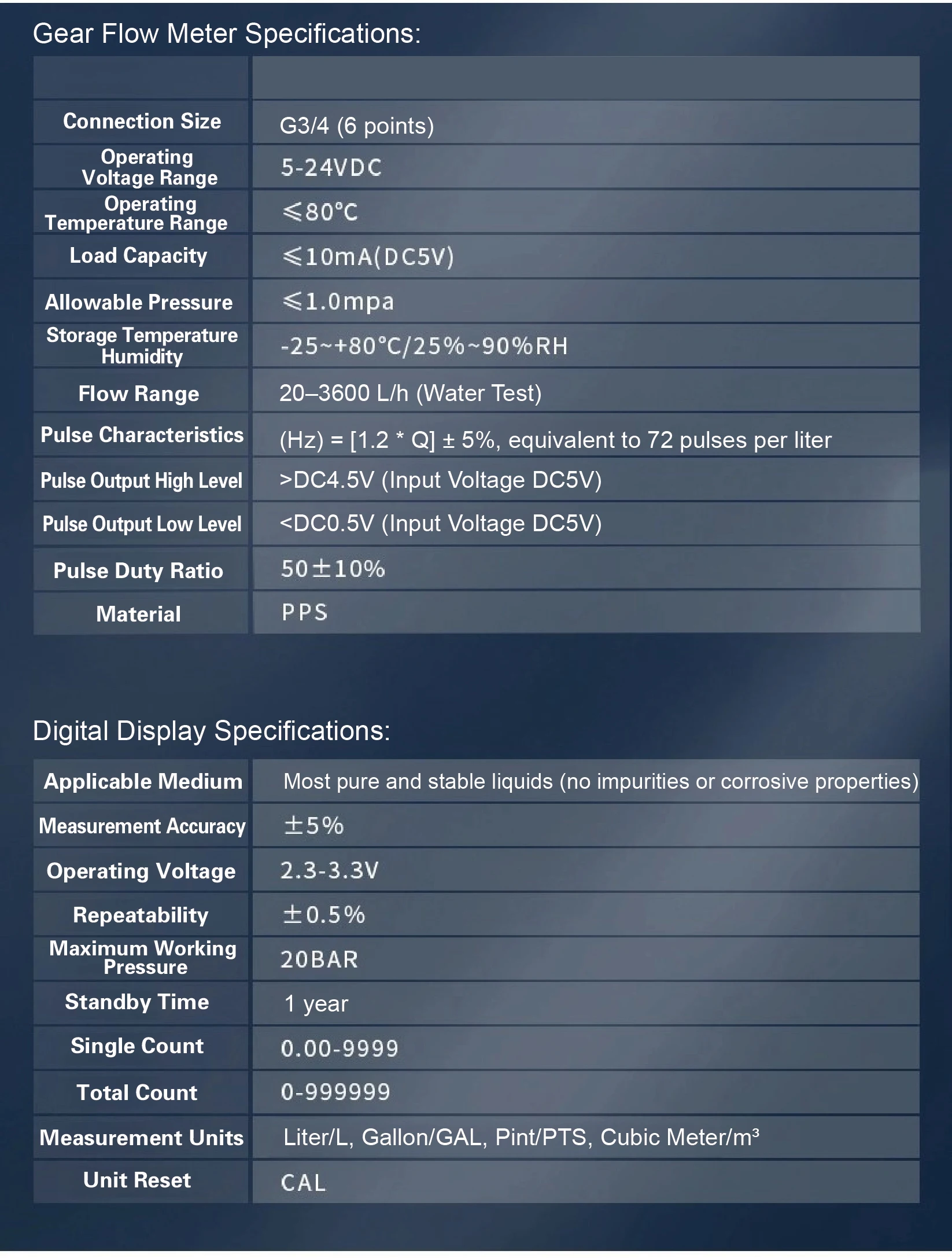

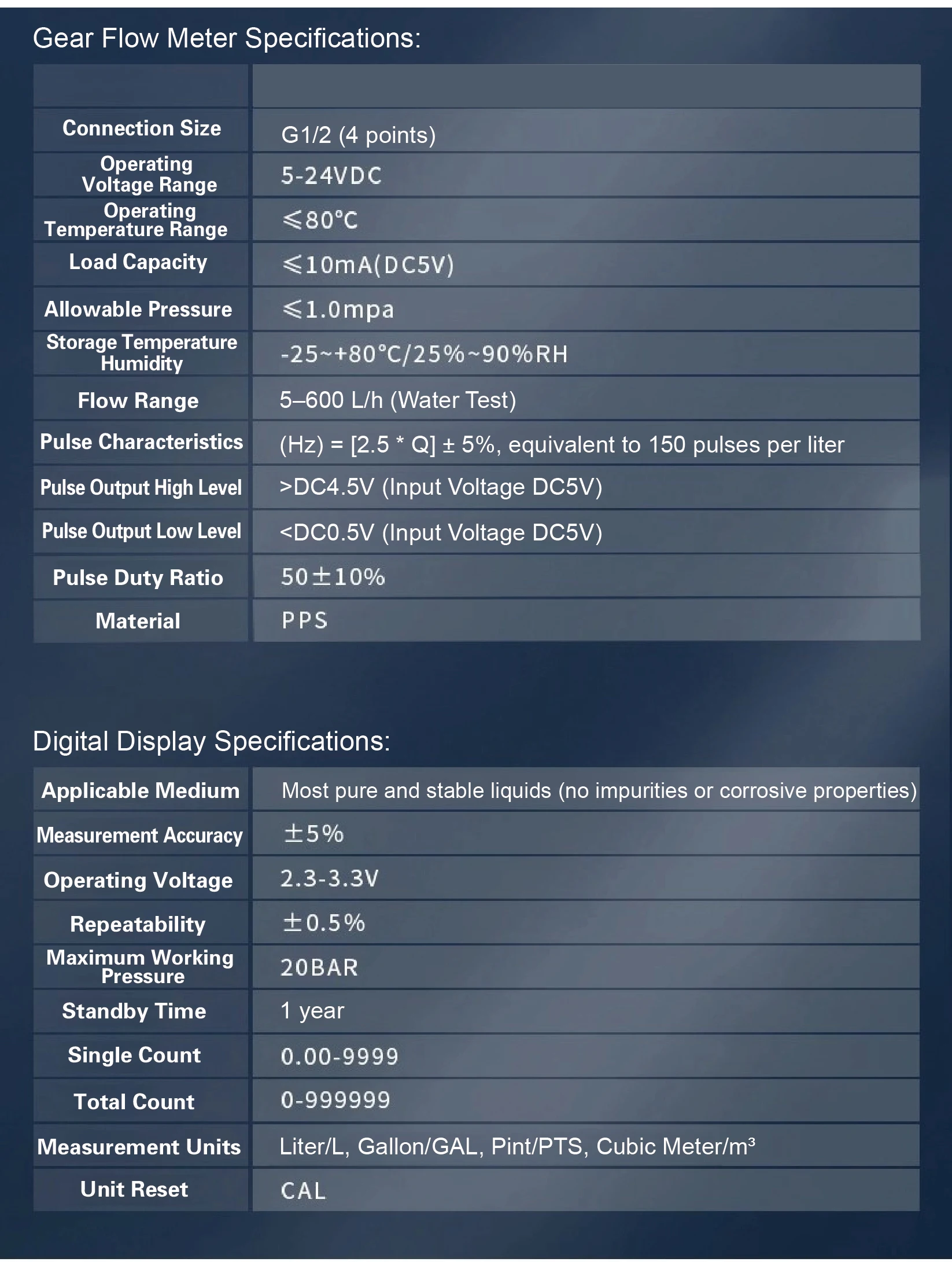

2. PARAMETERS
Parameter | Specification |
Interface Size | G1/2 , G3/4 , G3/8 |
Operating Voltage | 2 AAA batteries |
Temperature Range | -25°C to +80°C |
Flow Range | 5-3600 L/H (depending on model) |
Pulse Characteristics | (Hz) = [1.2 or 2.5 * Q] ± 5% |
High Pulse Voltage | > DC4.5V |
Low Pulse Voltage | < DC0.5V |
Material | PPS |
Measurement Accuracy | ±5% |
Counting Range | Single: 0.00-9999, Total: 0-999999 |
Units | L, GAL, PTS, m³ |
Maximum Pressure | 20BAR |

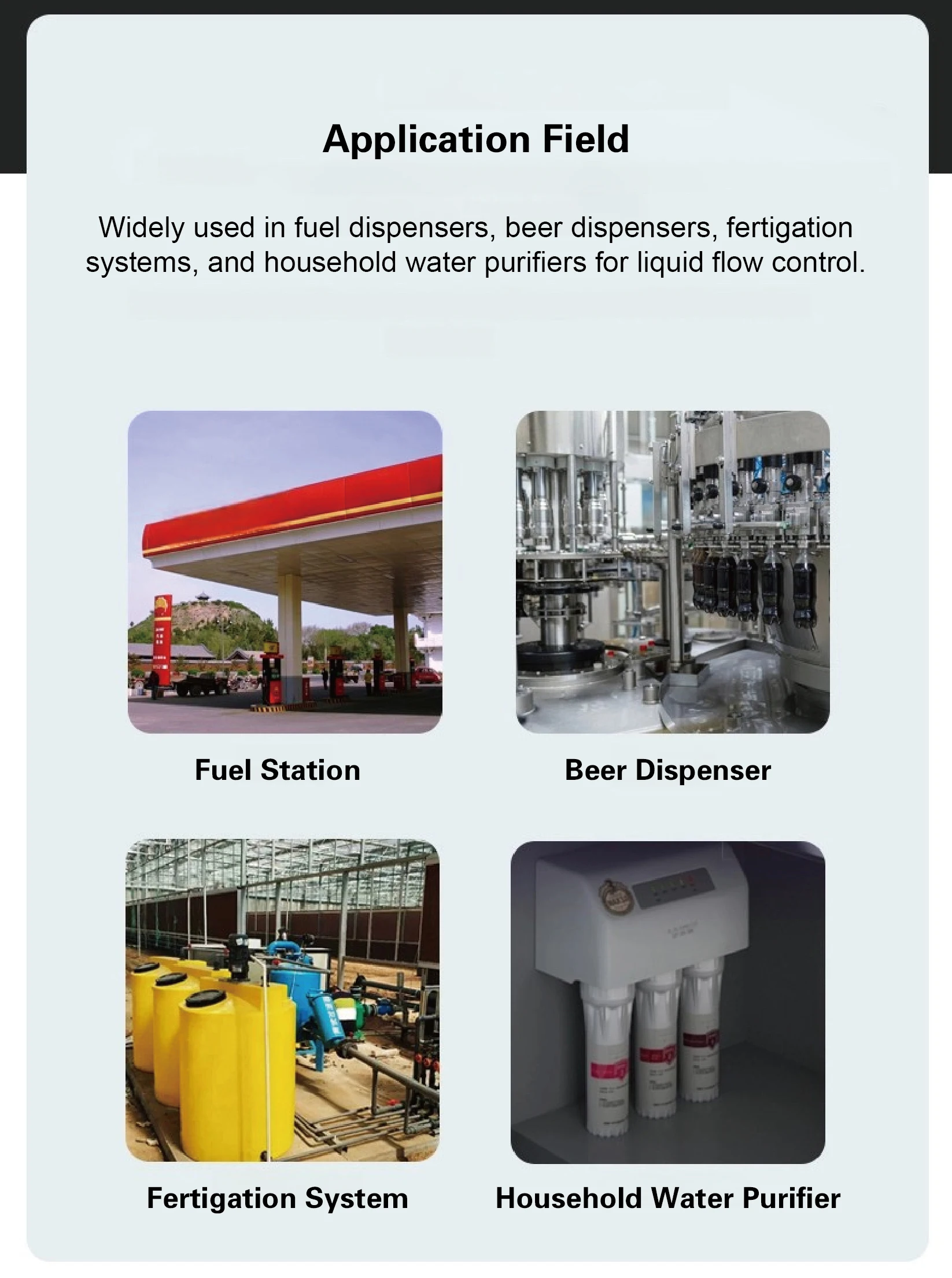

3. APPLICATIONS
Perfect for use in refueling systems, beer dispensers, water-fertilizer integration devices, and household water purifiers.
Compatible with most clean, stable liquids that are free of impurities and non-corrosive.
Delivers high measurement accuracy and is easy to integrate with various monitoring systems.

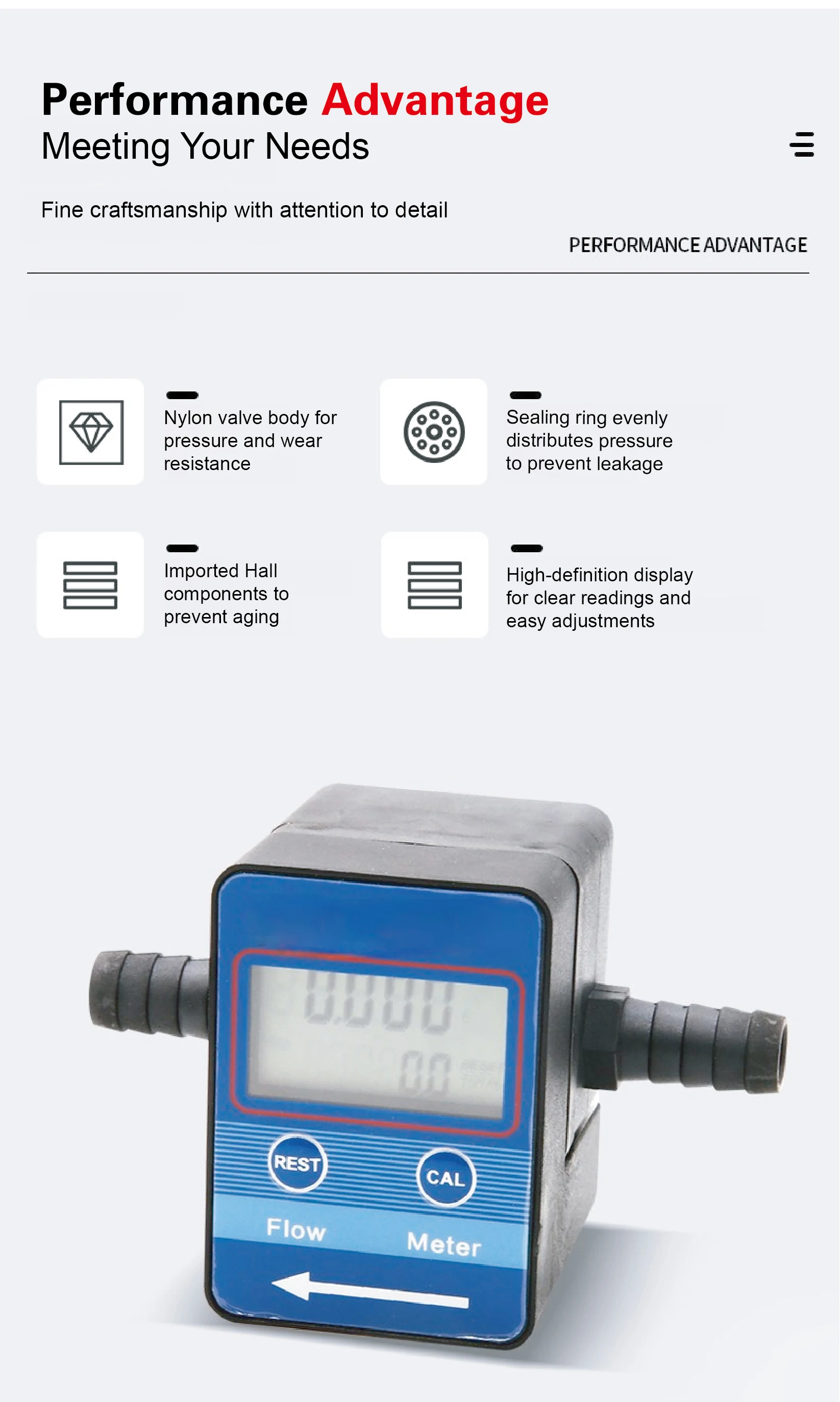

4. FEATURES

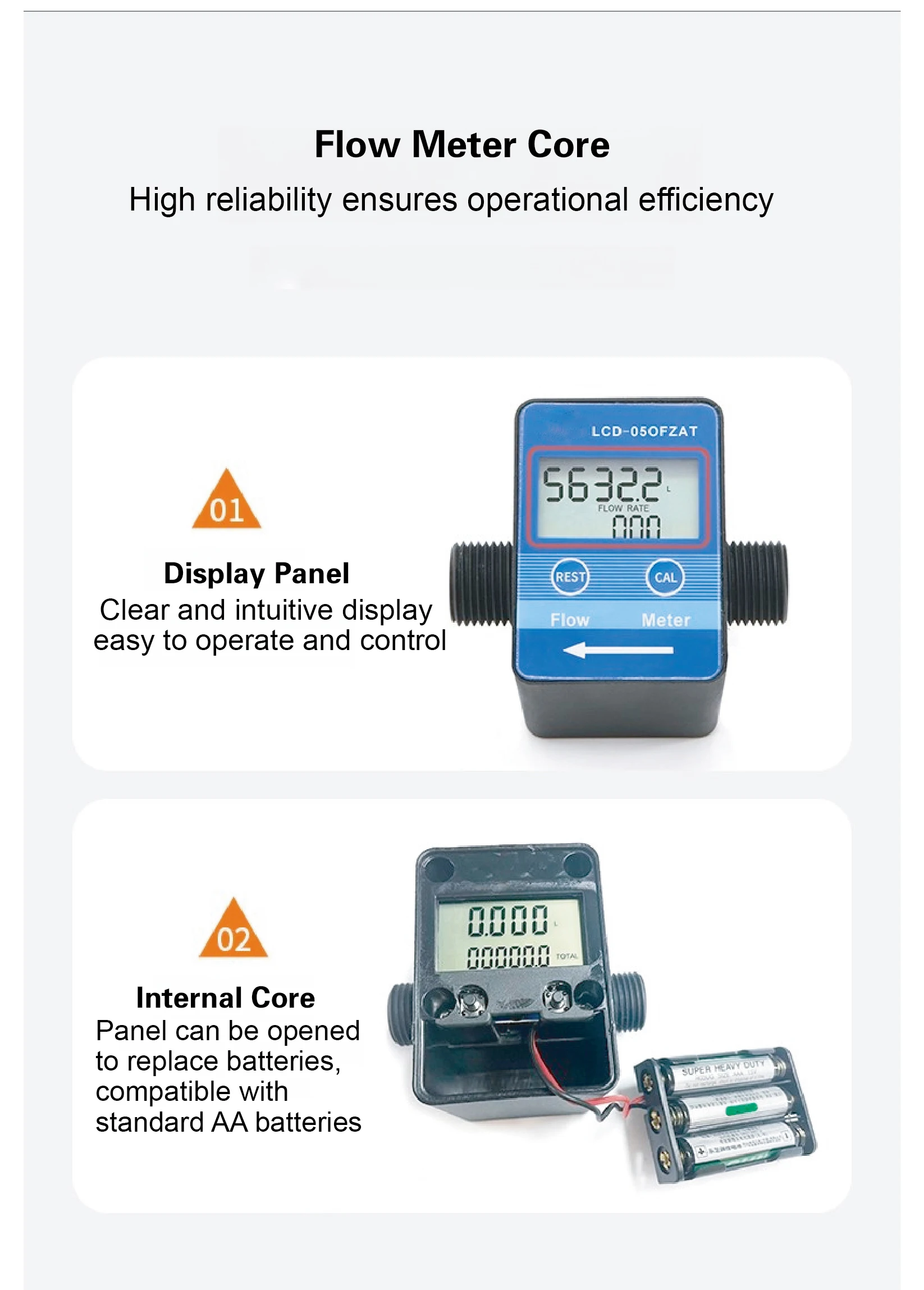

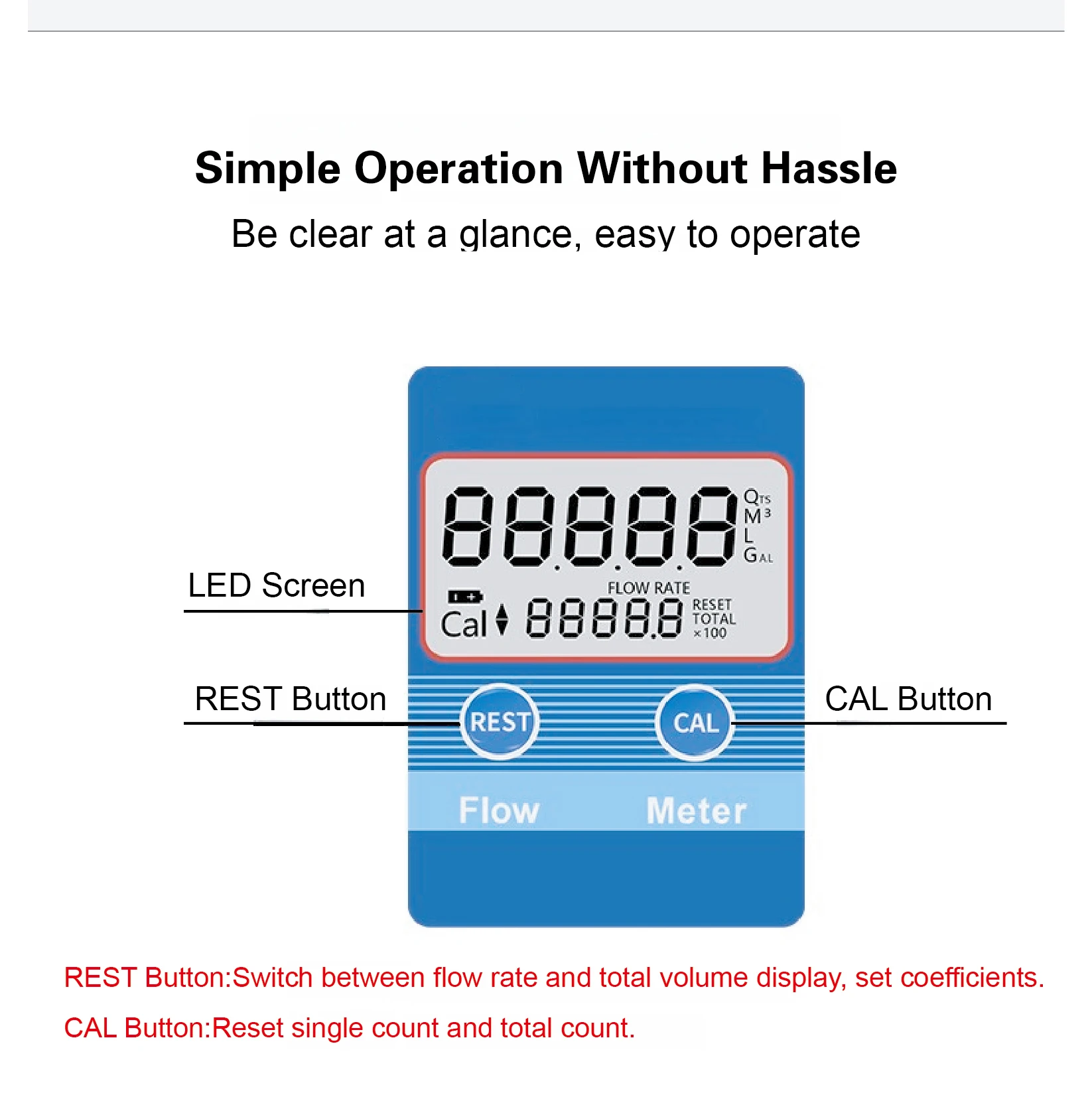

User-Friendly Display: Features a clear and intuitive interface for easy operation.
Replaceable Battery: Designed for quick and simple replacement using standard AAA batteries.
Durable Construction: Made from PPS material for excellent pressure resistance and wear durability.
Reliable Sealing: Sealing rings are evenly compressed to reduce the risk of leakage and ensure long-term reliability.
5. FAQ

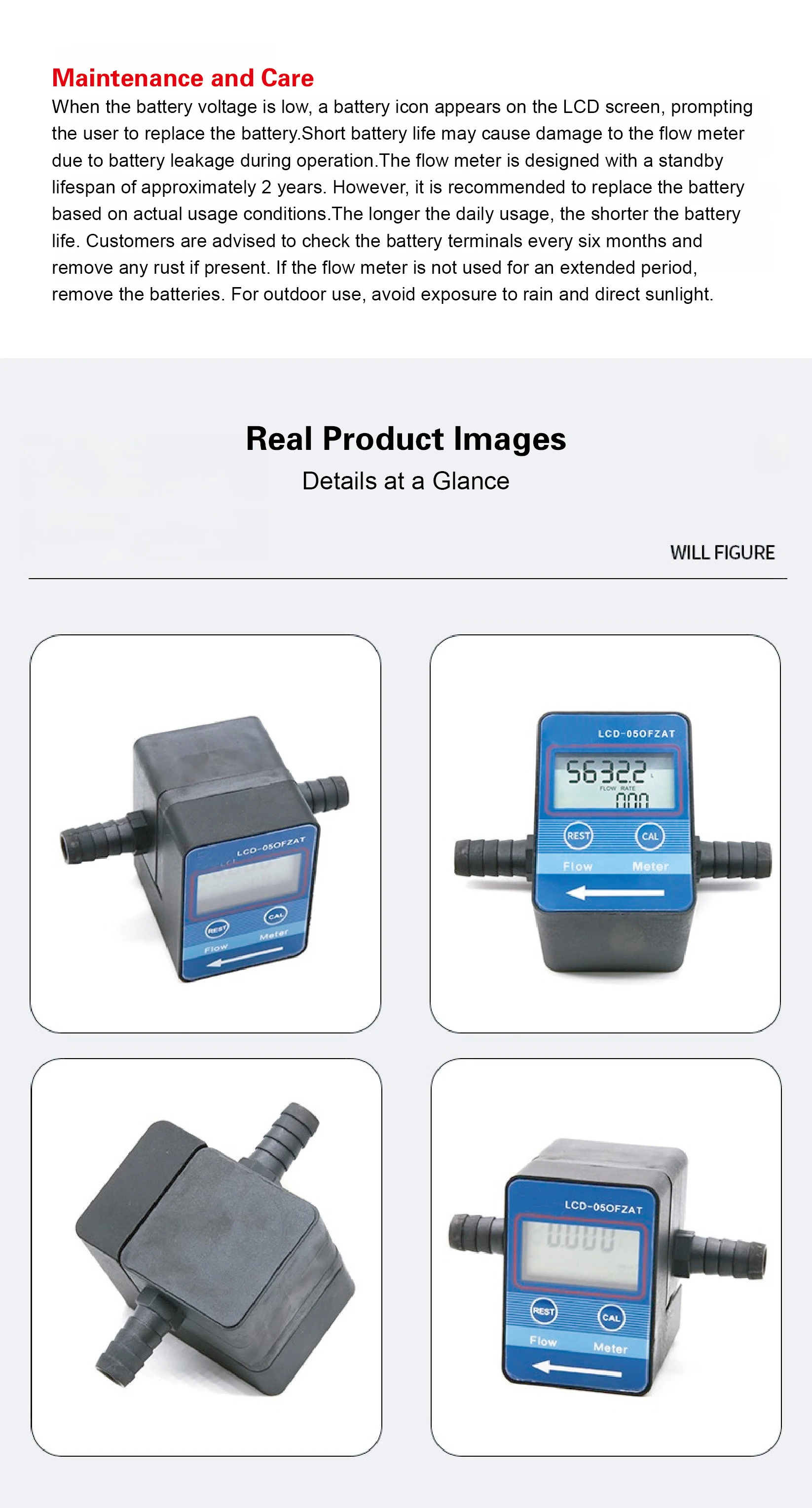

Q1: How often should I replace the battery?
A1: It is recommended to check the battery every 6 months and replace it if corroded or showing low voltage signs.
Q2: What liquids are compatible?
A2: This flow meter works with most clean, stable liquids without impurities or corrosive properties.
