Product Description

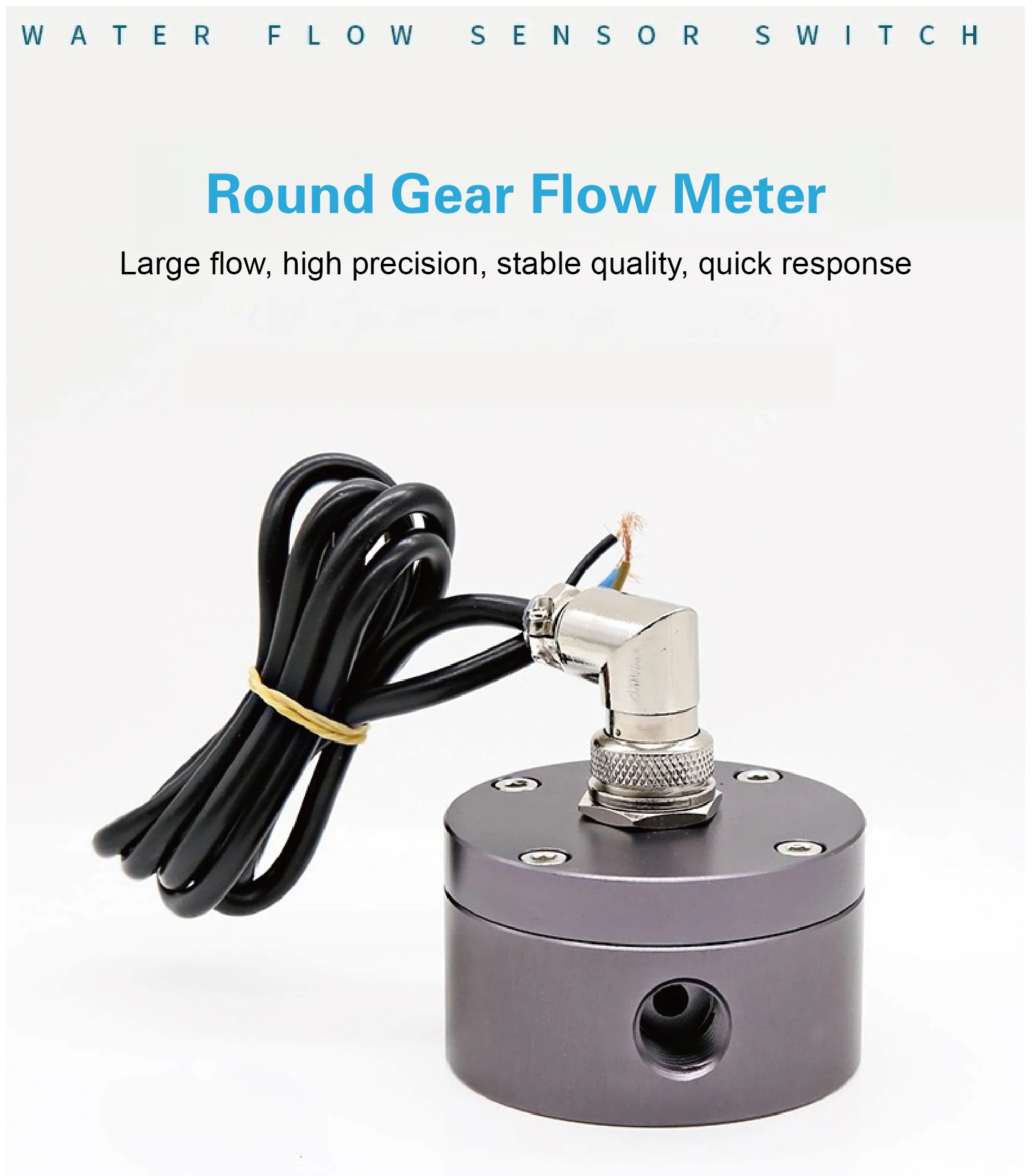

Precision Gear Flowmeter Hall Effect Oil Sensor Aluminium Body G1/4 G3/8 G1/2 Threaded Fuel Diesel High Viscosity Sensor
Precision Gear Flowmeter Hall Effect Oil Sensor Aluminium Body G1/4 G3/8 G1/2 Threaded Fuel Diesel High Viscosity Sensor1. NOTE
This Gear Flowmeter is designed for precise liquid flow measurement, widely used in industrial and commercial applications.
Default Configuration Includes:
Size: G1/4, G3/8, G1/2, G3/4, G1
Flow Range: 30–3000L/h
Voltage: DC3.5–24V

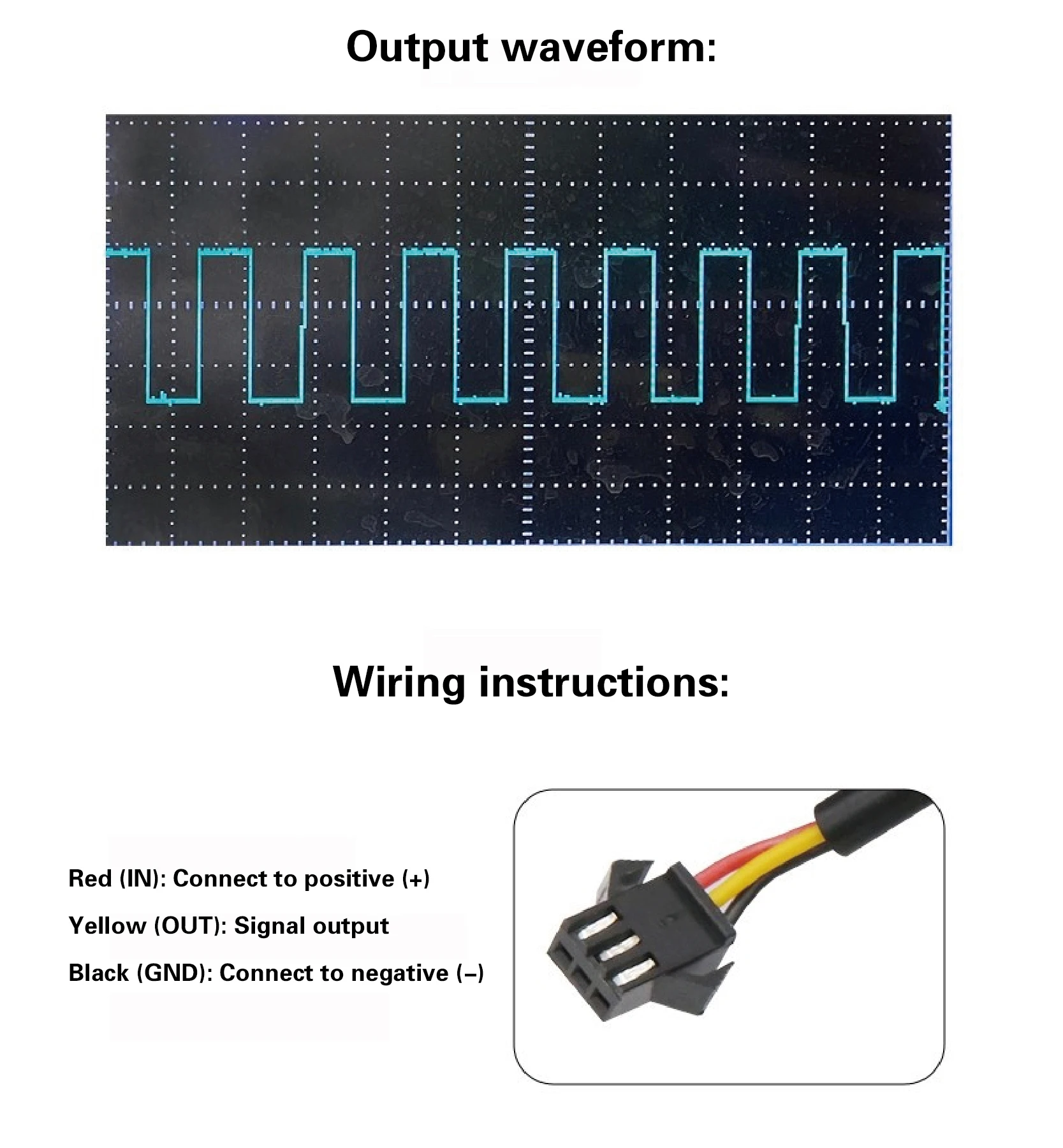

Output Signal: Plues NPN pulse signal.
Material: Aluminum/Copper
Pressure Range: ≤1.2MPa
Temp:＜80
For customization options or specific requirements, please contact us.
Usage Guidelines:
Avoid violent impact and chemical corrosion.
Do not throw or collide with the product.
The medium temperature should not exceed 100°C.
Ensure proper installation to prevent leakage or inaccurate readings.
The flowmeter is designed for clean, low-viscosity liquids only; do not use it with abrasive or high-viscosity fluids.
Always connect the device to a stable power source within the specified voltage range (DC3.5-24V).
Avoid exposure to extreme environments, including high humidity and direct sunlight, to ensure long-term durability.
Regularly check and clean the flowmeter to prevent blockages caused by impurities in the medium.

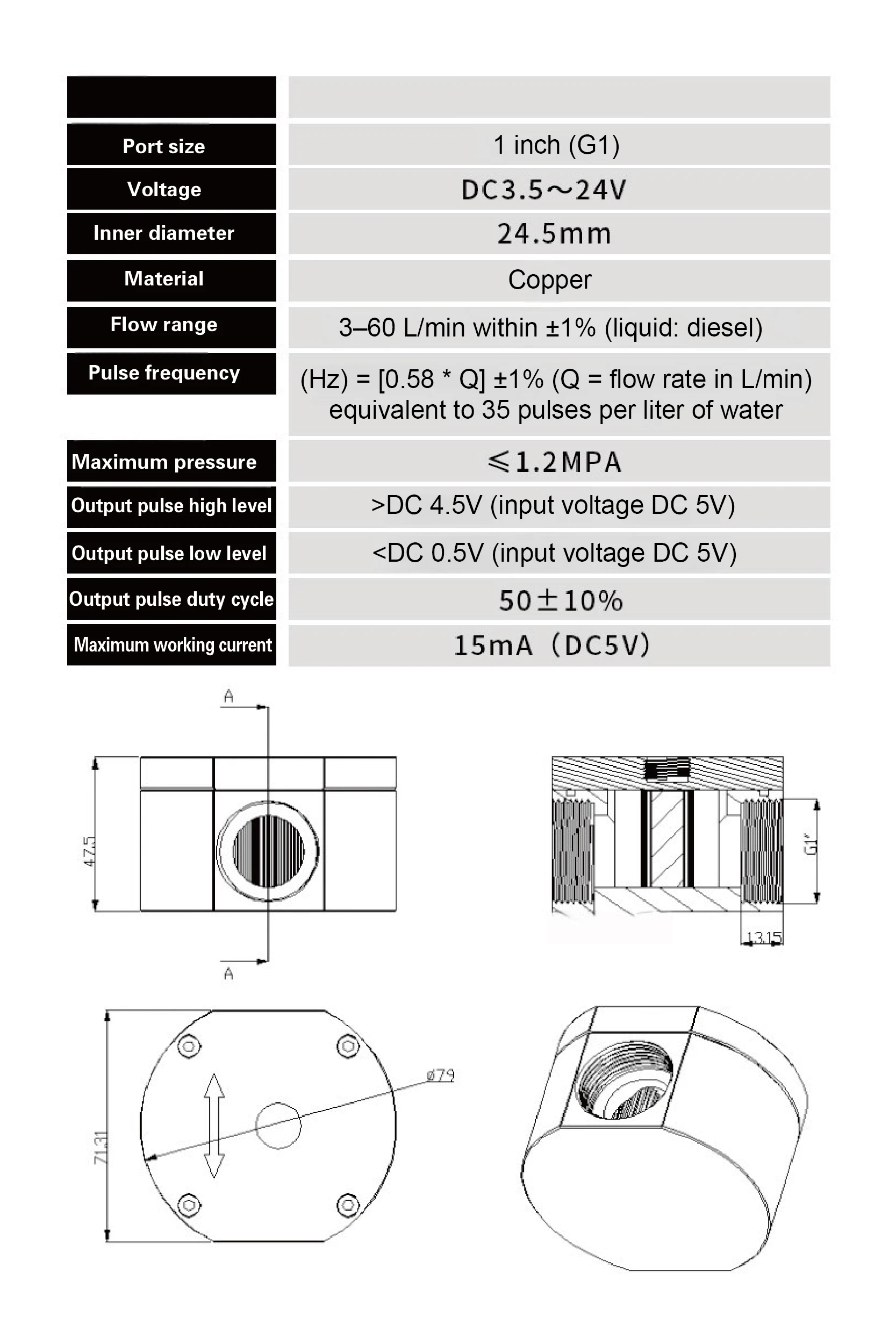

2. PARAMETERS

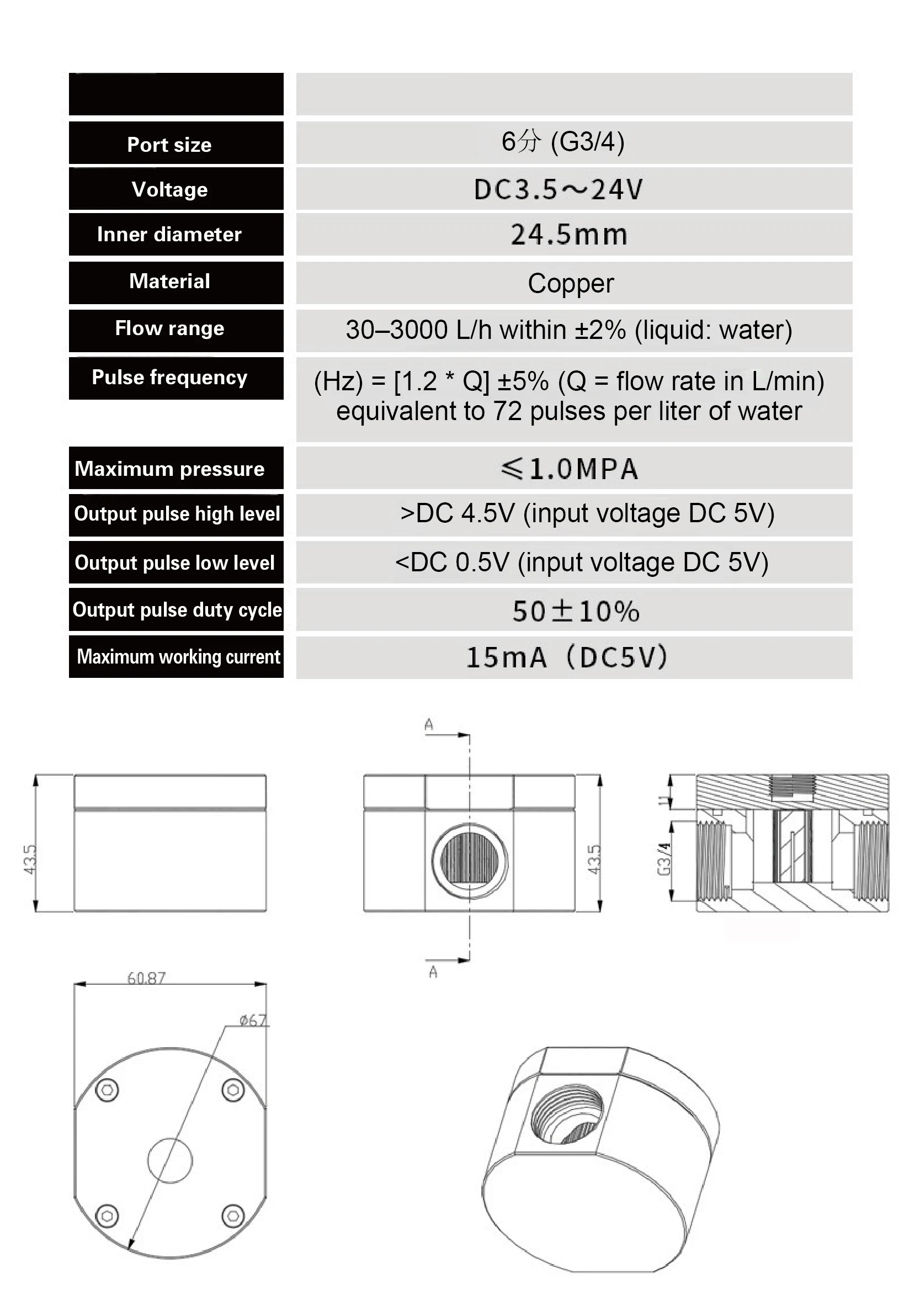

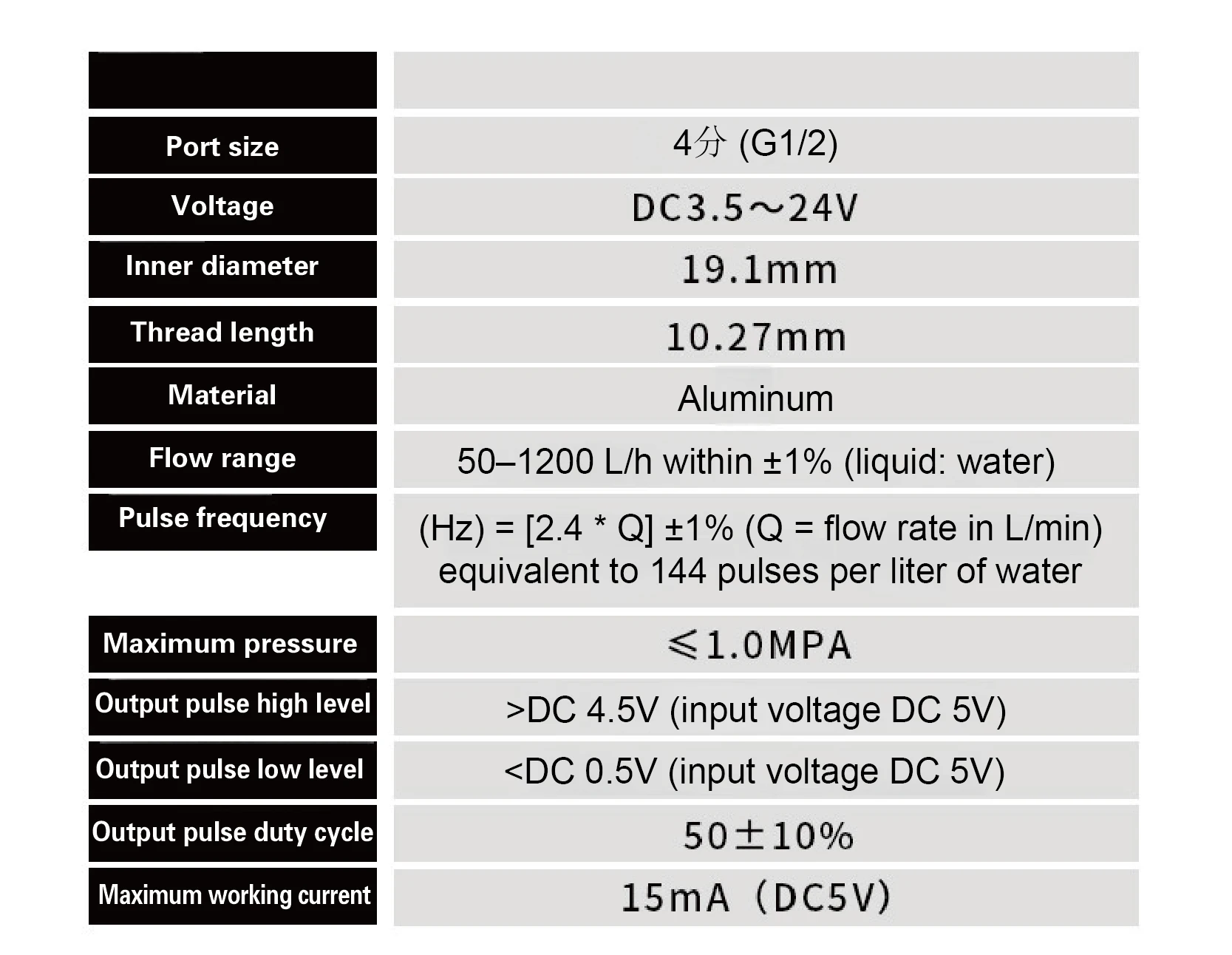

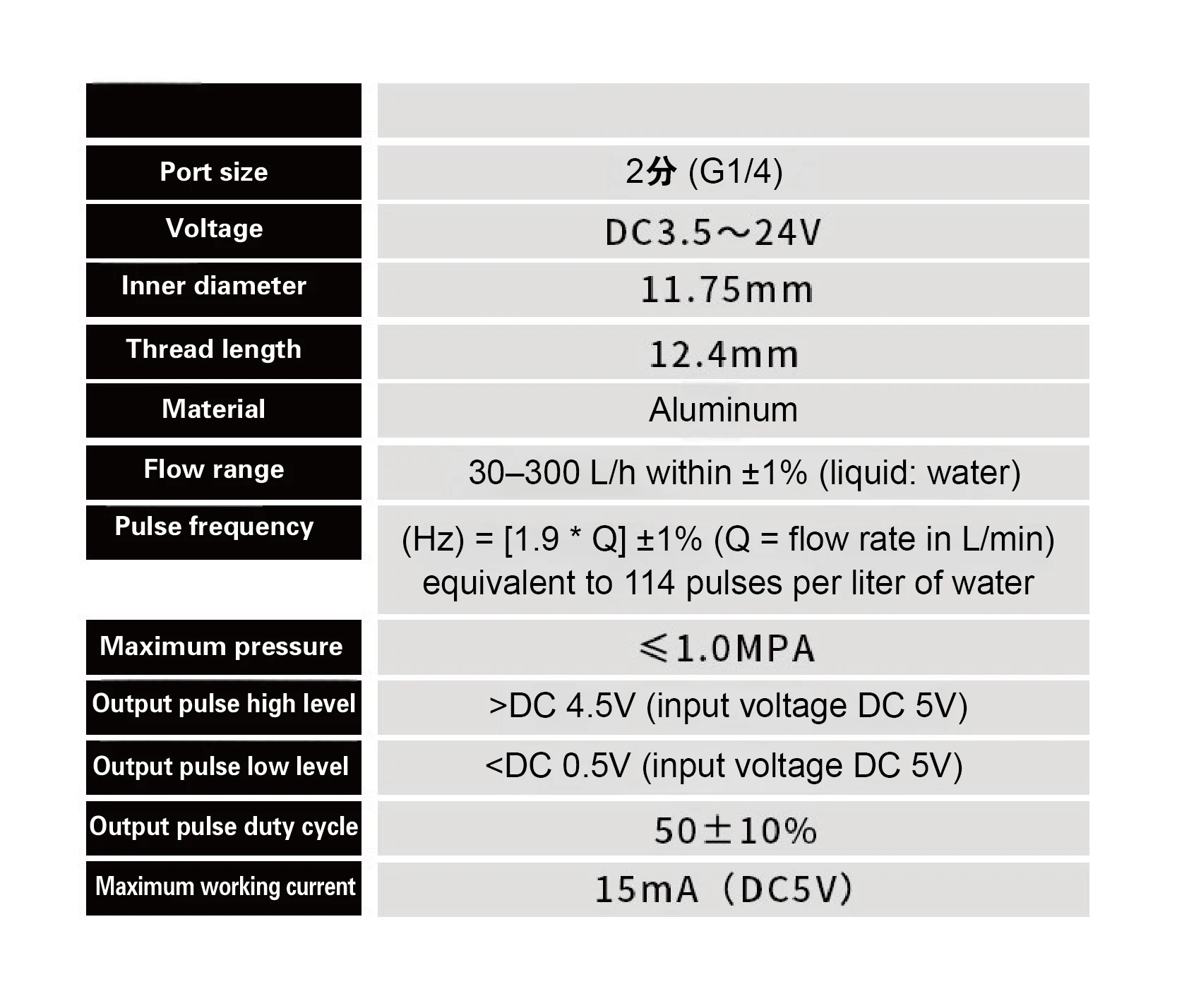

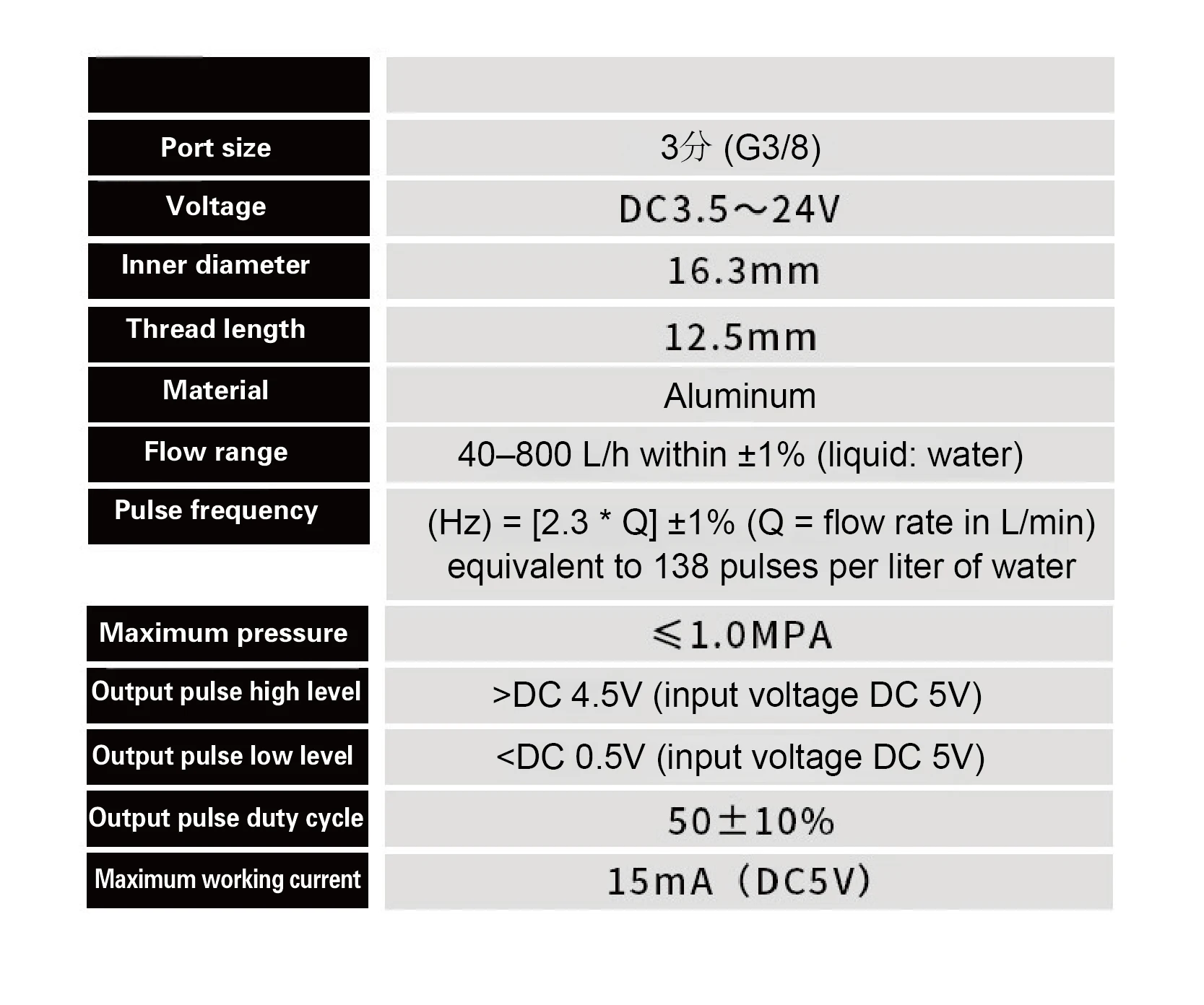

Parameter | G1/4 (2-point) | G3/8 (3-point) | G1/2 (4-point) | G3/4 (6-point) | G1 (1-inch) |
Material | Aluminum | Aluminum | Aluminum | Copper | Aluminum |
Voltage Range | DC3.5-24V | DC3.5-24V | DC3.5-24V | DC3.5-24V | DC3.5-24V |

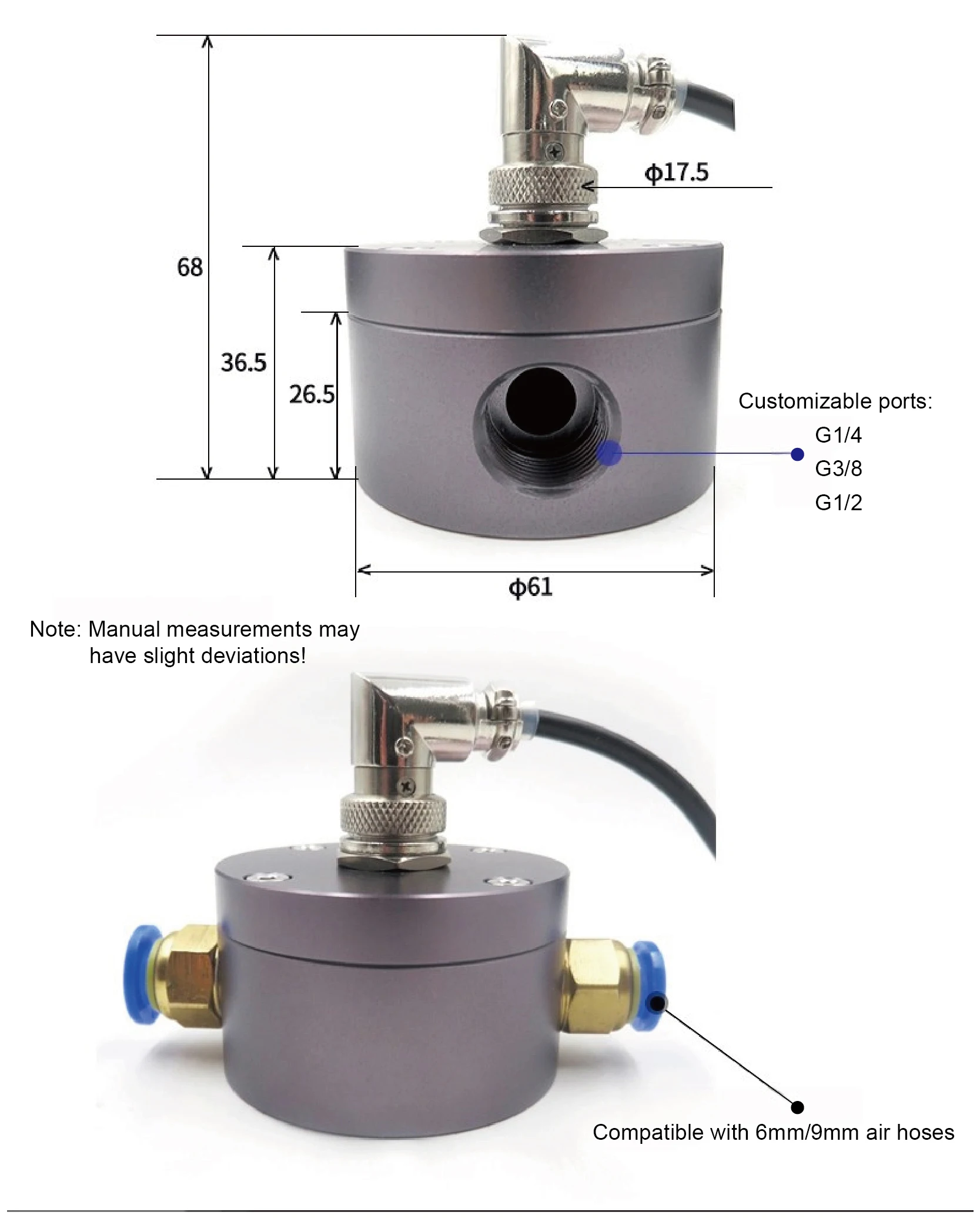

Inner Diameter | 11.75mm | 16.3mm | 19.1mm | 24.5mm | 24.5mm |
Thread Length | 12.4mm | 12.5mm | 10.27mm | - | - |
Flow Range | 30-300 L/h (±1%) | 40-800 L/h (±1%) | 50-1200 L/h (±1%) | 30-3000 L/h (±2%) | 3-60 L/min (±1%) |
Pulse Frequency Formula | (Hz) = [1.9 × Q] ±1% | (Hz) = [2.3 × Q] ±1% | (Hz) = [2.4 × Q] ±1% | (Hz) = [1.2 × Q] ±5% | (Hz) = [0.58 × Q] ±1% |
Pulse per Liter | 114 pulses | 138 pulses | 144 pulses | 72 pulses | 35 pulses |
Max Pressure | ≤1.0MPa | ≤1.0MPa | ≤1.0MPa | ≤1.0MPa | ≤1.2MPa |
Pulse Duty Cycle | 50% ±10% | 50% ±10% | 50% ±10% | 50% ±10% | 50% ±10% |
Max Operating Current | 15mA (DC5V) | 15mA (DC5V) | 15mA (DC5V) | 15mA (DC5V) | 15mA (DC5V) |
3. APPLICATIONS
Refinery and oil industry applications.
Power plants and cruise systems.
Petrochemical and chemical liquid metering.
4. FEATURES

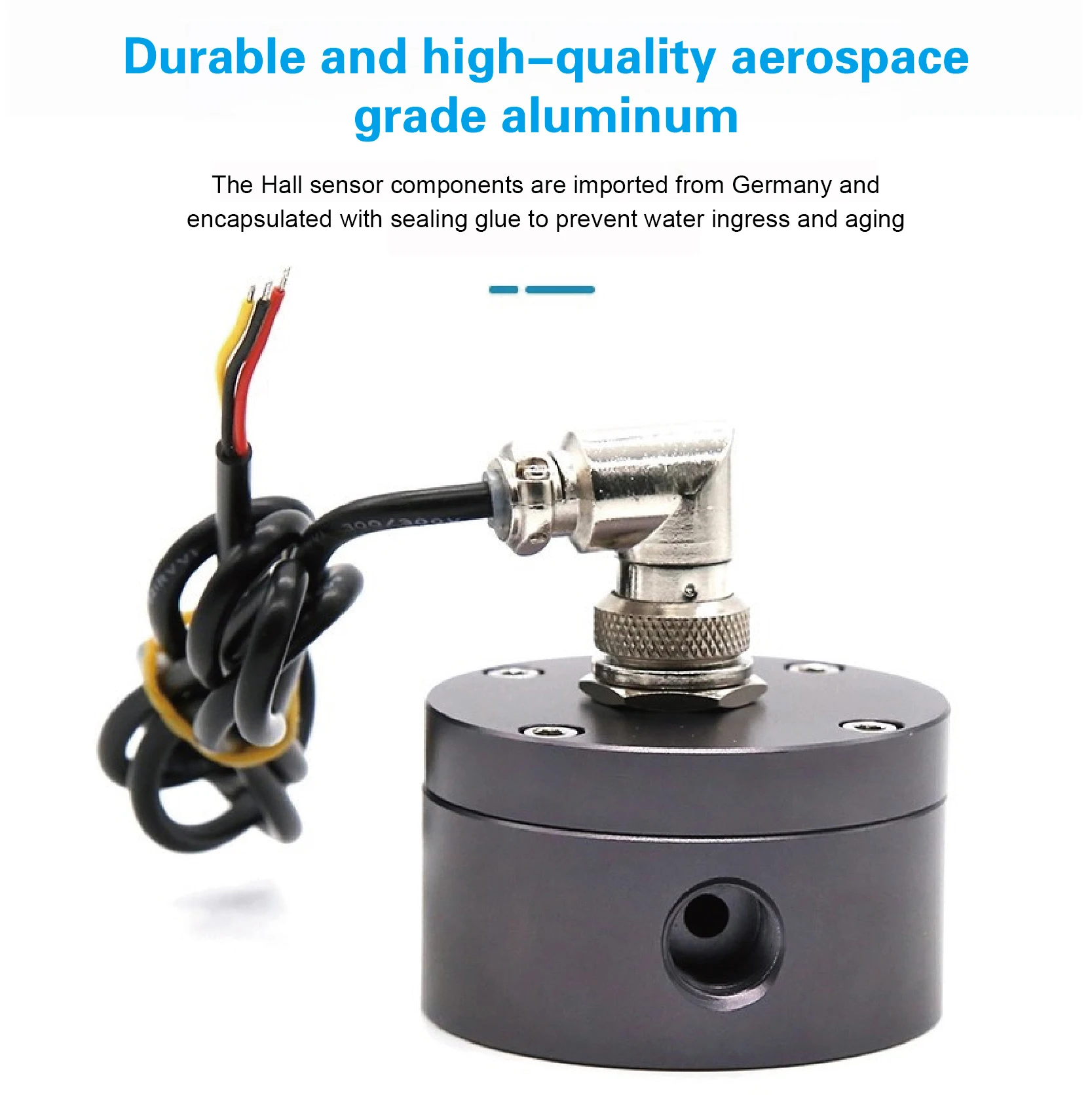

Durable Materials: Aluminum or copper body for high-pressure tolerance.
High Accuracy: Flow rate measurement within ±1%-2% range.
Versatile Interface Sizes: Supports multiple connection sizes (G1/4, G3/8, G1/2, G3/4, G1).
Wide Voltage Compatibility: Operates smoothly between DC3.5-24V.
5. FAQs
Q1: What liquids can this flowmeter measure?
A1: Suitable for oil, milk, chemical liquids, and diesel.
Q2: Can it handle high-pressure systems?
A2: Yes, it is designed to withstand up to 1.2MPa (specific to G1 models).
Q3: How can I ensure accurate readings?
A3: Install the flowmeter horizontally, ensure the liquid is free from air bubbles, and use within the specified flow range.
