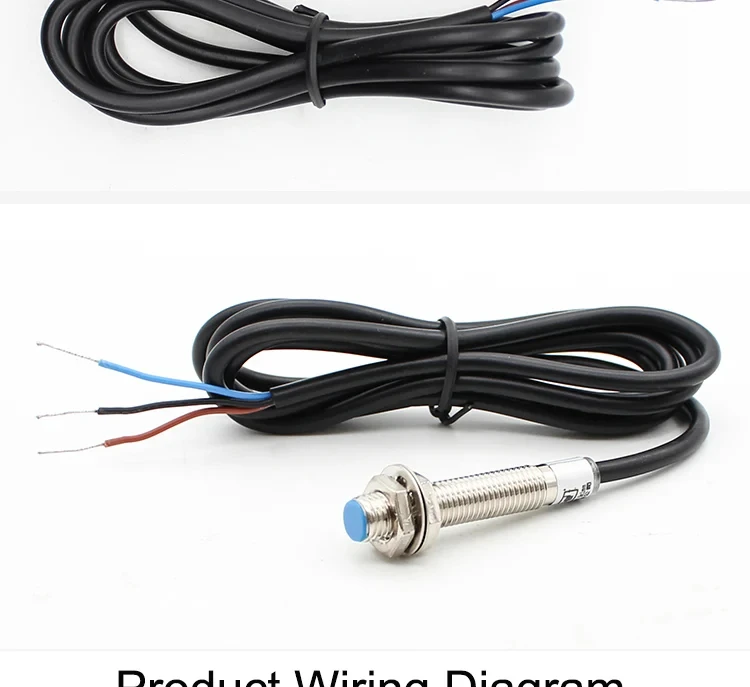

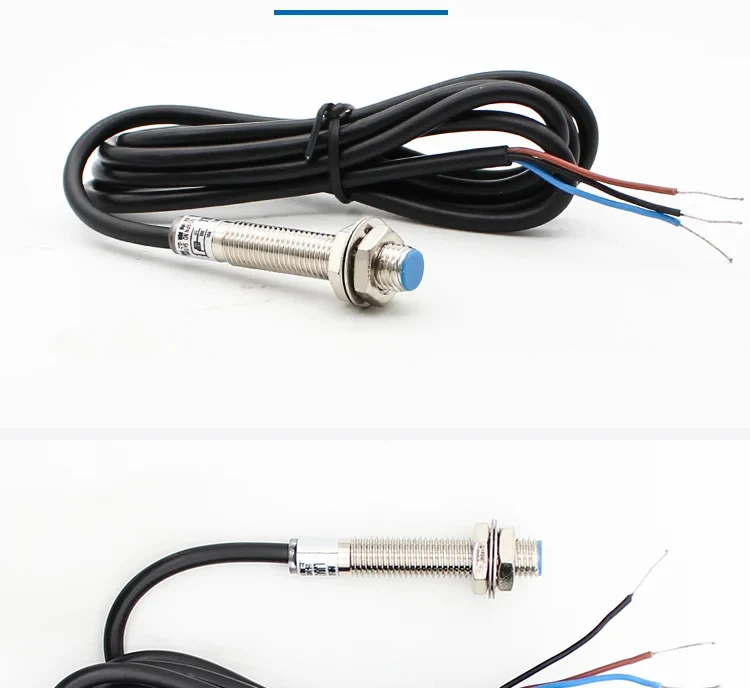

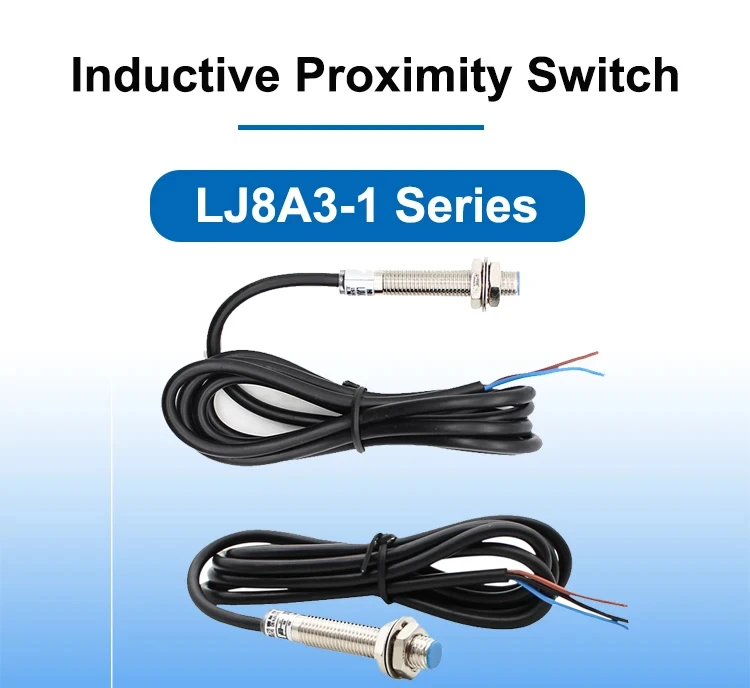

Metal Shell Inductive Proximity Switch LJ8A3-2-Z/BX NPN NO 2mm M8 DC6-36V 3Wire

Product Description

Output Types:

DC Types:

NPN, Normally Open (NO)

NPN, Normally Closed (NC)

NPN, NO + NC

PNP, Normally Open (NO)

PNP, Normally Closed (NC)

PNP, NO + NC

2-Wire, Normally Open (NO)

2-Wire, Normally Closed (NC)

AC Types:

2-Wire, Normally Open (NO)

2-Wire, Normally Closed (NC)

2-Wire, NO + NC

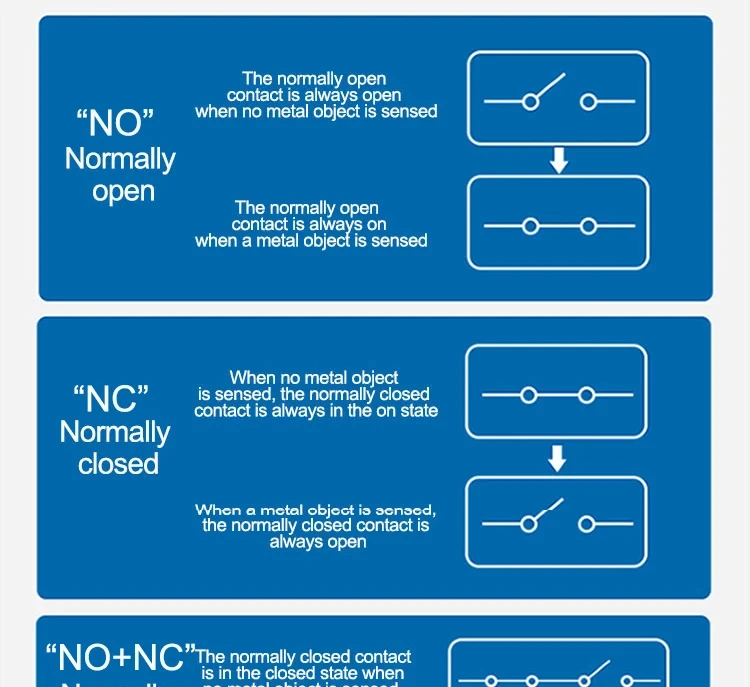

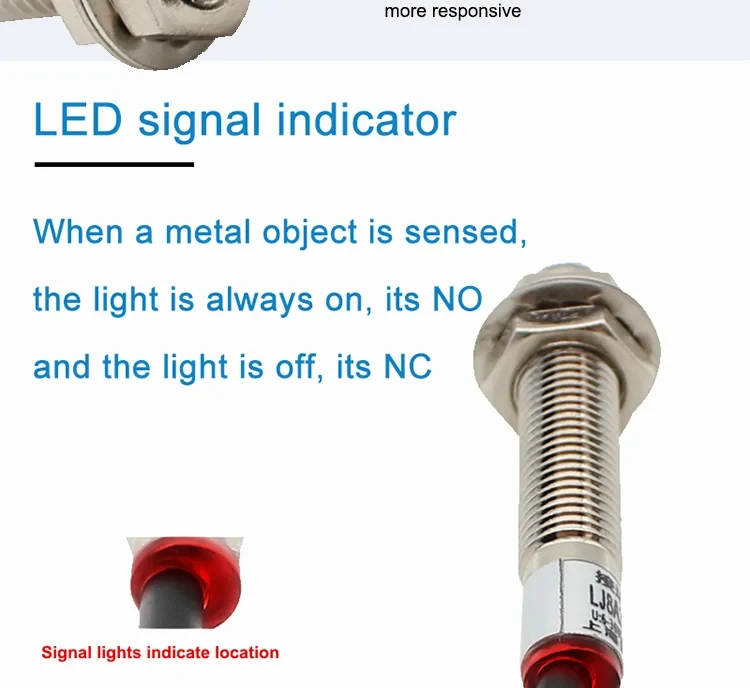

Output Behavior:

NO (Normally Open): Light turns on when an object is detected.

NC (Normally Closed): Light turns off when an object is detected.

External Dimensions:

Φ4mm x 30mm (L)

M5 x 30mm (L)

Φ6mm x 35mm (L)

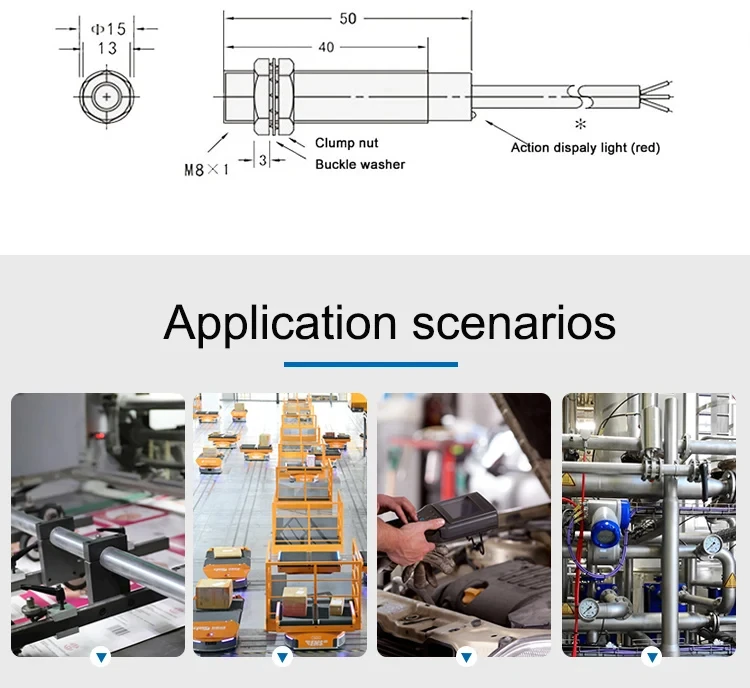

M8 x 50mm (L)

M12 x 60mm (L)

M18 x 68mm (L)

M30 x 70mm (L)

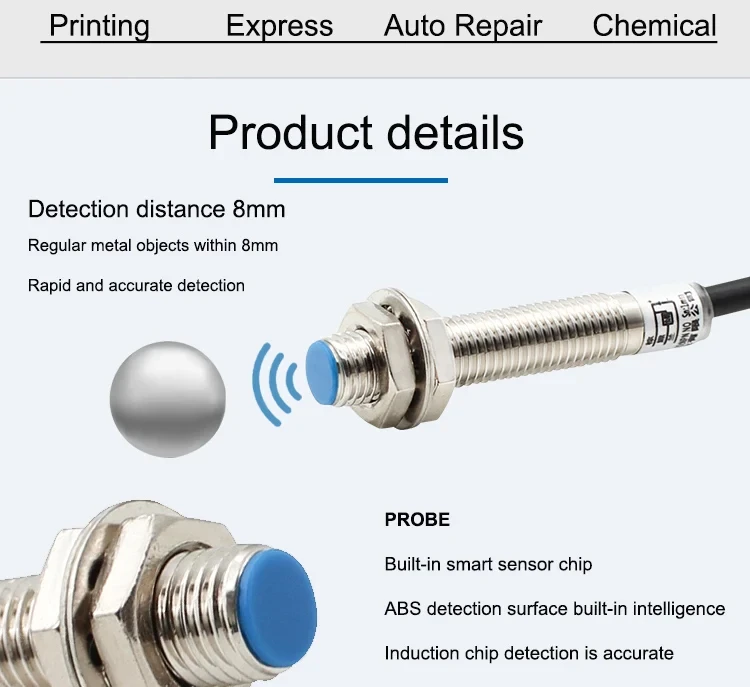

Detection Distance: 1mm, 2mm, 4mm, 5mm, 8mm, 10mm, 15mm ±10%

Set Distance: 0 ~ 3.6mm

Thread Size:Φ4mm, M5, Φ6mm, M8, M12, M18, M30

Mounting Type: Shielded or Unshielded

Supply Voltage:

DC Type: 6 ~ 36VDC

AC Type: 90 ~ 250VAC, 50/60Hz

Output Current:

NPN/PNP: <300mA

DC Type: <200mA

AC Type: <400mA

Current Ratings:

5V: 360mA

12V: 200mA

24V: 96mA

Max Instantaneous Current: 2A

Response Frequency:

DC Type: 500Hz

AC Type: 25Hz

Voltage Tolerance:

DC Supply: 12V/24V/36V (5–36V) with ≤10% ripple

Withstand Voltage: AC 1000V, 50/60Hz for 1 minute between live parts and housing

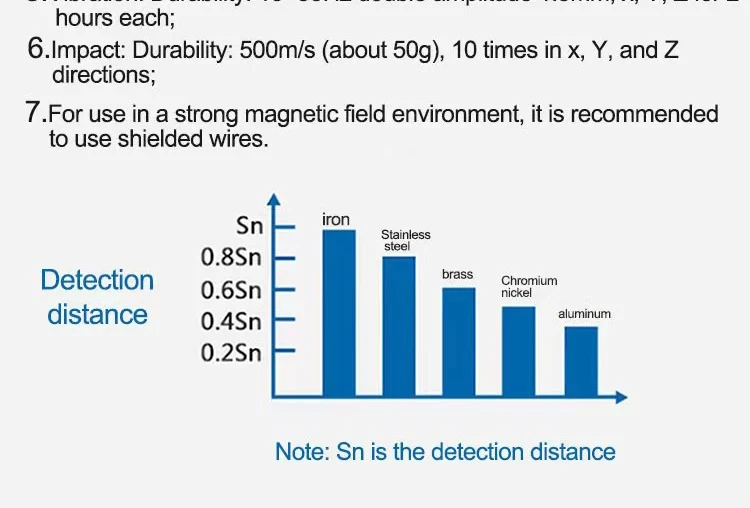

Detection Object: Magnetic metals

(Non-magnetic metals reduce detection distance)

Output Indicator: Red LED

IP Rating: IP67 (IEC Standard)

Operating Temperature: -25°C to 70°C

Cable Length (Including Wire): Approx. 1.2m

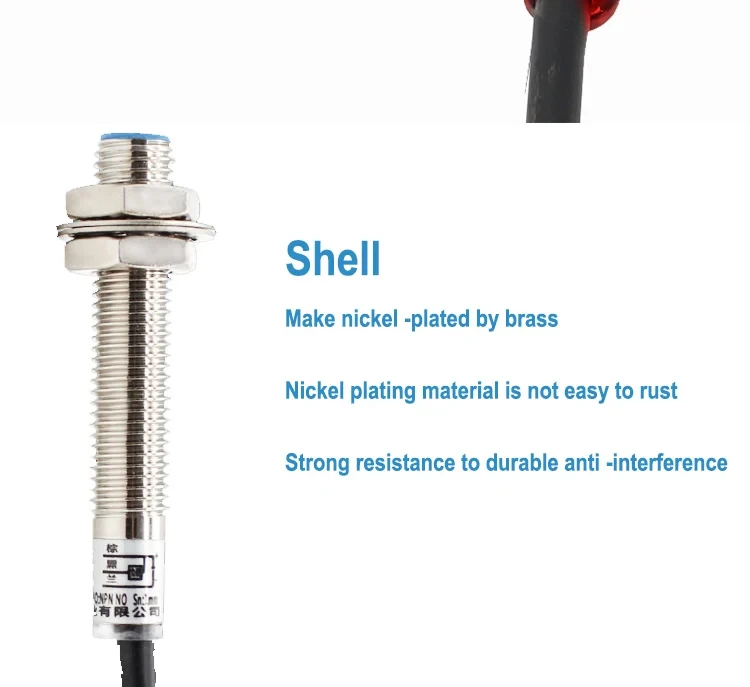

Material:

Housing: Brass with Nickel Plating

Sensing Face: ABS

Applications:

Compatible with relays, counters, PLCs, and more.

Package Includes:

1 x Proximity Sensor Switch

Selection Guide:

For most industrial applications, eddy current inductive and capacitive proximity sensors are preferred for their reliability in a wide range of environments.

Eddy Current Inductive Sensors:
Ideal for detecting conductive or metal-mounted objects. These sensors deliver fast response times, excellent resistance to electromagnetic interference, broad versatility, and cost-effective performance.

Capacitive Sensors:
Designed to detect non-metallic materials such as liquids, powders, plastics, and tobacco. While they offer reliable performance, they can be more sensitive to environmental conditions—careful installation is essential to ensure optimal functionality.

Hall Effect Sensors:
Best suited for detecting magnetic materials or distinguishing between different magnetic objects with precision.

Photoelectric Sensors:
Recommended for clean, dust-free environments such as those found in facsimile and tobacco machinery. These sensors minimally affect the detected object and are ideal where contactless detection is required.

Pyroelectric, Ultrasonic, and Microwave Sensors:
Commonly applied in security systems and automatic door controls. For maximum reliability, combining multiple sensor types is often advisable.

Important Note:
Always ensure the selected sensor meets the required working voltage and load current specifications for your specific application.
