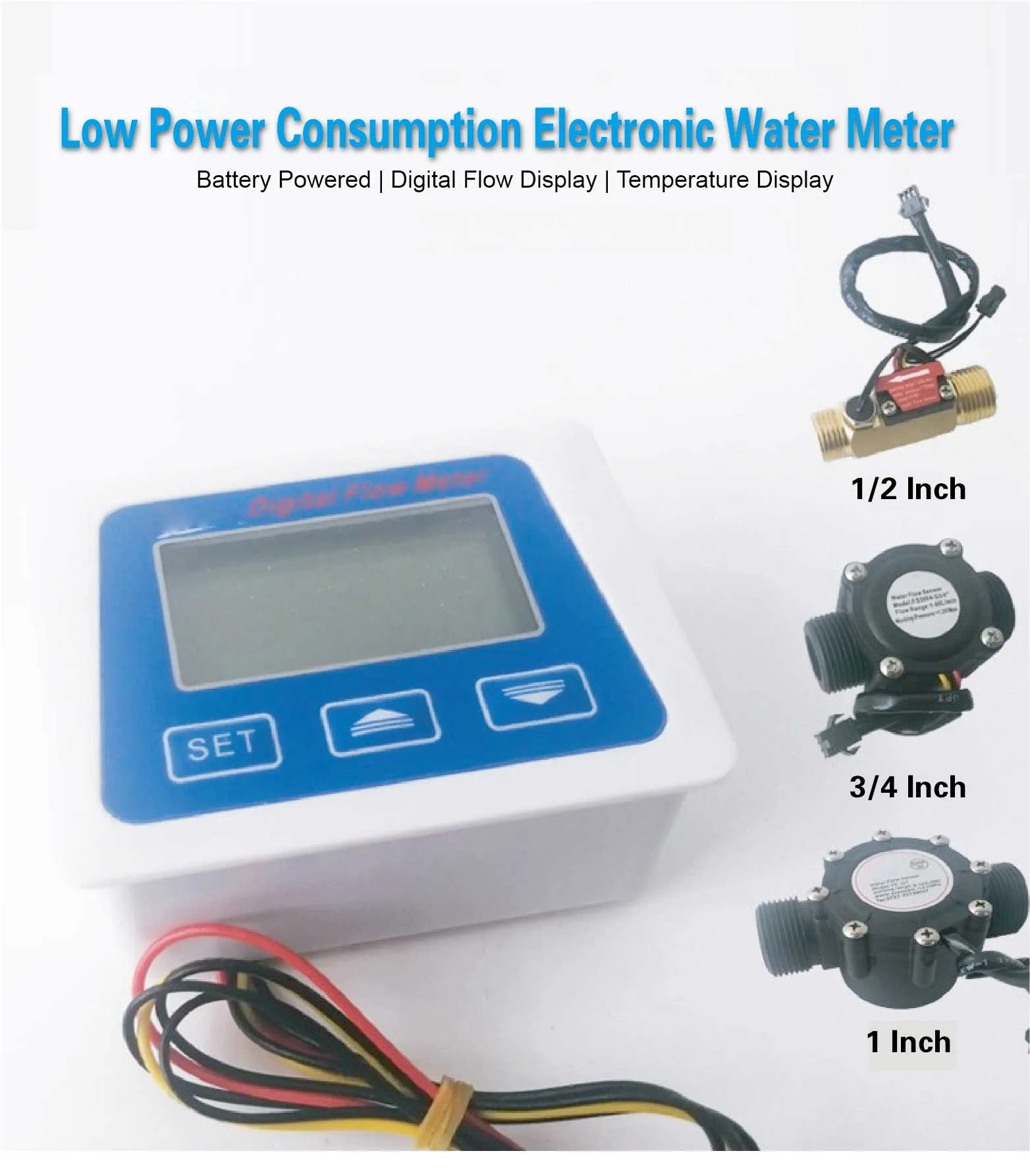

Brass G1/2 1 Inch Water Flow Meter LCD Digital Flow Sensor Smart Submeter with T

Product Description

Important Usage Note
This electronic water meter requires a minimum water pressure of 0.2 kg to function properly. It is not suitable for use in systems without water pressure.

Battery Information
Due to shipping regulations, batteries may not be included in some regions. If needed, please purchase compatible batteries locally.

Default Specifications

• Dimensions: 85 × 67.63 mm

• Power Supply: DC 5V or 3×AAA batteries (optional)

• Measurement Range: 0.1–9999L

• Temperature Display Range: -99° to 999°

• Controls: 3-button interface

• Interface Types: SM-3P, SM-2P

• Display Functions: Real-time flow rate, total volume, temperature, battery status

Customizable Options

Compatible Flow Meters:

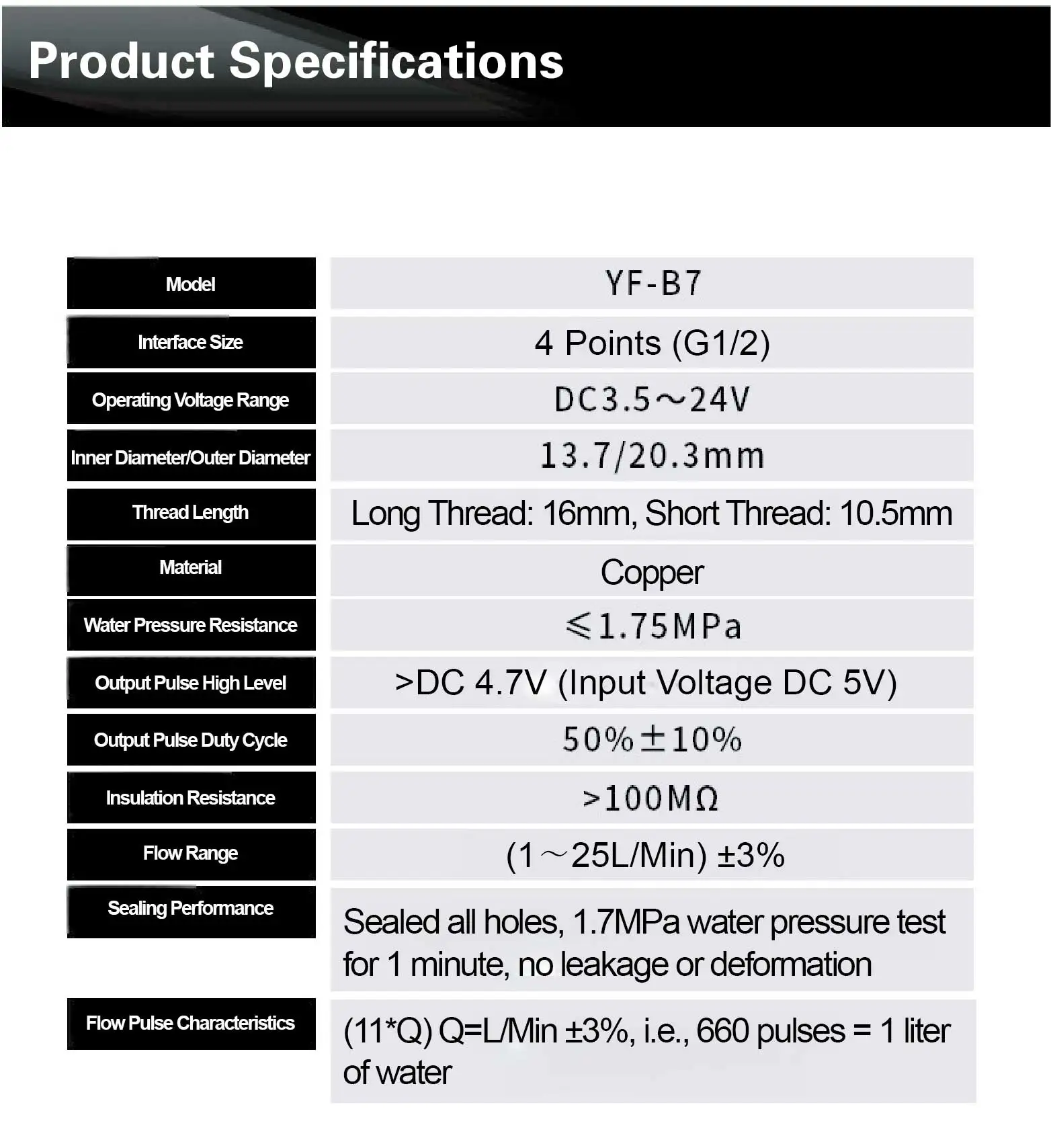

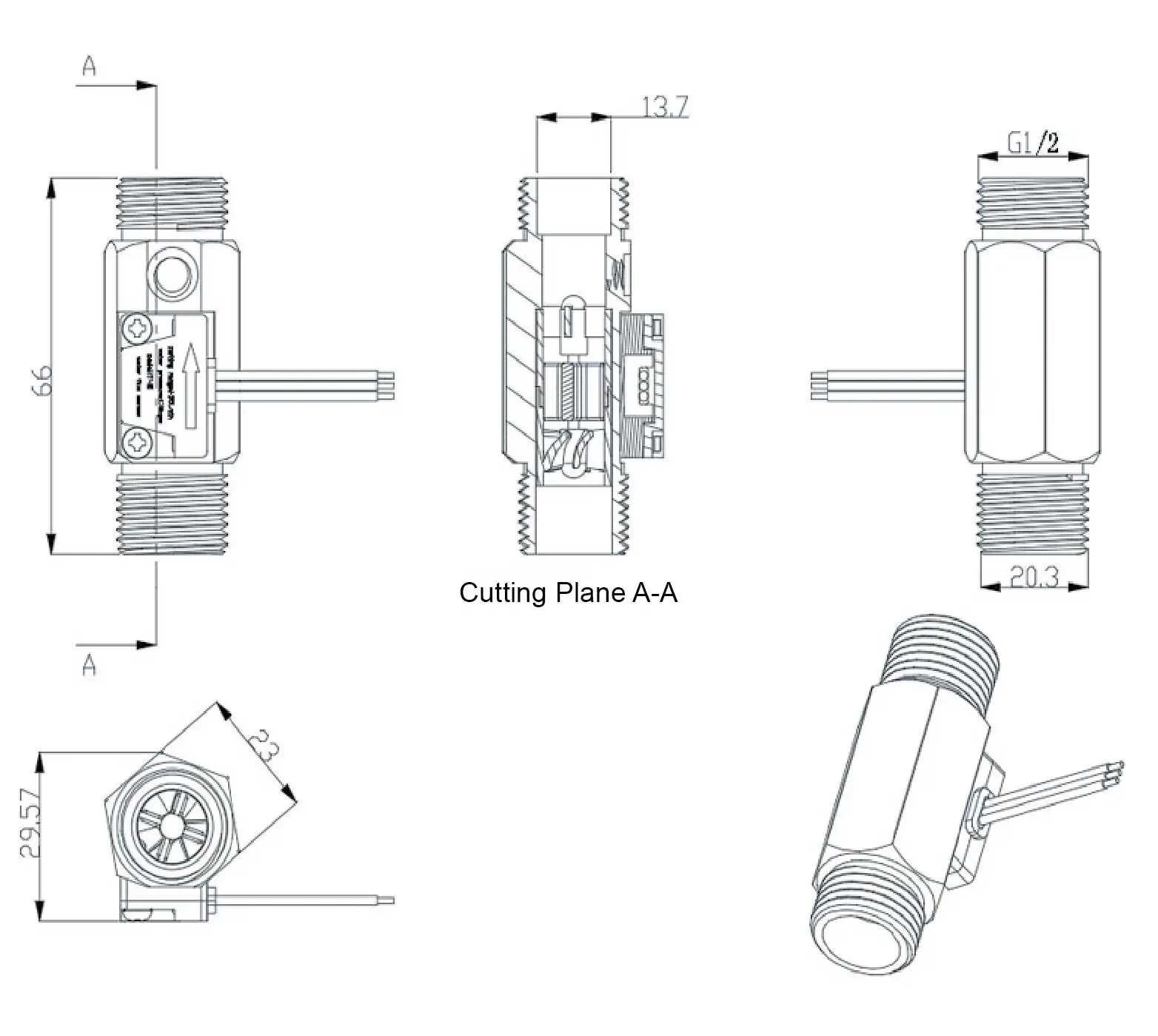

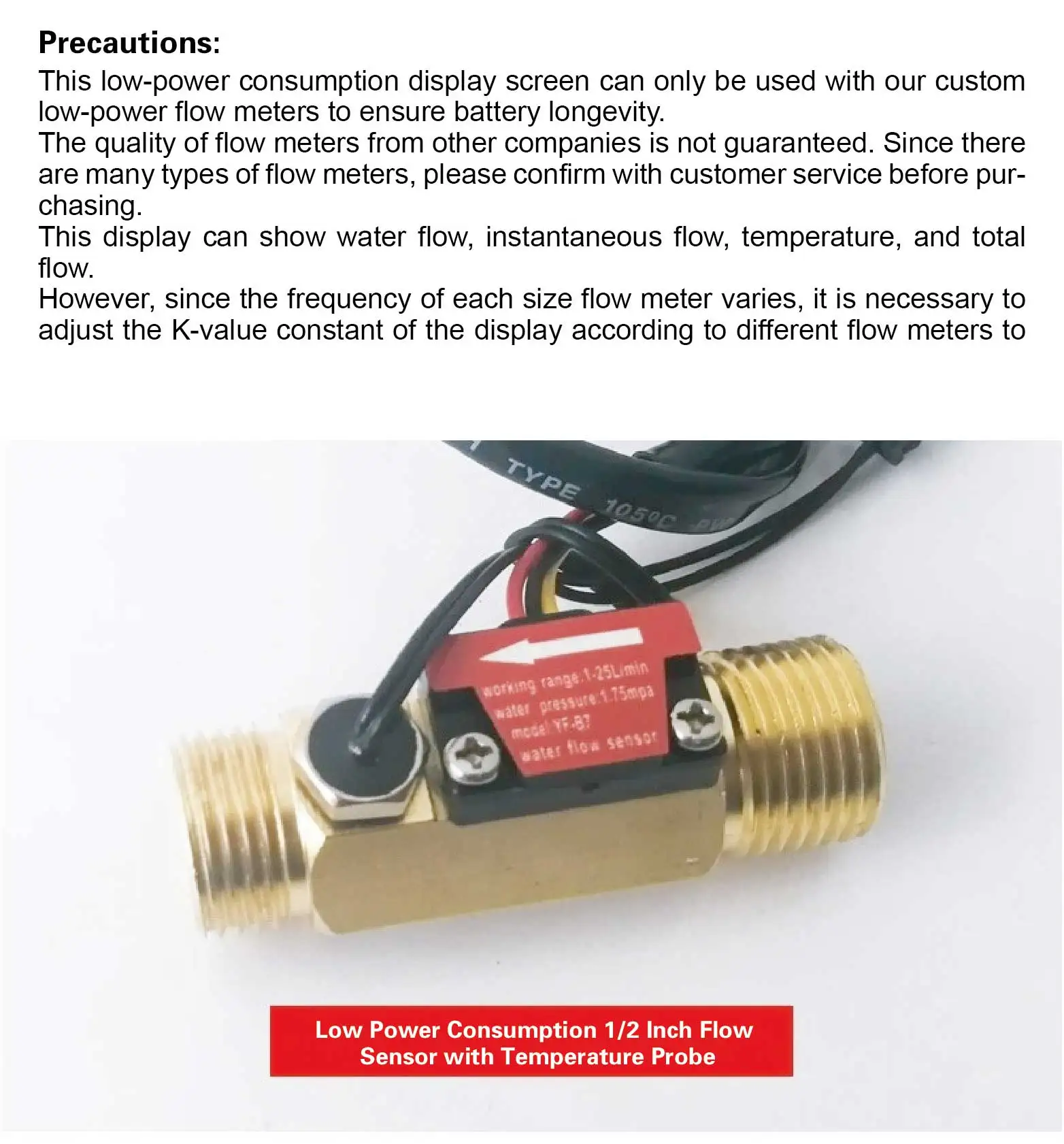

• B7 (G1/2” brass): Flow rate 1–25 L/min

• S201B (G1/2” nylon): Flow rate 1–30 L/min

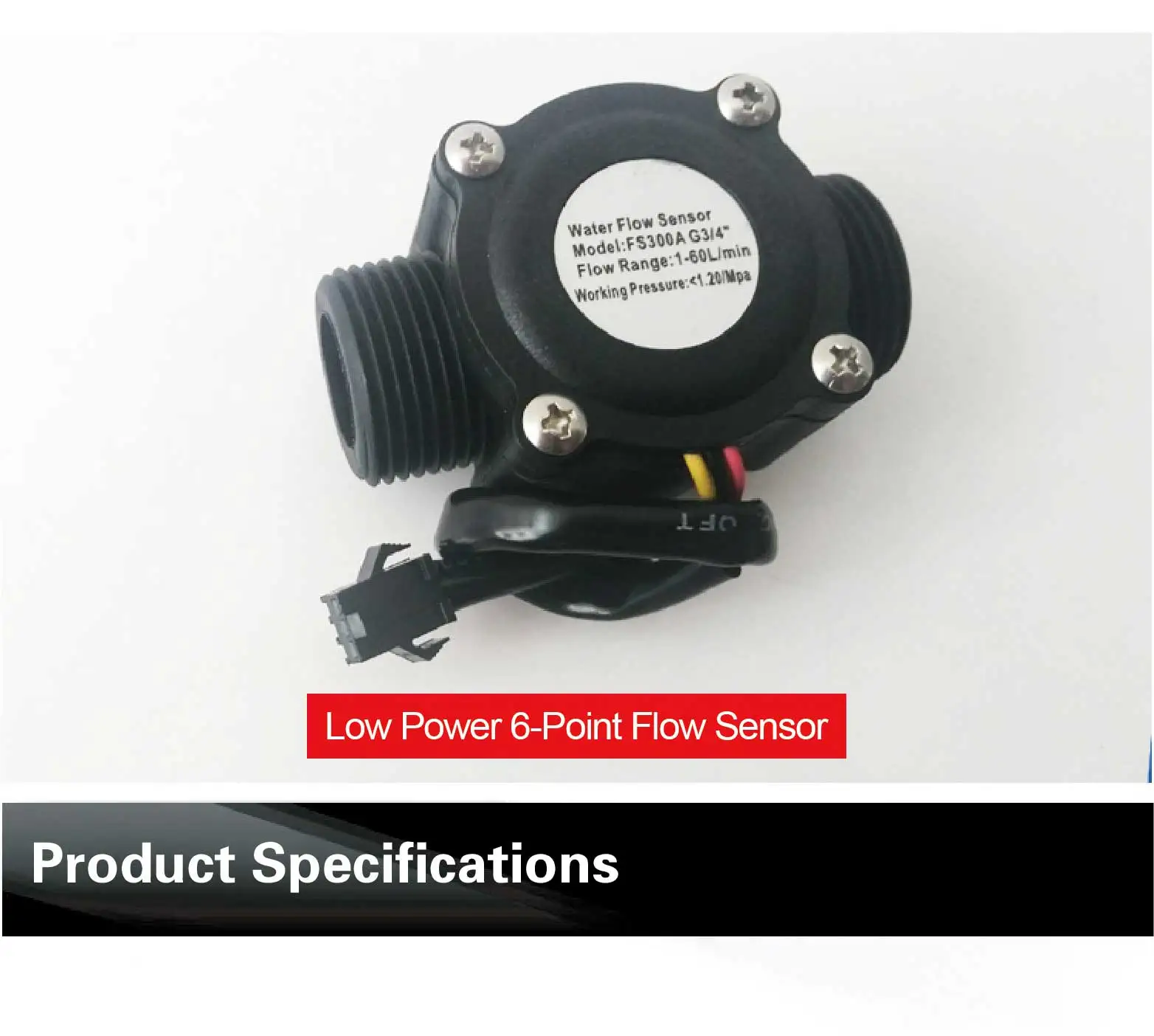

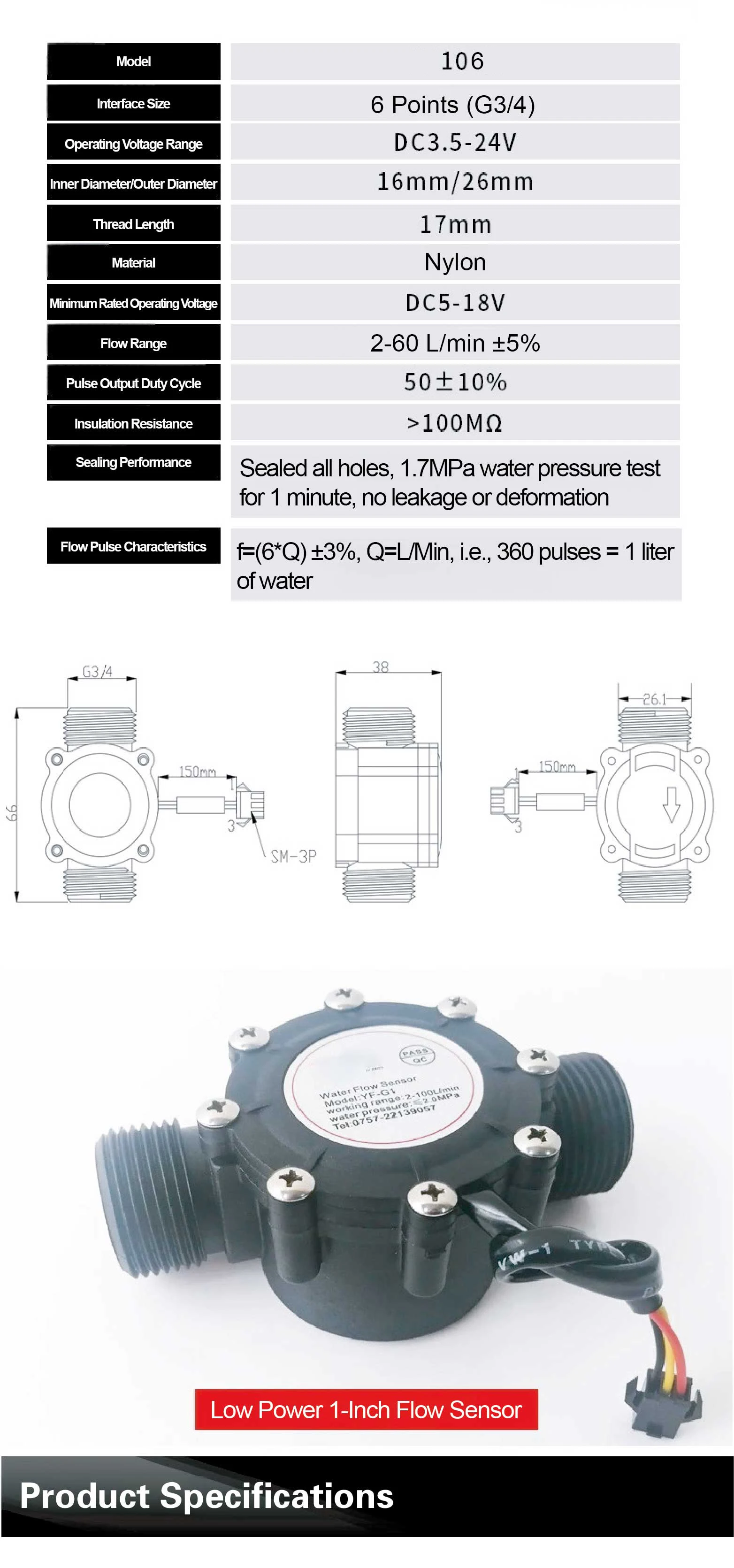

• 106 (G3/4” nylon): Flow rate 2–60 L/min

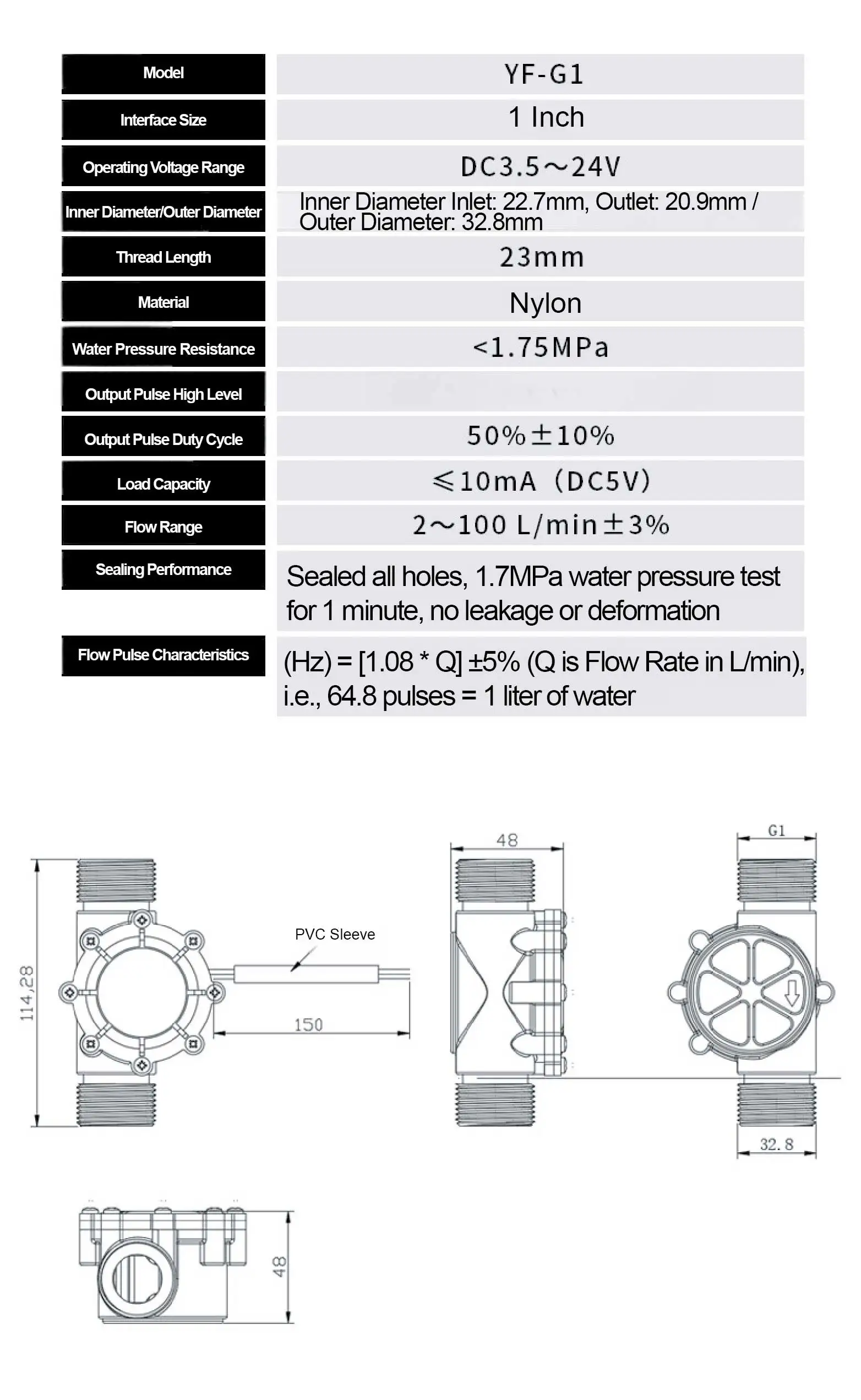

• G1 (G1” nylon): Flow rate 2–100 L/min

Package Options:

• Display unit only (temperature sensor not included)

• Display unit + flow meter (includes M8 temperature sensor by default)

Power Options:

• Battery-powered version

• Plug-in version

For custom configurations or inquiries, please contact us directly.

2.Parameters

Key Features

Accurate Flow & Temperature Monitoring
Provides real-time display of water flow rate in LPM or GPM and temperature in °C or °F. Measurement units can be switched easily to suit your preferences.

Energy-Efficient Battery Operation
Designed for low power consumption, this device operates on DC 5V and supports long-lasting performance with battery use.

Intuitive Control Interface
Features a user-friendly three-button layout for quick access to flow rate adjustments, total volume tracking, and temperature unit selection.

Automatic Sleep Mode
Automatically enters sleep mode when no water is detected, helping to preserve battery life during periods of inactivity.

Convenient Reset Function
Total water usage can be reset manually via the control panel or through dedicated reset points on the circuit board for added flexibility.

Applications

Household Water Monitoring
Tracks daily water usage to encourage efficient consumption and minimize waste in residential settings.

Industrial & Commercial Use
Suitable for use in factories, farms, commercial buildings, and other high-demand environments requiring reliable water flow monitoring.

Irrigation & Smart Farming
Offers precise water usage data for irrigation systems, supporting efficient water management and sustainable agricultural practices.

Laboratory & Research Settings
Provides accurate and consistent flow measurements, making it ideal for scientific experiments and technical research.

FAQs

Q1: What is the minimum water pressure required for operation?
A1: The water meter requires a minimum water pressure of 0.2 kg/cm² to function properly. It will not work in systems without water pressure.

Q2: Can the water meter display both LPM and GPM?
A2: Yes, the device allows you to switch between liters per minute (LPM) and gallons per minute (GPM). Simply press the "-" button to toggle between the units.

Q3: How can I reset the total water usage?
A3: There are two ways to reset total water usage:

1. Short-circuit the RESET points on the circuit board after powering on.

2. Press and hold the "SET" button, then use the "+" and "-" buttons to reset the value to zero.
