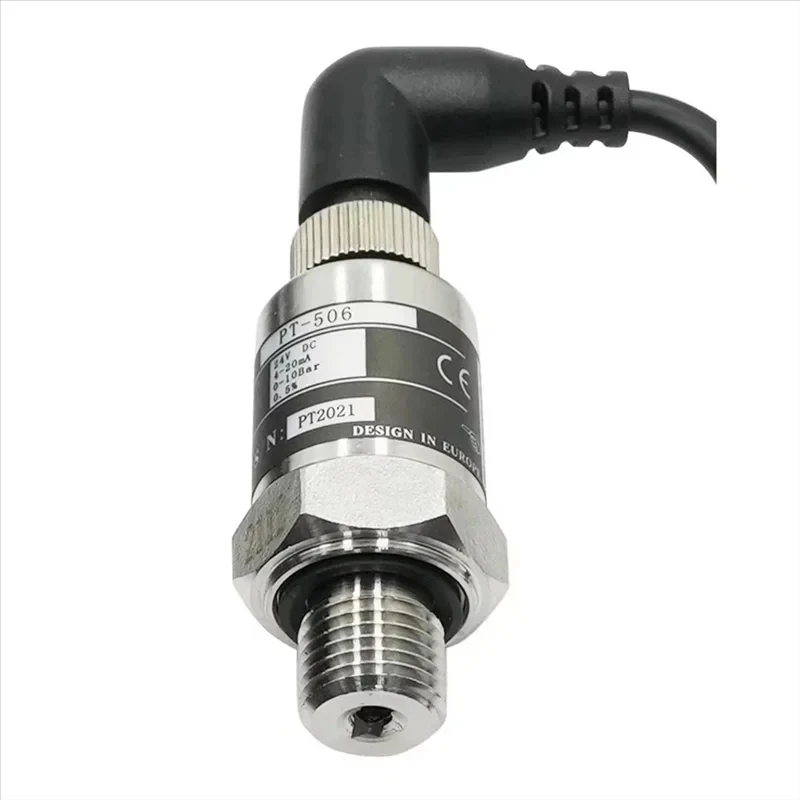

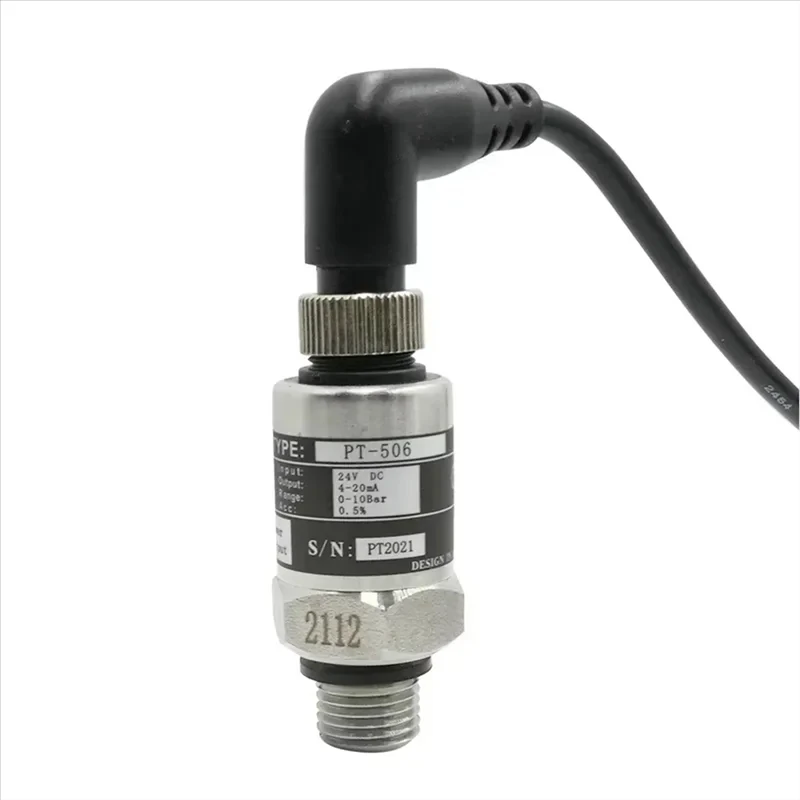

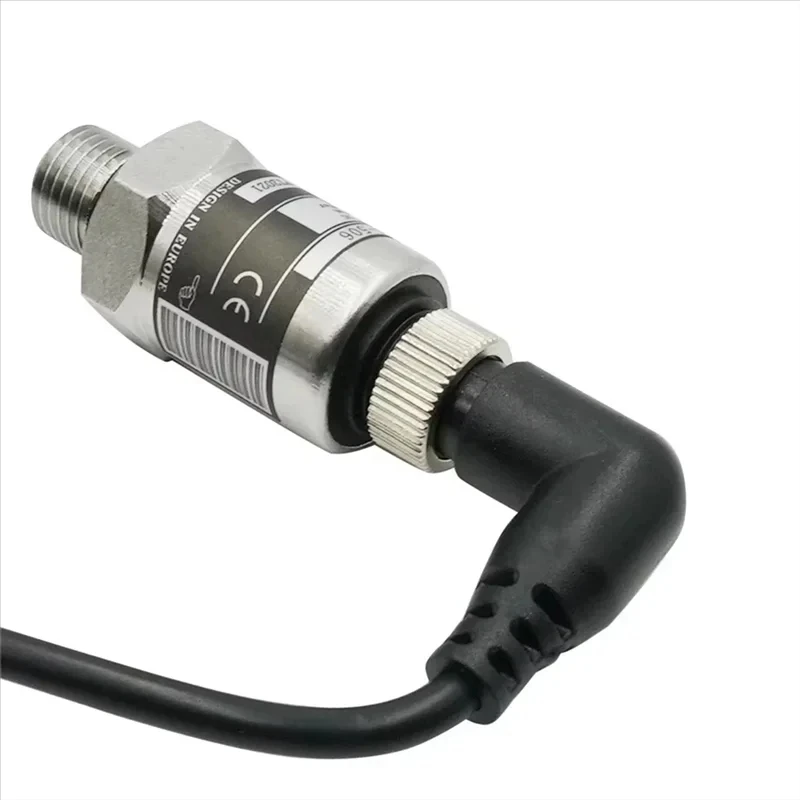

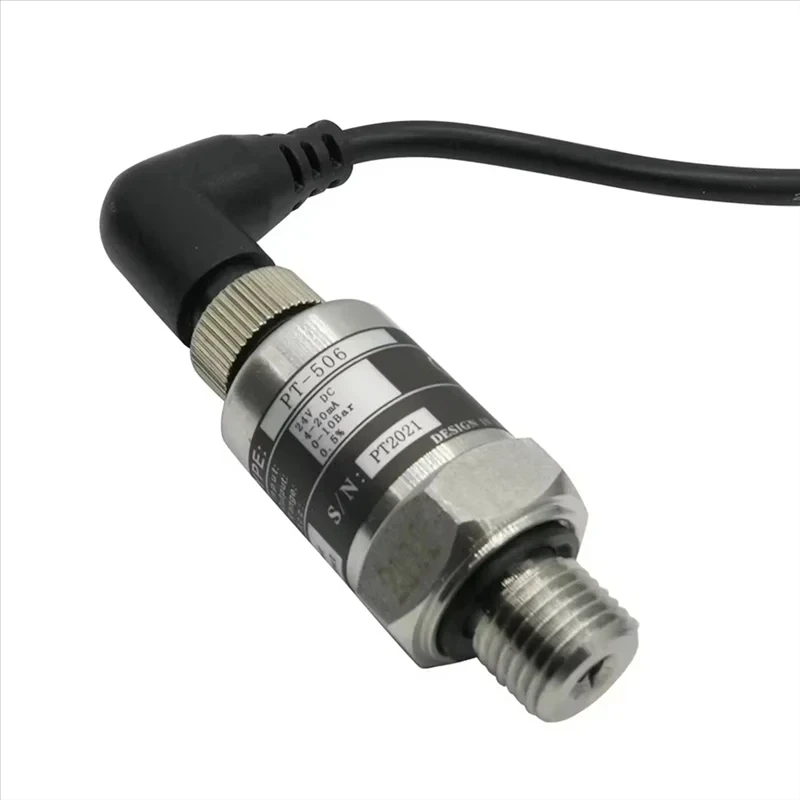

PT-506 Water Pump Pressure Sensor Transmitter 0-2.5MPa 4-20mA 24VDC G1/4 Elbow H

Product Description

Default Configuration:
Model: Elbow type
Pressure Range: 0–1.0MPa / 0–1.6MPa / 0–2.5MPa
Output Signal: 4–20mA
Power Supply: 24VDC (10–36VDC)
Thread Size: G1/4 (Ø13mm)
Operating Temperature: –40°C to +85°C

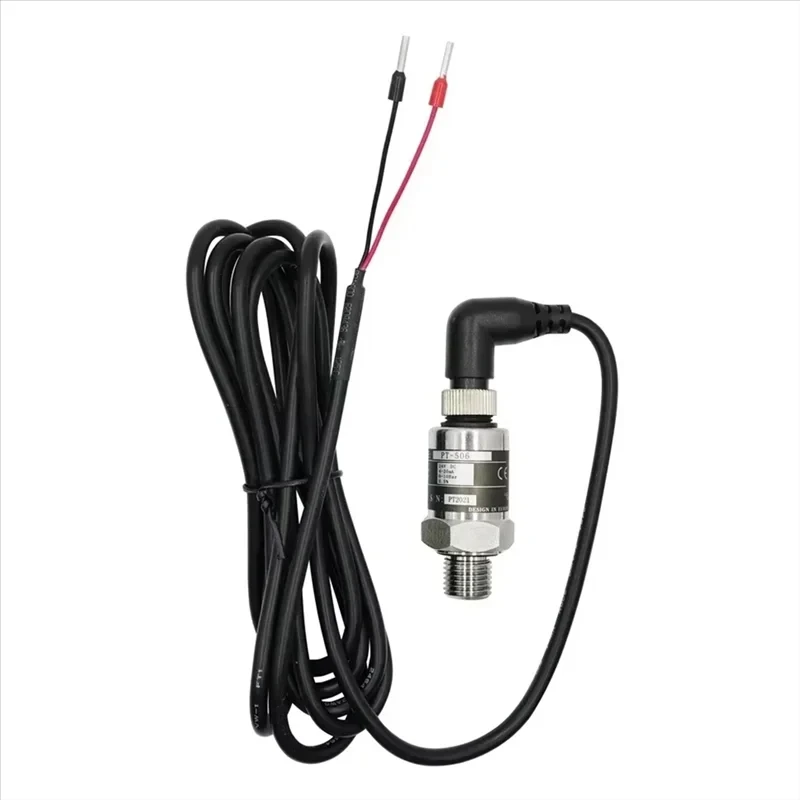

Cable Length: 2 meters
Material: Stainless Steel

Optional Configuration:
Model: Customizable straight type
Thread Size: G1/2, M20×1.5 (custom threads available)
Cable Length: Customizable to 5m / 10m

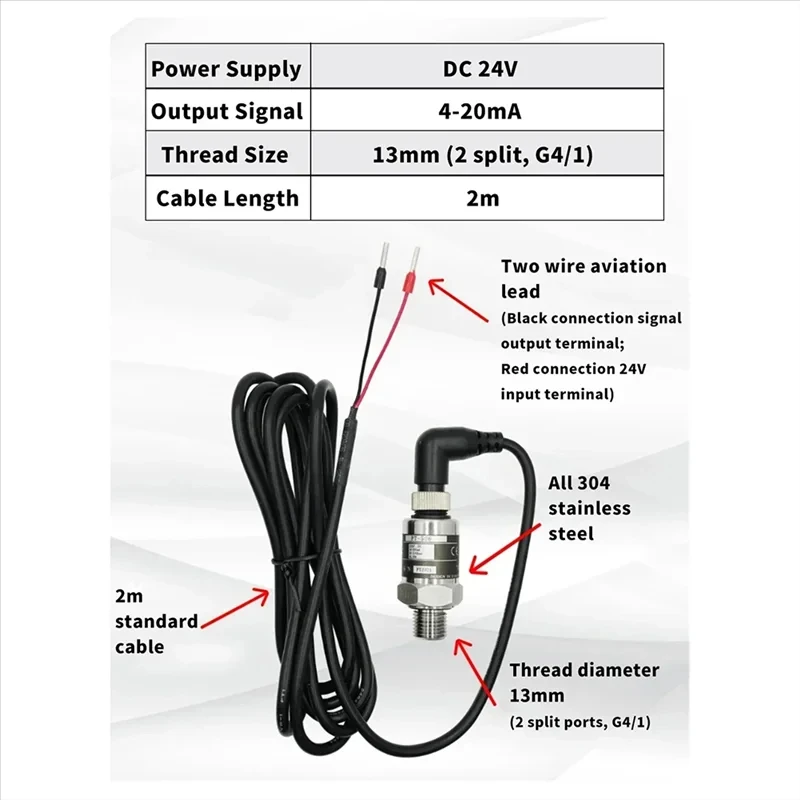

2. Parameters

3. Features

High Accuracy Pressure Sensing
Delivers ±0.5%FS precision for reliable monitoring.

Waterproof & Dustproof (IP67)
Equipped with O-ring seal and built-in gasket for moisture resistance.

Anti-mistake Plug Design
Foolproof slot prevents reverse insertion and sensor damage.

Enhanced Signal Transmission
Uses 22AWG tinned shielded wire for anti-interference and signal integrity.

Multiple Cable Lengths Available
Standard 2m cable; 5m and 10m optional for different installation needs.

Flexible Thread Options
G1/4 (13mm) standard; G1/2 (20mm) available upon request.

4. Applications

Widely used in industrial automation, hydraulic systems, air compressors, and liquid level monitoring. Compatible with water, oil, and air media.

5. FAQs

Q1: Is the sensor compatible with both water and oil?
A1: Yes, it is suitable for non-corrosive media like water, air, and machine oil.

Q2: Can I get a G1/2 (20mm) thread version?
A2: Yes, please contact us for customization.

Q3: What is the default cable length, and can I choose a longer one?
A3: The standard cable length is 2 meters. 5m and 10m versions are also available.
