Product Description

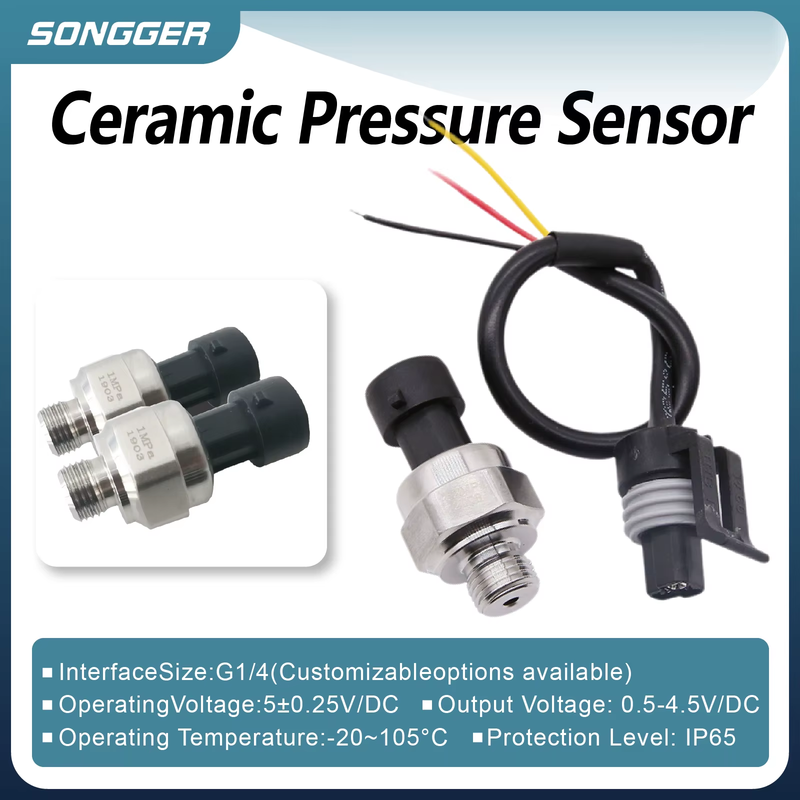

0.5-4.5V Analog Stainless Steel Pressure Sensor G1/4 Ceramic Type for HVAC Hydraulic Pneumatic Water Oil Boiler Use
0.5-4.5V Analog Stainless Steel Pressure Sensor G1/4 Ceramic Type for HVAC Hydraulic Pneumatic Water Oil Boiler Use1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Pressure Range:0-30MPA
Interface Size: G1/4
Operating Voltage: 5±0.25V/DC
Output Voltage: 0.5–4.5V/DC
Operating Temperature: -20°C to 105°C
Cable length: 20CM
Protection Level: IP65
Optional Configurations Include:
Pressure Range:Customizable (0-30MPA)
Interface Size: Customizable (e.g., G1/4, G1/2, M20×1.5, NPT1/4, NPT1/2)
Cable length: Customizable (eg 1m,2m,3m,5m,10m)
Please confirm the measurement range, interface size, and voltage requirements before placing an order.
For further customization or bulk orders, please feel free to contact us.

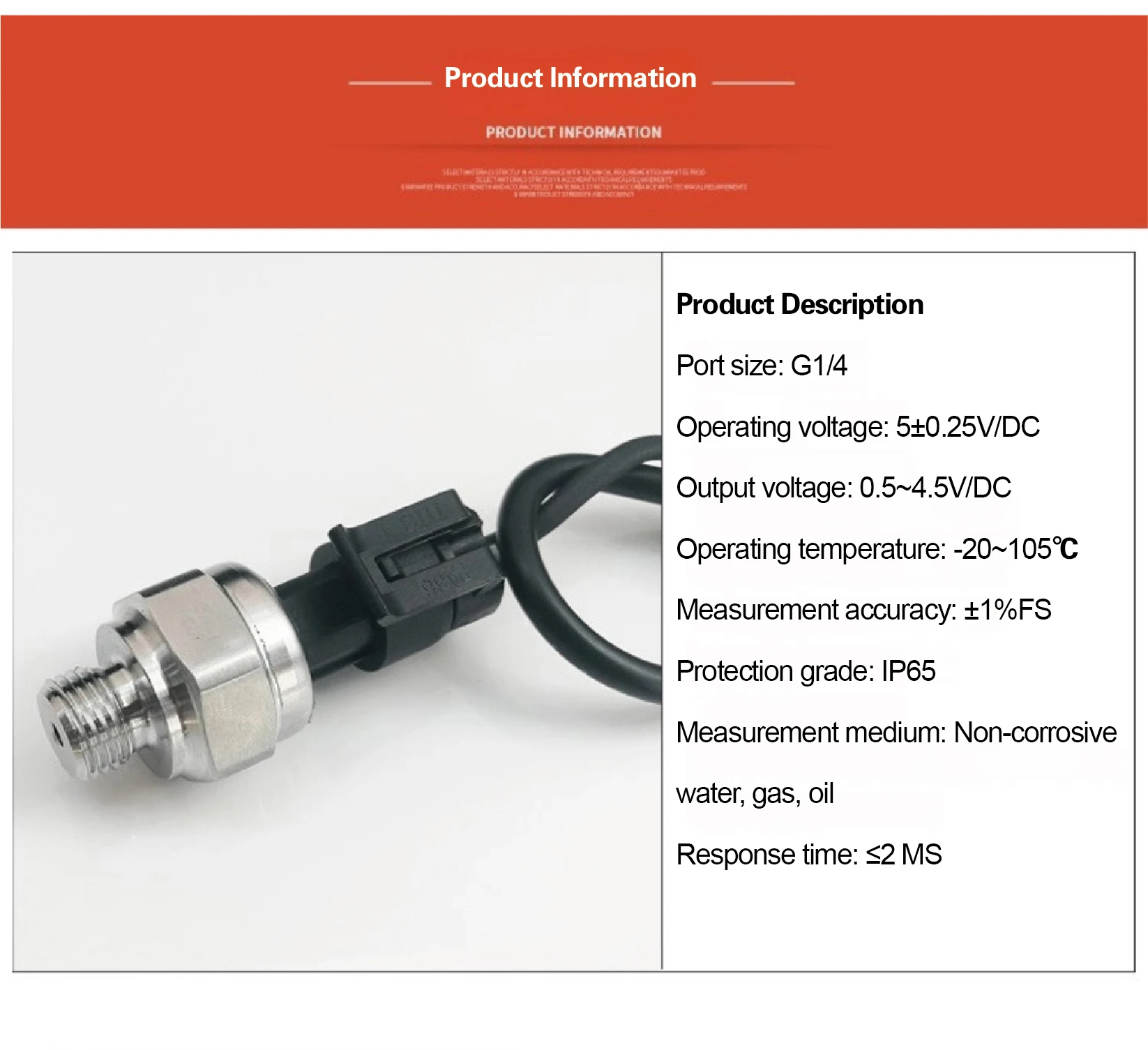

2. PARAMETERS
Parameter | Specification |
Interface Size | G1/4 |
Working Voltage | 5±0.25V/DC |
Output Voltage | 0.5-4.5V/DC |
Operating Temperature | -20~105°C |
Measurement Accuracy | ±1%FS |
Protection Level | IP65 |
Measured Medium | Non-corrosive water, gas, oil |
Response Time | ≤2ms |
3. APPLICATION
Suitable for monitoring water pressure, hydraulic pressure, air pressure, and oil pressure.
Widely used in industrial automation, fluid control systems, and environmental monitoring.
Ideal for systems requiring anti-corrosion and impact resistance.
4. FEATURES

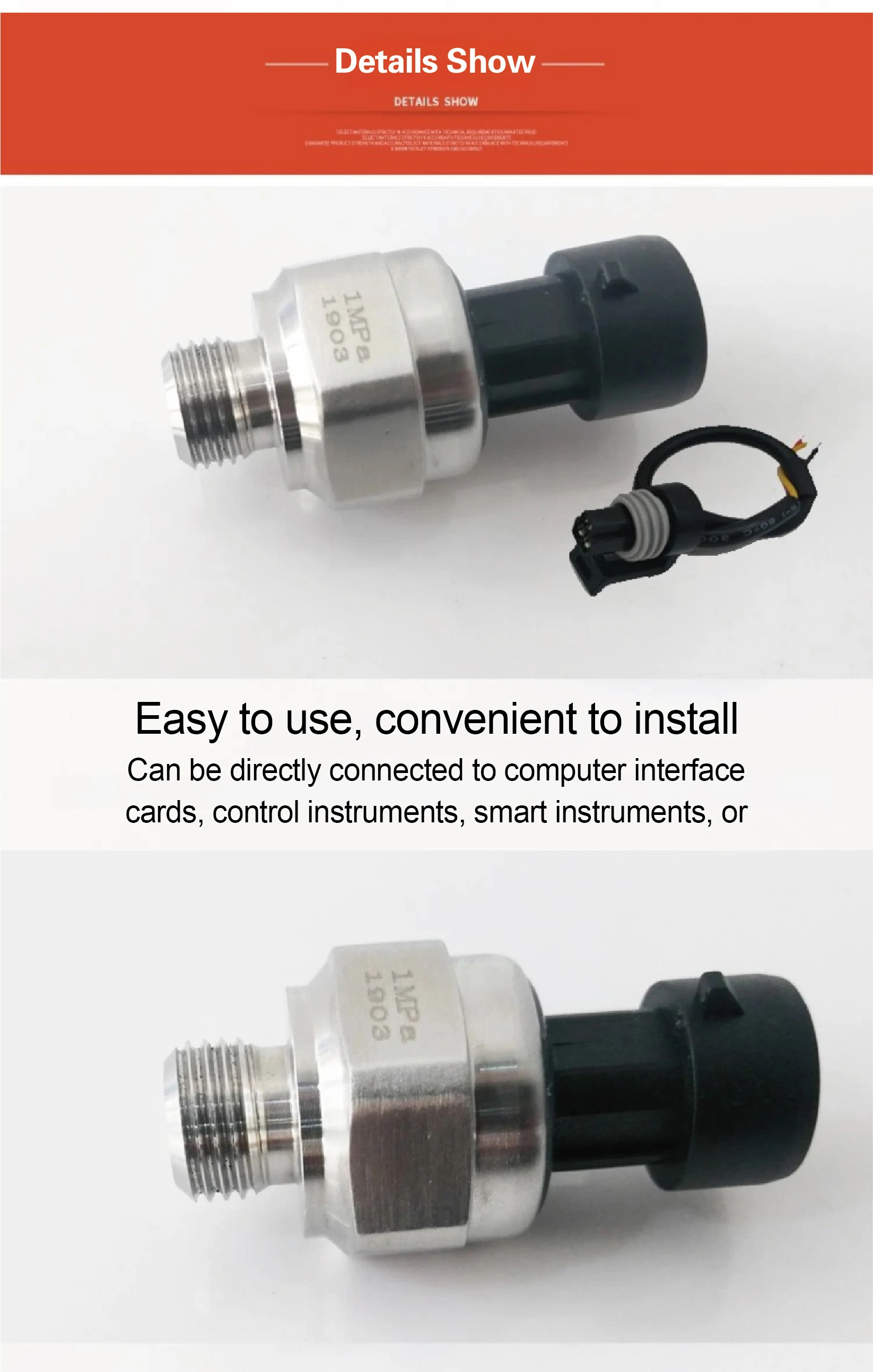

Easy to use and install, compatible with interface cards, control instruments, smart meters, or PLCs.
Built with precision-crafted stainless steel, ensuring durability and strong pressure resistance.

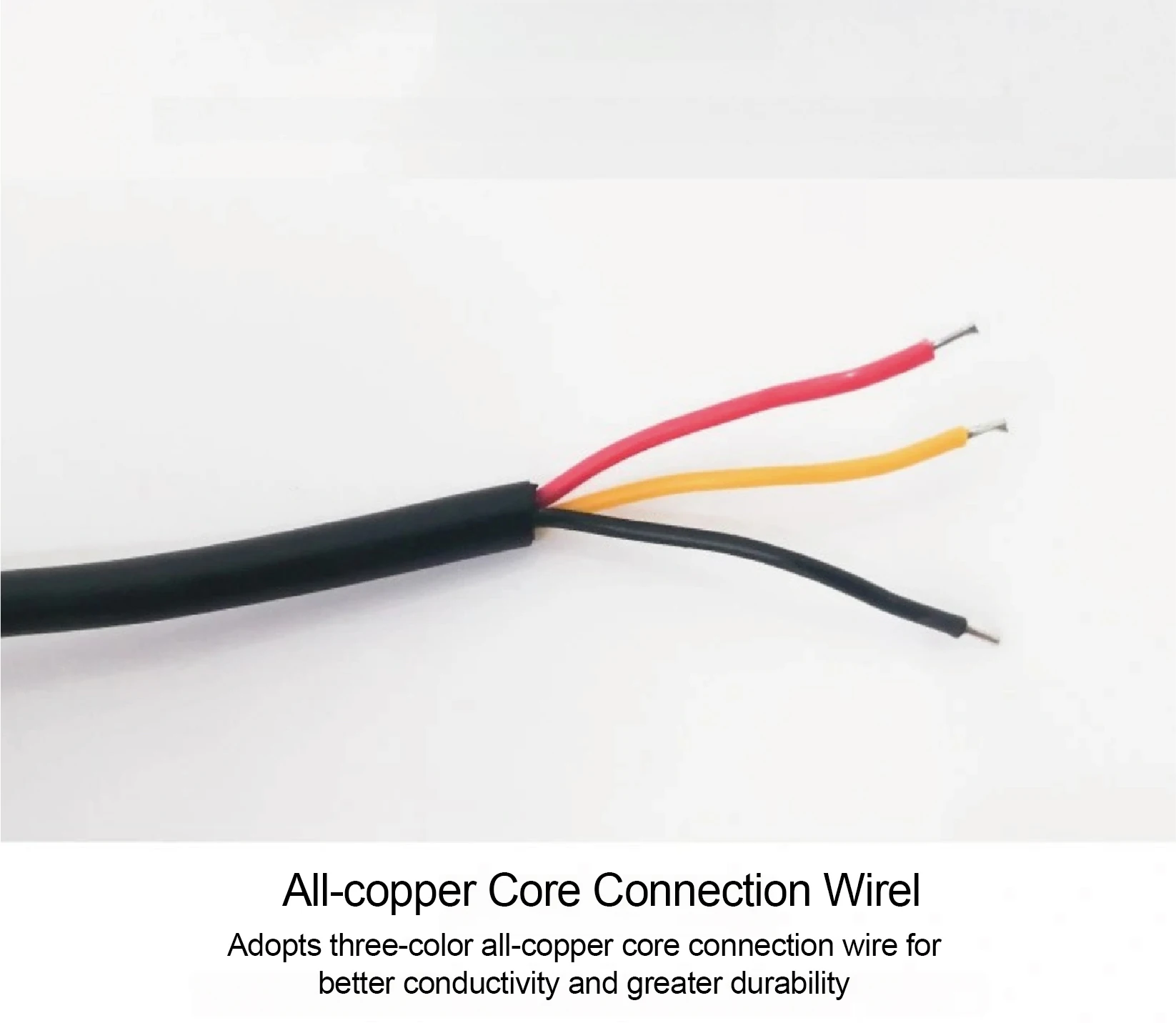

Equipped with high-quality, three-color copper core cables for better conductivity and durability.
Offers a stable structure with excellent anti-corrosion performance.
5. FAQ
Q: Can the sensor be used with corrosive liquids?
A: No, this sensor is designed for non-corrosive media such as water, gas, and oil.
Q: Is the sensor compatible with PLC systems?
A: Yes, the sensor can be directly connected to PLCs, control instruments, and smart meters.
Q: How should I install the sensor securely?
A: Use a wrench to tighten the hexagonal part of the sensor during installation to ensure stability.
