Product Description

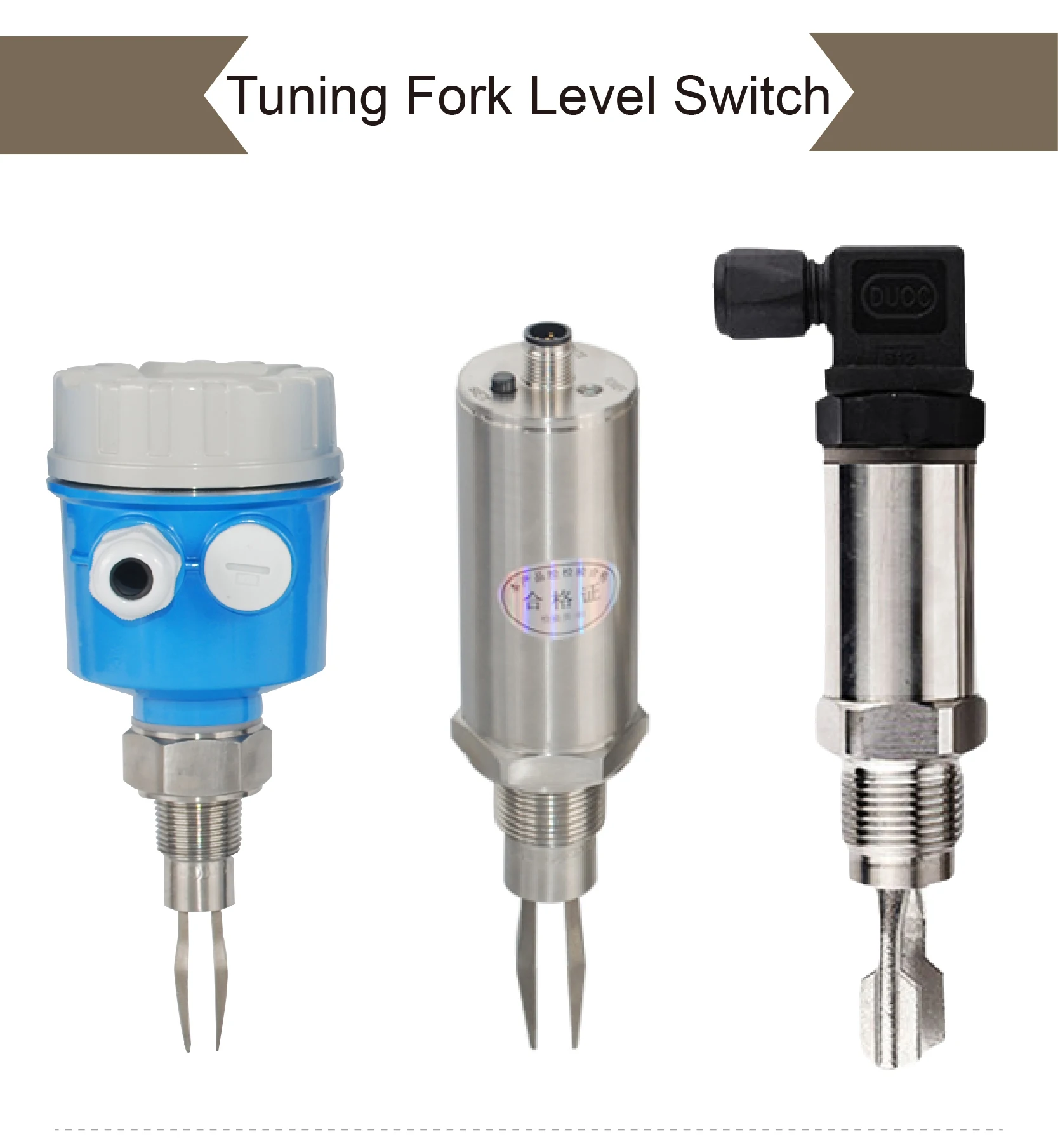

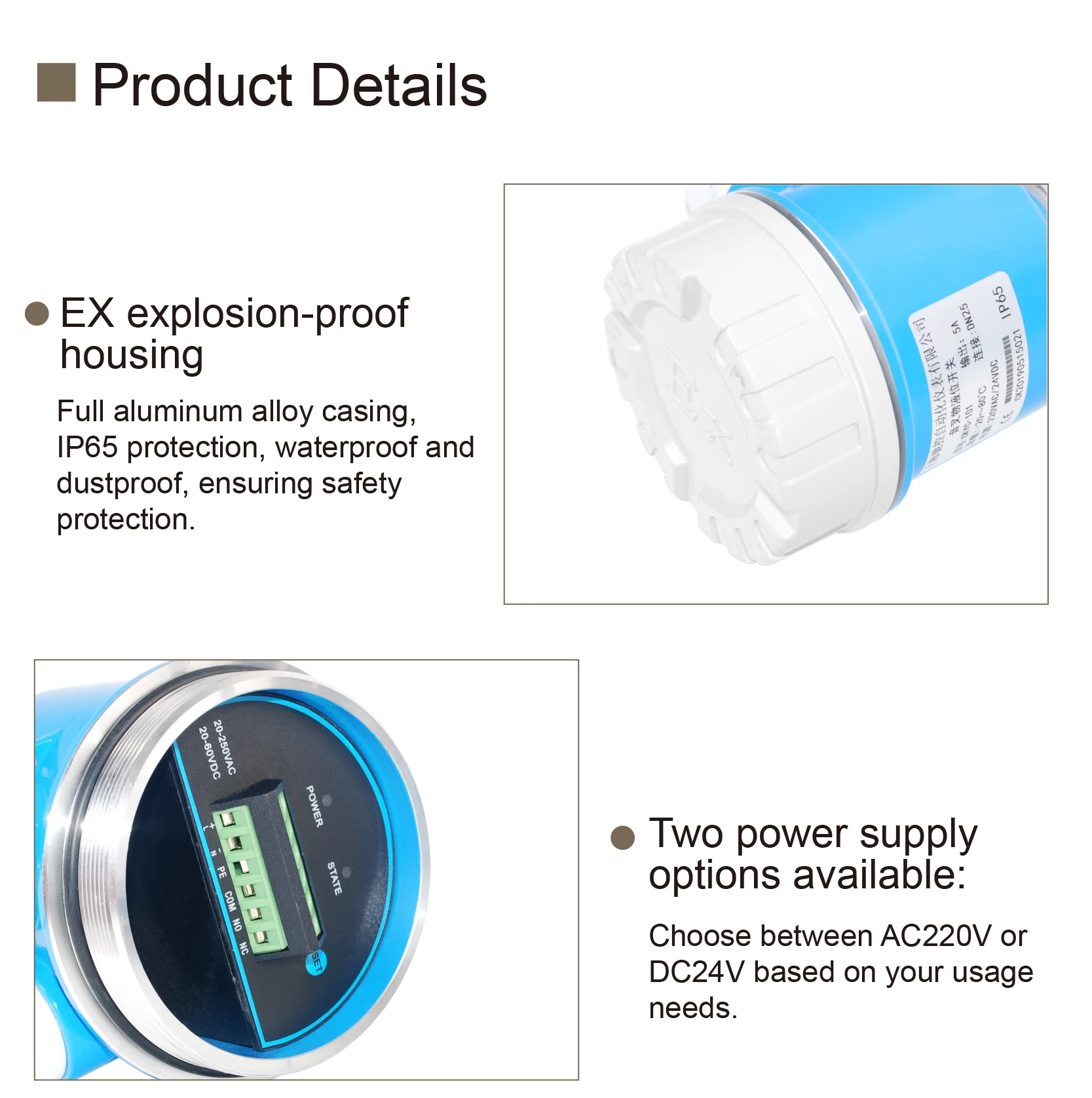

Relay Output Stainless Steel Tuning Fork Level Switch Sensor for Industrial Pipeline and Tank Liquid Control
Relay Output Stainless Steel Tuning Fork Level Switch Sensor for Industrial Pipeline and Tank Liquid Control1.NOTE
This liquid level switch offers a high degree of customization. Due to page limitations, we cannot list all available configurations.
The default configuration includes:
· 45mm fork length
· 304 stainless steel material
· 24VDC power supply
· Relay output (NO/NC)
· G3/4 thread connection
· IP65 protection rating
· -20°C to 70°C operating temperature.
If you have specific requirements for:
Probe Length: Customizable up to 500mm
Temperature Resistance: High-temperature version available, resistant up to 100°C
Connection Type: Customizable NPT3/4 thread, flange connection, or clamp connection
Probe Material: Customizable 316L material
Please feel free to contact us for confirmation and further assistance!
2.Parameters
Parameter | Specification |
Power Supply | 24VDC (Standard) |

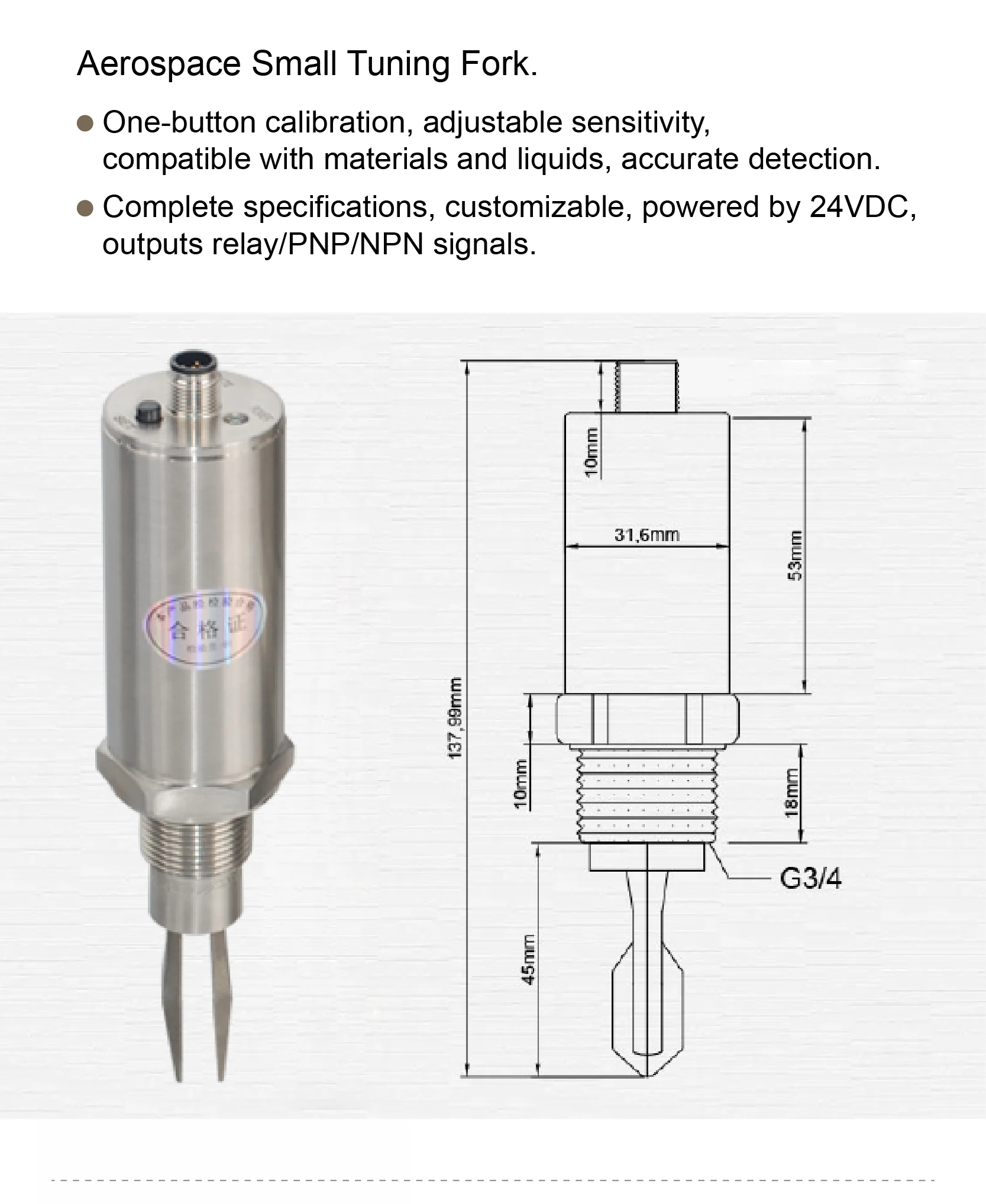

Fork Length | 45MM（Customizable insert length.） |
Material | 304 (Default); 316L (Optional) |
Ambient Temperature | -20℃～70℃ |
Medium Temperature | -40℃～85℃ |
Medium Density | ≥0.6g/cm³ |
Output Method | Relay Output (Normally Open or Normally Closed) |
Operating Pressure | <0.2MPa |
Delay | 1～60s (Optional) |
Enclosure Protection | IP65 |
Power Consumption | 0.5W |

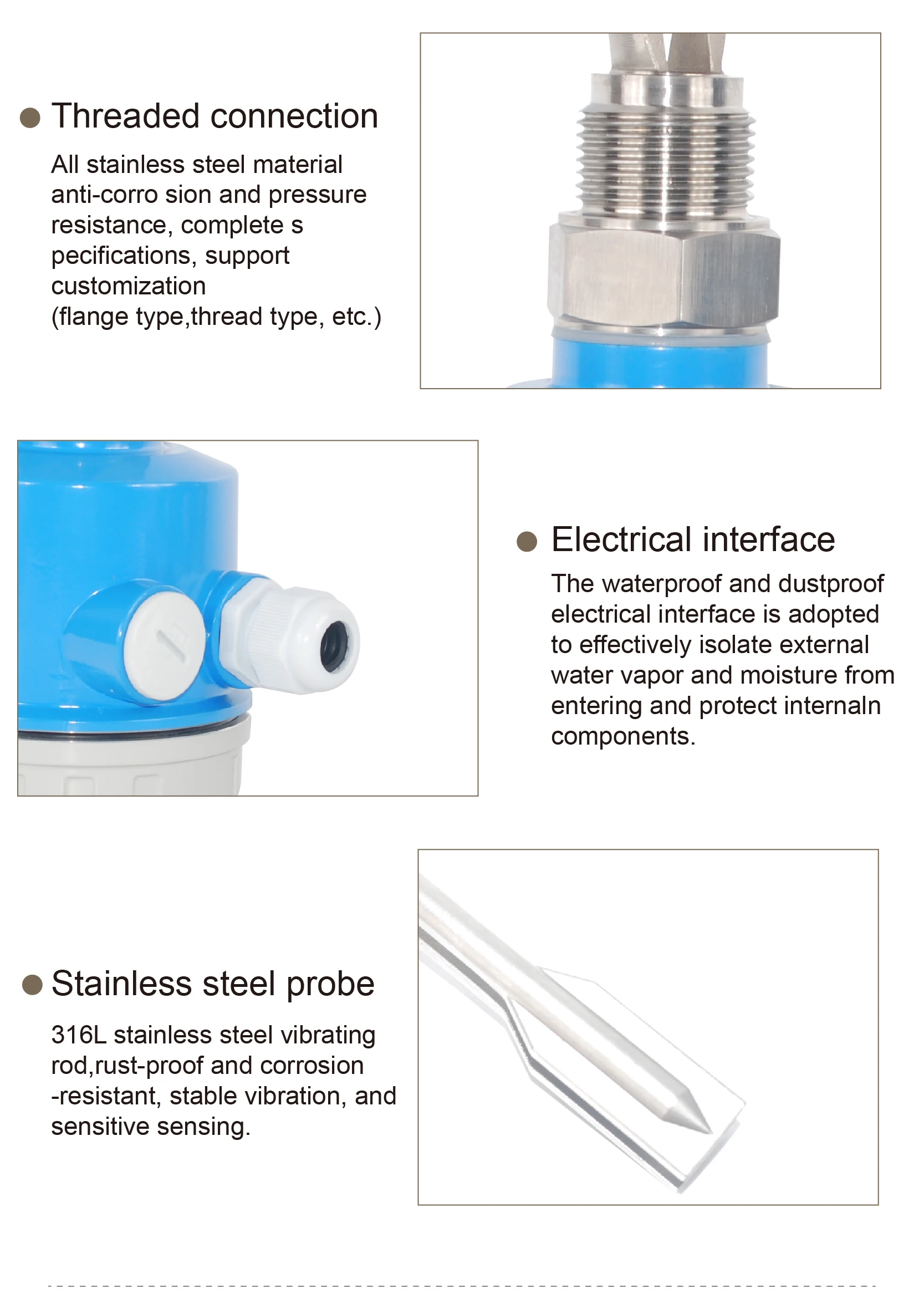

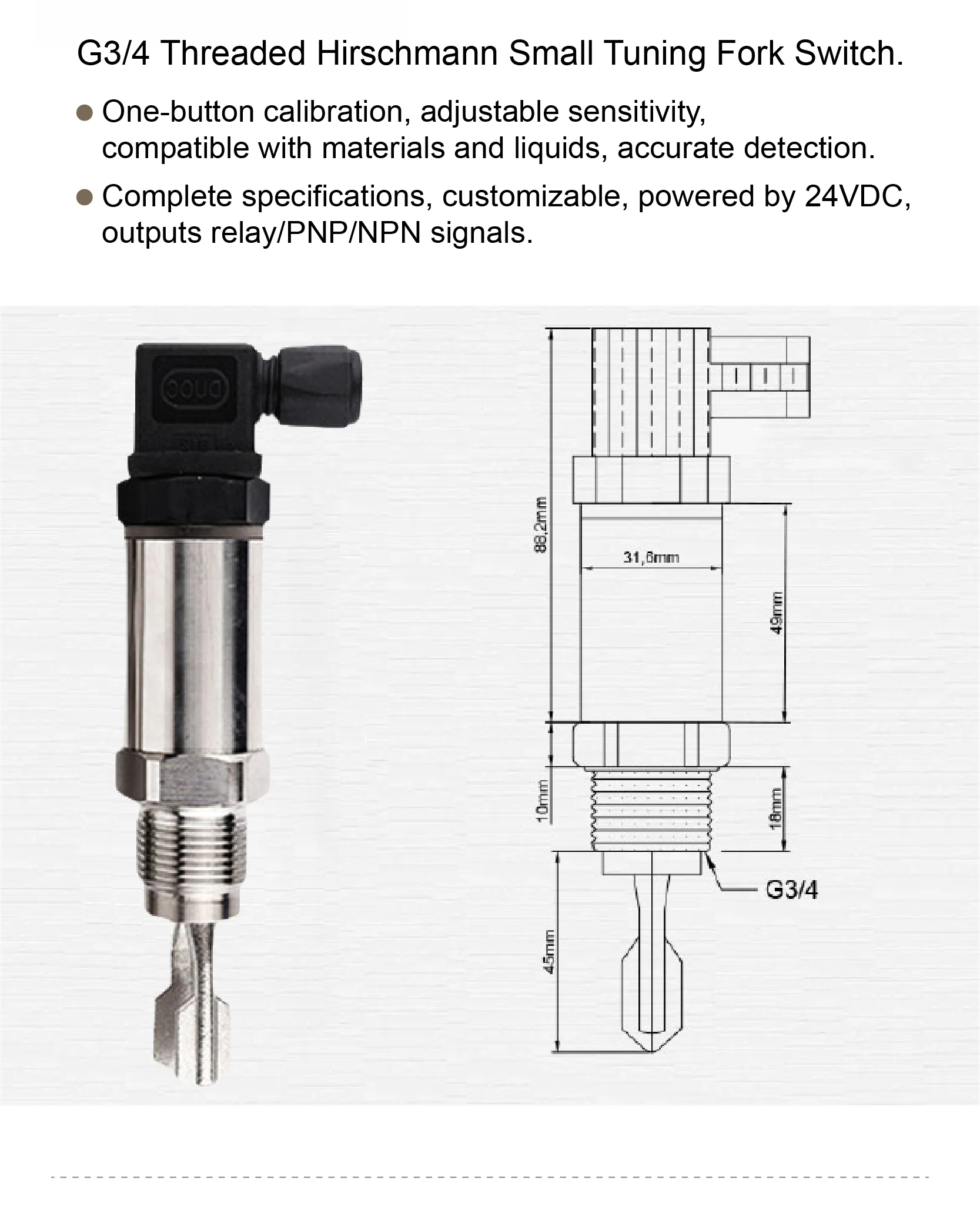

Electrical Interface | M20*1.5, Hirschmann Interface, Aviation Plug |

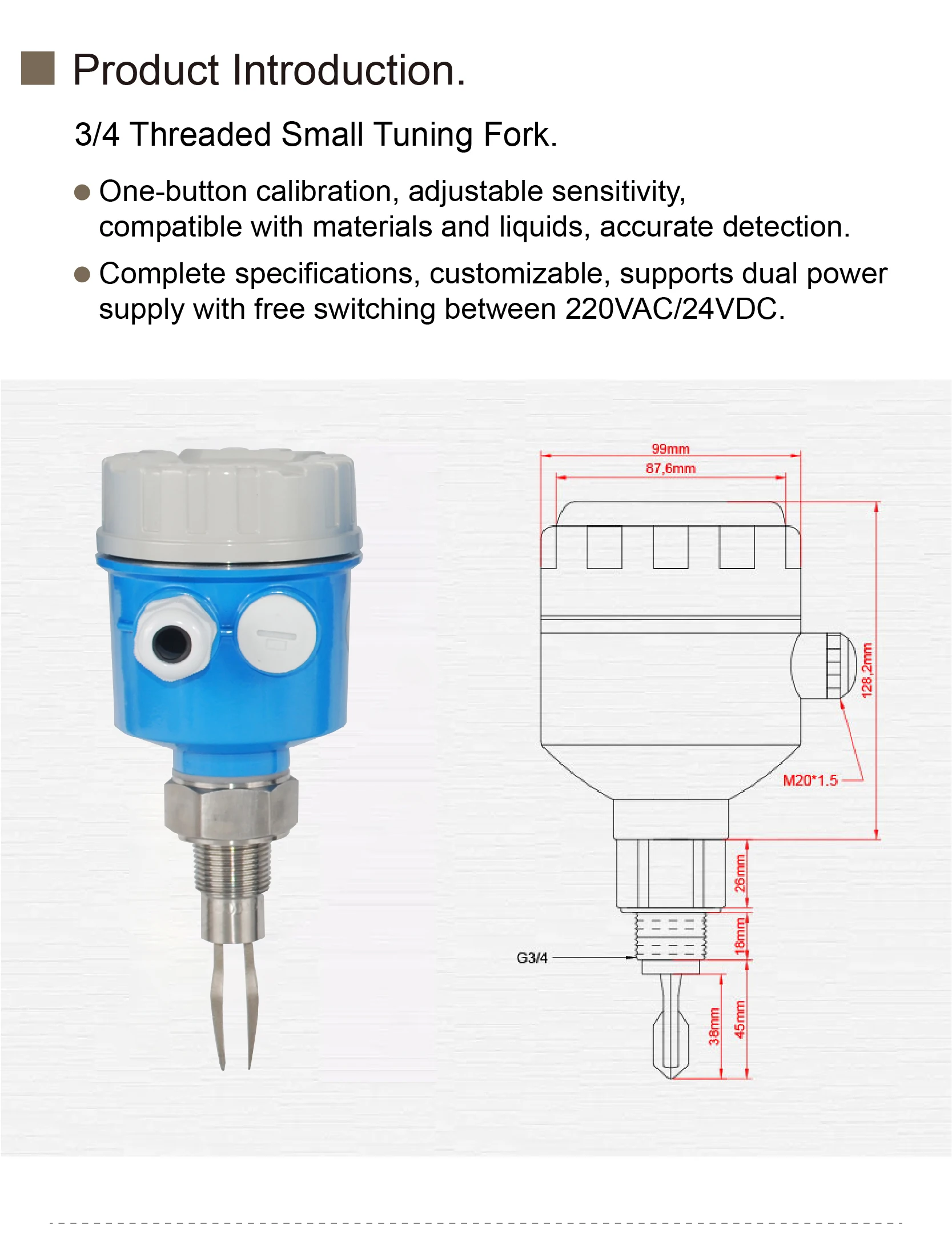

Process Connection | G3/4 Thread (Standard); Flange Mount; Other Threads (Optional) |
3.Features
Highly Sensitive Measurement:
Accurately detects liquid and free-flowing solid levels with exceptional precision.
Strong Corrosion Resistance:
Constructed from durable materials to withstand aggressive media.
Compact and Maintenance-Free Design:
Simplified structure reduces maintenance requirements and ensures long-term reliability.
Wide Applicability:
Suitable for water, adhesives, wastewater, pulp, acids, diesel, and more.
4.Applications
Oil Industry – Reliable performance in petroleum-related liquid detection.
Chemical Industry – Suitable for aggressive chemical liquids.
Power Industry – Ensures accurate level monitoring in power plants.
Metallurgy Industry – Handles challenging metallurgical process liquids.
Food & Beverage Industry – Ideal for beer, dairy, and beverage processing.
Pharmaceutical Industry – Reliable for sensitive pharmaceutical applications.
5.FAQs
Q1: Can the tuning fork level switch be used with corrosive liquids?
A1: Yes, the device is available in 316L stainless steel for enhanced corrosion resistance.
Q2: Is it suitable for high-pressure environments?
A2: Yes, it can operate under pressures up to 2MPa.
Q3: What installation options are available?
A3: The switch supports NPT1" thread, flange mount, and custom thread options.
