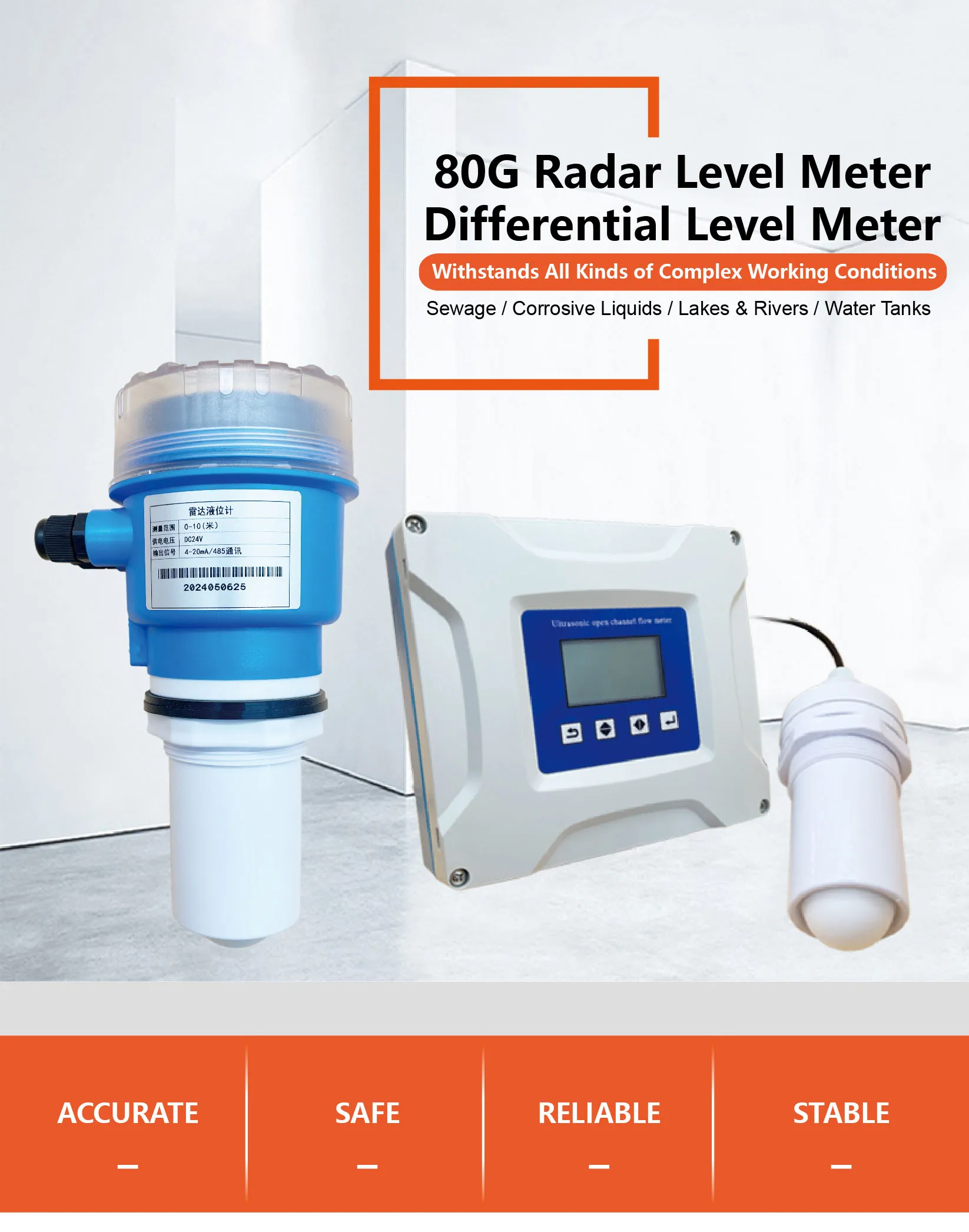

SLD-RDY80 Radar Level Transmitter Sensor 80G Non Contact Water Tank Silo Gauge 4

Product Description

Please kindly note that this radar level meter is specially made for liquid level measurement. It is not suitable for measuring solids or powders.

1.Note

Default Parameters

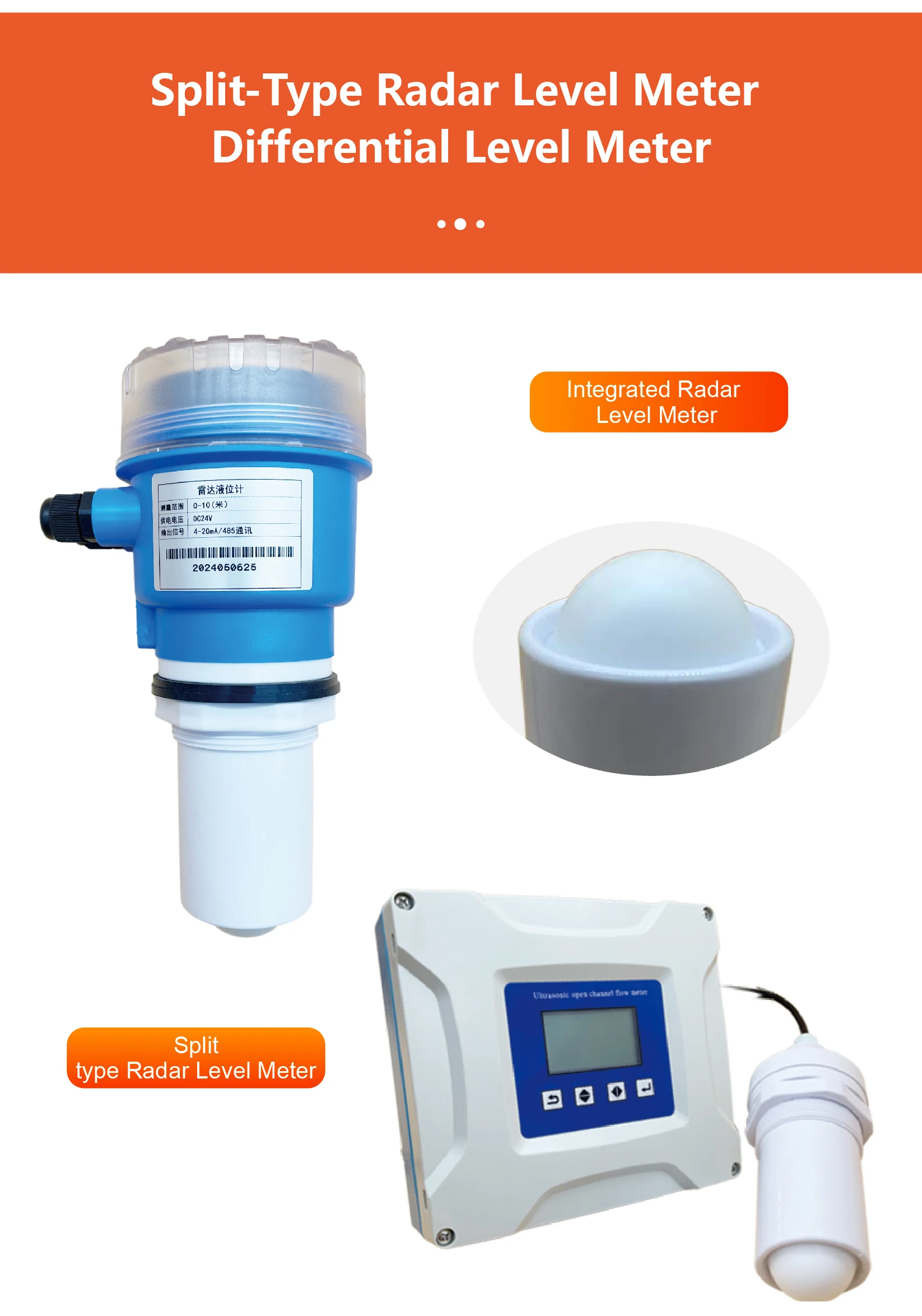

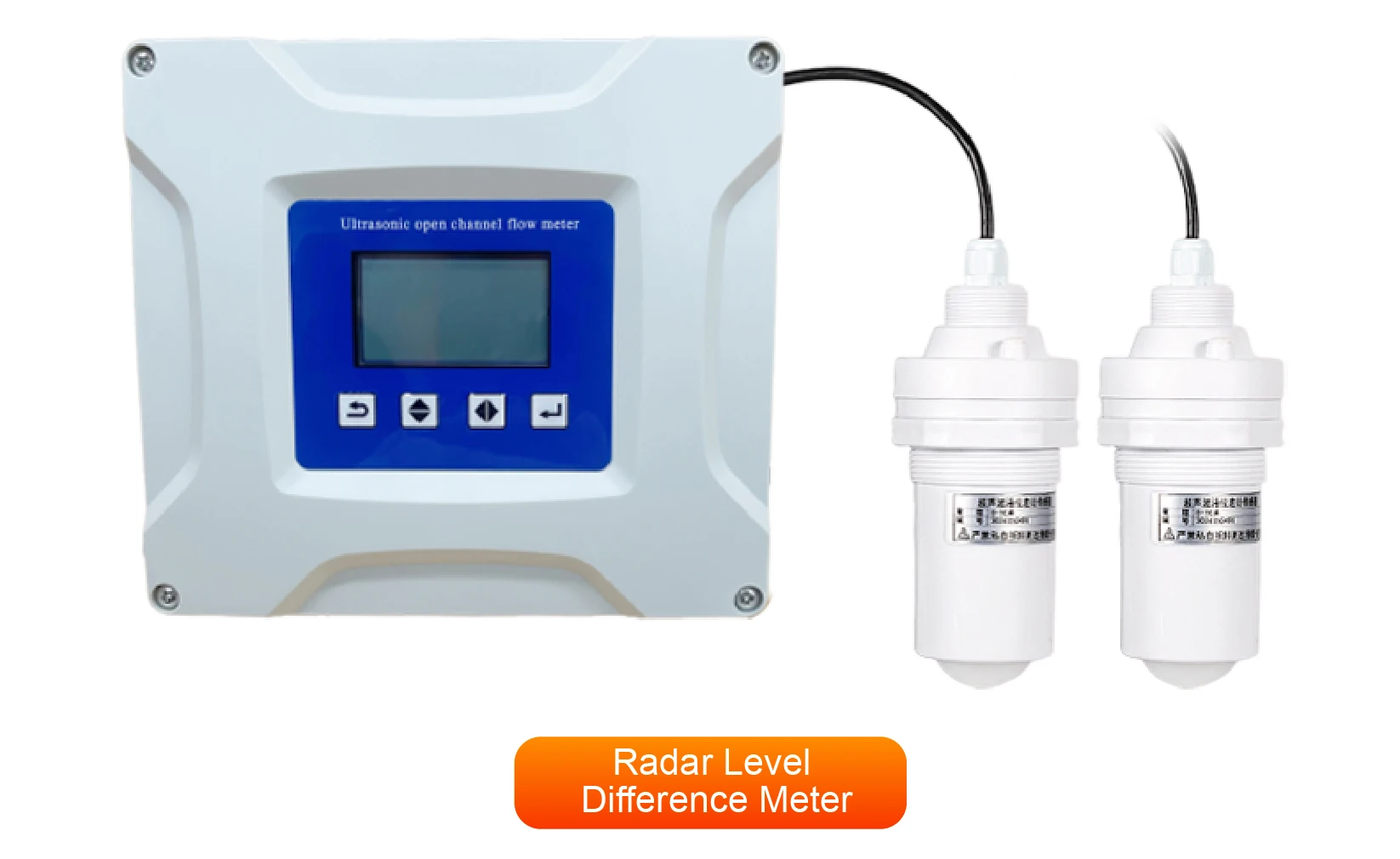

Type: Integrated Radar Level Meter, Split-type Radar Level Meter, Radar Level Difference Meter

Measuring Range: 0–5 meters, 0–10 meters, 0–20 meters (optional)

Power Supply: DC 24V

Output: 4–20 mA + RS485

Protection Rating: IP67

Connection Size: G2 thread connection

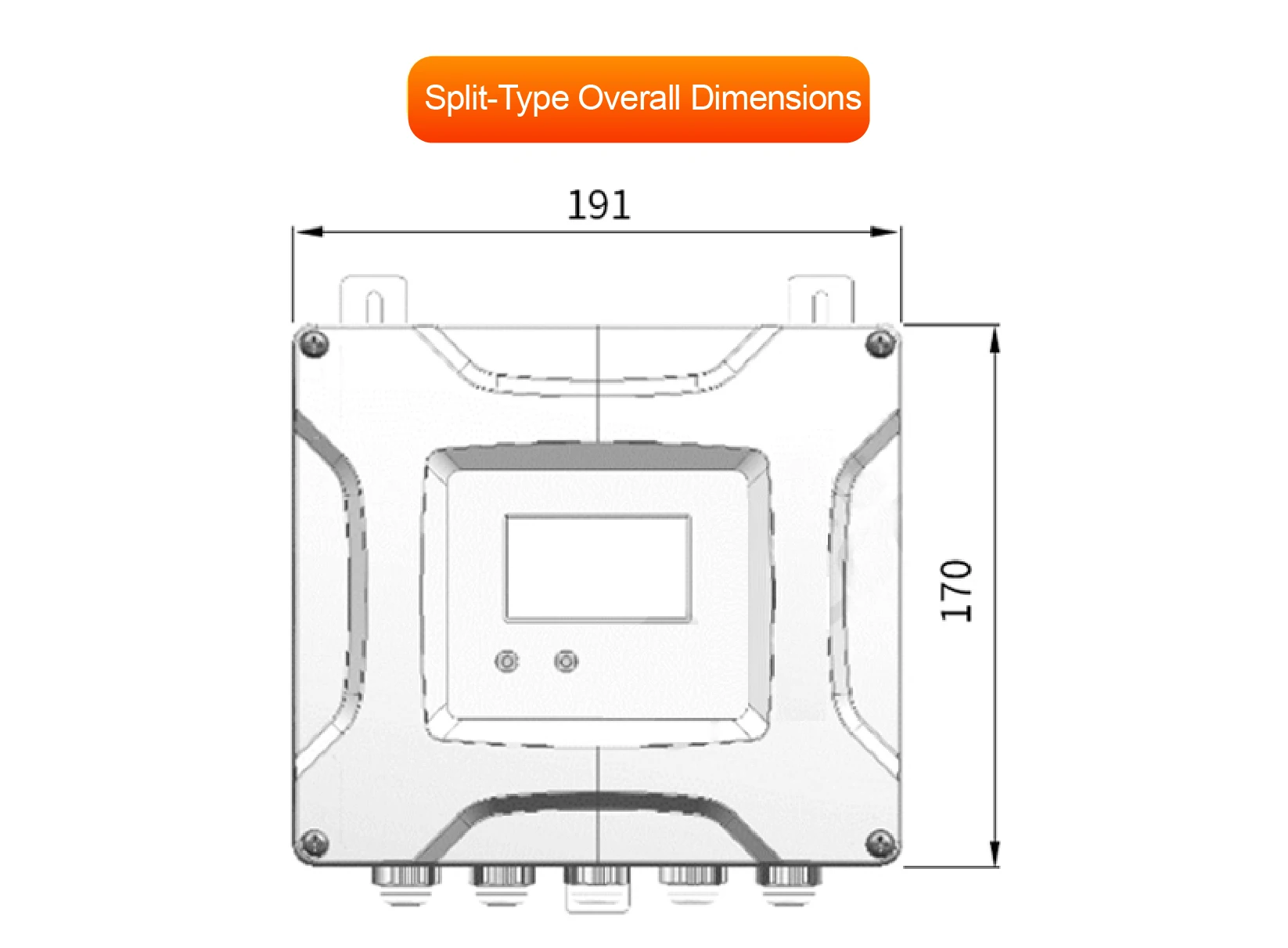

Cable Length (for split-type): 0–5 meters, 0–10 meters, 0–20 meters (depending on the range, customizable)

Customizable Parameters

Measuring Range: Customizable to 0–40 meters, 60 meters, or 80 meters

Power Supply: AC 220V (customizable)

Output: Dual relay outputs (customizable)

Cable Length (for split-type): Up to 80 meters (customizable)

Protection Rating: IP68 (customizable)

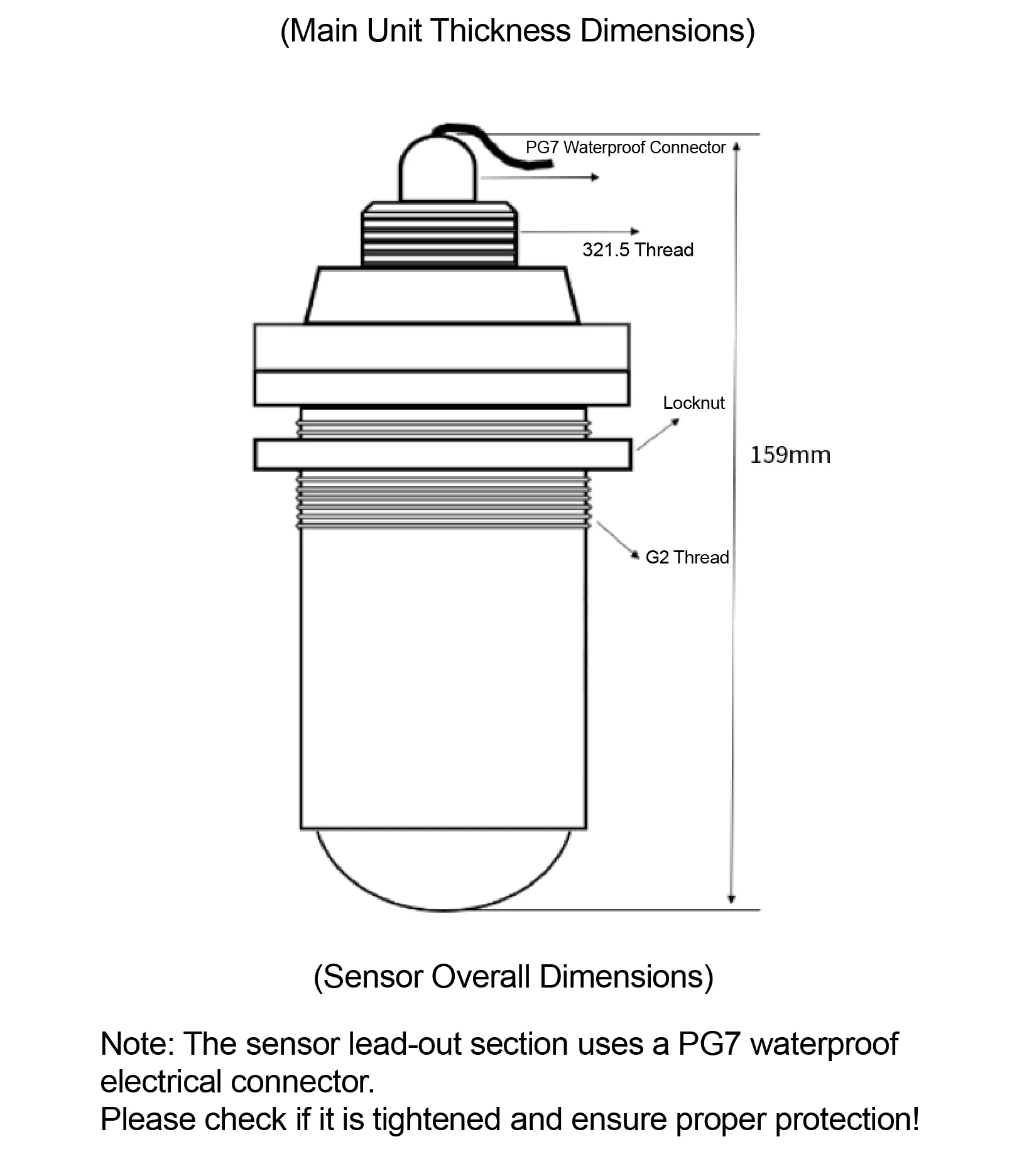

Note: The sensor's cable outlet uses a PG7 waterproof electrical connector. Please ensure it is properly tightened and observe proper protection!

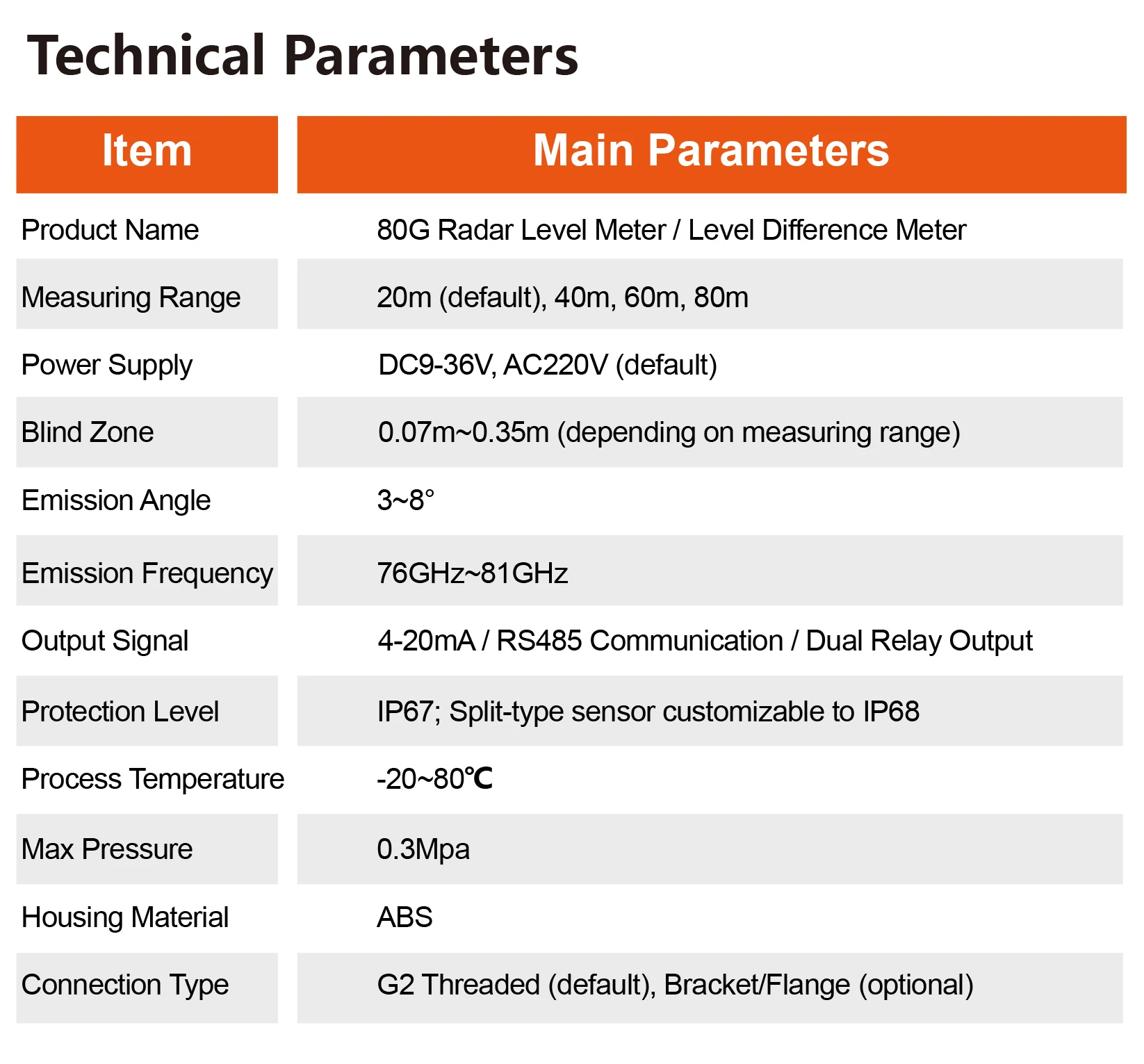

2. Parameters

3. Features

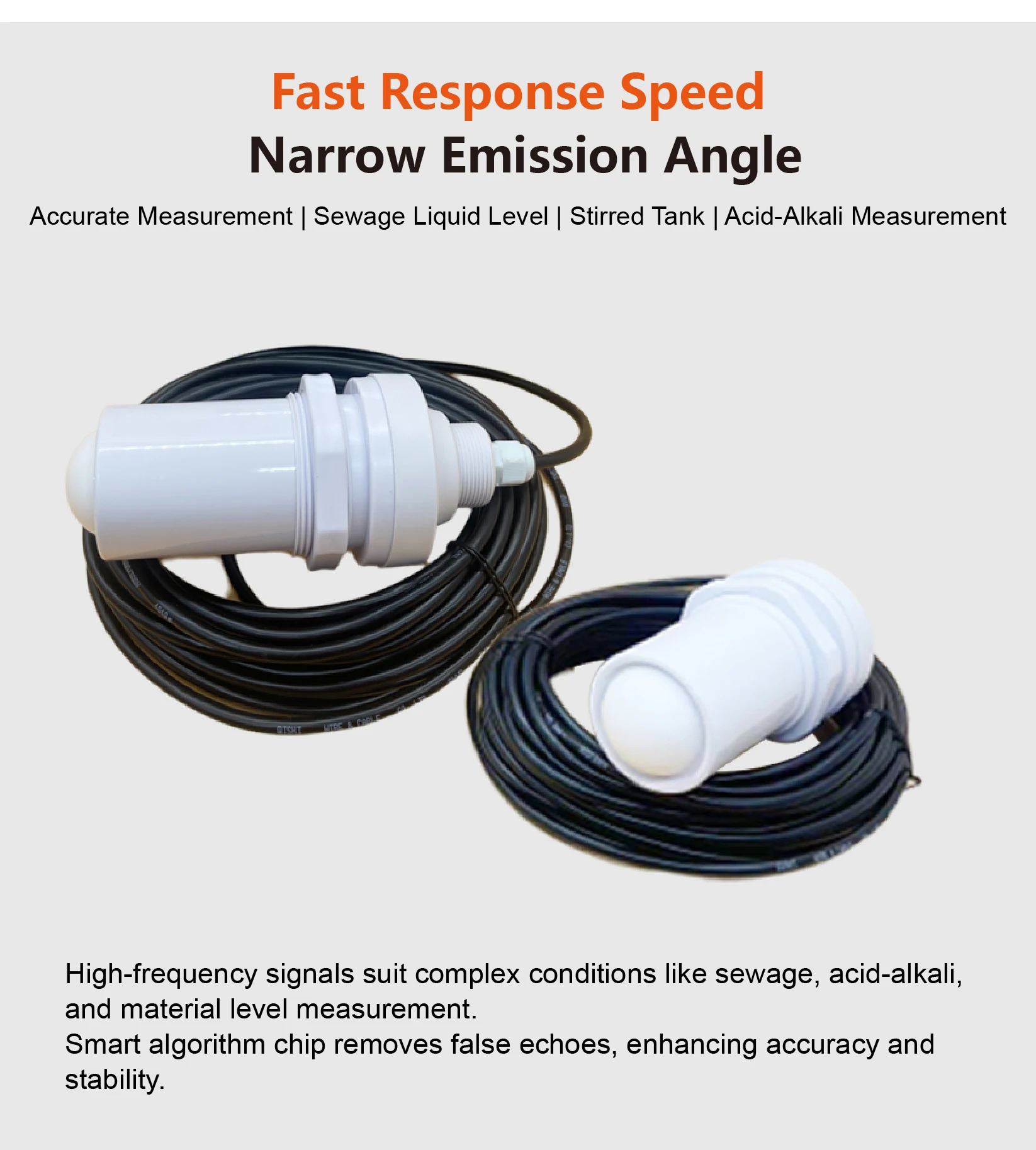

80GHz High-Frequency Radar
Focused beam for high precision with strong interference rejection.

Ultra-Short Blind Zone (0.07m)
Ideal for low-level detection with minimal measurement dead space.

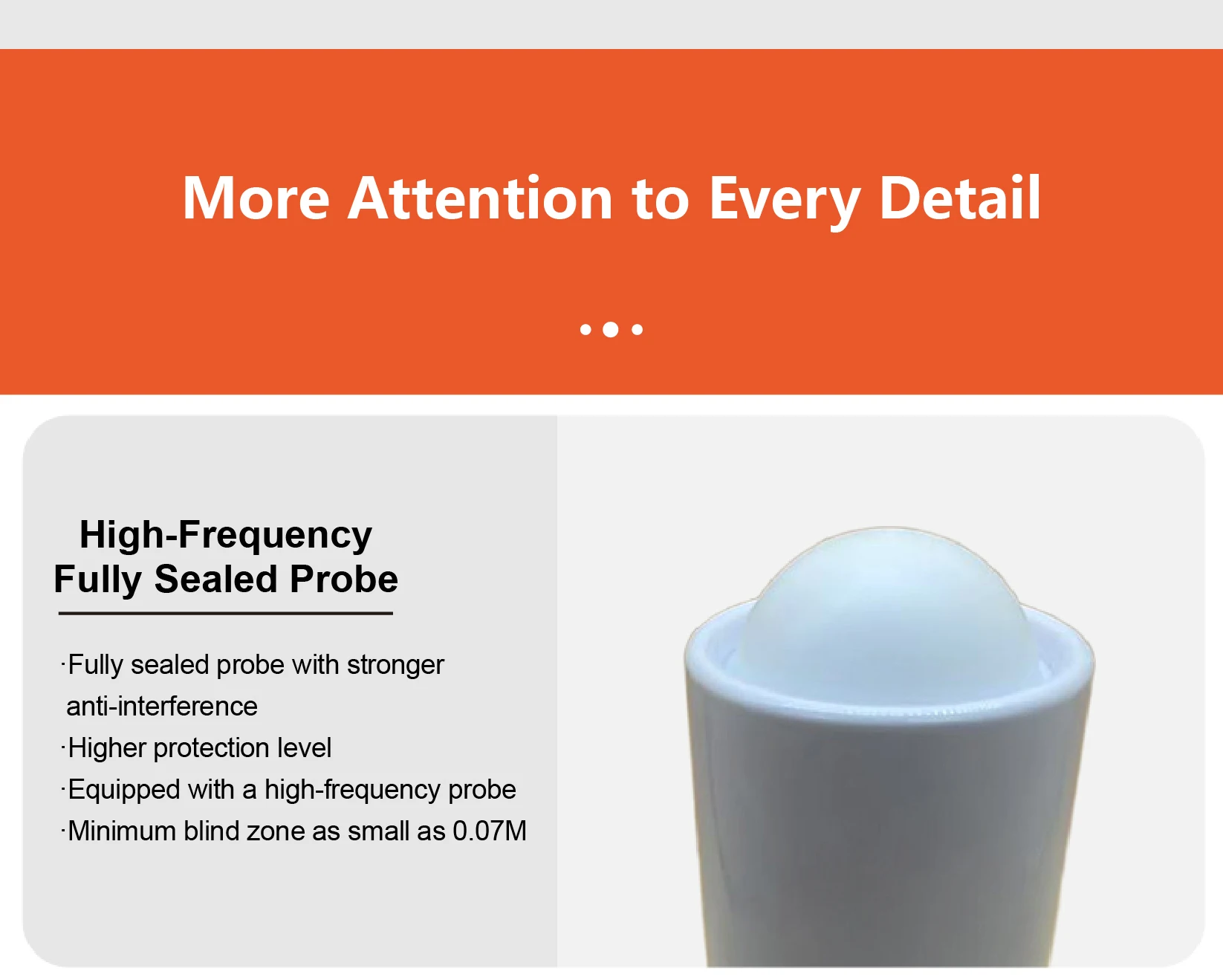

Fully Sealed Sensor Head
Enhanced protection against steam, dust, and water ingress.

Smart Echo Processing Algorithm
Filters out false echoes for higher accuracy and stability.

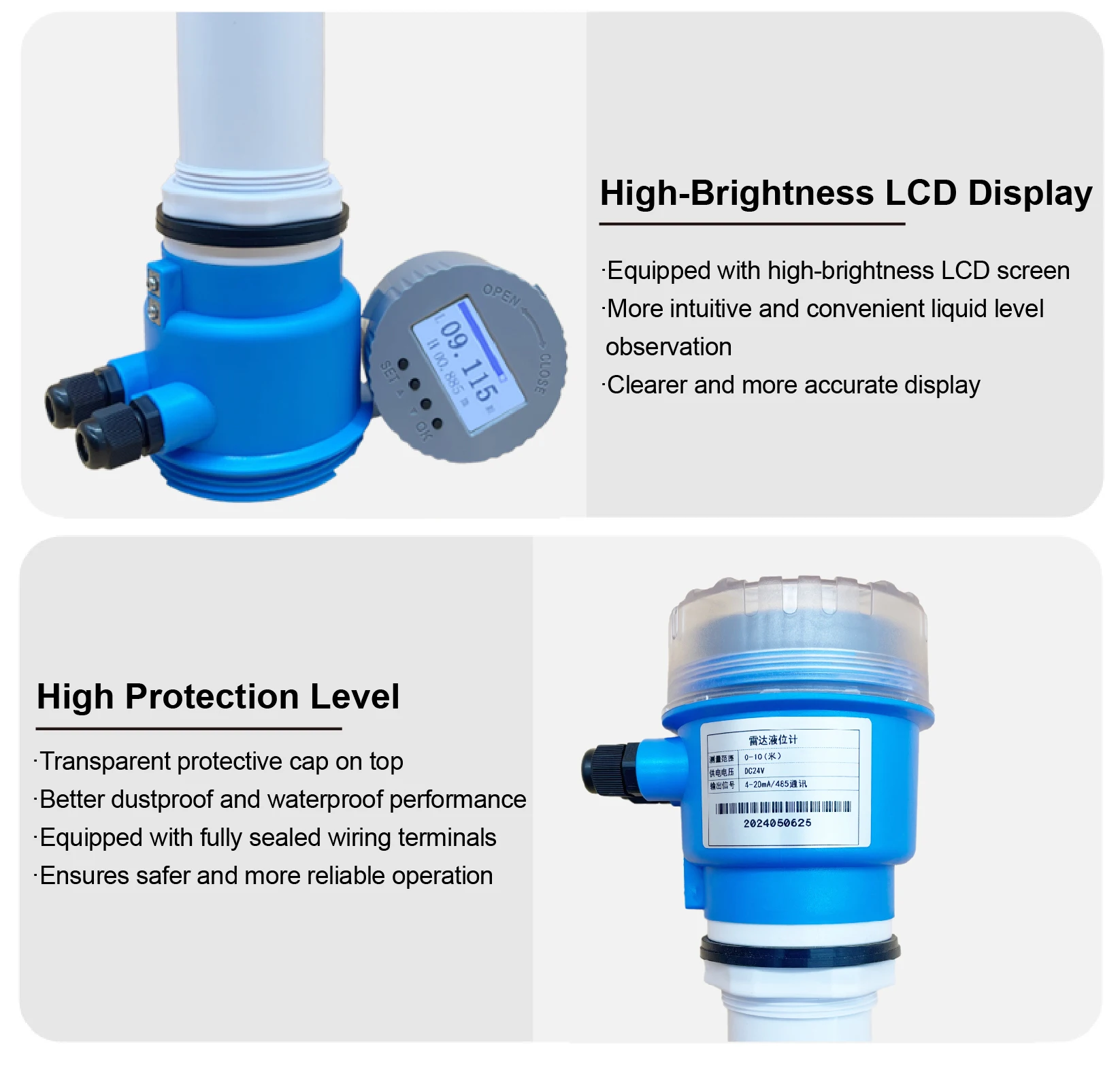

Bright LCD Display
High-visibility liquid level readings, intuitive interface.

Enhanced Enclosure Protection
Dustproof and waterproof cap with sealed cable ports ensures long-term reliability.

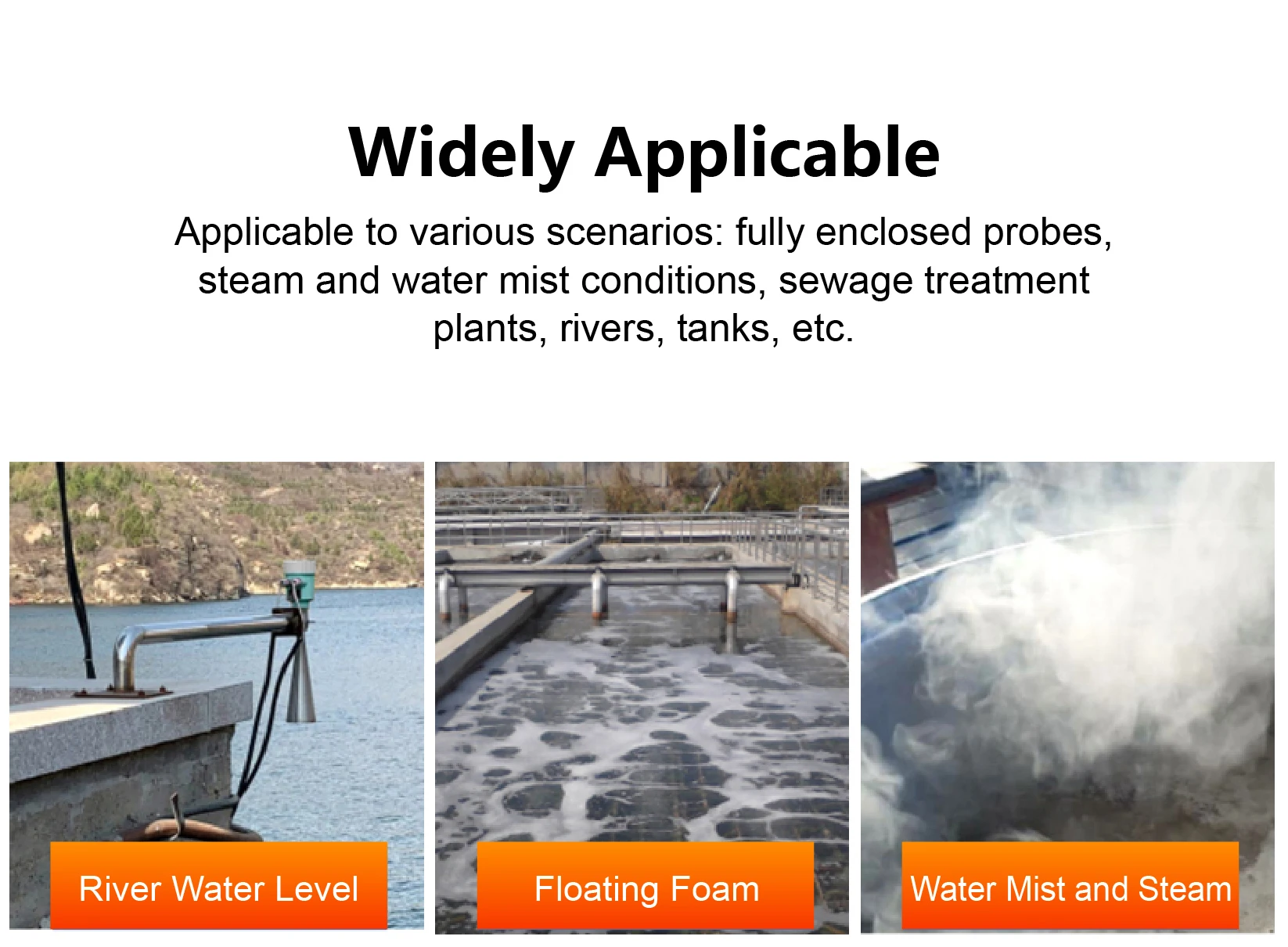

4. Applications

Suitable for sewage treatment plants, acid and alkali tanks, rivers, reservoirs, chemical mixing vessels, and foggy or enclosed industrial environments.

5. FAQs

Q1: Can this radar meter work in strong acid or alkaline environments?
A1：Yes, it is designed with corrosion-resistant materials and a sealed enclosure for harsh chemical applications.

Q2: Is it accurate for measuring foamy or mist-covered surfaces?
A2：Absolutely. The high-frequency, narrow-angle radar combined with a smart algorithm effectively filters false signals caused by foam or mist.

Q3: What installation methods are supported?
A3：Standard G2 thread installation is supported, with optional flange or bracket mountings available.
