Product Description
Ultrasonic Water Meter Smart IP68 Waterproof Remote Monitoring Flow Sensor Agriculture Low-Power DN15 Pipe RS485 Wireless
Ultrasonic Water Meter Smart IP68 Waterproof Remote Monitoring Flow Sensor Agriculture Low-Power DN15 Pipe RS485 Wireless1.NOTE

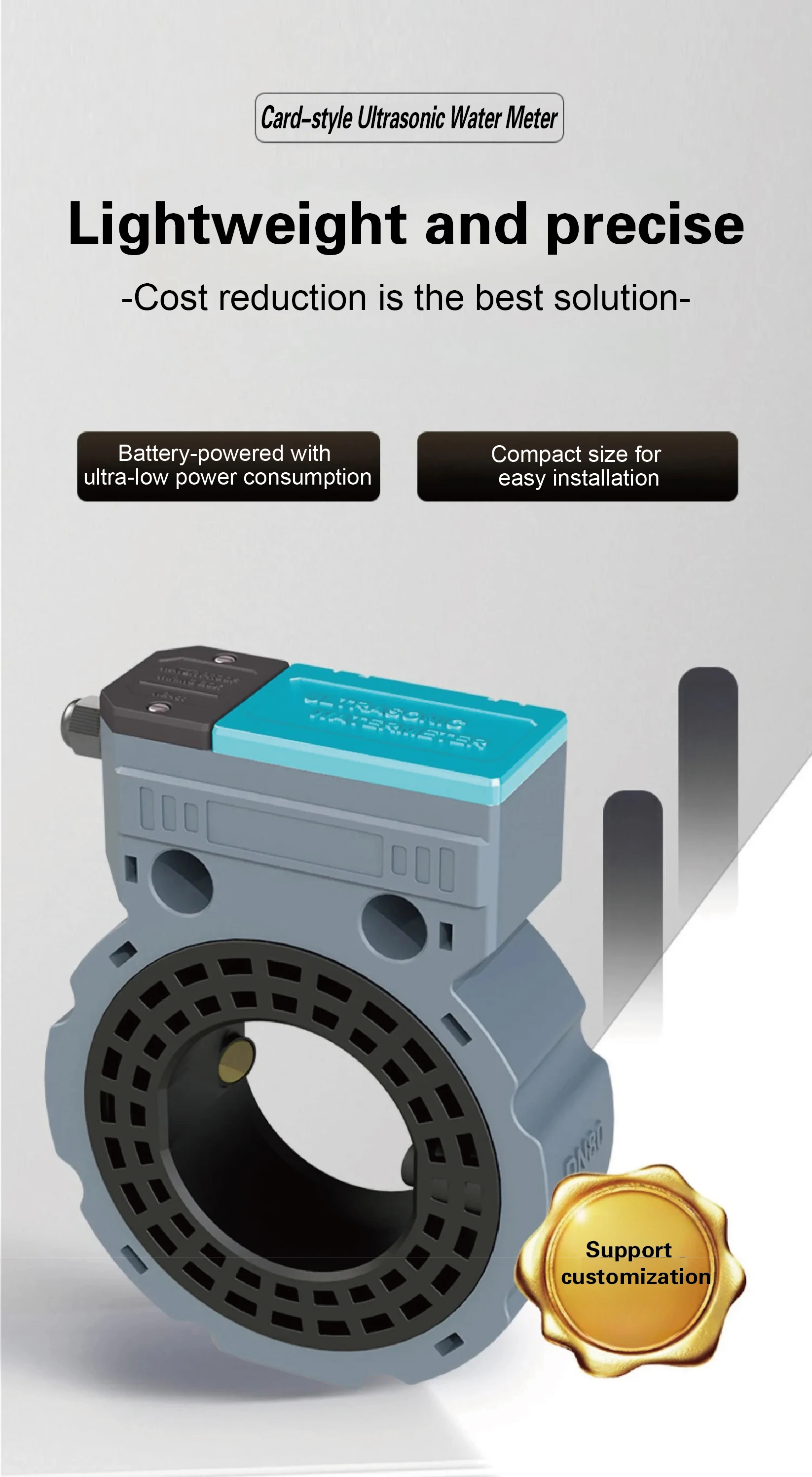

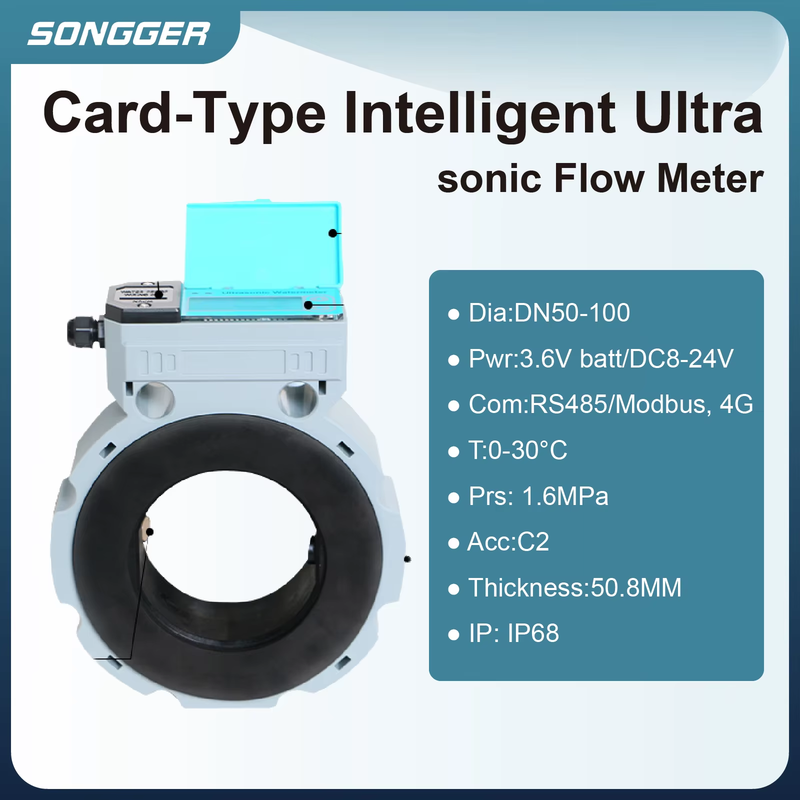

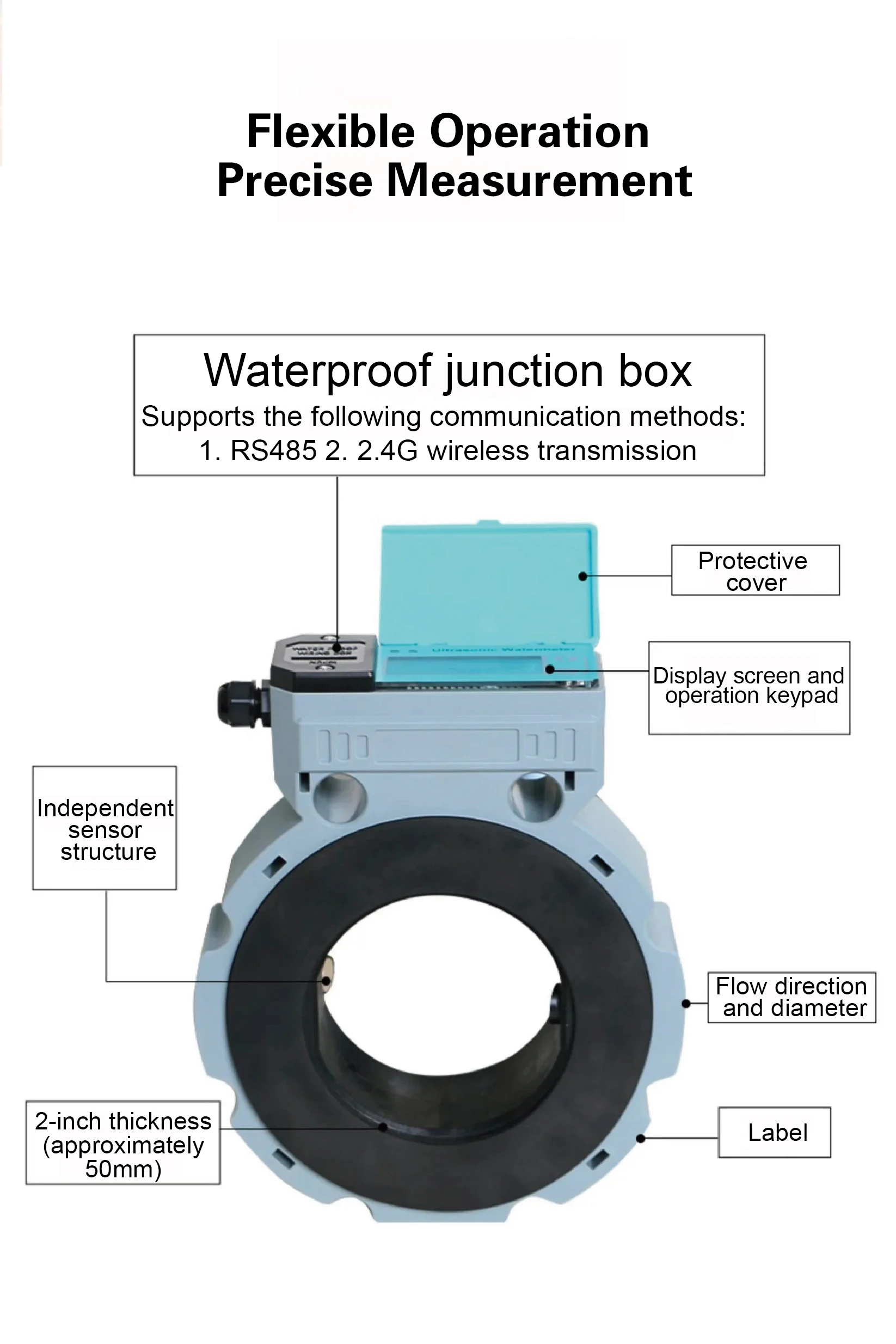

Card-Type Ultrasonic Flow Meter
This compact ultrasonic flow meter is designed for precise measurement of various liquids, including water, seawater, and wastewater. It can also be customized to handle corrosive liquids upon request.
Default Configuration:
Pipe Size Compatibility: DN15–DN150
Supported Pipe Materials: Steel, Stainless Steel, Aluminum, PVC
Communication Interfaces: RS485, Infrared
(Optional: M-BUS, NB-IoT wireless transmission)
If you require wireless data transmission, please ensure your selected module supports RS485 and is compatible with your local online systems. While we’re unable to recommend specific platforms due to regional differences, we can provide the necessary interface protocol to support easy integration. Thank you for your understanding.Power Supply: 3.6V Lithium Battery
(Optional: DC8–24V external power)Measurement Accuracy: ±2%
Order Information:
Please choose the appropriate pipe diameter according to your flow range requirements.
For custom specifications or special applications, feel free to contact us.
2. PARAMETERS
Color Options | DN50 to DN150 with RS485, NB wireless module, 4G |
Communication | RS485, customizable NB wireless |
Material | Plastic |
Installation Method | Flange Clamp |
Accuracy | 2% |
Standard Compliance | IS04064-2014, GBT778-2018 |
Measured Fluid | Water, Sewage, Seawater (customizable for other liquids) |
Fluid Temperature | 0.1-30°C |
Environment Temperature | -30-45°C; Humidity 100% (RH) |
Pressure Resistance | 1.6 MPa |
Pressure Loss | None |
Flow Field Sensitivity | U5 (Upstream), D3 (Downstream) |
Climate & Mechanical Class | C |
Electromagnetic Class | E2 |
Communication Interface | RS485/USART/Infrared, Optional M-BUS; NB-IoT wireless transmission |
Output Signal | Optional OCT |
Power Supply | Built-in Lithium Battery (3.6V, 4Ah) / External DC8-24V |
Protection Rating | IP68 |
Display | Dual-line local display showing 9-digit cumulative flow, 6-digit instantaneous flow, and various status indicators and units |
Data Storage | Ferroelectric memory stores parameters, automatically recording cumulative flow for the past 32 months and 31 days |
Measurement Frequency | Standard: 1/sec (adjustable), Calibration: 4/sec |
Power Consumption | <30uA, Battery lasts up to 15 years |
Material Composition | Nylon + Fiberglass for tube, PEEK sensor, UV-resistant ABS |
3.APPLICATIONS
This ultrasonic flow meter is compatible with pipes made of steel, stainless steel, aluminum, PVC, and other dense materials.
It is well-suited for fluid measurement in a variety of settings, including:
Agriculture
Water Resource Management
Industrial Applications

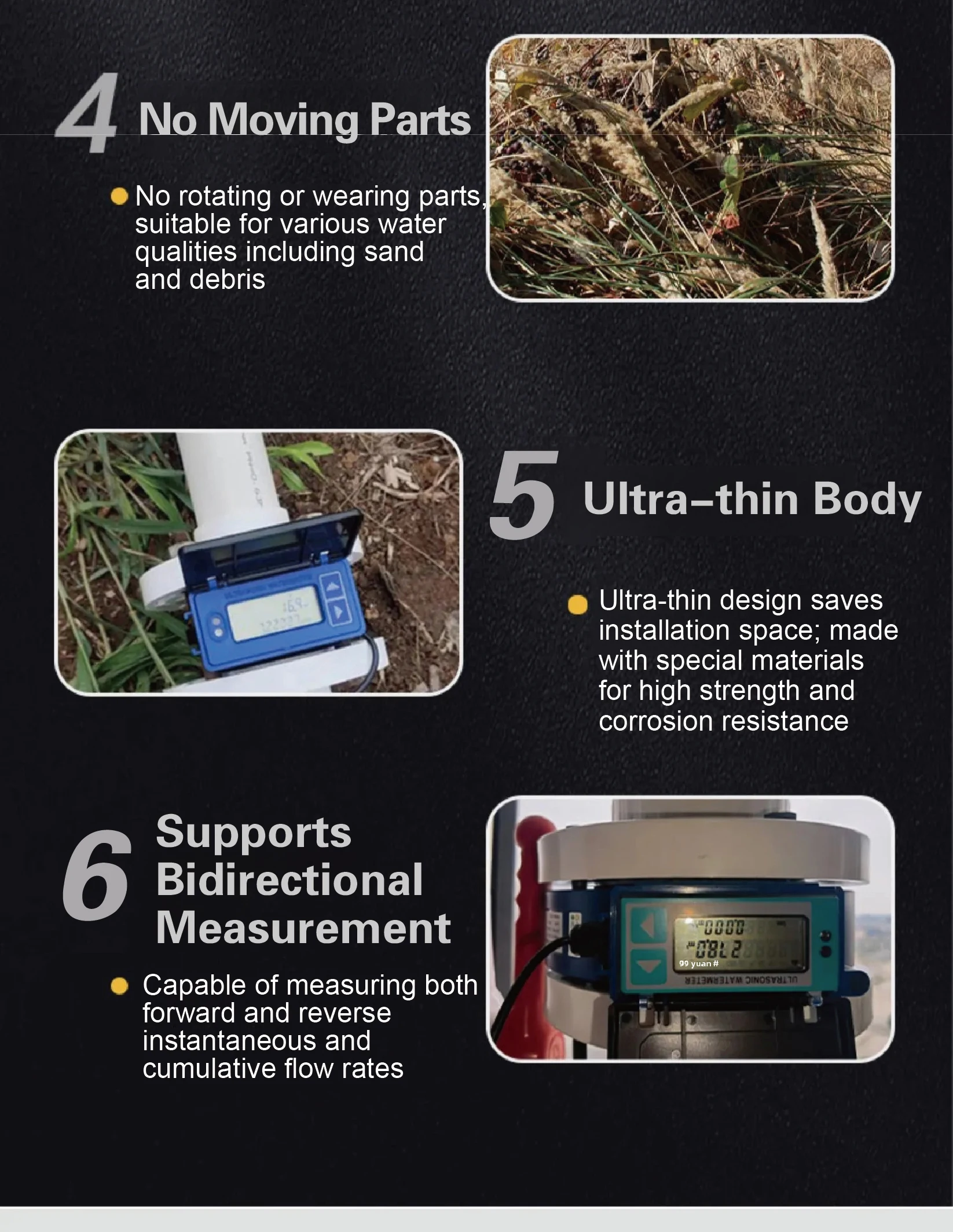

Designed for pipelines ranging from DN15 to DN150, it supports bi-directional flow measurement, ensuring versatile and reliable performance across multiple use cases.
4. FEATURES

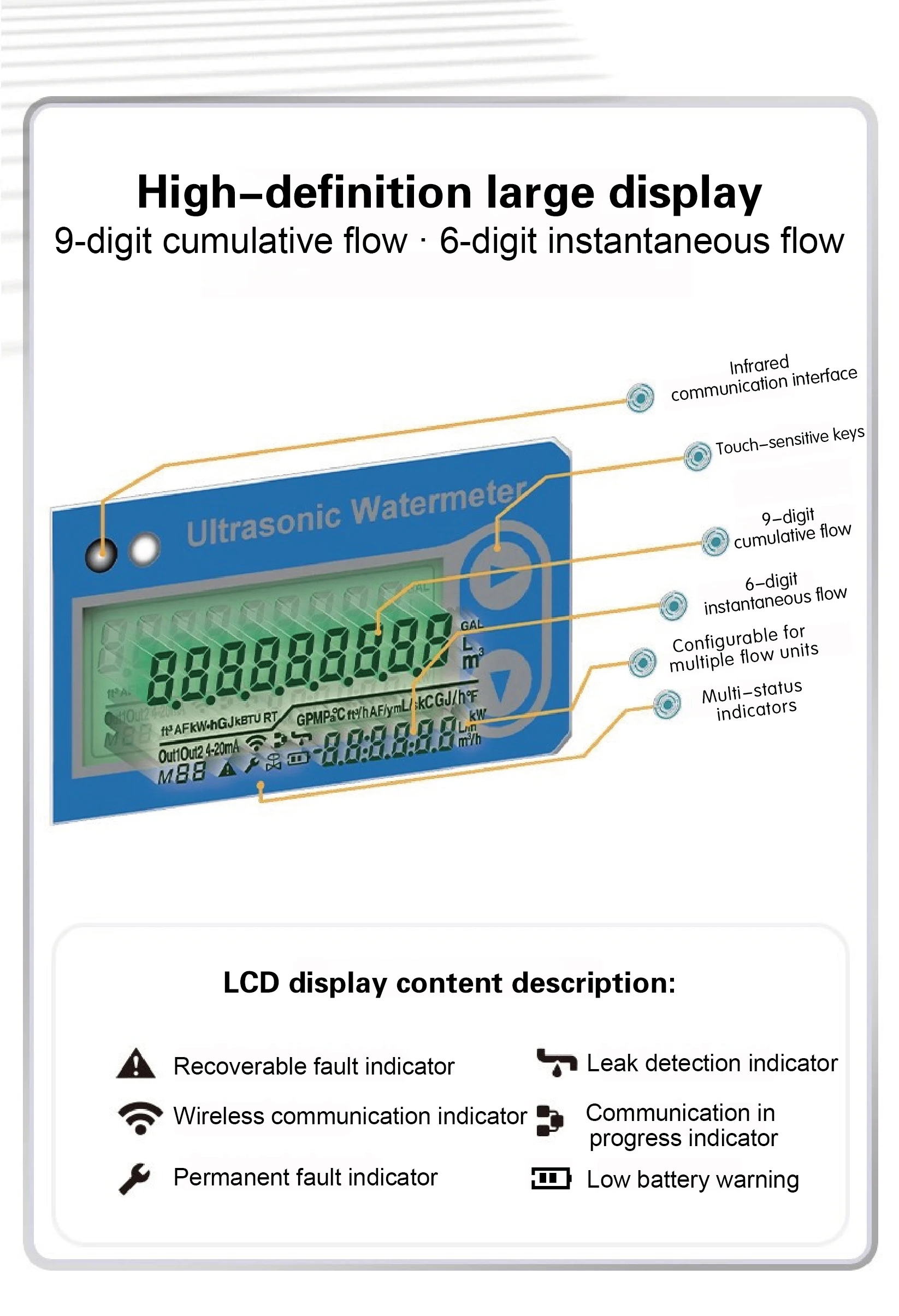

High-Definition LCD Display
Displays detailed information including:
9-digit cumulative flow
6-digit instantaneous flow
Multiple unit options
Real-time status indicators
IP68 Waterproof Design
Fully sealed and highly durable, making it ideal for demanding and harsh environments.
Battery Powered
Comes with a long-lasting lithium battery with up to 10 years of service life. An external power supply (DC8–24V) is also available as an option.
Dual-Channel Ultrasonic Measurement
Delivers long-term accuracy and stability, even under varying fluid conditions.
5. FAQ
Q: Can this meter measure seawater or wastewater?
A: Yes, this flow meter is designed for water, sewage, and seawater measurements. For other liquid types, please contact us for customization options.
