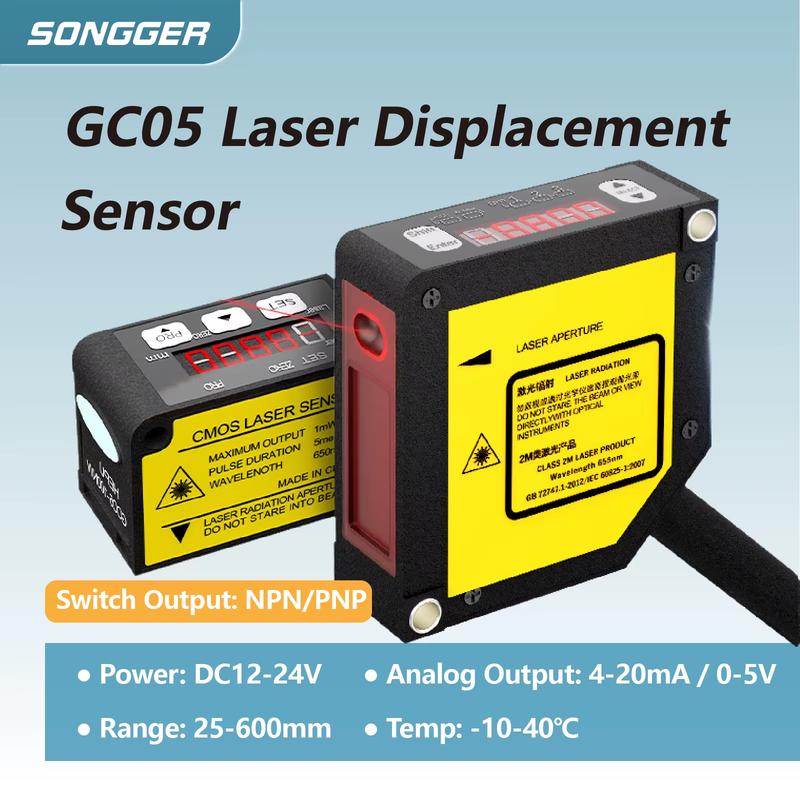

GC05 Laser Displacement Sensor 0-5V 4-20mA High Precision Analog NPN PNP Output for Thickness Height Distance
GC05 Laser Displacement Sensor 0-5V 4-20mA High Precision Analog NPN PNP Output for Thickness Height Distance1.NOTE:
Due to page limitations, some models and ranges may not be listed. Please contact us if specific models (e.g. output type, range, installation) are required. Measuring range up to 600mm. Optional: PNP output, analog signal, RS-485, and multi-head setup.
2.Parameters

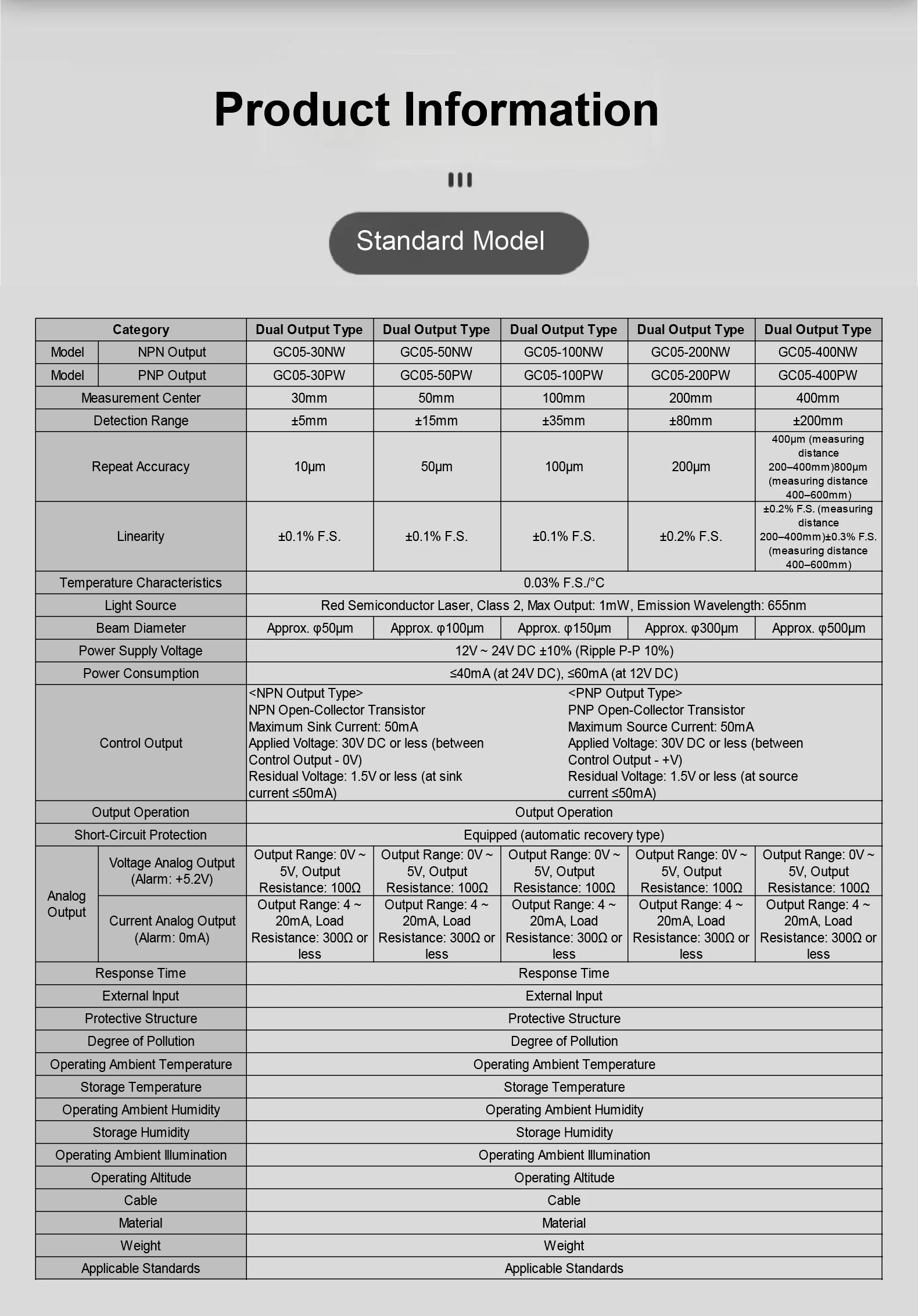

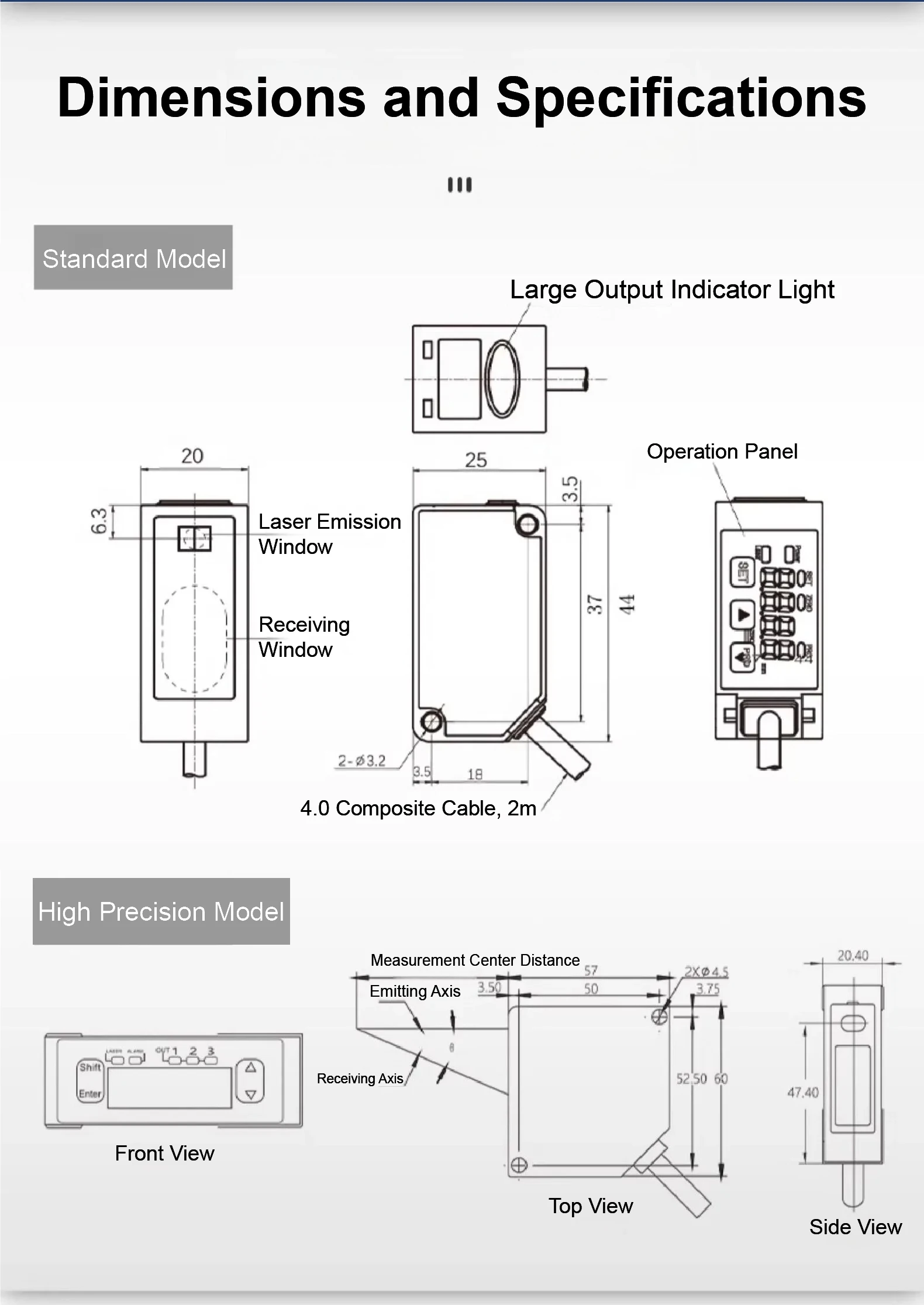

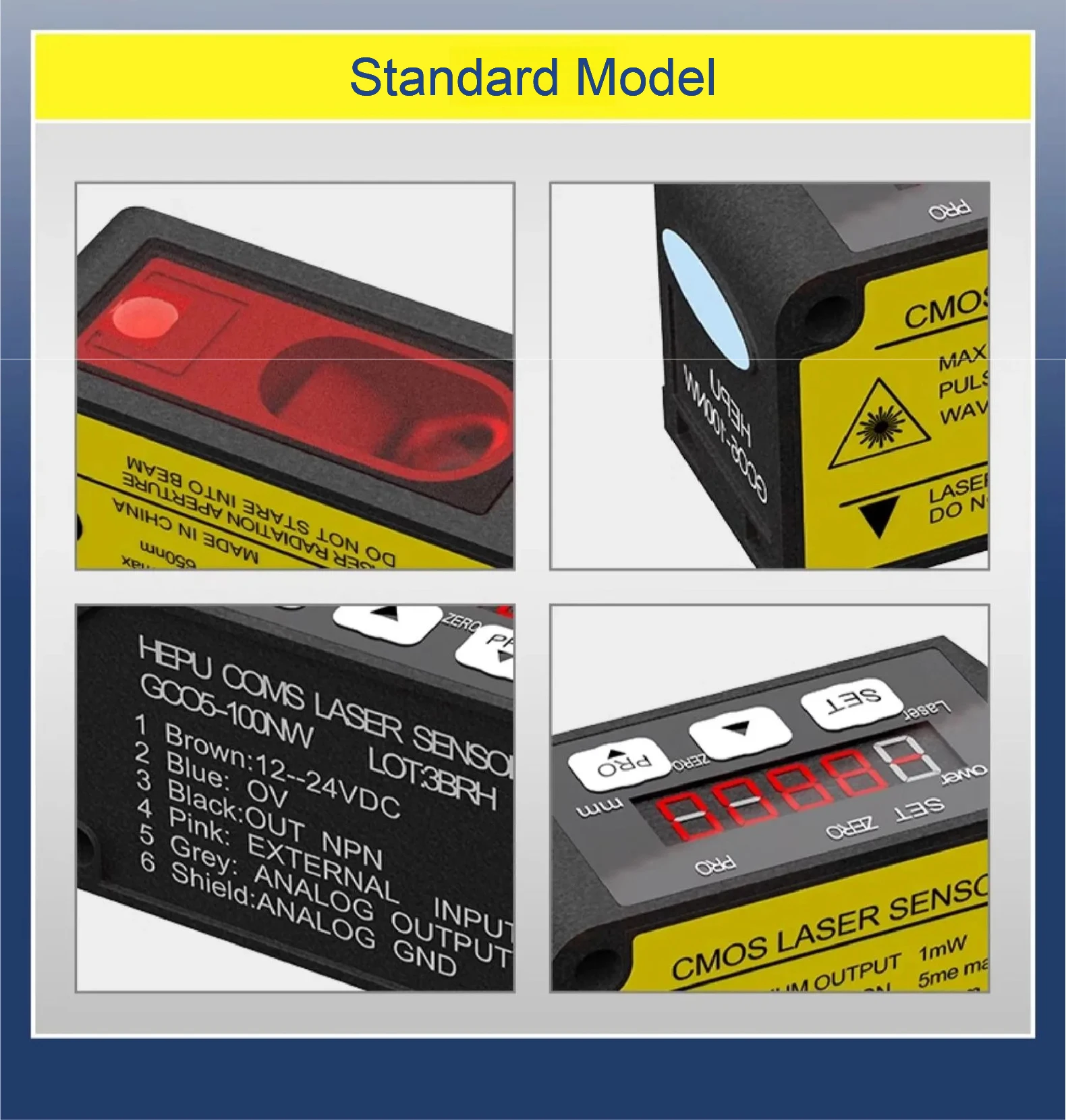

GC05 Series (Standard Type)
Specification | Value |

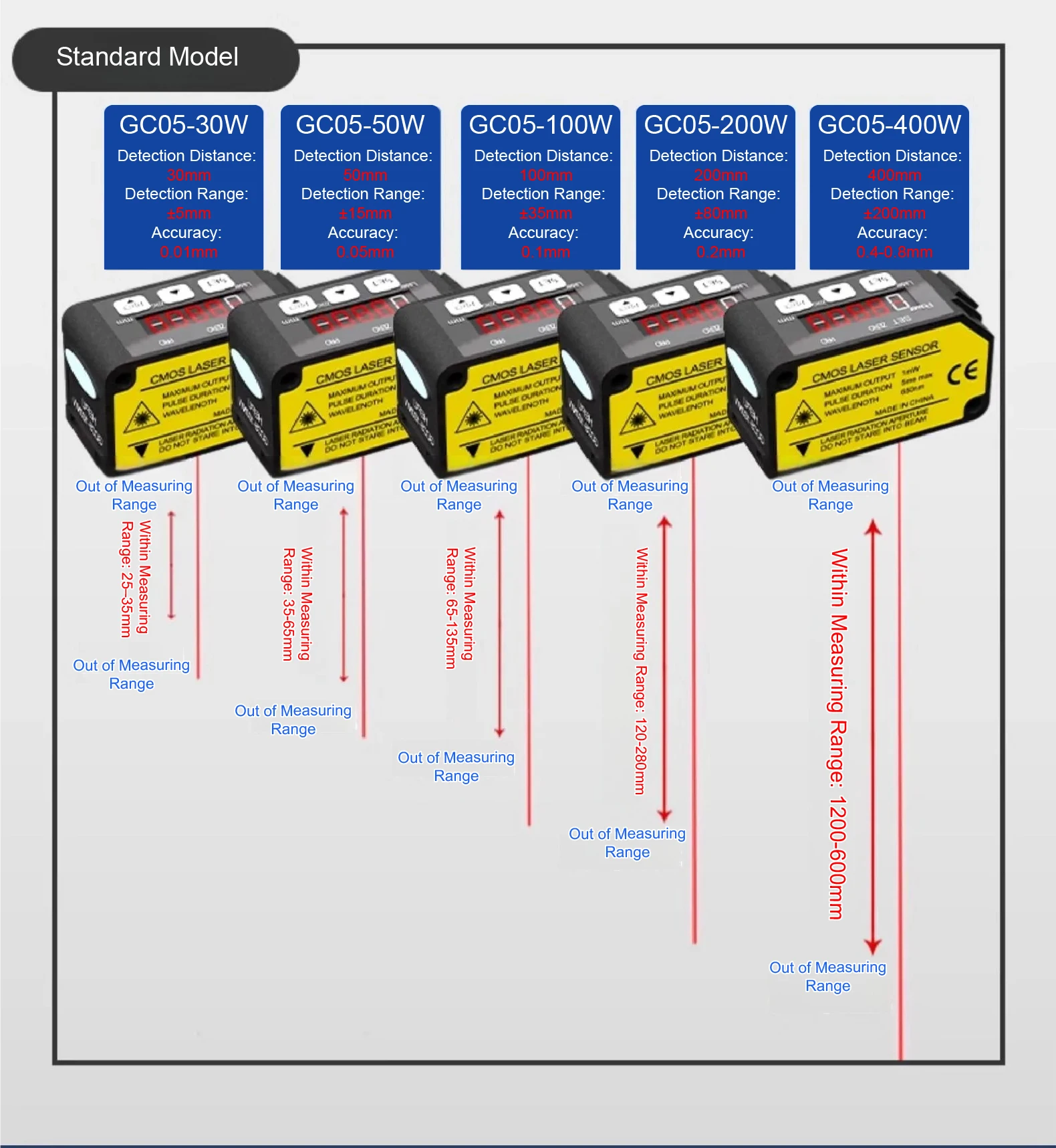

Measuring Center Distance | 30 / 50 / 100 / 200 / 400 mm |
Measuring Range | ±5 mm ~ ±200 mm |
Repeat Accuracy | 10 μm ~ 200 μm |
Linearity | ±0.1%FS ~ ±0.2%FS |
Light Source | Red laser, λ=655 nm |
Spot Diameter | 50 μm ~ 500 μm |
Power Supply | 12–24 V DC ±10% |
Response Time | 1.5 ms / 5 ms / 10 ms (switchable) |
Protection | IP67 |
Operating Temperature | -10℃ ~ +40℃ |
Weight | 35 g (without cable) / 85 g (with cable) |

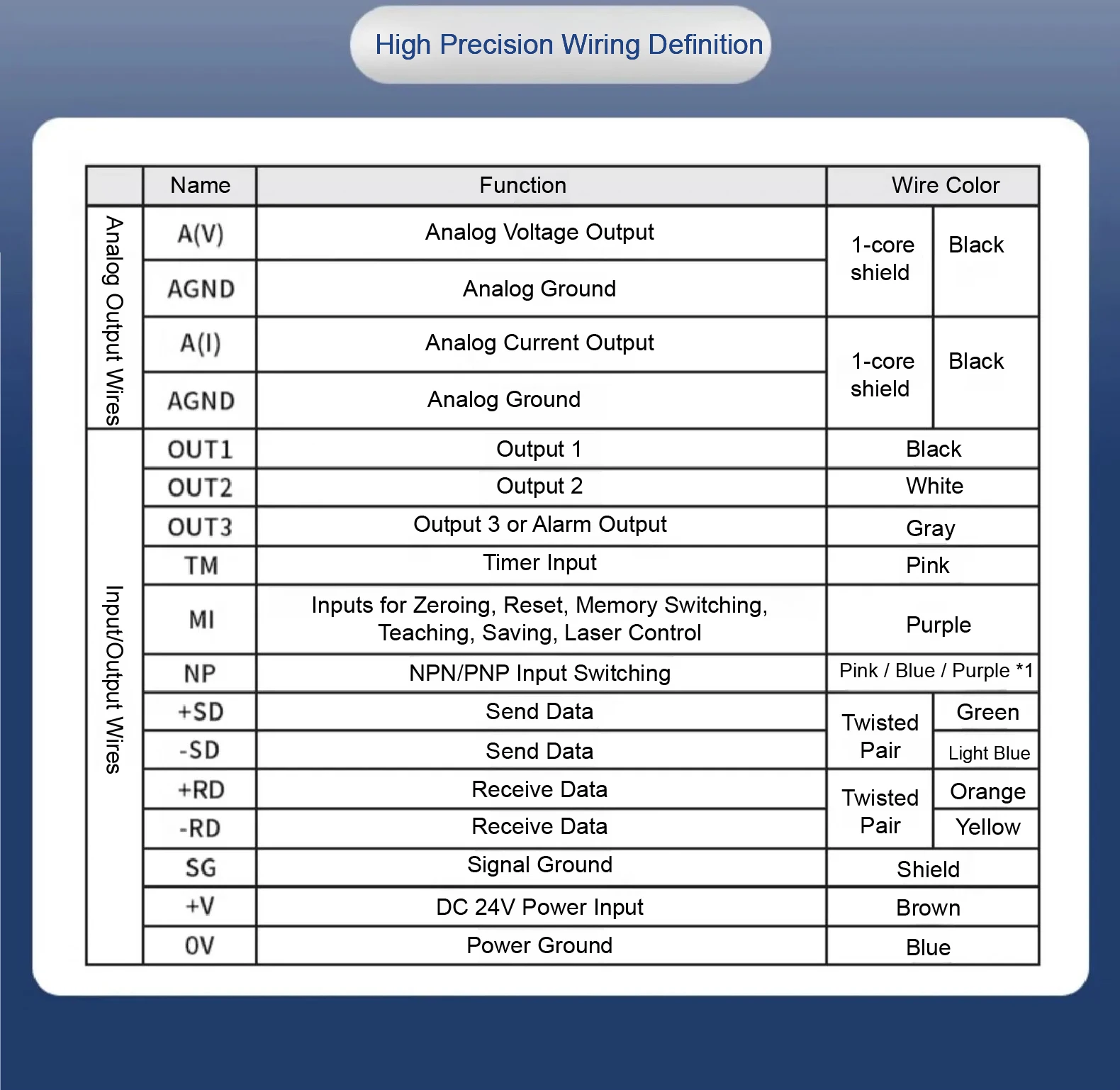

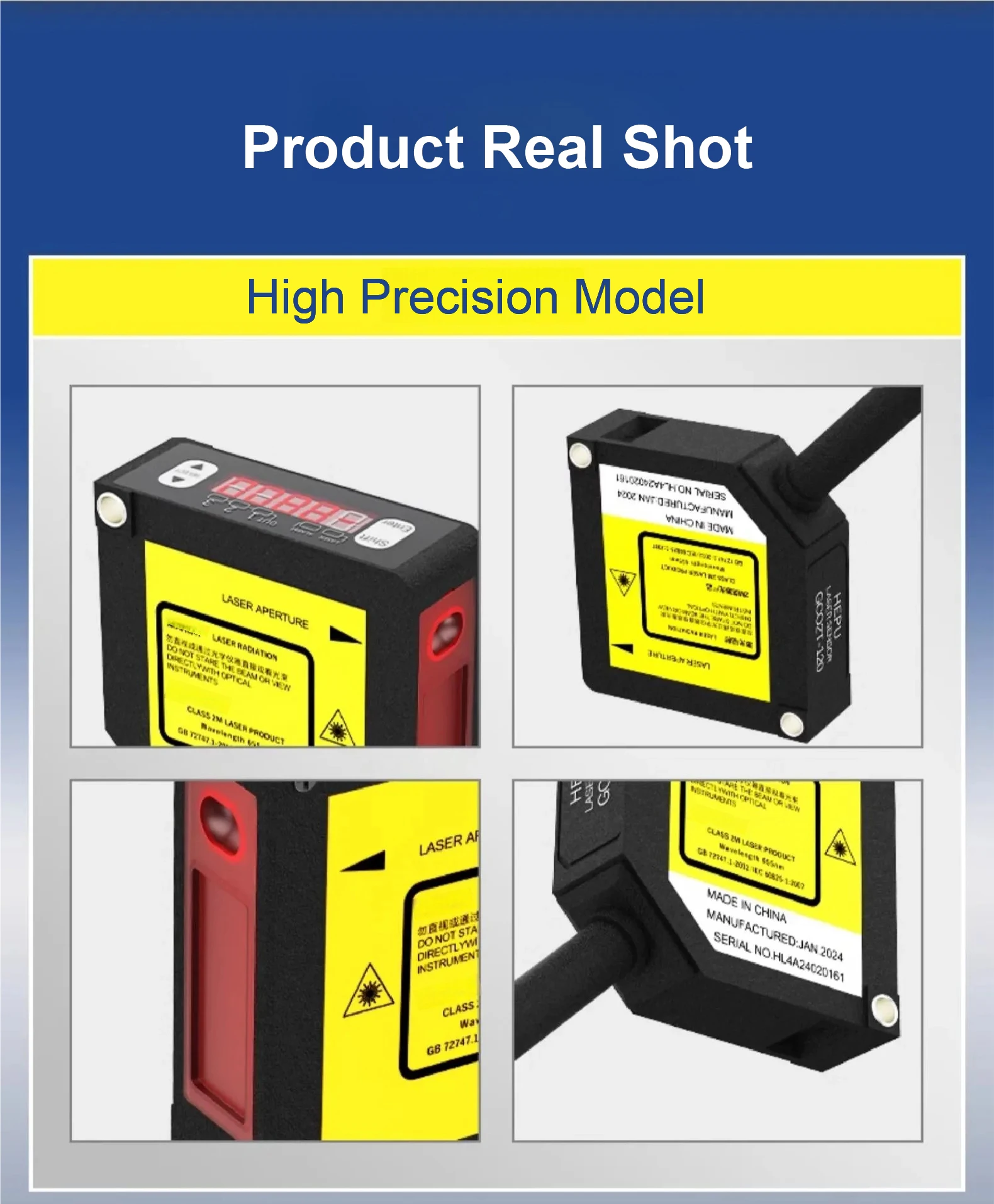

GC02T Series (High Precision Type)

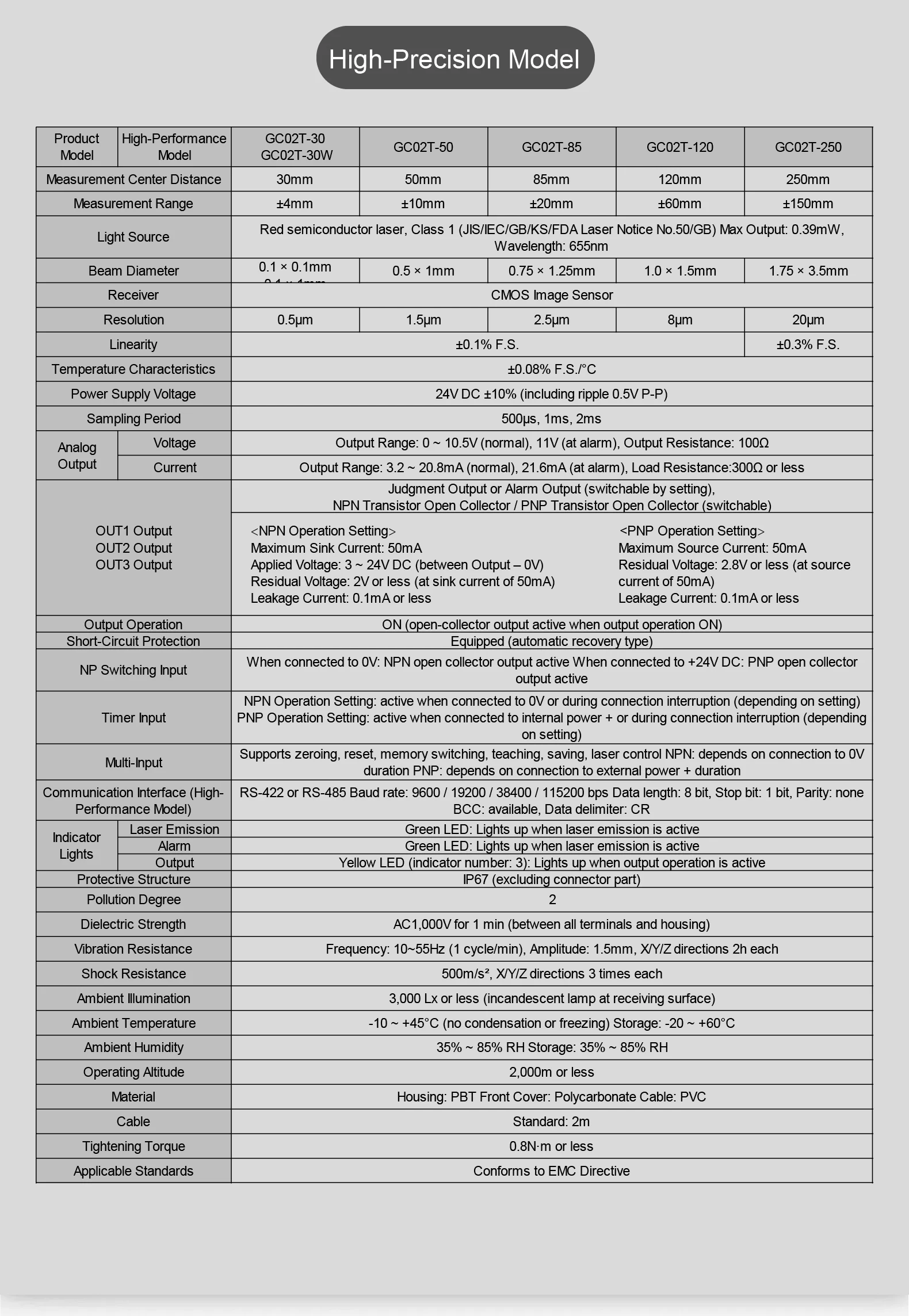

Specification | Value |

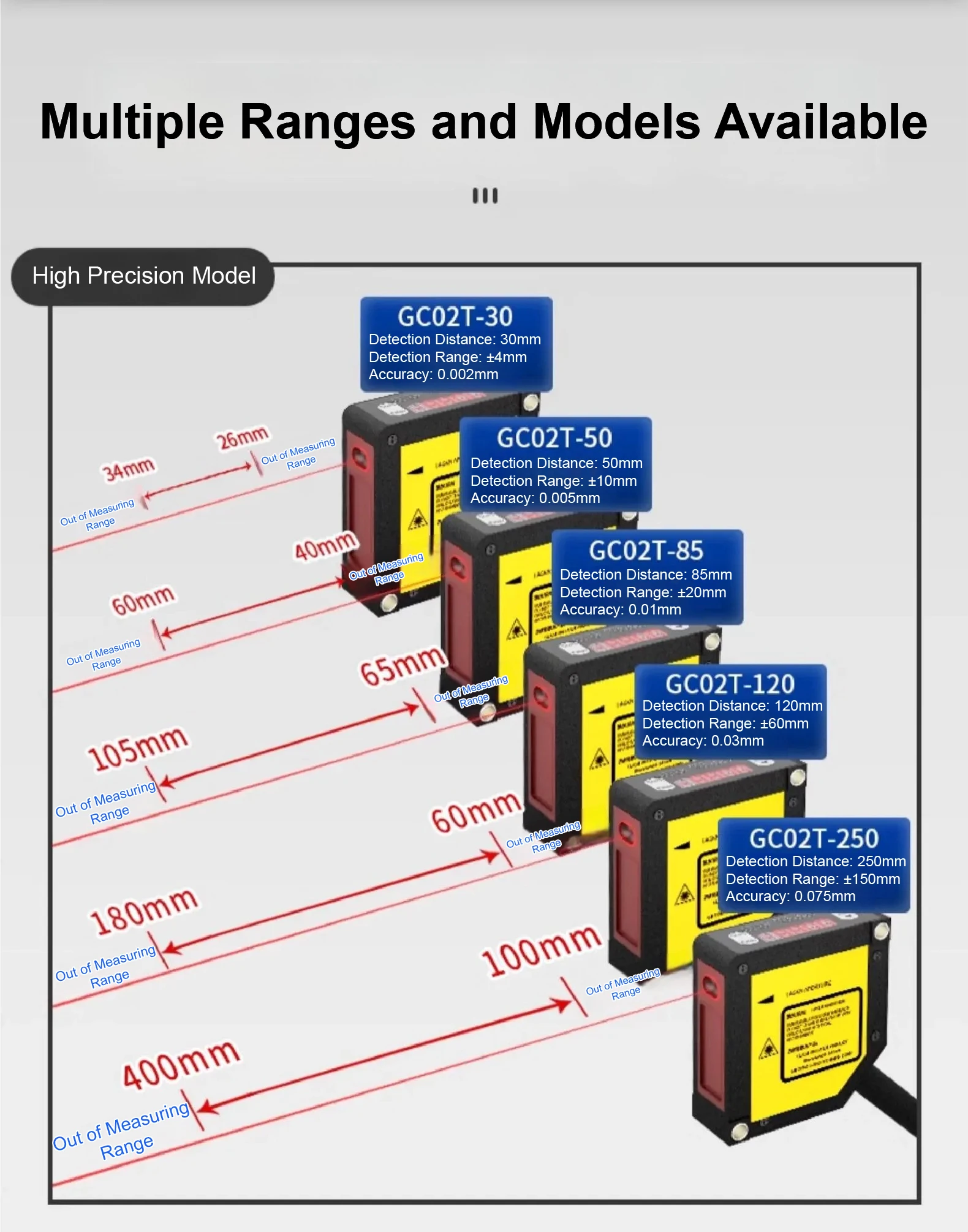

Measuring Center Distance | 30 / 50 / 85 / 120 / 250 mm |
Measuring Range | ±4 mm ~ ±150 mm |
Resolution | 0.5 μm ~ 20 μm |
Linearity | ±0.1%FS ~ ±0.3%FS |
Light Source | Red laser, Class 1, λ=655 nm |
Receiver | CMOS image sensor |
Power Supply | 24 V DC ±10% |
Response Time | 500 μs / 1 ms / 2 ms |
Protection | IP67 |
Operating Temperature | -10℃ ~ +45℃ |
Vibration Resistance | 10–55 Hz, 1.5 mm, XYZ axes |
Shock Resistance | 500 m/s², XYZ axes (3 times) |
3.Features
Micron-level Precision– Resolution down to 0.5 μm for high accuracy measurement.

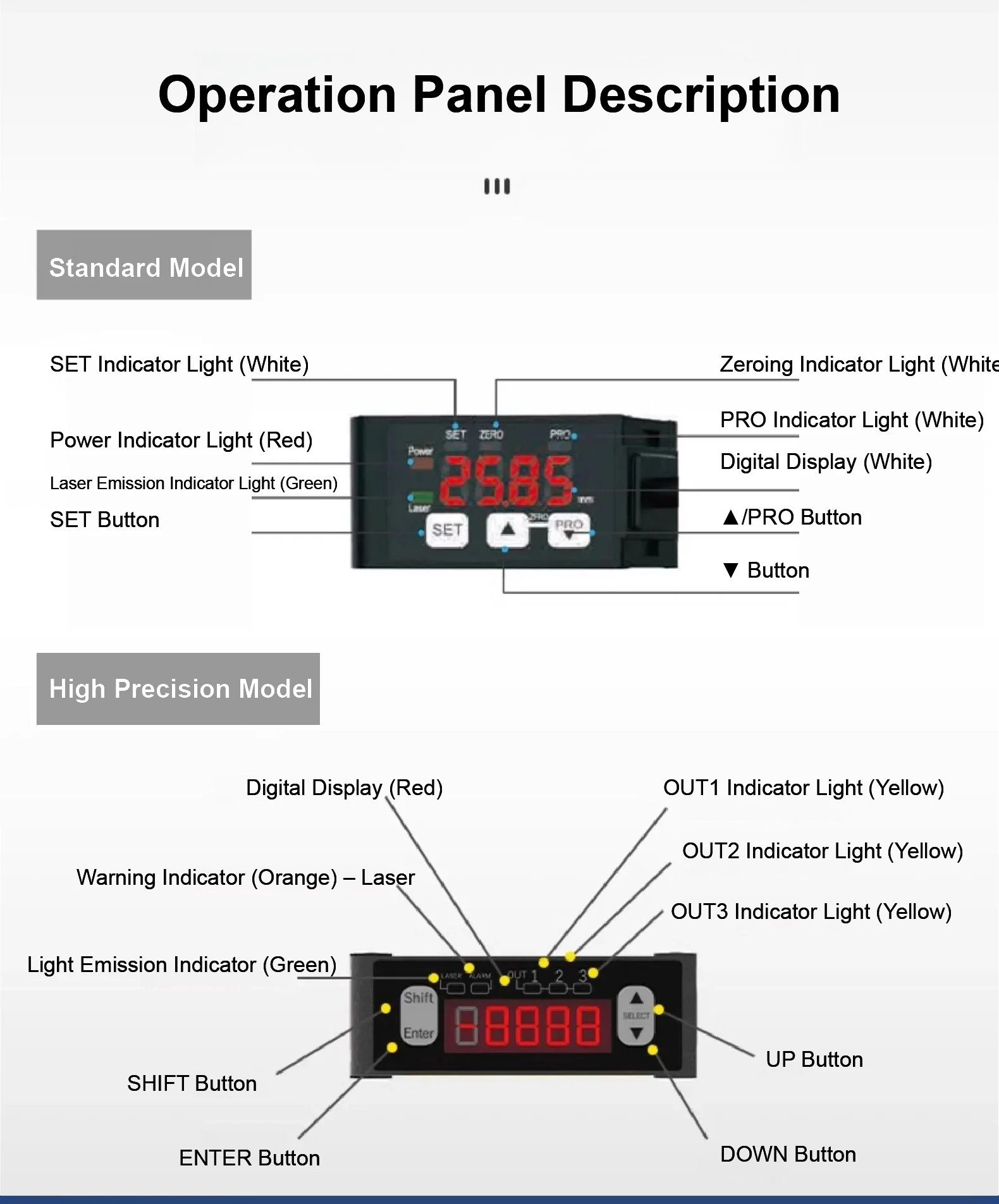

Multiple Models– Standard and high precision types with a wide selection of ranges.
Fast Response– Adjustable response time up to 500 μs for dynamic applications.
Durable Design– IP67 protection against dust, water, vibration, and shock.

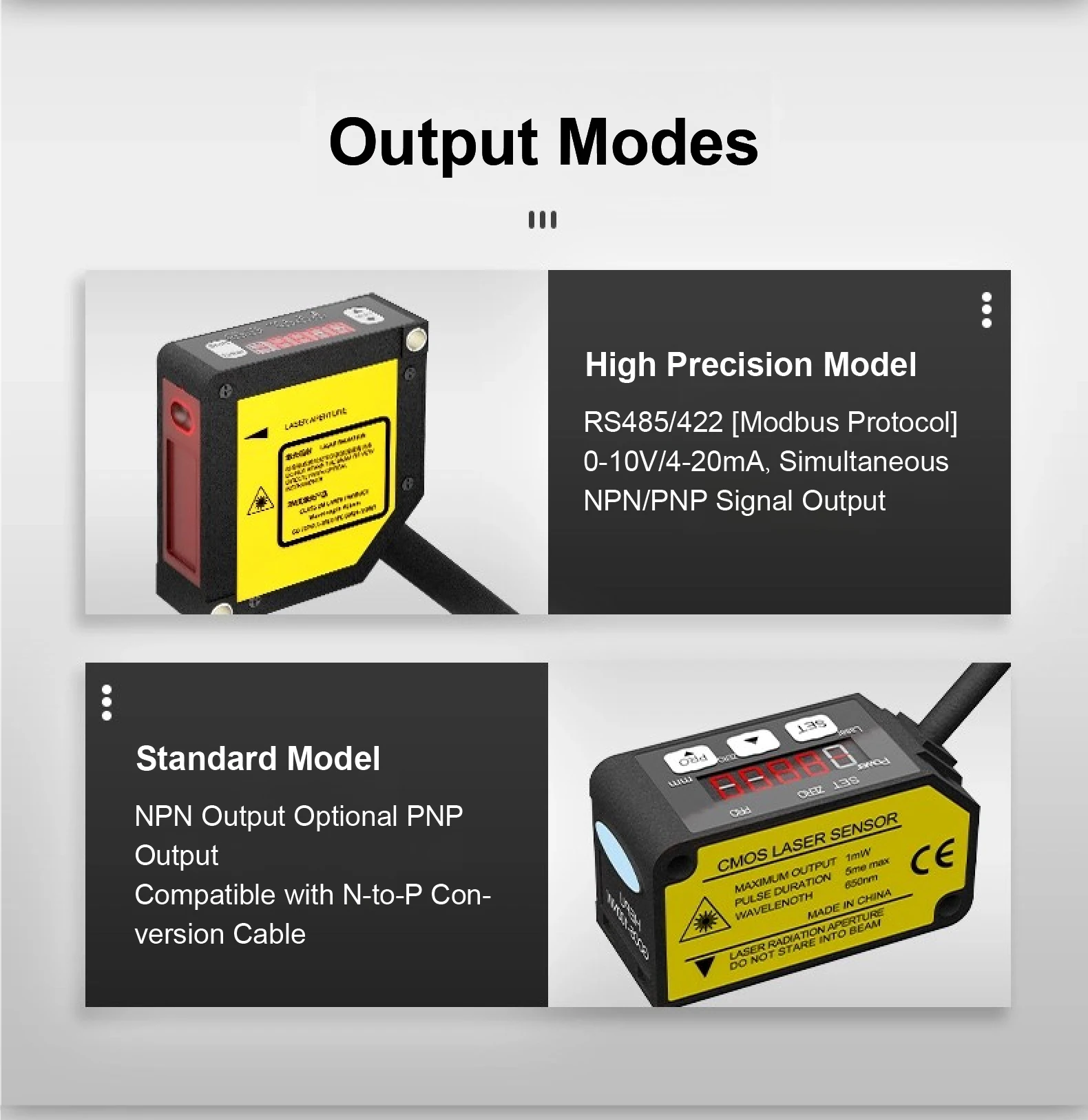

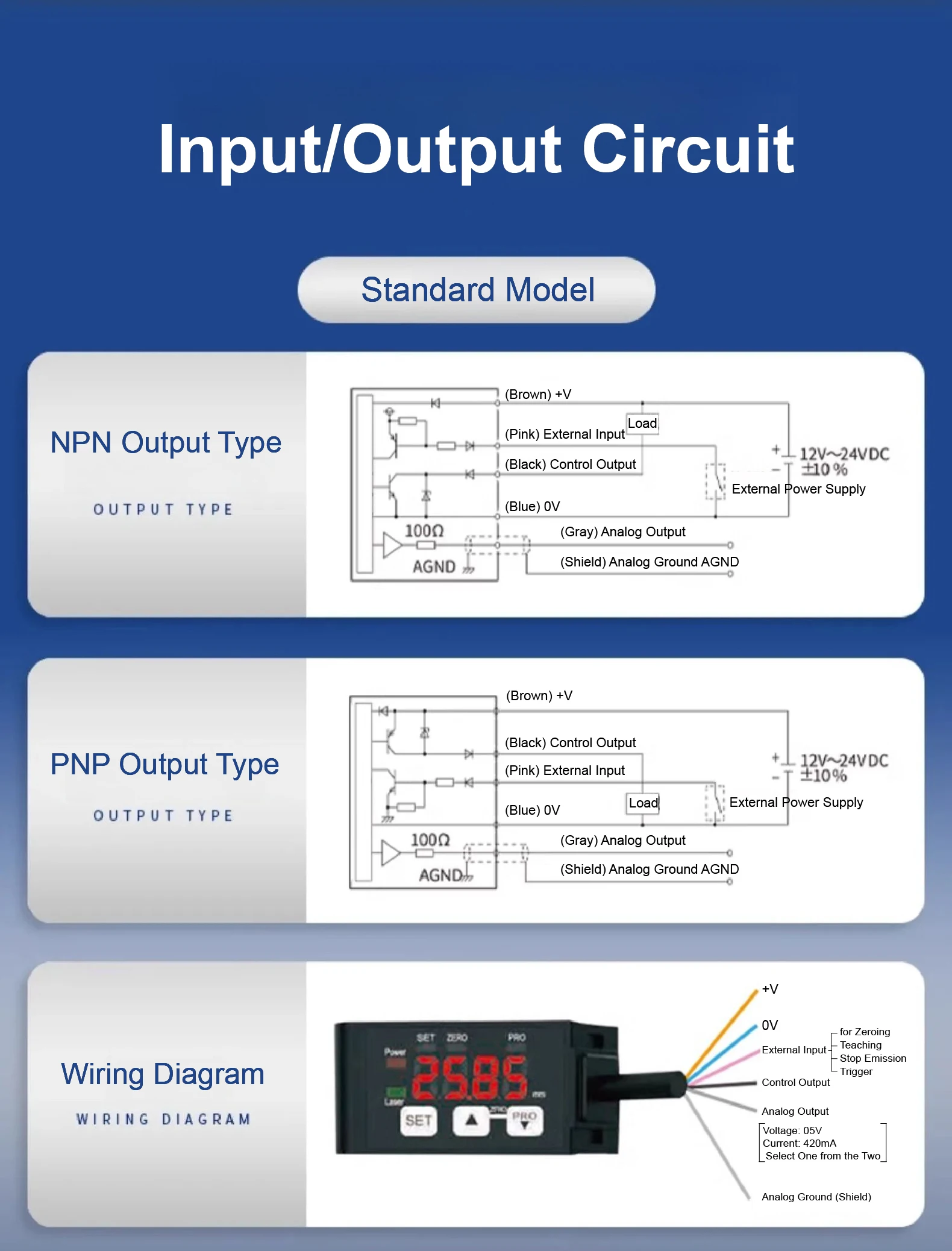

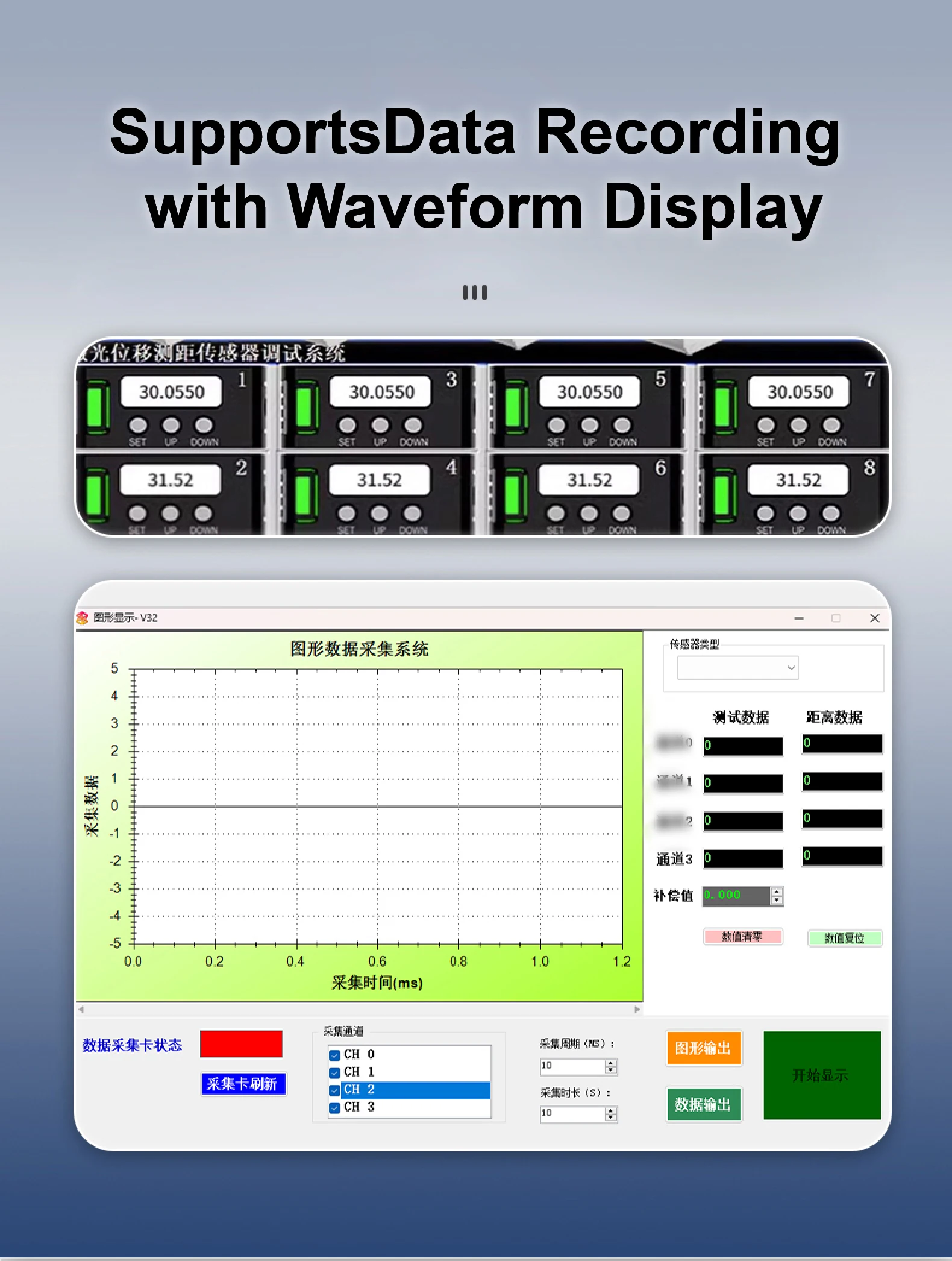

Versatile Outputs– Supports analog and digital signals for easy integration.

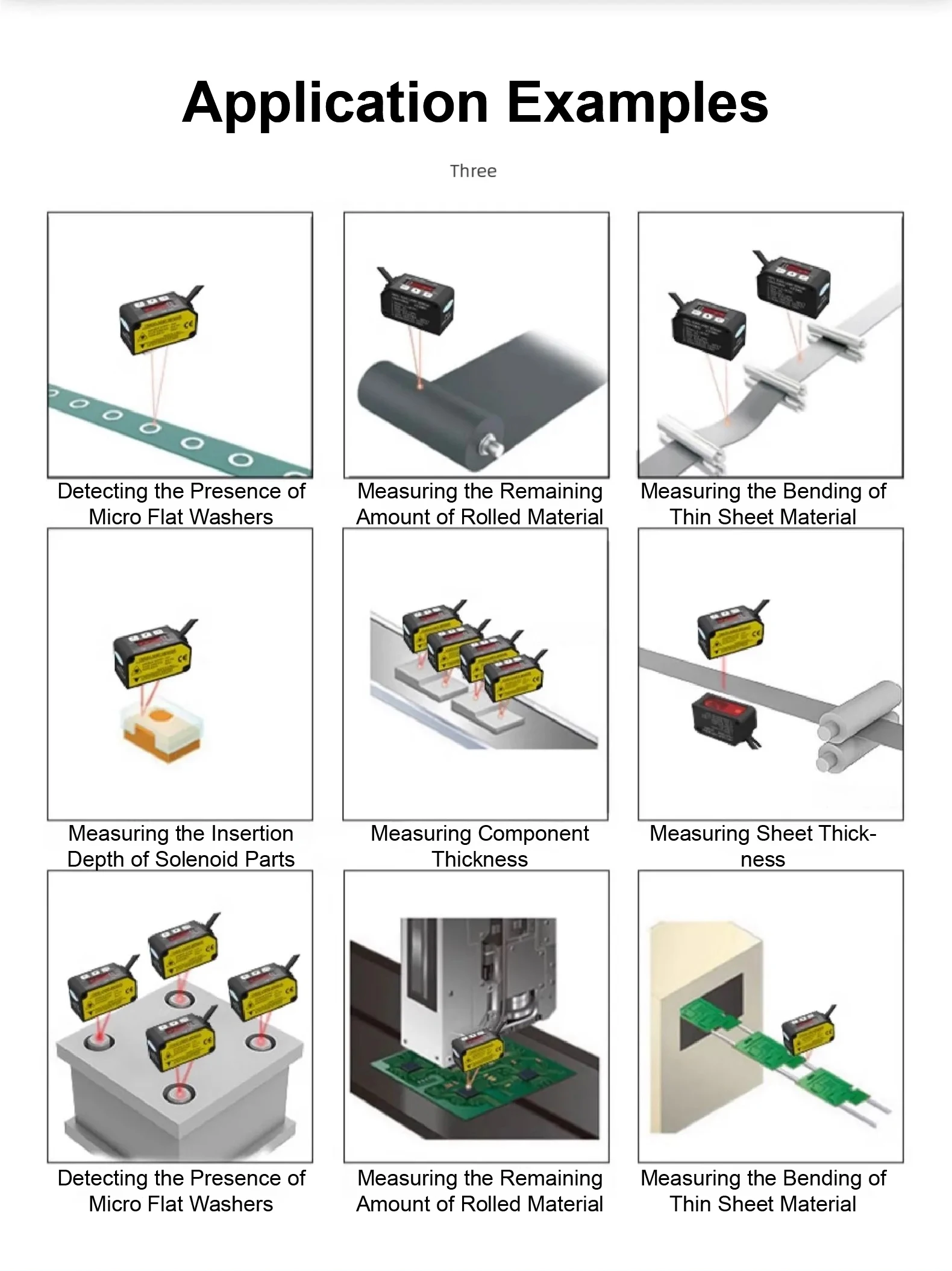

4.Applications

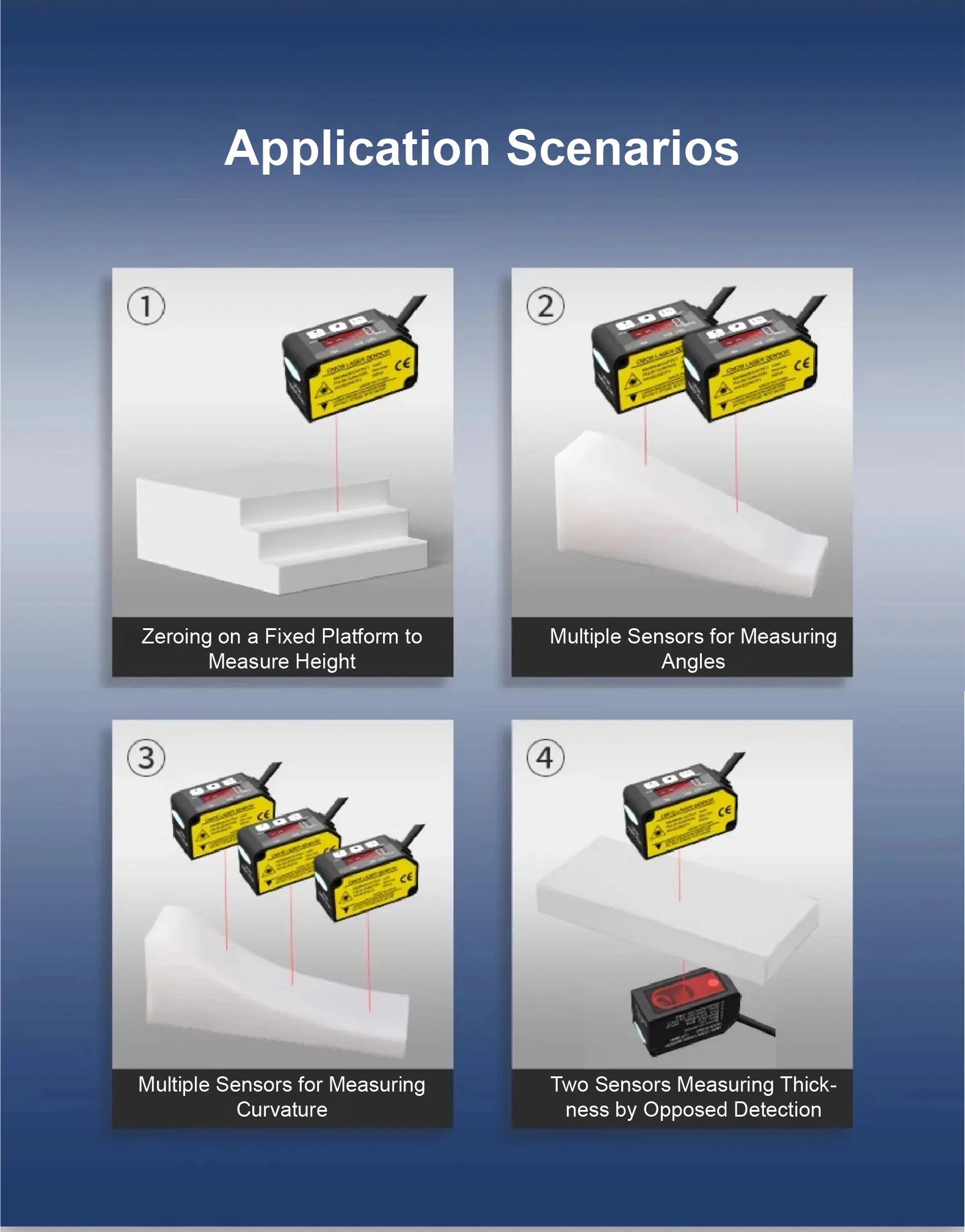

Height measurement and zero calibration
Dual-sensor thickness detection
Multi-point angle & curvature measurement
Coil material remaining monitoring
PCB warpage detection in SMT equipment
Component insertion and alignment control
5.FAQs
Q1: What is the difference between GC05 and GC02T series?
A1: GC05 is a standard type with wide applicability, while GC02T offers ultra-high resolution and faster response for precision industries.
Q2: Can these sensors operate in harsh environments?
A2: Yes, both series are IP67-rated and resistant to dust, water, vibration, and shock.
Q3: What is the smallest measurable object size?
A3: Depending on the model, the laser spot size is as small as 50 μm, enabling detection of fine materials.
