Product Description

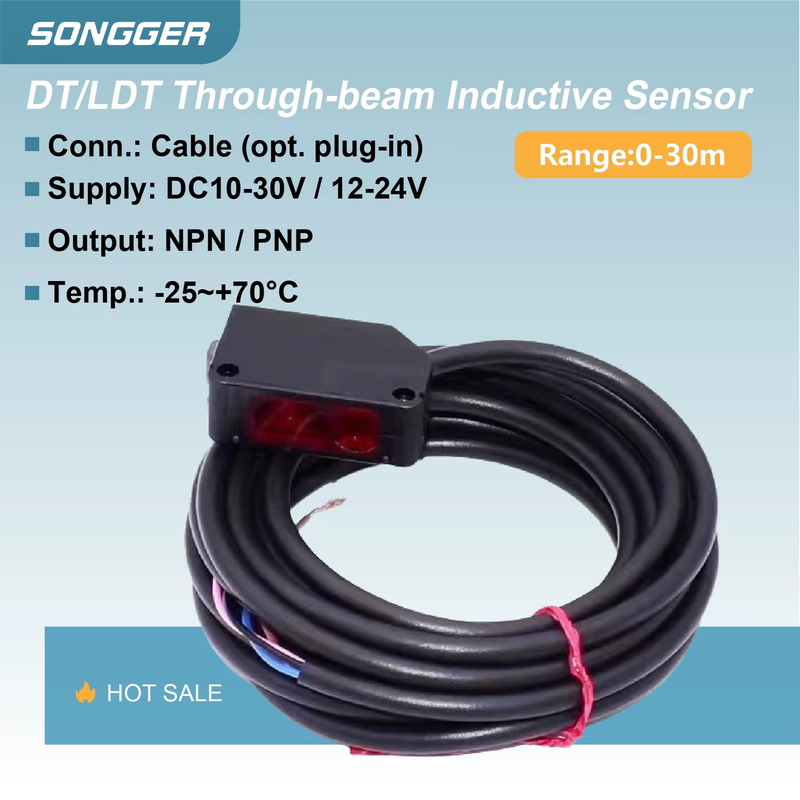

DT LDT Through Beam Photoelectric Sensor Laser Opposed Type Switch NPN PNP Industrial Photoelectric Detector for Automation
DT LDT Through Beam Photoelectric Sensor Laser Opposed Type Switch NPN PNP Industrial Photoelectric Detector for Automation1.NOTE：
Default Configuration
Cable Type: 2m length
Output: NPN or PNP open collector
Power Supply: DC 10–30V (DT) / DC 12–24V (LDT)
Protection Grade: IP67
Detection Distance: Up to 25m (DT) / Up to 30m (LDT)
Optional Configuration
Connector Type: Available as an alternative to cable
Output Mode: NO (Normally Open) / NC (Normally Closed) switching

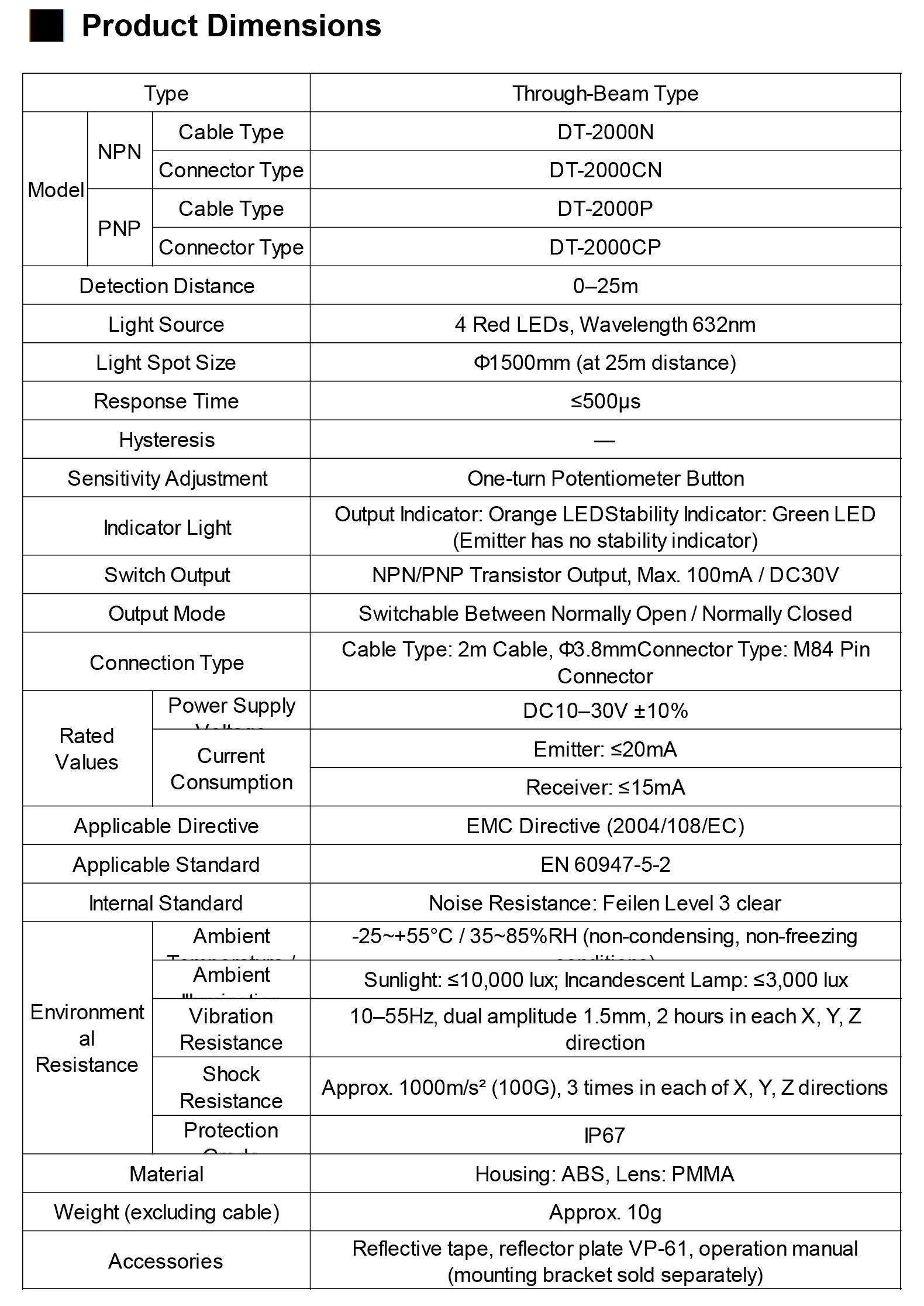

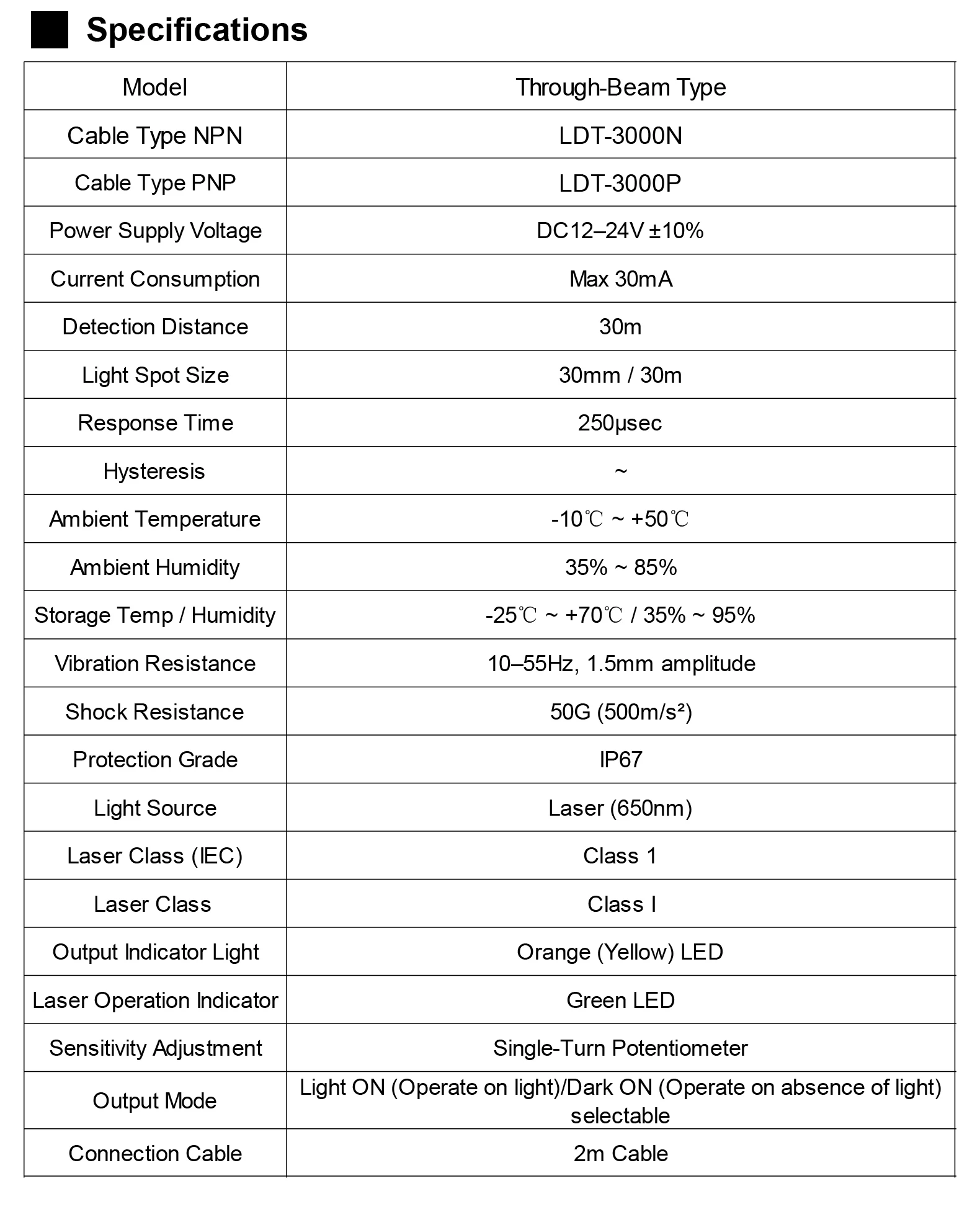

2. Parameters
Parameter | Specification |
Model Variants | DT-2000N/P/CP/CN, LDT-3000N/P |
Detection Distance | 25m (DT Series), 30m (LDT Series) |
Light Source | 4 Red LEDs (632nm) / Laser (650nm) |
Response Time | ≤500μs (DT), ≤250μs (LDT) |
Output Type | NPN/PNP, NO/NC selectable |
Power Supply | DC10–30V (DT), DC12–24V (LDT) |
Protection Rating | IP67 |
Operating Temp / Humidity | -25~+55°C, 35–85% RH |
Vibration/Shock Resistance | 10–55Hz, 1.5mm / 100G (DT), 50G (LDT) |
Material | Housing: ABS, Lens: PMMA |
Indicator LEDs | Orange (Output), Green (Stability) |
3. Features
Long Detection Range
Detects objects reliably at distances of up to 30 meters, ideal for long-range applications.

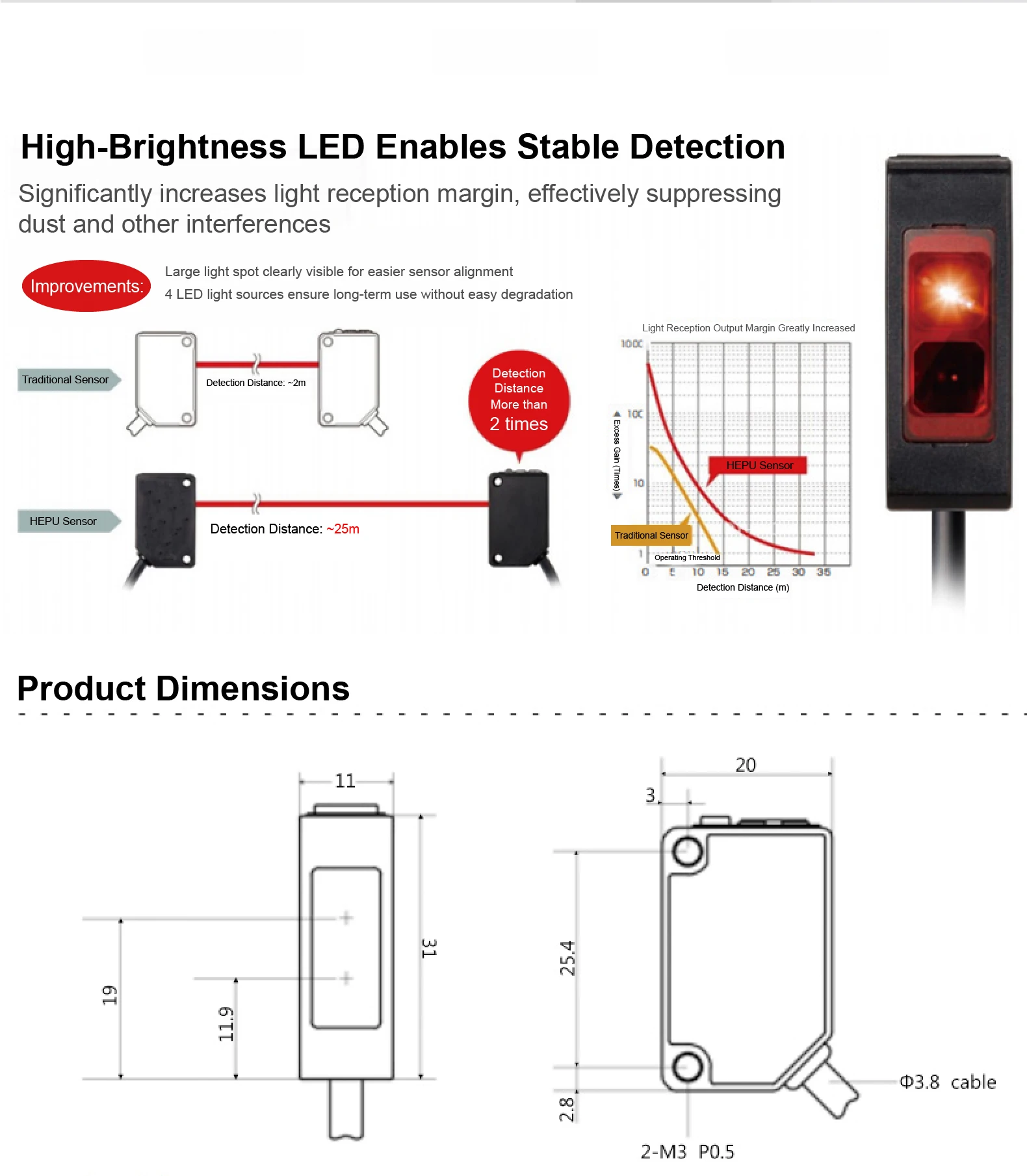

High-Visibility Light Spot
Features a large, bright light spot for quick and easy alignment during installation.
Dust-Resistant Detection
Optimized light reception design minimizes the impact of dust, ensuring stable performance.
Fast Response Time
Ultra-fast response time as low as 250μs, perfect for high-speed detection tasks.
Durable & Waterproof
IP67-rated housing provides excellent protection for consistent operation in demanding environments.
LED/Laser Light Source
Equipped with a 4-LED array or Class 1 laser for stable, long-lasting light emission with minimal performance degradation.
4. Applications
Ideal for object detection in automated production lines, packaging machines, logistics systems, and outdoor sensing environments.
5. FAQs
Q1: Is it suitable for dusty environments?
A: Yes, the sensor has high light reception tolerance and is resistant to dust interference.
Q2: Can I use it in outdoor applications?
A: Yes, with IP67 protection, it performs well in various industrial and outdoor conditions.
Q3: How do I switch between NO and NC modes?
A: The sensor allows selection between Normally Open and Normally Closed modes via setting.
