Product Description

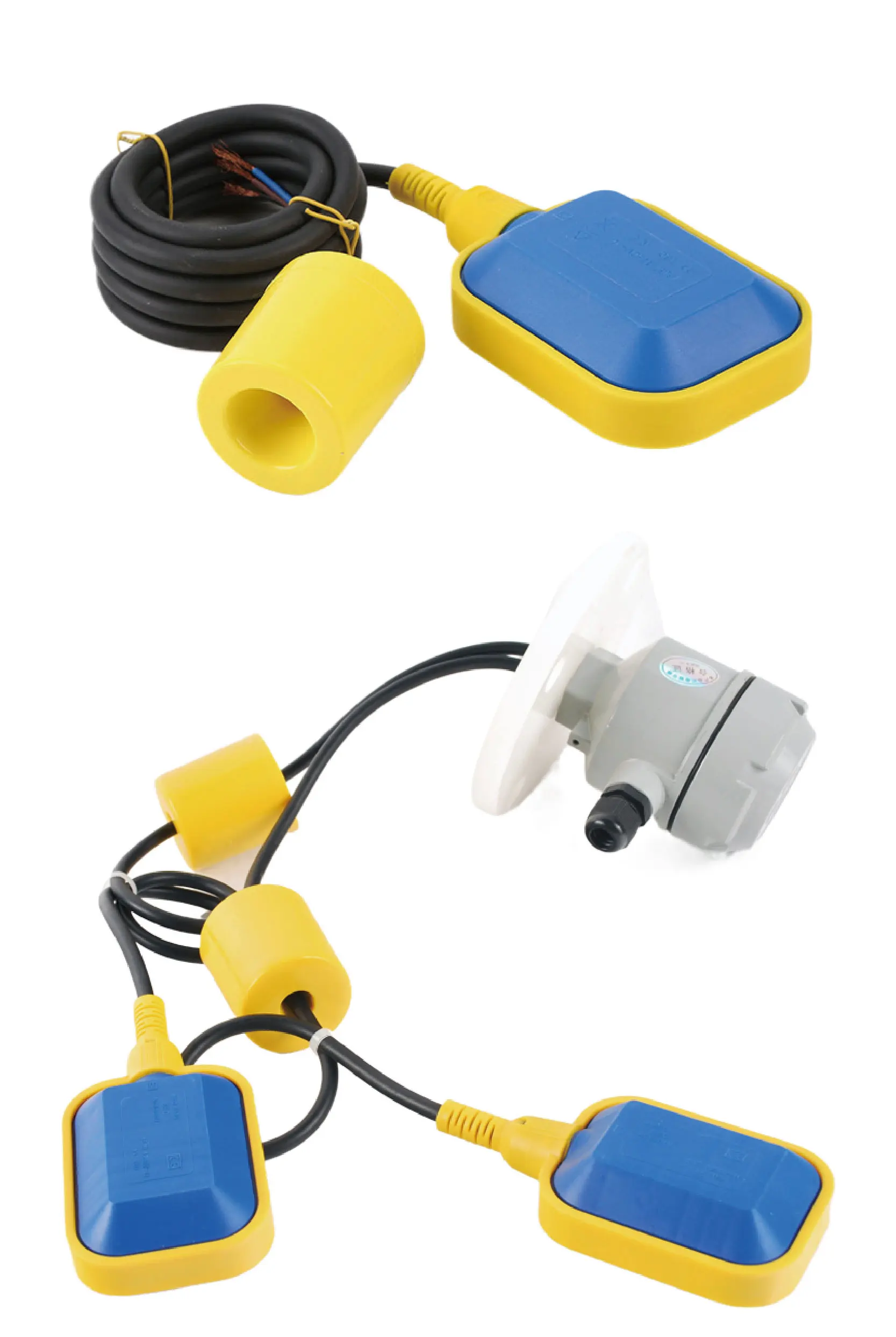

PP Cable Float Switch 2-6m IP65 Waterproof Liquid Level Controller 1650W Single Float for Water Pump Tank Refill
PP Cable Float Switch 2-6m IP65 Waterproof Liquid Level Controller 1650W Single Float for Water Pump Tank Refill1. NOTE

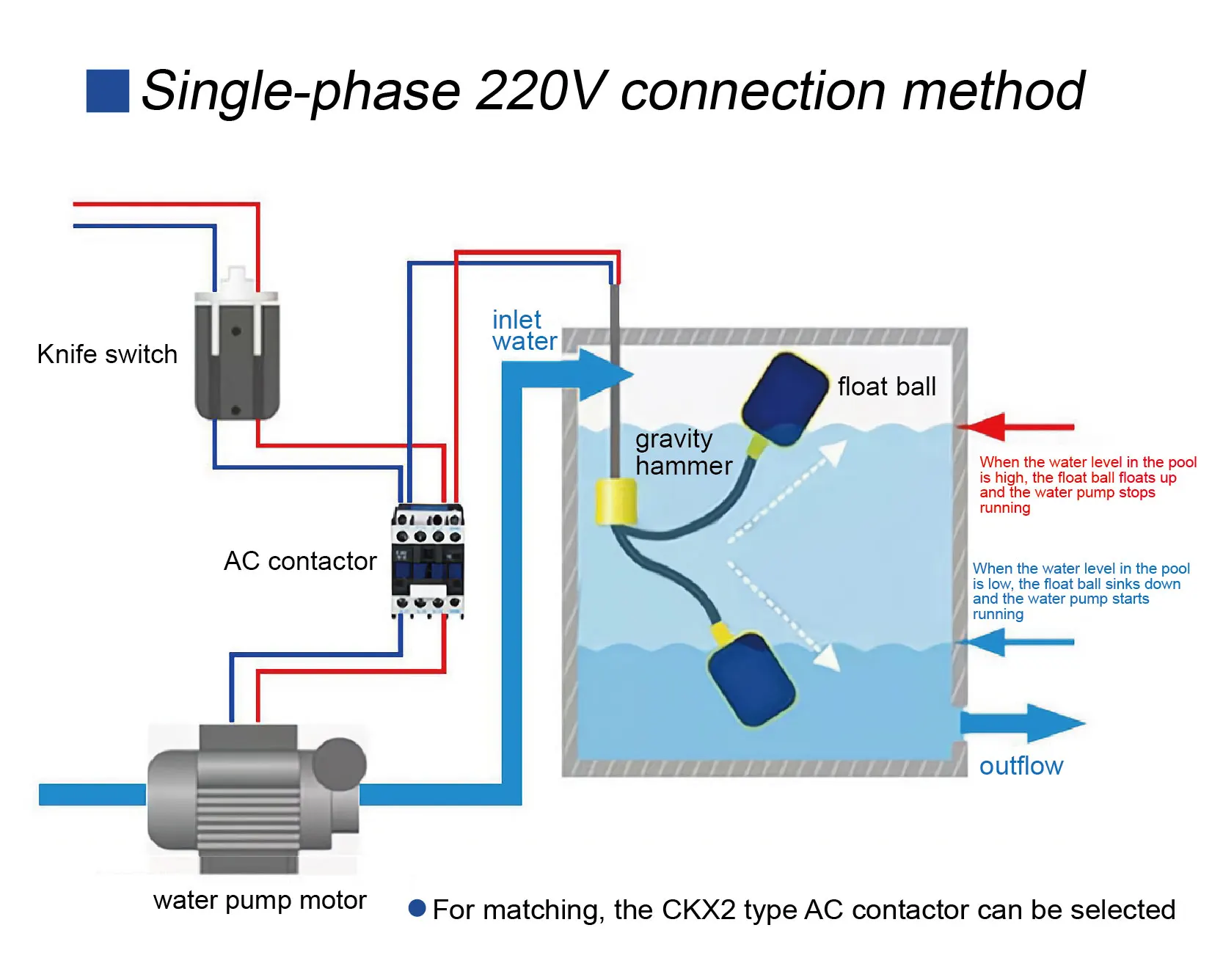

Before placing an order, please carefully review the specifications and application guidelines. For customized parameters, feel free to contact us. Ensure that the device's power is compatible with the float switch specifications. For devices exceeding 700W, we recommend using an external contactor to protect the switch from potential damage
This Cable Float Level Switch is designed for reliable liquid level control in various applications.

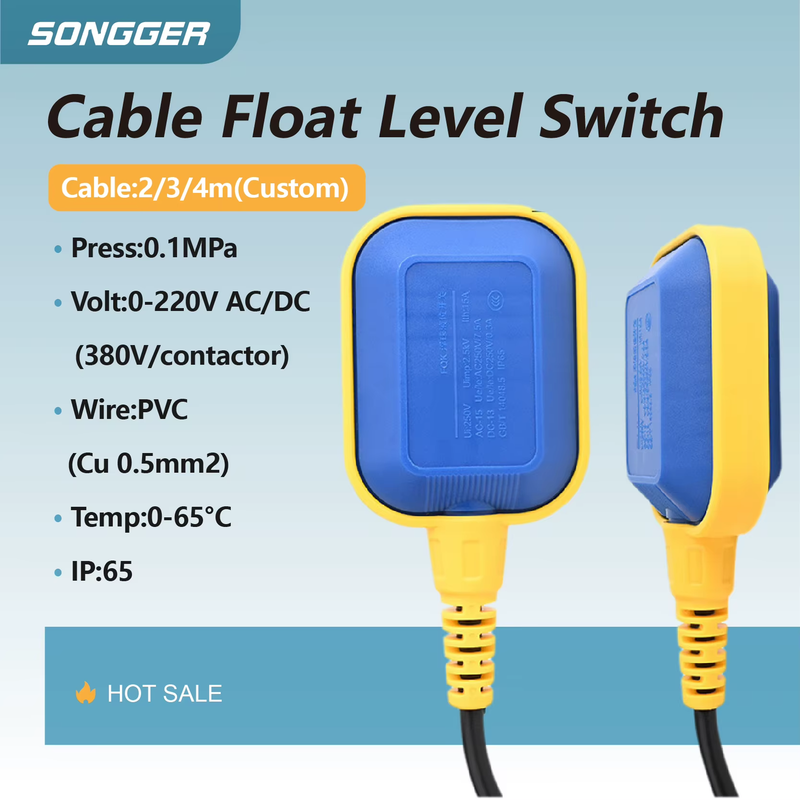

Default Configuration Includes:
Cable Length: 2m / 3m / 4m (Customizable eg 10m,20m,30m)

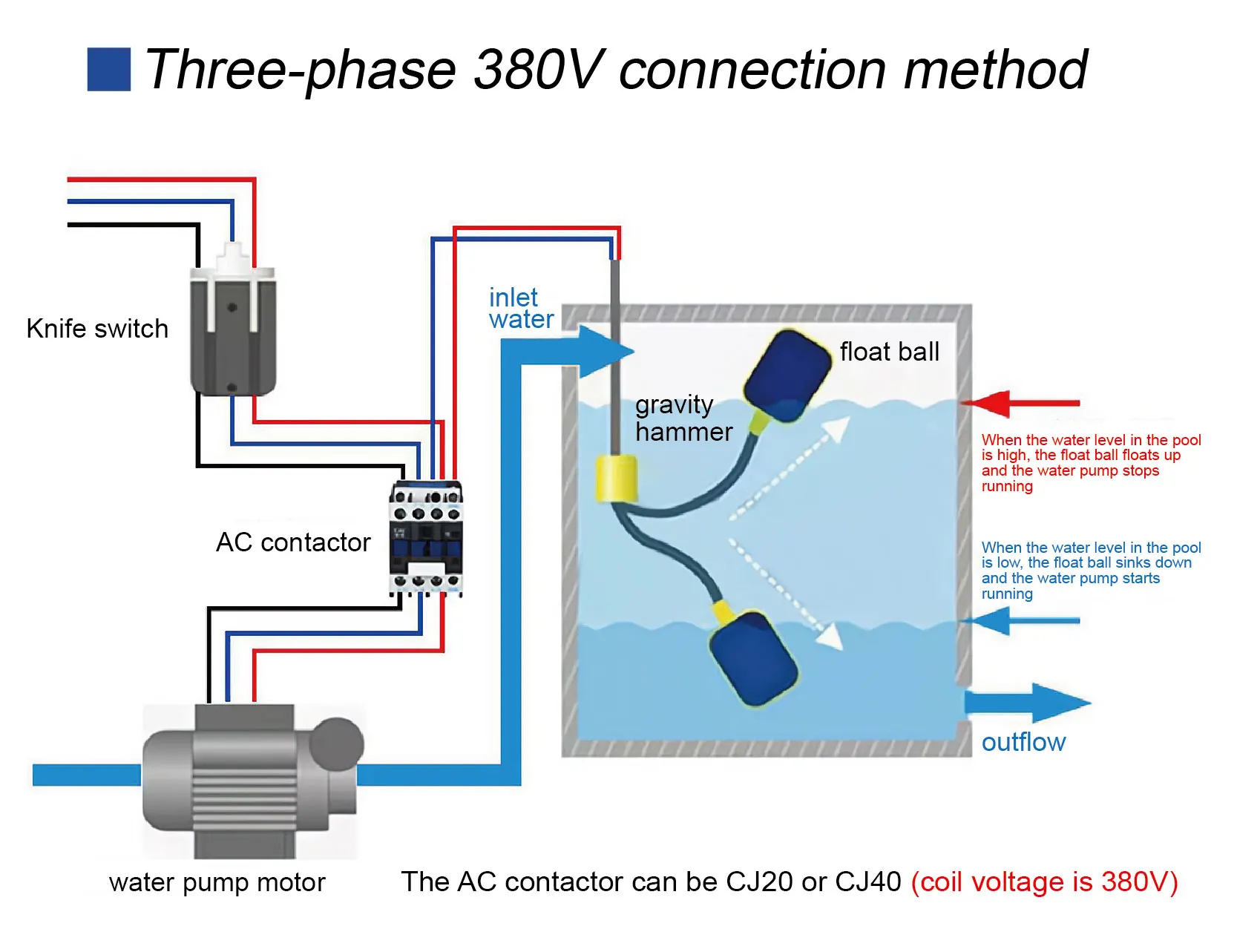

Voltage: 0–220V AC/DC (Supports 380V with contactor)
Wire Material: PVC (Cu 0.5mm²)
Temperature Range: 0–65°C
Pressure Range: 0.1MPa
Protection Grade: IP65
Due to page limitations, some configurations and lengths may not be listed.
For further customization or specific requirements, please contact us.
2. PARAMETERS
Parameter | Specification |
Voltage | 0-220V AC/DC (380V AC with contactor) |
Current | 4A/220V (Max heating current: 10A/250V) |
Working Temperature | 0-65℃ |

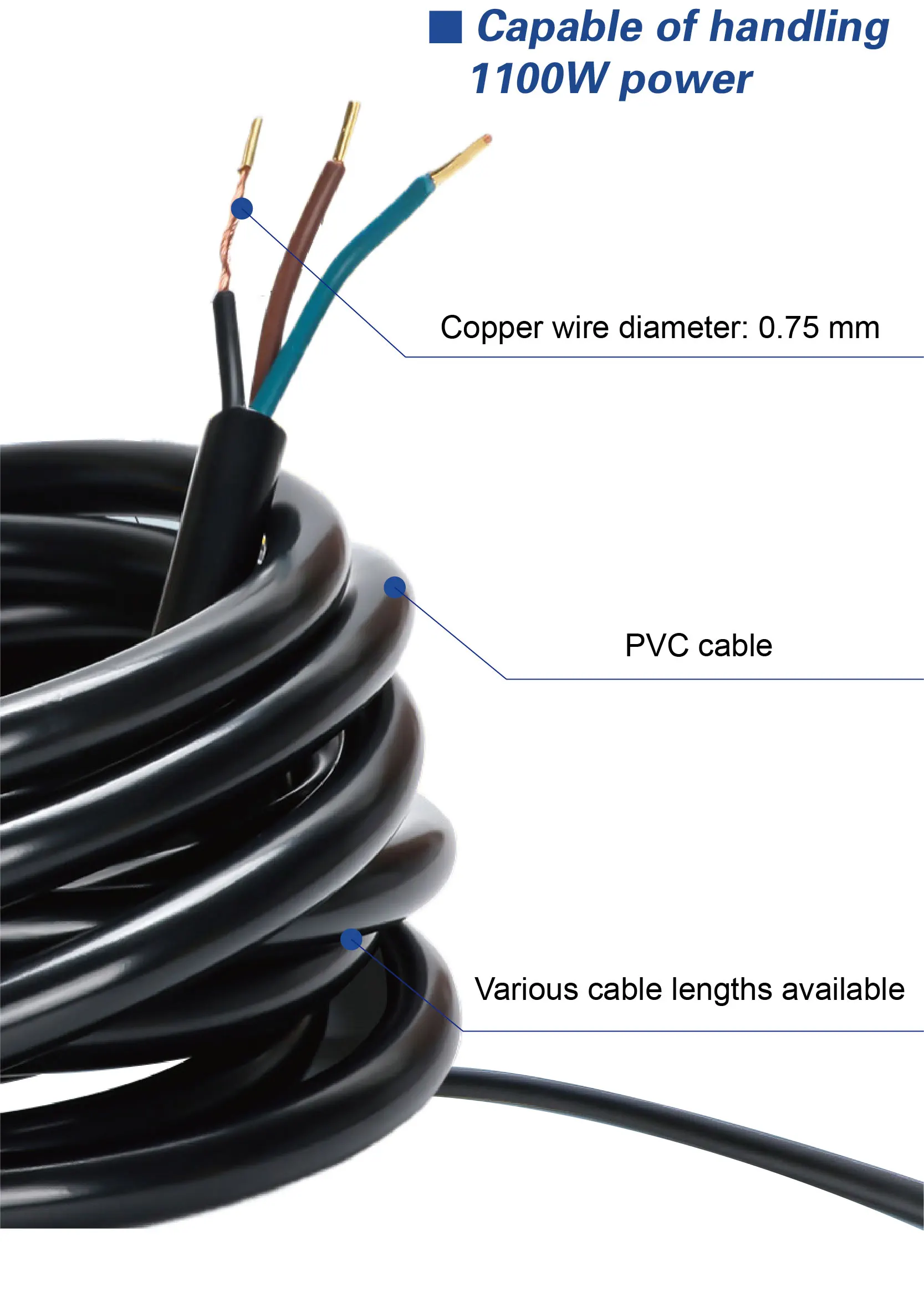

Copper Wire Diameter | 0.5mm² |
Power Range | ＜750W |
Pressure | 0.1MPA |
Control Range | >30cm (Minimum level difference of 30cm required) |
Protection Grade | IP65 |
Lifespan | >10,000 operations (mechanical) |
Cable Material | PVC |
3. APPLICATION

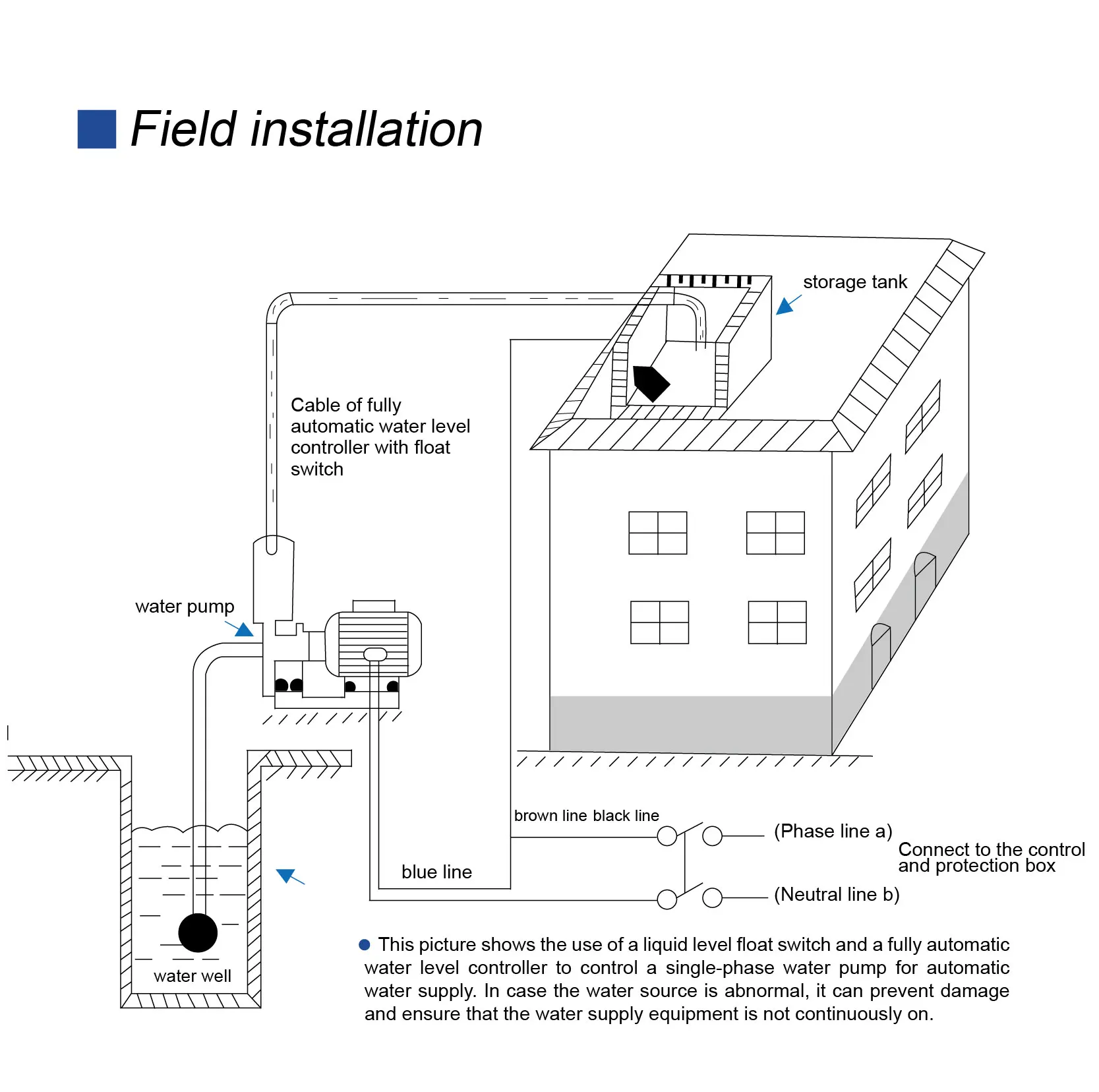

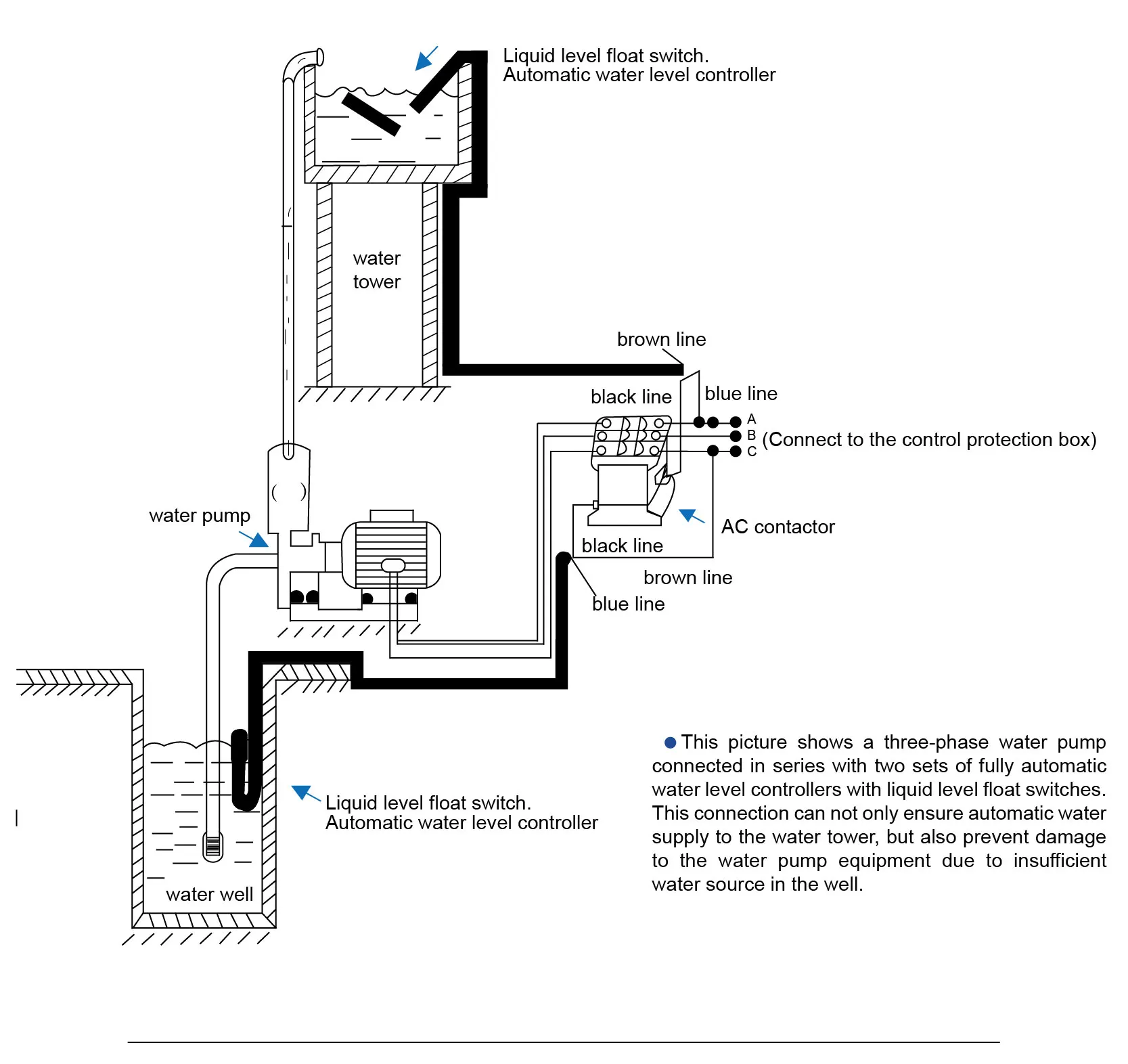

Suitable for water tank and tower level control.

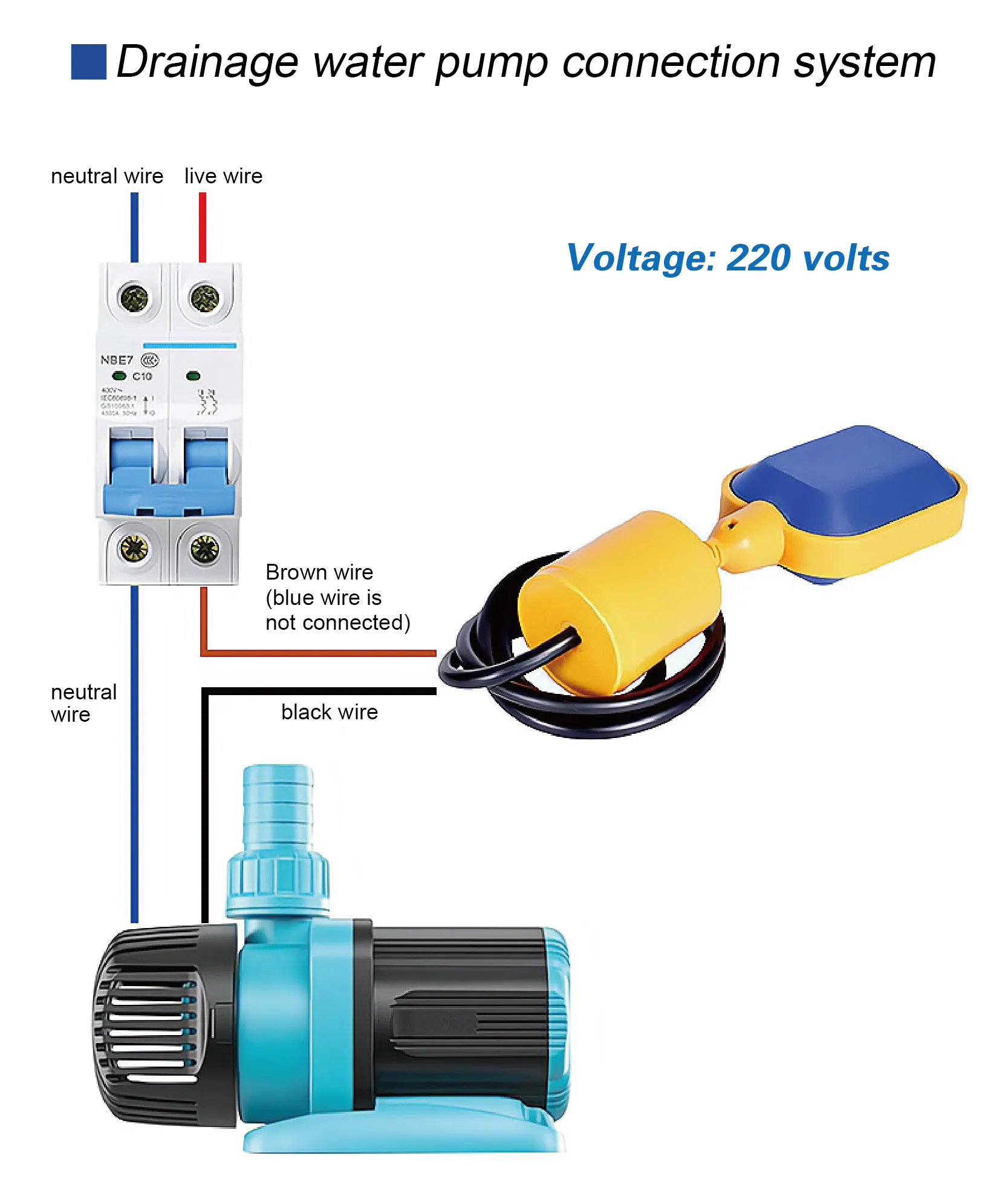

Applicable for drainage in underground garages.
Widely used in industries like shipbuilding, power generation, petrochemicals, food processing, and water treatment.

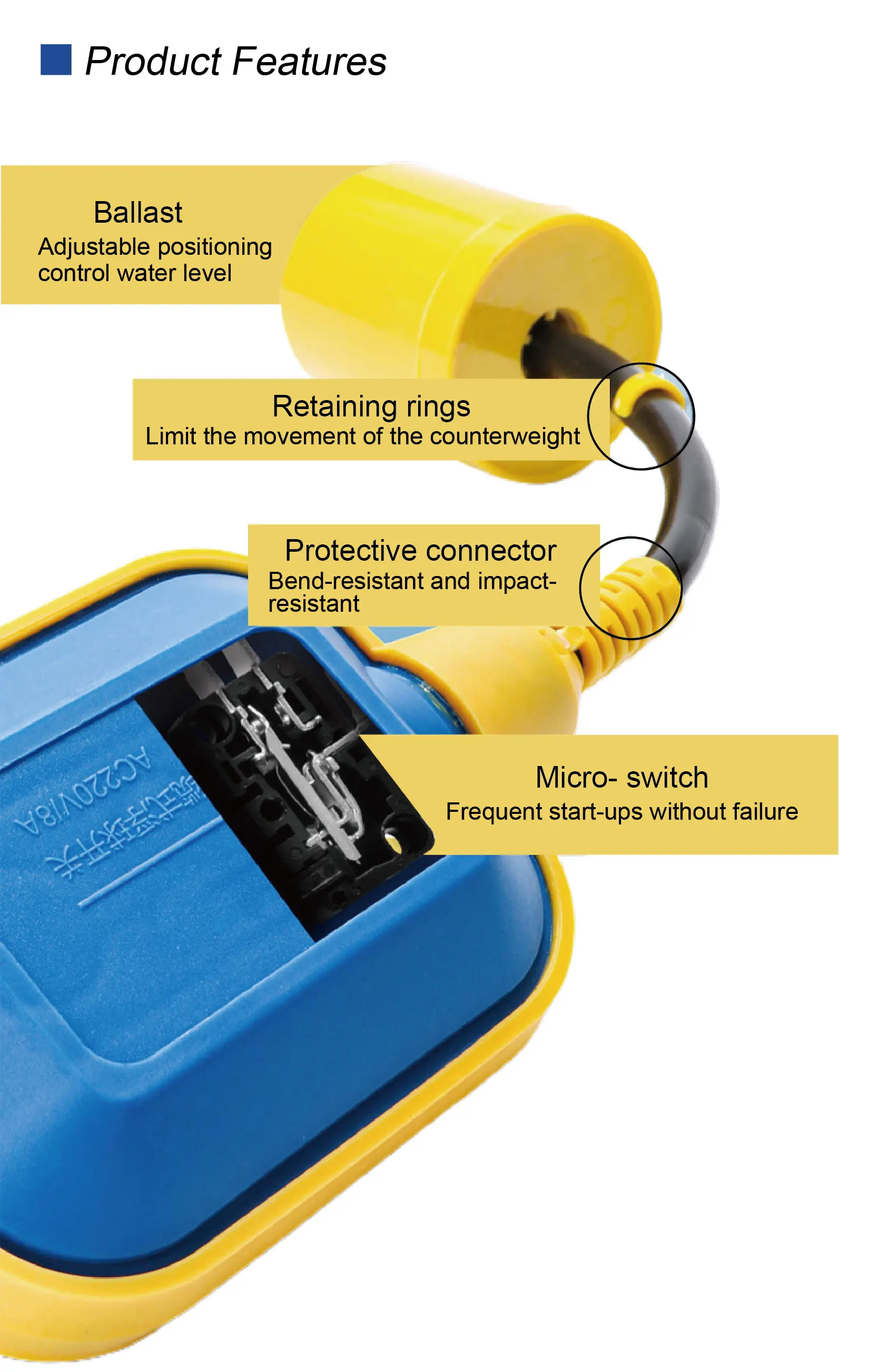

4. FEATURES
Simple and Durable: Compact structure, easy to install, and long working life.
High-Quality Materials: Made of durable PVC and high-purity copper for reduced resistance and minimal heating.
Flexible Control: Operates without the need for a power supply or complex circuits.
Robust Design: IP65-rated protection and enhanced durability for extended usage.
5. FAQ
Q1: What is the maximum power supported by the float switch?
A: The float switch supports a maximum power of 750W. For higher power devices, please use an external contactor.
Q2: What is the minimum liquid level difference required?
A: The minimum liquid level difference required for operation is 30cm.
Q3: Can it be used for high-temperature applications?
A: The working temperature range is 0-65℃, not suitable for high-temperature environments.
Q4: Is it waterproof?
A: Yes, the float switch is IP65-rated, ensuring water resistance for typical applications.
