Official Unit CamS3 Wi-Fi Camera 5MP

Product Description

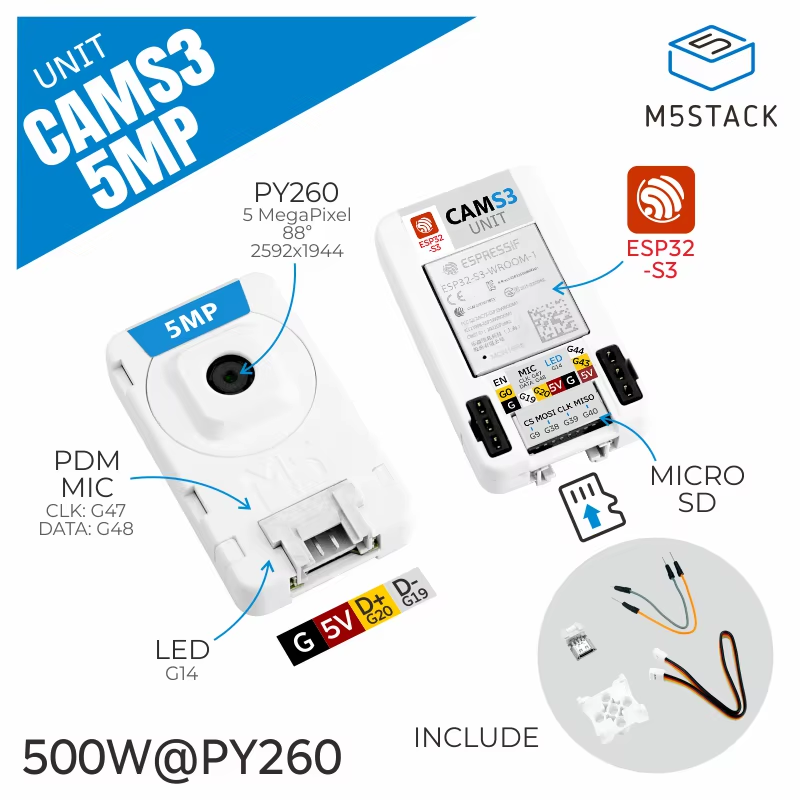

CAMS3 5MP Unit is a streamlined camera module based on the ESP32S3, supporting WiFi cloud image transmission. It features 8M PSRAM and 16M Flash memory, paired with a custom 5-megapixel camera (PY260) that has a DFOV of 88° and can capture photos at a maximum resolution of 2592x1944. The unit includes a built-in Micro SD card slot for storing images and other data. An integrated PDM microphone allows for sound recording. The HY2.0-4P port at the bottom exposes the S3 internal D+/D- pins, supporting firmware updates or USB serial communication through the M5Grove2USB-C module. Two 1x3 pin headers on the board allow for ESP32S3 program downloading. The factory firmware provides a complete image capture and upload function called EZData, enabling users to achieve remote, free image monitoring through simple configuration. This product is suitable for remote monitoring, time-lapse photography, industrial automation, and various other applications.

To download the program: When using the Grove2USB-C provided with the product packaging, before powering on, short-circuit the G0 and GND pins of the pin header with the provided male-to-male breadboard wire to enter download mode. Then, you can use Grove2USB-C to connect and download.

Features

*Based on the ESP32-S3-WROOM-1-N16R8 module, supports WiFi.
*WiFi cloud EZDATA or single-port image data transmission.
*Equipped with a 5-megapixel camera (PY260).
*Built-in Micro SD card slot.
*Built-in PDM microphone, supports audio recording function.
*Built-in programmable indicator light.

Includes

1x CAMS3 5MP Unit
1x Grove2USB-C
2x Male-to-Male Breadboard Wires
1x HY2.0-4P Grove Cable (20cm)
1x LEGO-Compatible Component

Applications

Remote Monitoring
Time-lapse Photography
Industrial Automation

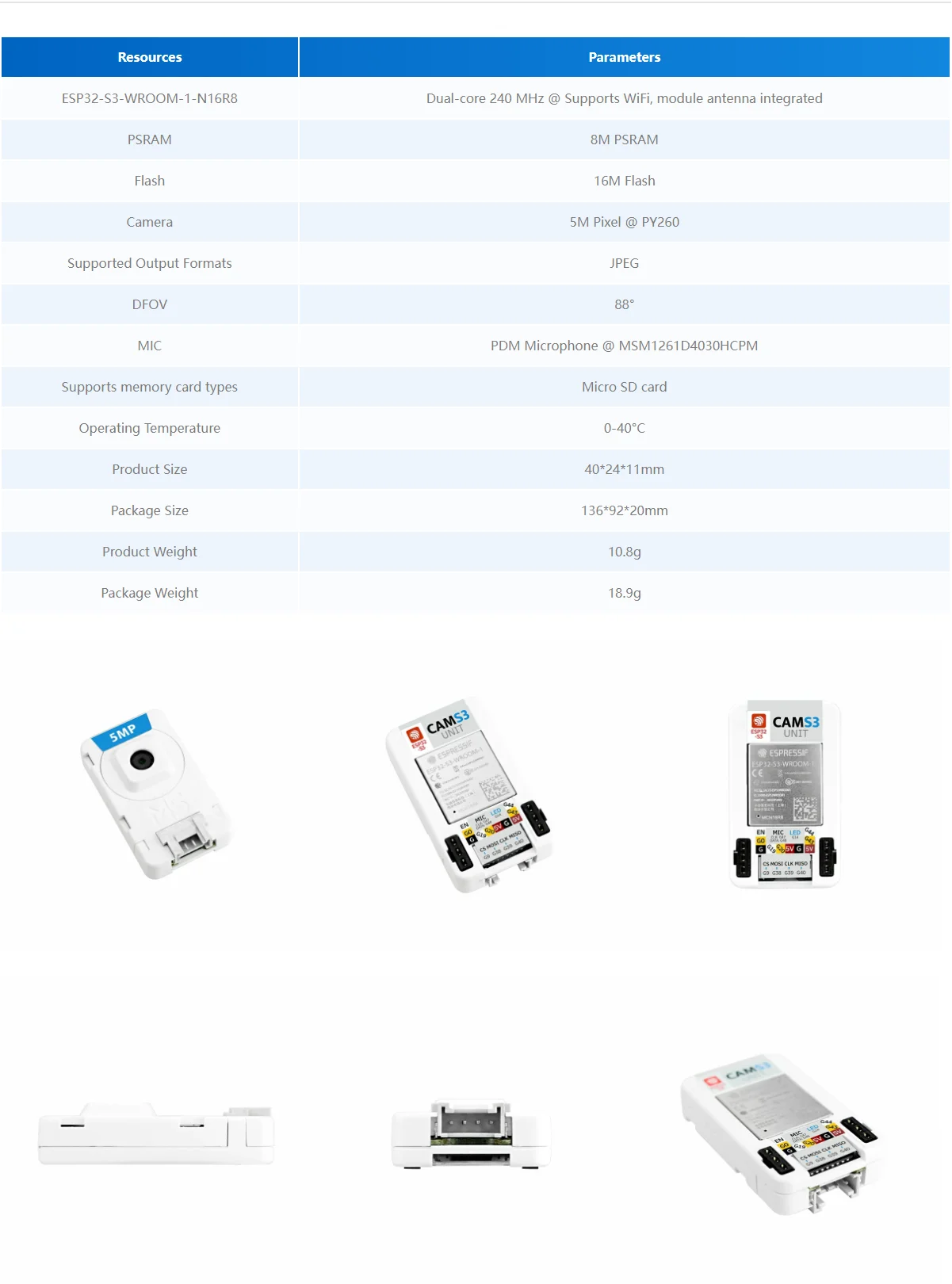

Specification

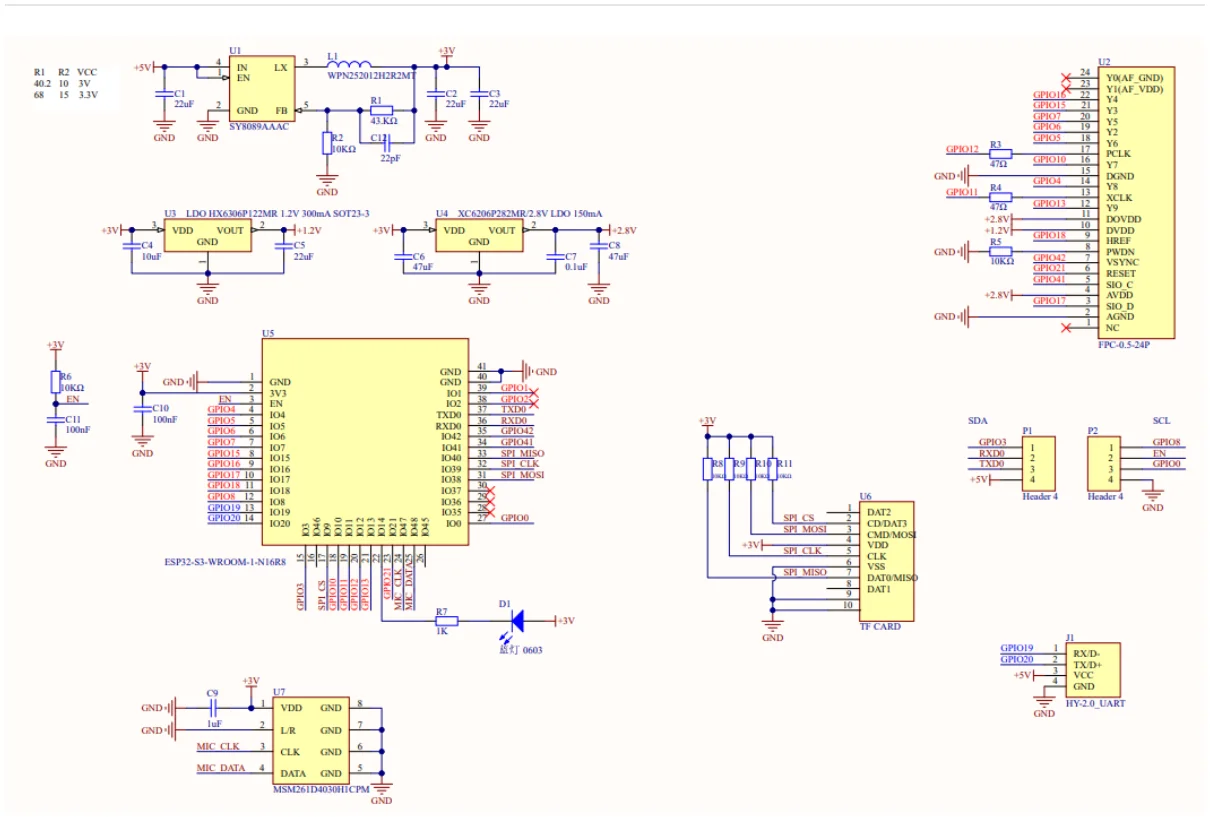

Schematic

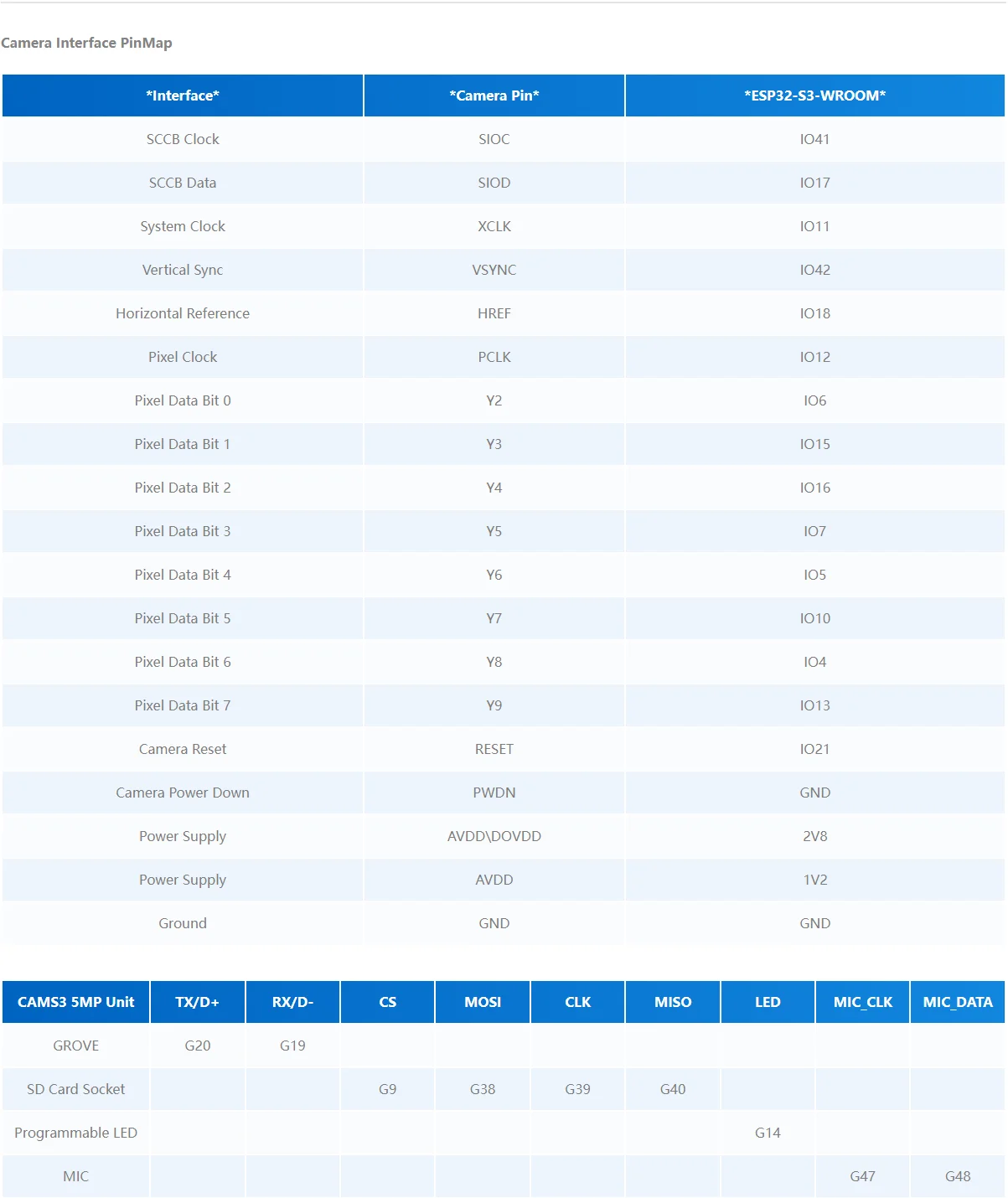

PinMap

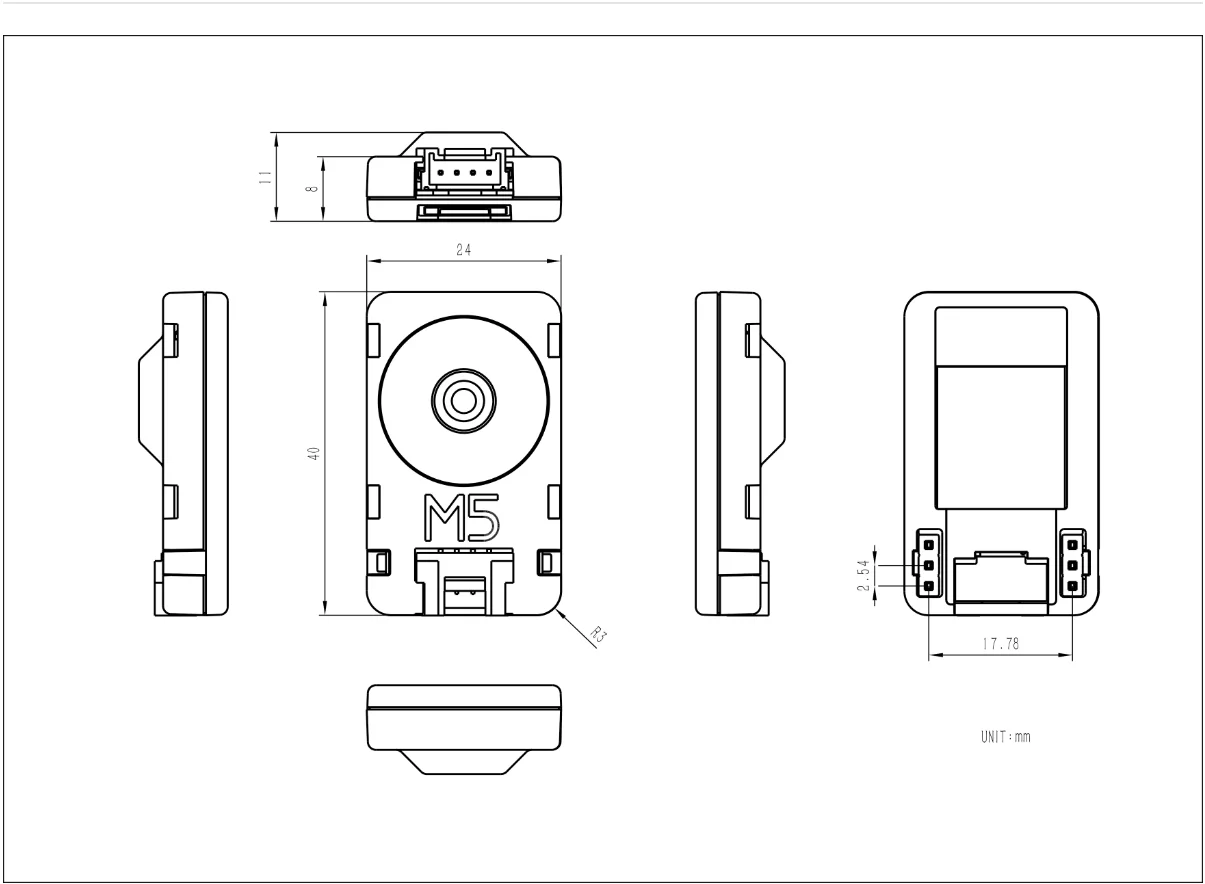

Module Size

FAQ
