Official 8-Channel Servo Driver Unit (STM32F030)

Product Description

8Servos Unit is an 8-channel servo driver unit that uses the STM32F030F4 master control to generate multiple PWM signals for servo drive and communicate with the M5 host through I2C (addr: 0x25). Built-in total power MOSTUBE switch circuit, support programming dynamic control motor release/lock;Built-in total current acquisition circuit, the total circuit parameters can be known. Supports two sets of power inputs (9-24V / 5V). This product is suitable for servo control, robot control, intelligent toys, etc.

Features

* 8-channel servo drive
* Programmable motor power supply
* I2C Protocol Control (0x25)
* Reverse power supply protection
* Total current harvesting function

Includes

1 × 8Servo Unit
1 × HT3.96-4P
1 × HY2.0-49 Cable

Applications

* Servo controller
* Robot control

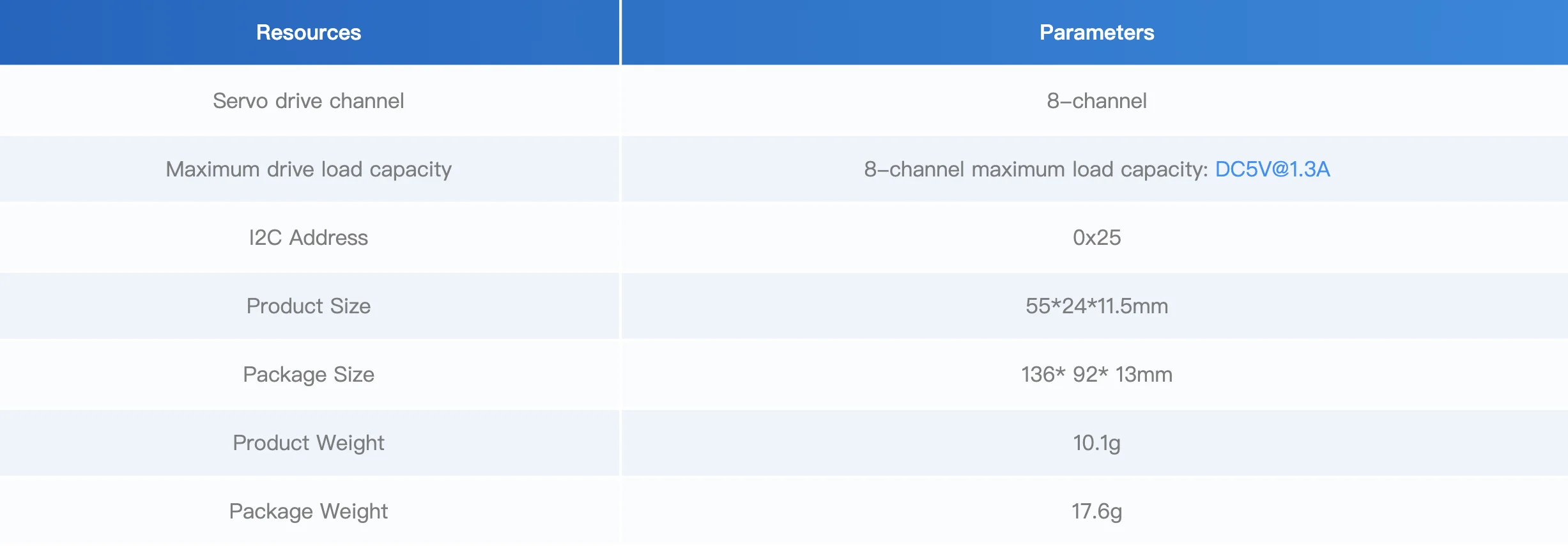

Specification

Products related to this item

Schematic

Module Size

Examples

Arduino

UIFlow

UIFlow Blocks

• Init I2C address

• Set config mode

• Get config mode

• Get digital input

• Get ADC 8bit

• Get ADC 12bit

• Get servo angle

• Get servo pulse

• Get RGB LED color

• Get servo current

• Get firmware version

• Set digital output level

• Set servo angle

• Set servo pulse

• Set pwm duty cycle

• Set RGB LED color

• Set I2C address
