Official ESP32 Ethernet Unit with PoE

Product Description

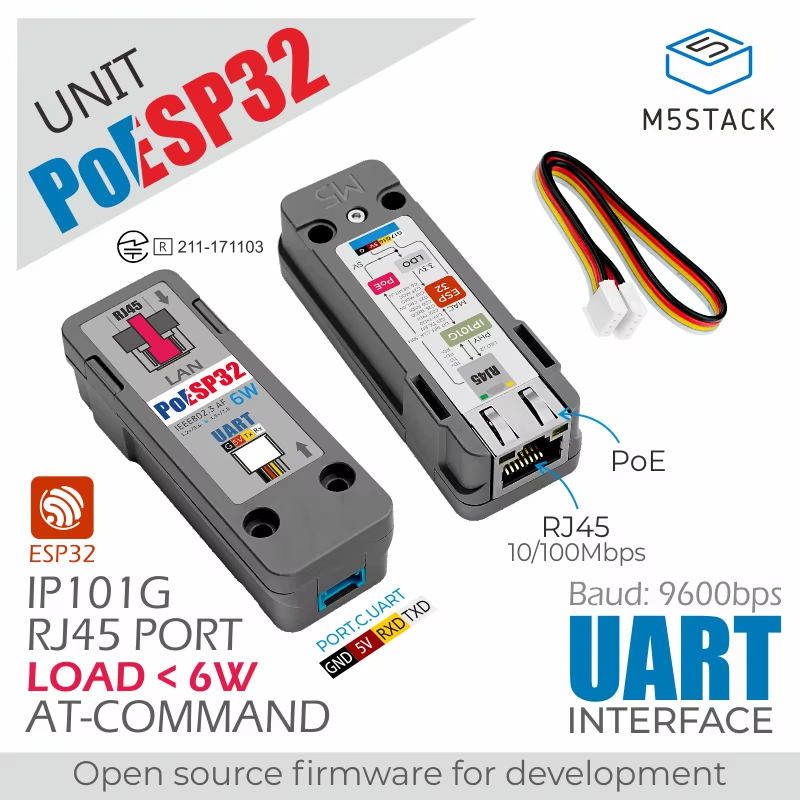

PoESP32 Unit is an ESP32 lan Ethernet Unit supports PoE (Power Over Ethernet). This module adopts ESP32 as built-in MCU, and IP101G as physical layer transceiver. Default firmware with ESP-AT, supports TCP,MQTT, HTTP protocols. It can connect to server with simple AT commands through serial port, achieving data transmission and remote control functions. This module simplify wiring and saves labor cost with PoE power supply, and It reserves the ability for secondary development to meet your requirement.

*Embedded ESP32 main controller
*PHY solution:
----Transceiver model IP101G
----IEEE 802.3/802.3u standard
*Ethernet Interface.
----PoE standard: PoE IEEE802.3 AF / Support maximum load power 6W
----RJ45 network port 10/100Mbps
*Communication / download interface:
----Default firmware is ESP-AT / Support secondary development to implement TCP Client/HTTP/CoAP and other protocols
----Programmable / support secondary development, reserve program download interface
*Power supply.
----HY2.0-4P interface 5V DC power supply
----PoE power supply (PoE IEEE802.3 AF)
*Development method.
----AT command, UART: 9600bps default
----Development Platform: UIFlow(coming soon), Arduino, ESP-IDF

Included

1x UNIT PoESP32
1x HY2.0-4P Cable (20cm)

Applications

Ethernet Controller
TCP Client data passthrough
