Product Description

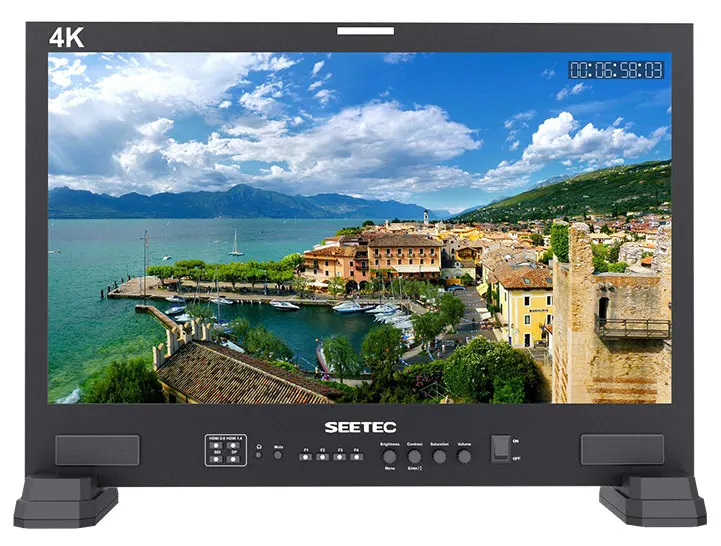

LUT215 4K Monitor 21.5 inch Broadcast Studio Monitor 3D LUT Touch Screen IPS 3G-SDI HD with V-mount Battery Plate
LUT215 4K Monitor 21.5 inch Broadcast Studio Monitor 3D LUT Touch Screen IPS 3G-SDI HD with V-mount Battery Plate

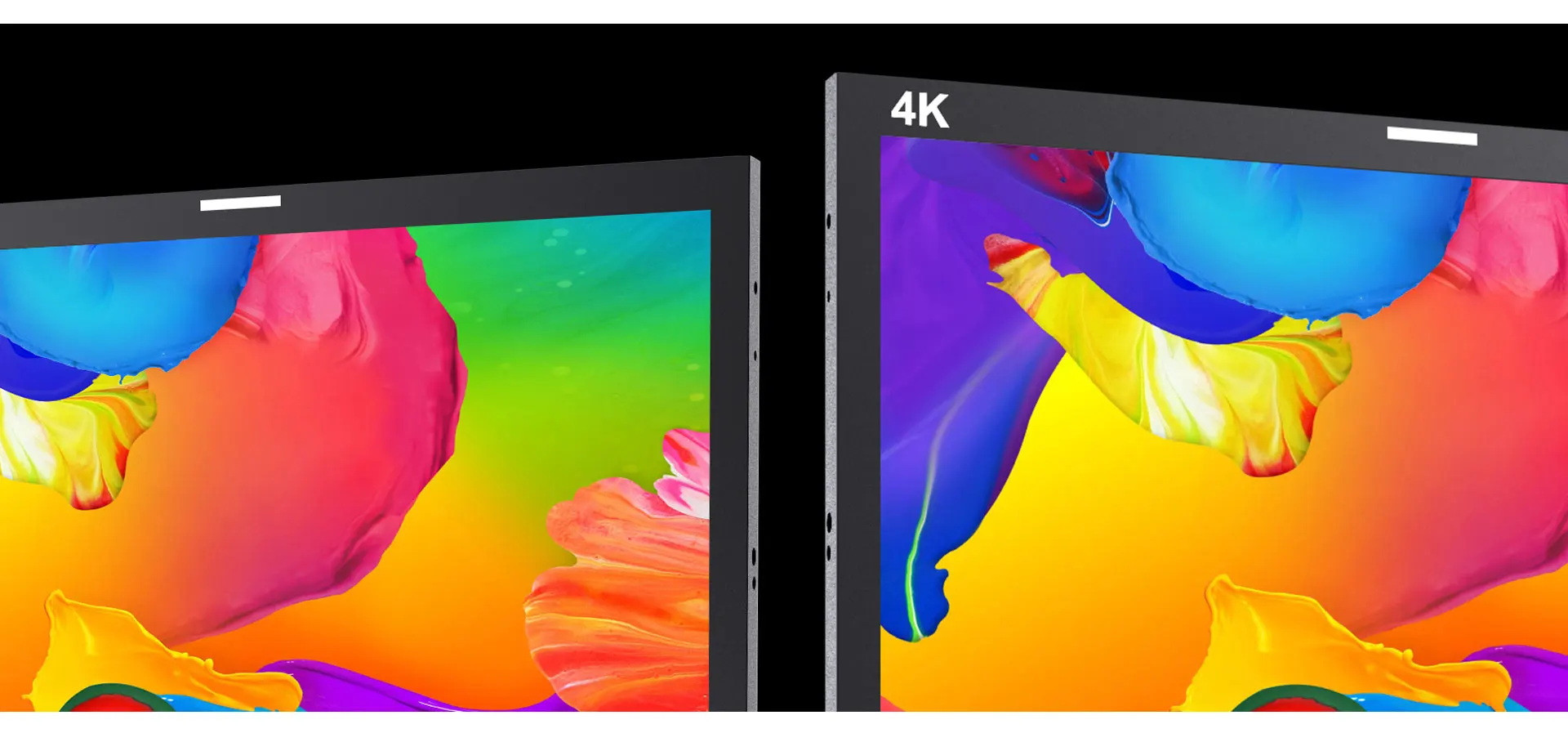

21.5” IPS LCD, Full HD Resolution
The SEETEC LUT215 equipped with a 21.5 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 3000:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 178° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

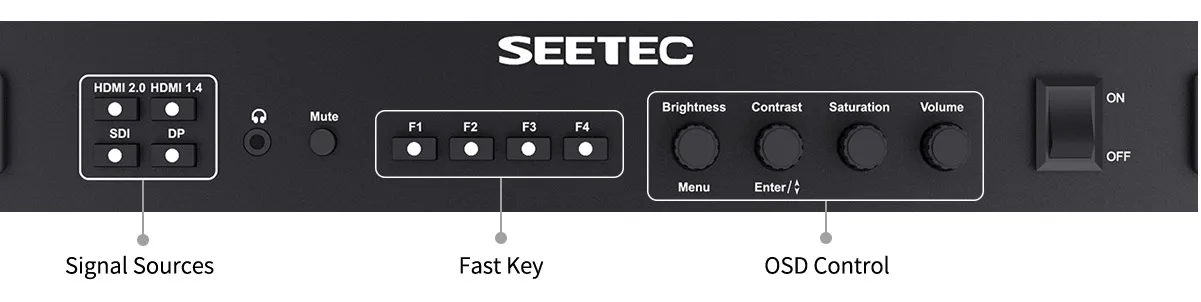

Professional Front Control Panel
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the LUT215 can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, saturation, and volume to make it easier to shoot. And the button with the night light technology, let you know the current input signal and the shortcut keys used.
Professional Monitoring Quality

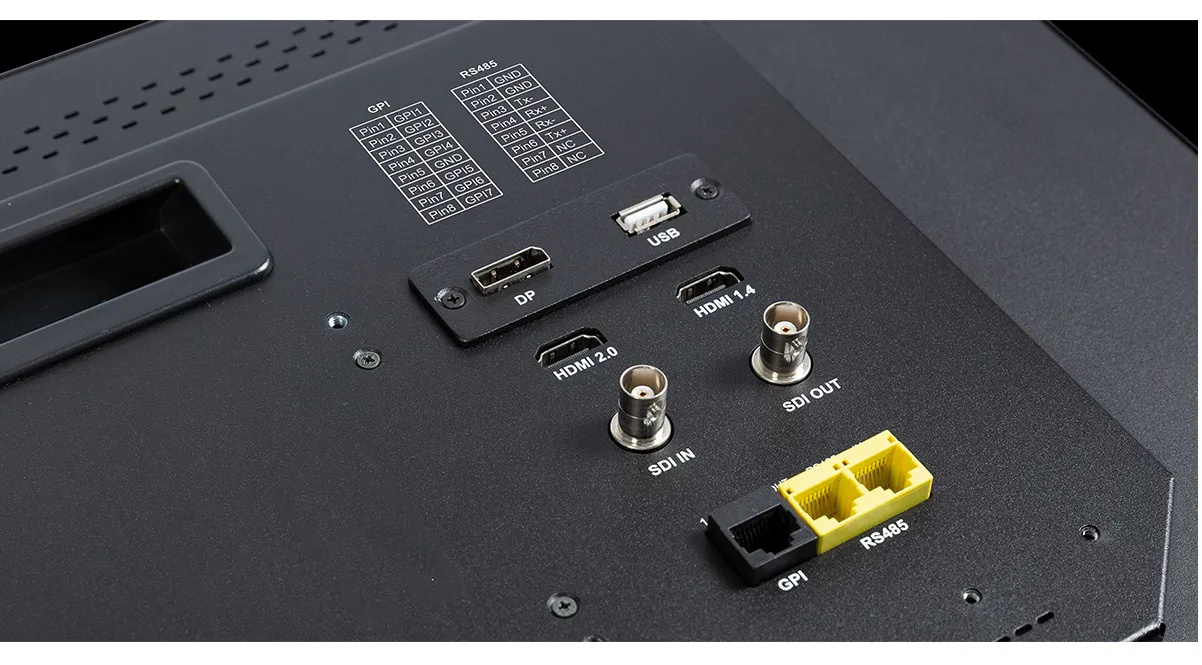

SEETEC LUT215 is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor is equipped with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI and DP interfaces, suitable for transmission of different signal formats.
4K HDMI/ DisplayPort Inputs
HDMI 2.0 & DisplayPort 1.2 support 4K 60Hz signal input.
HDMI 1.4 support 4K 30Hz signal input.

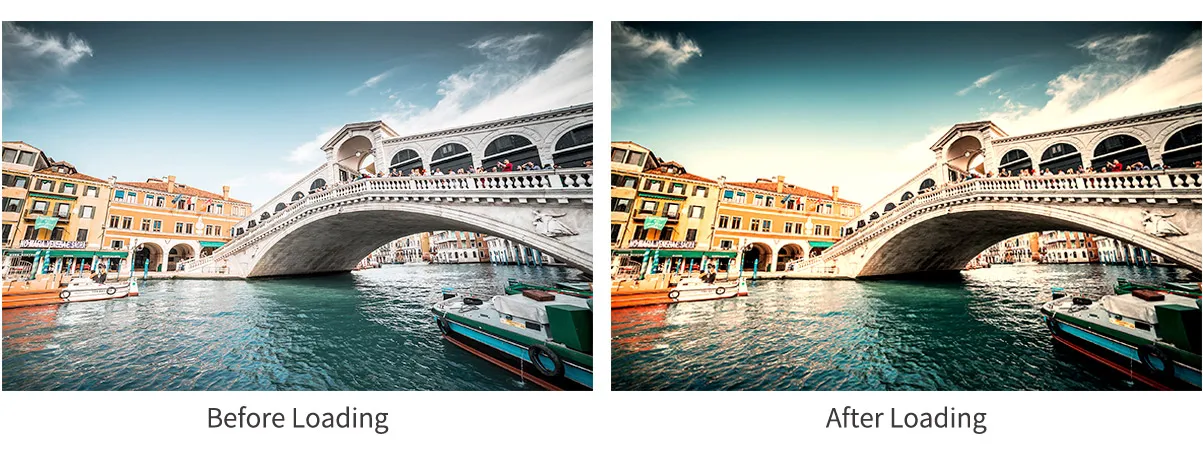

Built-in De-log 3DLUTs
The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including C-log standard, C-log full, S-log2, S-log3, BMD-4Klog.
Support user 3DLUT cube files (support 17x17x17, 33x33x33, 65x65x65) to upload by USB, which is convenient for color creation during post-production monitoring. User can store up to 16 instantly selectable 3D LUTs.
hd director monitor

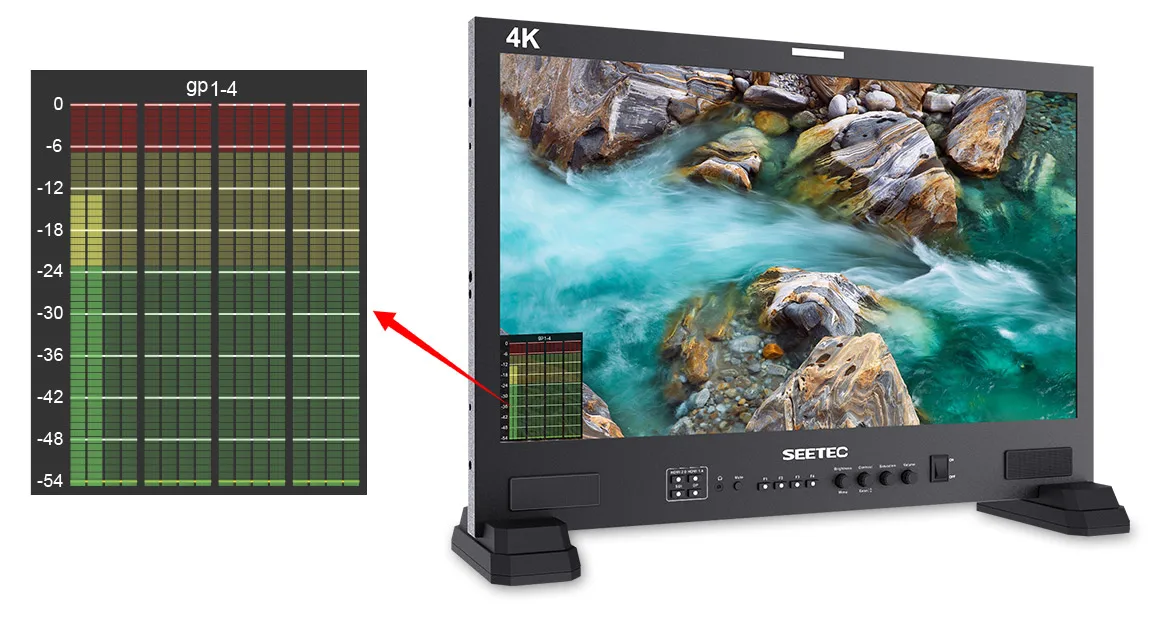

16-Channel Audio Level Meters
The monitor can de-embed audio from SDI and HDMI. Support select any 2 channels audio to output via speaker or 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display, and you can select to display only 2 channels, 4 channels, 8 channels, and full 16 channels. Under HDMI audio, only 2 channels audio displays are supported.
Multi Window Modes
PIP/ PBP Modes

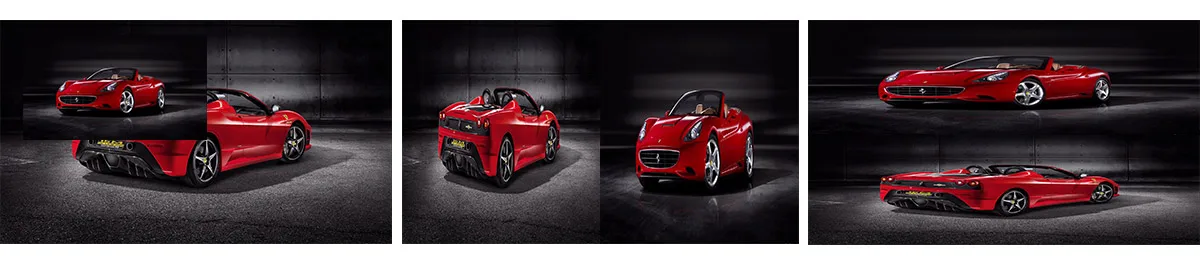

The picture-in-picture function can monitor two signals at the same time, which can be displayed simultaneously for different formats, resolutions, frame rates, or even different input types for comparison. And can display a loading LUT effect at the same time. You can adjust the picture-in-picture size, horizontal and vertical position, and rotate the picture.

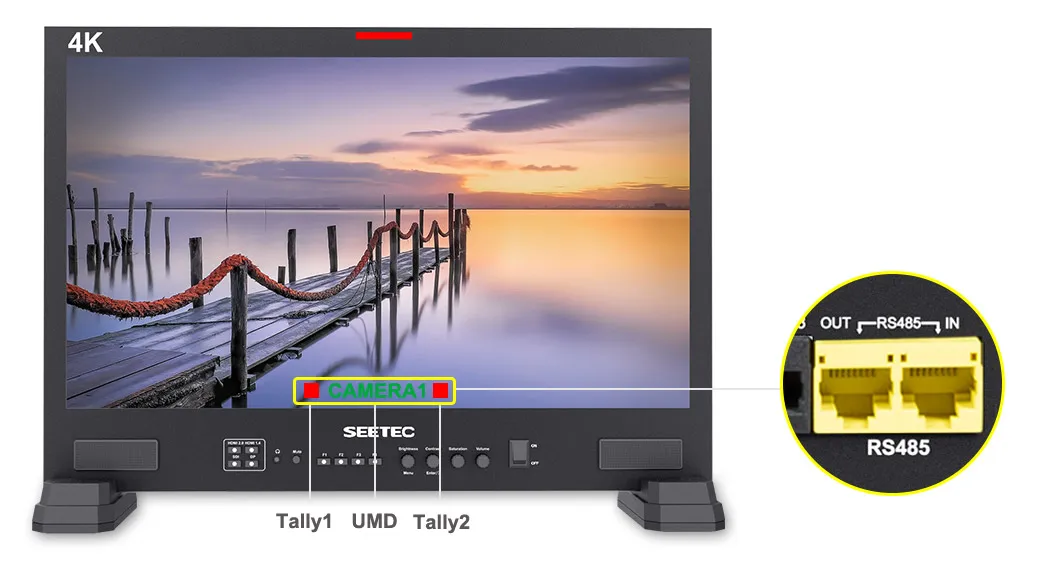

UMD and Text-Tally Display
TSL 3.1/4.0 and Image Video Protocol

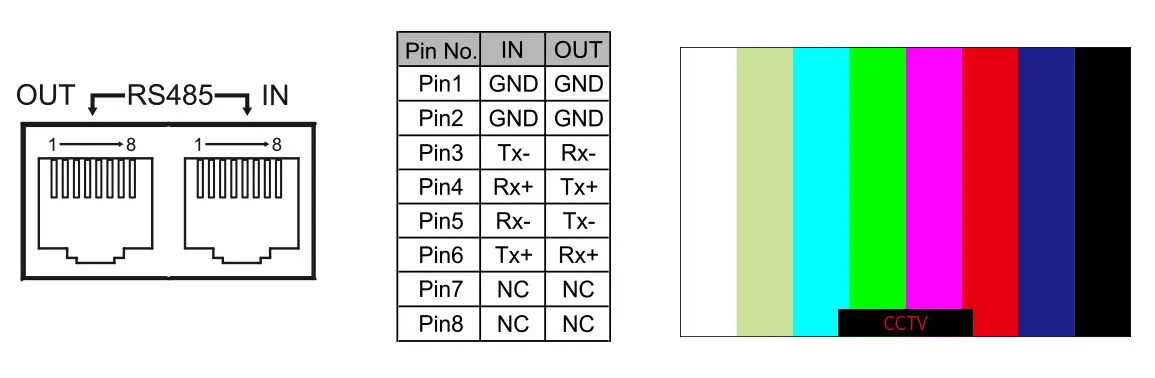

LUT215 supports UMD and Text-Tally display of TSL 3.1/4.0 and Image Video protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

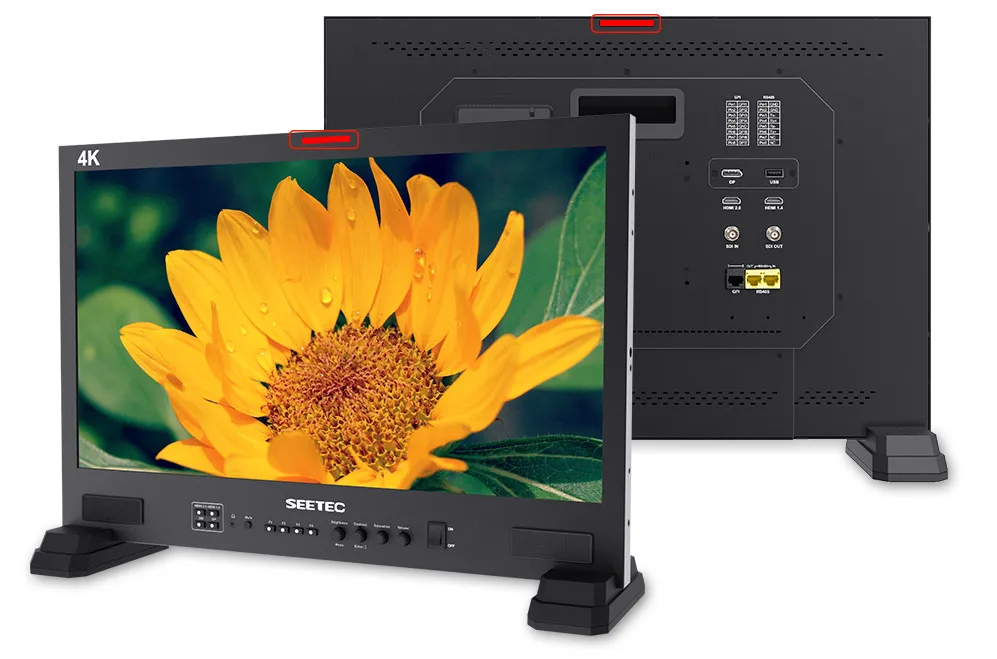

Tally Lights
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
Hassle-free Power

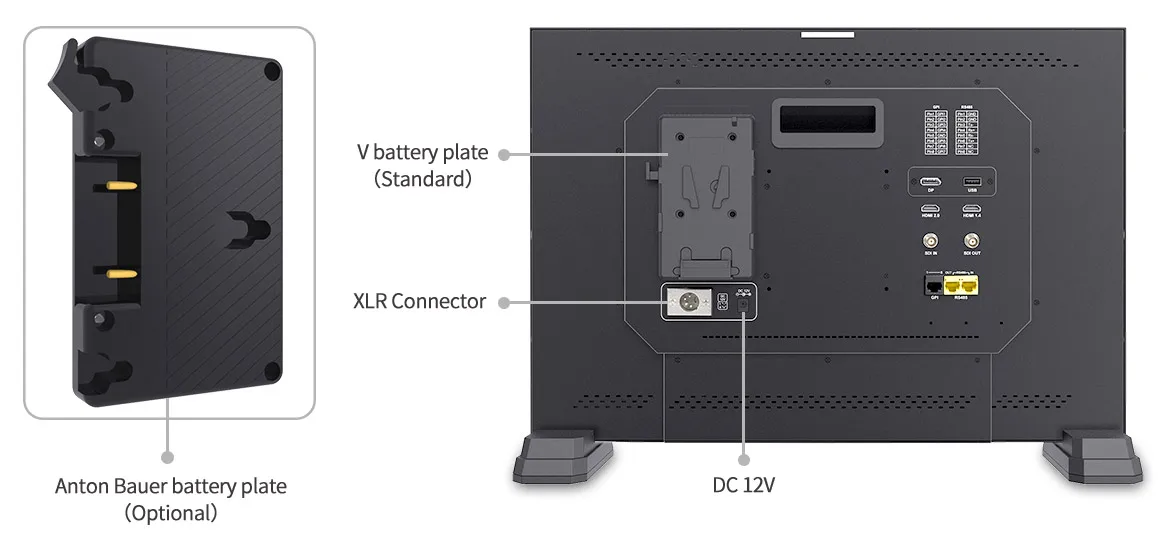

We've made it easy to power the monitor. The LUT215 can be powered in two ways: with an DC adapter or lithium batteries. The LUT215 has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

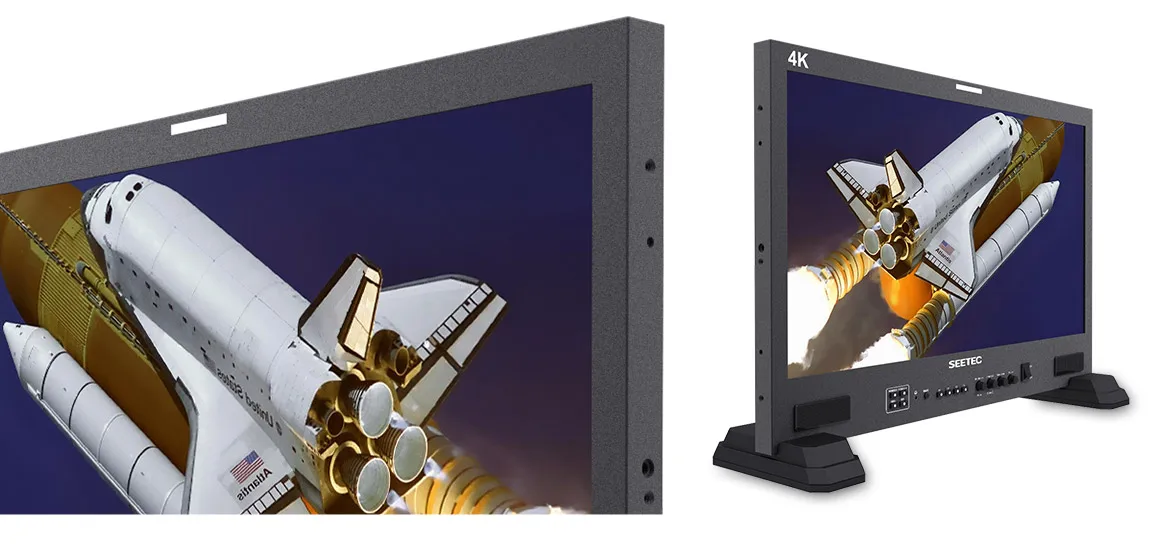

Heavy Duty Metal Construction
Machined aluminum design that's built to last! The full metal shell not only make the product more solid and durable, but also solve the problem of heat dissipation.
Professional Monitoring ToolsSEETEC LUT215 full hd broadcast monitor with 4K HDMI for native display of up to 2160p60. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, histogram, 16-ch embedded audio meters, focus assist, false colors, over exposure, time code, picture in picture, anamorphic mode, image zoom, center marker, safety marker, ratio marker, check field, image freeze adjustable Gamma selection and more, either from the front panel or via GPI control!

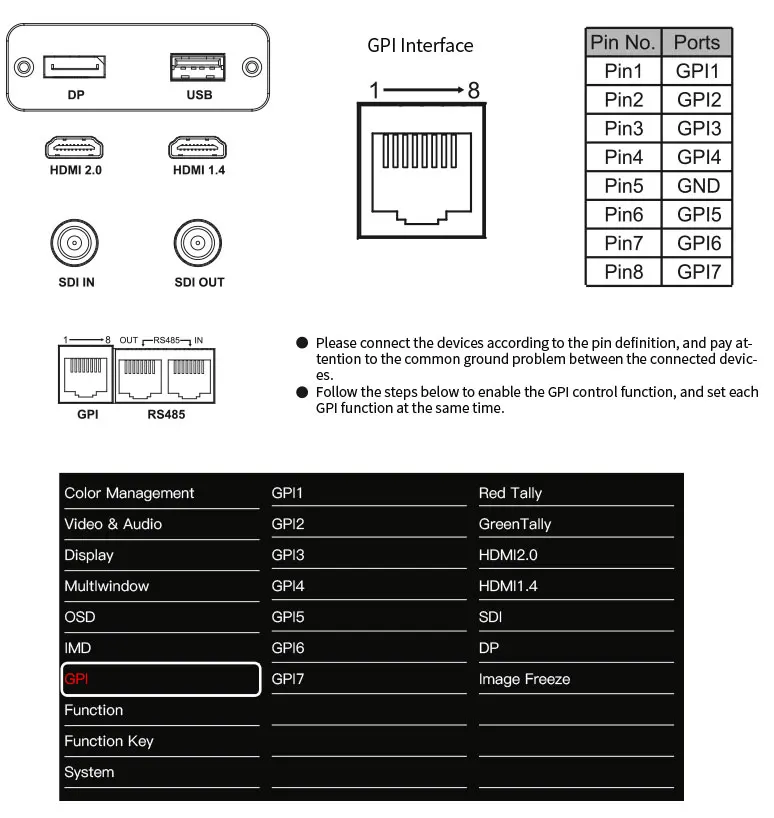

GPI ControlGPI Setting Options: Red Tally, Green Tally, HDMI2.0, HDMI1.4, SDI, DP, Center Marker, safety Marker, Ratio Marker, Check Field, Image Freeze, ZoomNx Switch, False Color, Focus Assist, Over Exposure, Histogram, Audio Meters, Time Code.
Dynamic / Static UMD / IMDBy embedding the signal name in the SDI signal by the dynamic source name server (such as CCTV, etc.), the monitor can de-embed and mark which channel the current signal is.Uses: Provide source name display for monitors in the broadcast area, director area, technical area, lighting area, and audio area for multi-channel OB vans or TV stations.

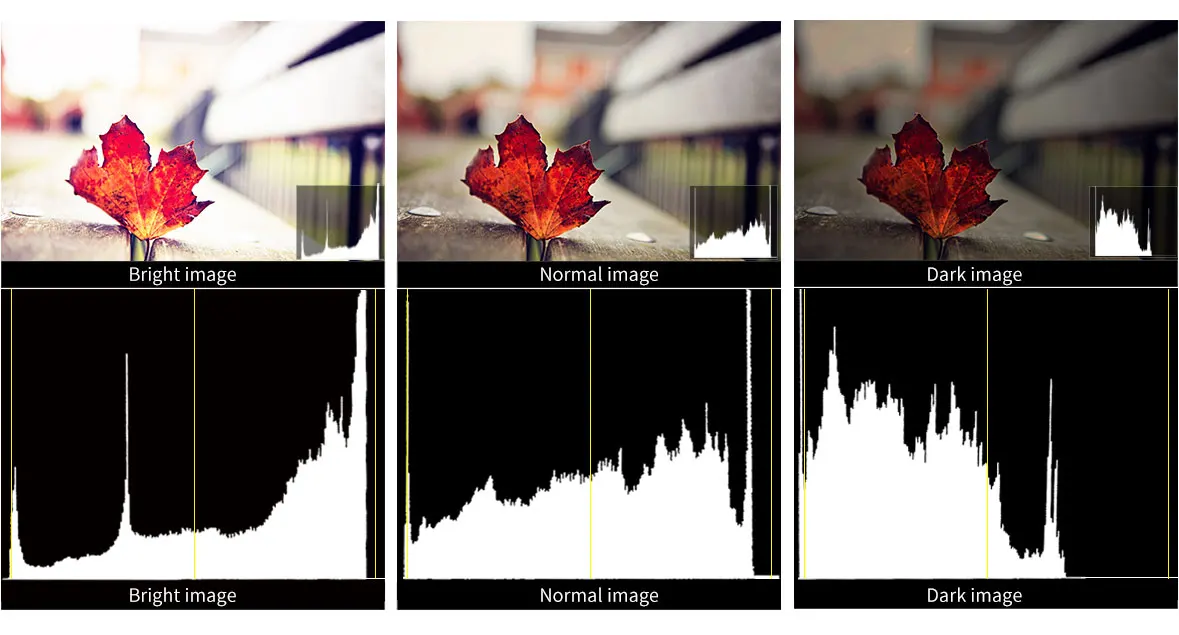

Brightness HistogramThe Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left: Dark, Right: Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

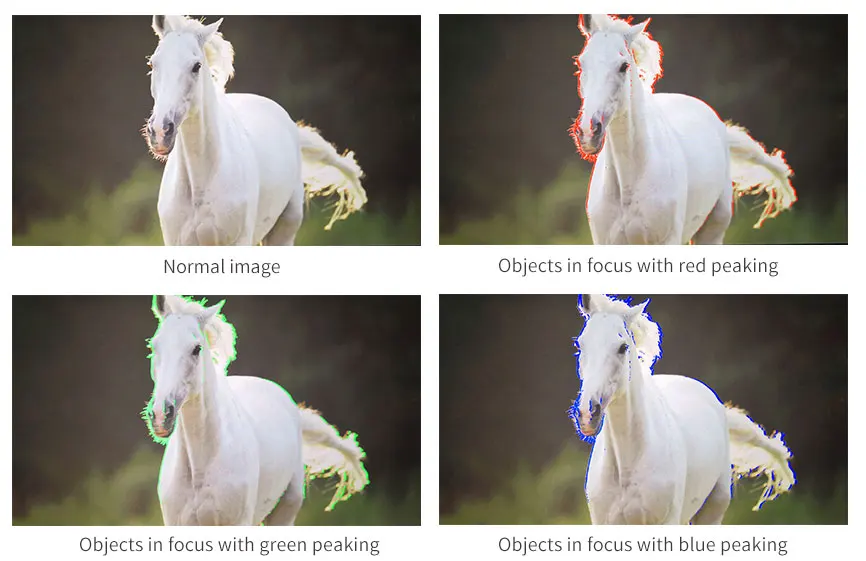

Peaking Focus AssistThe Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between red, green, blue according to different tone of the subject.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

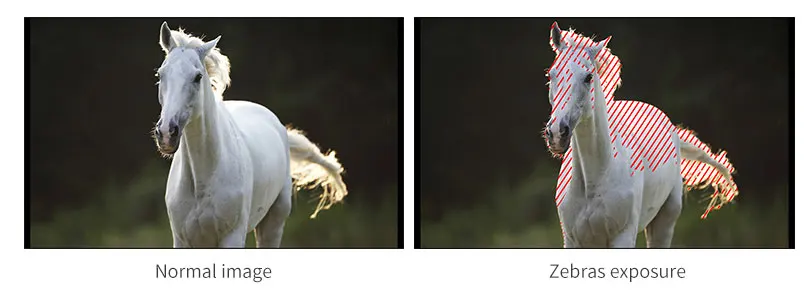

Exposure (zebras)The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. Zebra value that can be adjusted.
Time CodeShows the VITC or LTC time code of the SDI signal.

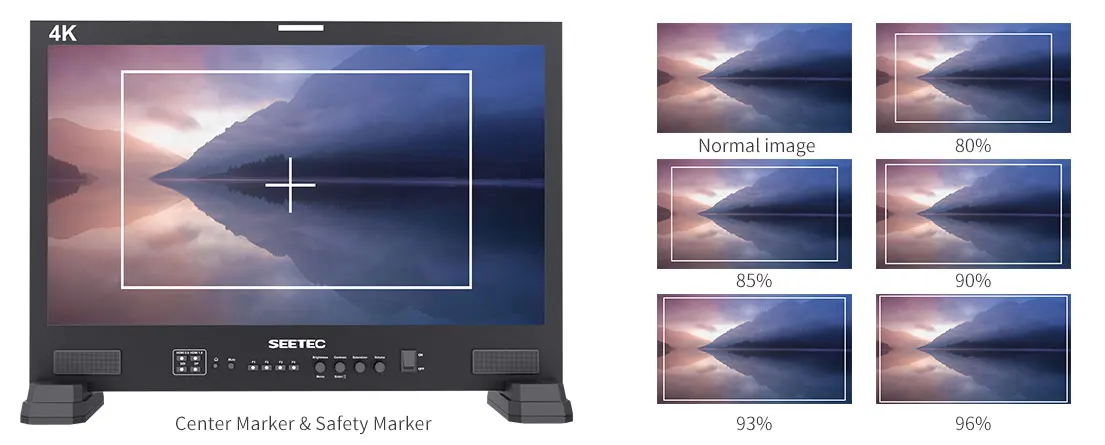

Center Marker & Safe MarkerSafety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

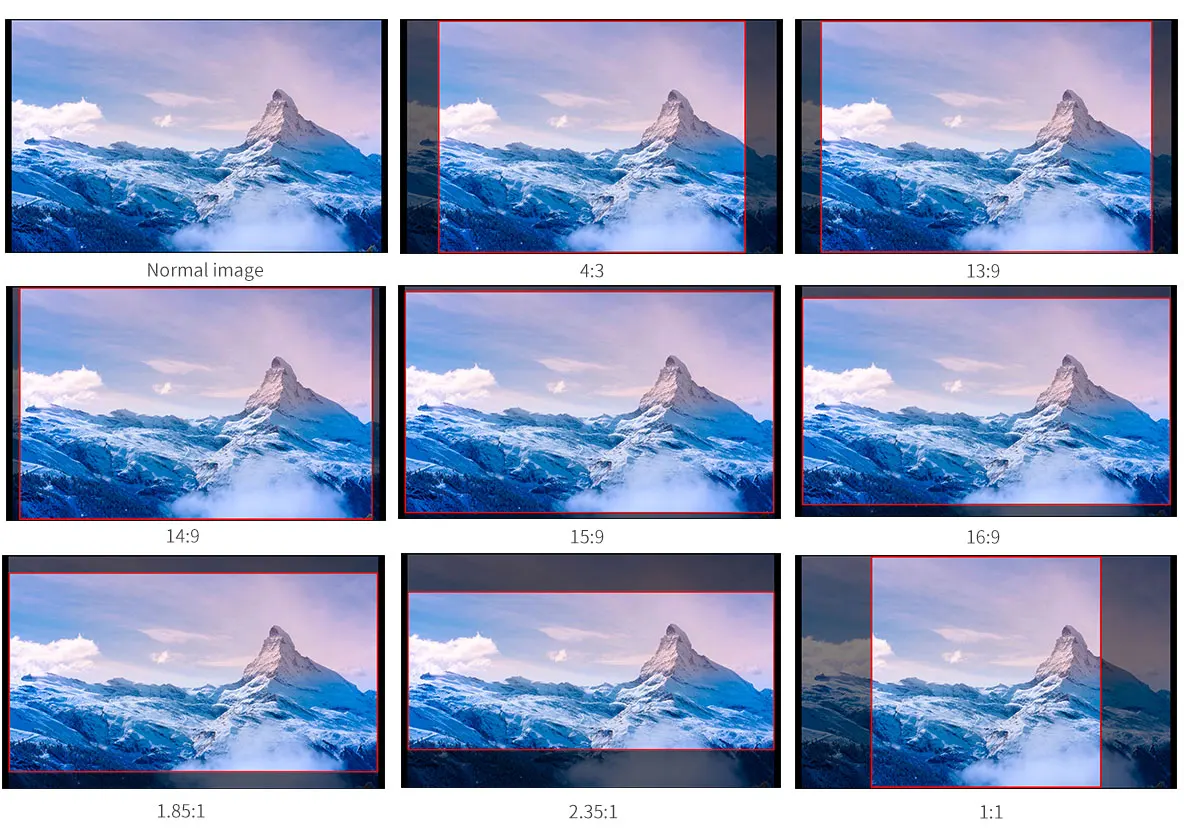

Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 1:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject. Marking line width can be adjusted as needed (1-7 adjustable).

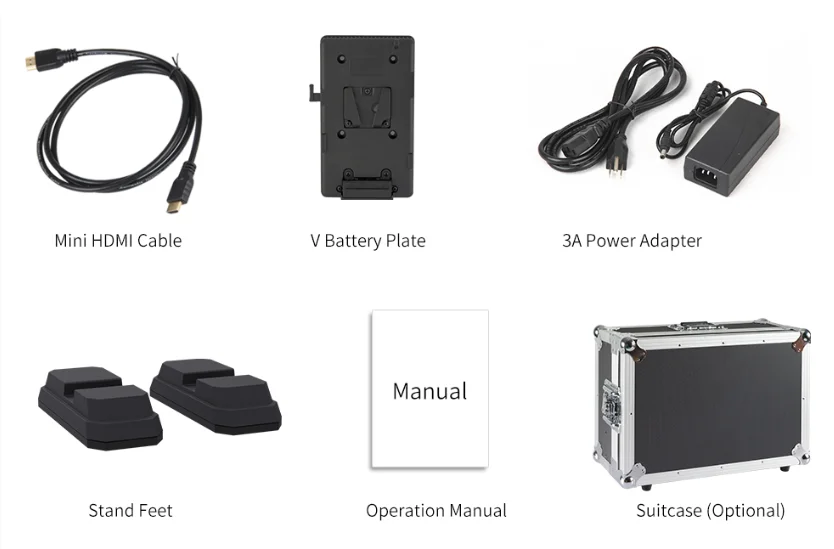

Standard Accessories:1× Mini HDMI Cable
1× V-mount Battery Plate
1× 3A Power Adapter
2× Stand Feet
1× Operation Manual
Optional Accessories:
1× Suitcase
