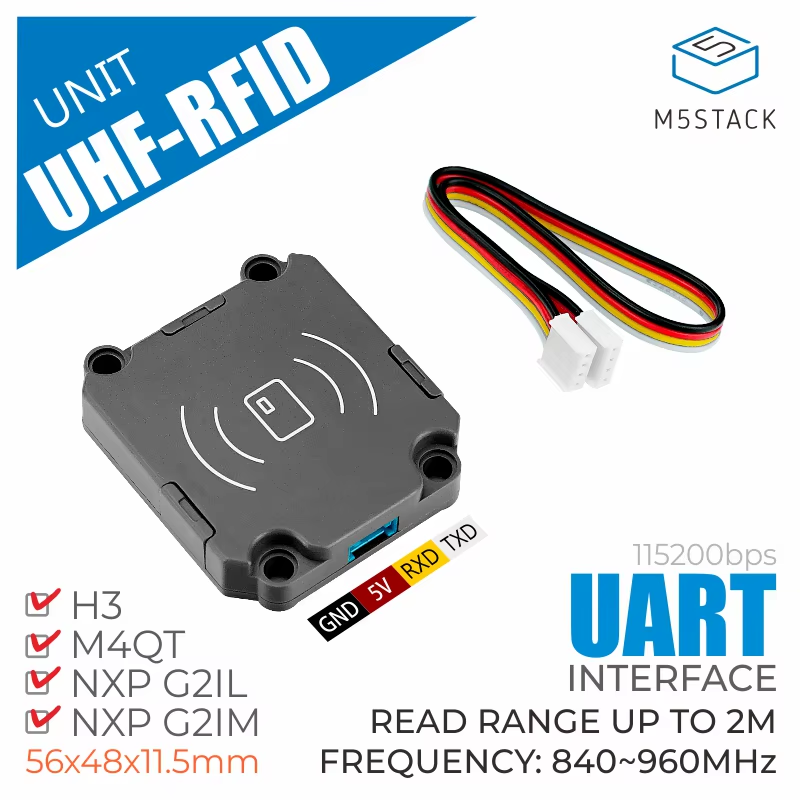

Official UHF RFID Unit (JRD-4035)

Product Description

UHF-RFID is an ultra-high frequency (UHF) embedded wireless radio frequency reader module. The JRD-4035 module solution with built-in ceramic antenna completely eliminates the technical uncertainty that ordinary uhf rfid reader modules need to be equipped with additional antennas for users. Optimize the RF design to realize the low power consumption and high performance of the module, and the transmission power of 100mW can reach the effective distance of more than 1.5M. Use serial communication interface, cooperate with built-in encapsulated AT command set, realize plug and play, provide good development and use experience. It is suitable for application scenarios such as warehousing logistics management and smart retail, and meets the application requirements of monitoring and reading multiple product tags.

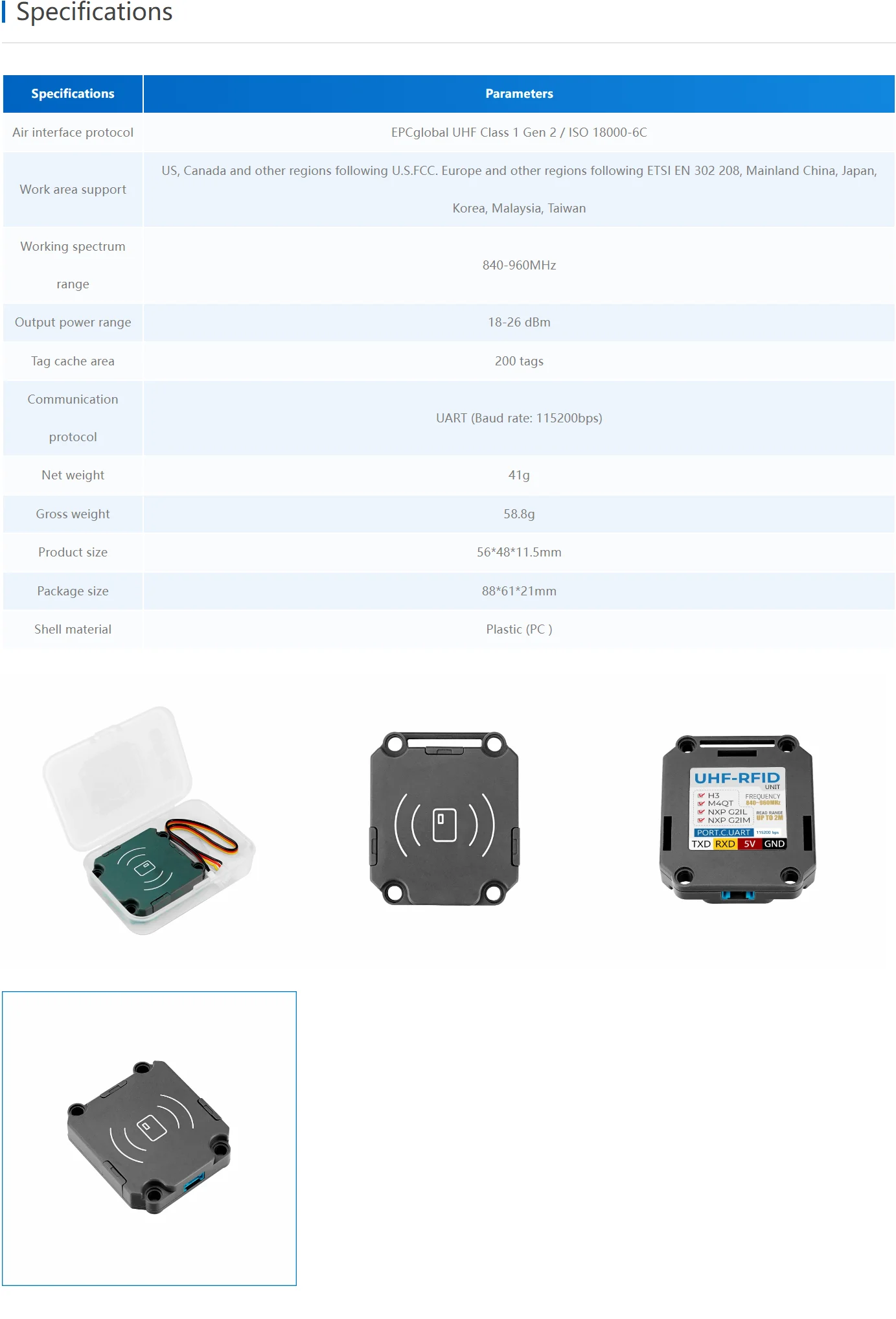

Product Features

Detection distance: up to 2M
Working spectrum range: 840-960MHz
Air interface protocol:
----EPCglobal UHF Class 1 Gen 2
----ISO 18000-6C
UART communication interface (baud rate: 115200bps)
The buffer area can hold up to 200 tags
Tag recognition is sensitive and stable

Includes

1x UHF-RFID
1x HY2.0 cable (20CM)

Application

Warehouse logistics pallet management
Vehicle management
Smart retail
