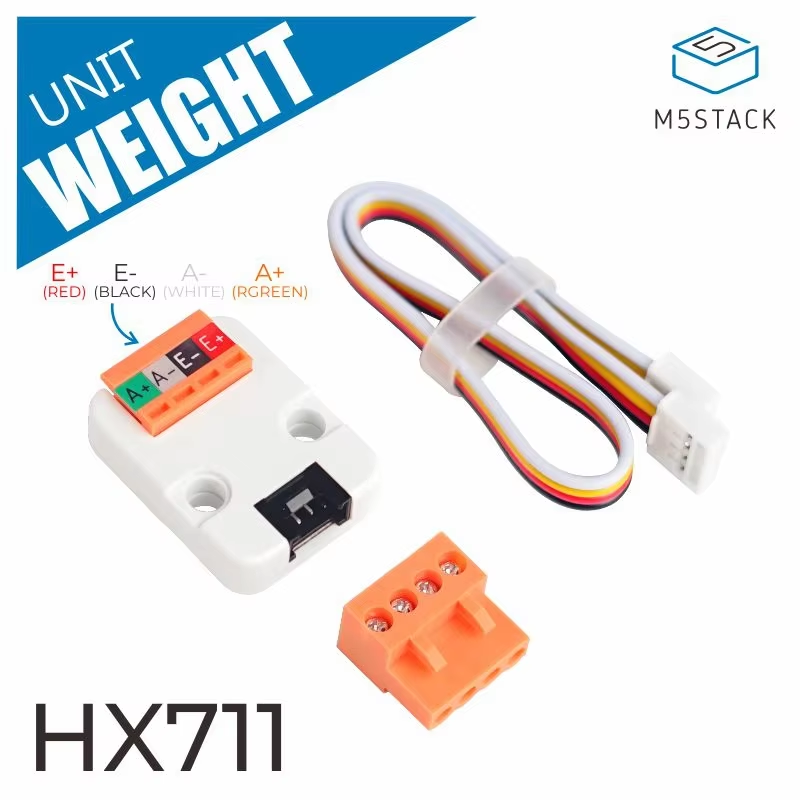

Official Mini Weight Unit (HX711) Load Cell Amplifier

Product Description

WEIGHT integrates a HX711 24 bits A/D chip that is specifically designed for electronic weighing device.

The input multiplexer selects either Channel A or B differential input to the low-noise programmable gain amplifier (PGA). Channel "A" can be programmed with a gain of 128 or 64, corresponding to a full-scale differential input voltage of ±20mV or ±40mV respectively.

when a 5V supply is connected to AVDD analog power supply pin.

Channel B has a fixed gain of 32. There is no programming needed for the internal registers. All controls to the HX711 are through the pins.

Features

1.High precision 24bit ADC - PGA of 32, 64 and 128 - 10SPS output data rate
2.Program Platform: Arduino, UIFlow(Blockly, Python)

Includes

1x WEIGHT Unit
1x Grove Cable

Applications

Micro weight meter
Kitchen Scale

LEARN AND DOCUMENTS
