Official Timer Power Unit w/ OLED Display (INA3221)

Product Description

The TimerPWR Unit is a timed power supply unit whose main functions are "charging & discharging + timed switching + screen display + boost output." It features an internal STM32 microcontroller that implements RTC and overall control, allowing users to set automatic power on/off times as needed. It is powered via the Type-C interface and can be connected to an external rechargeable battery via a 1.25-2P interface. The unit includes a built-in battery charging circuit supporting a charging current of 330mA. It also features an integrated DCDC boost circuit that provides a 5V/800mA (1400mA @ 1C battery power) power output to external devices via the Grove port. Additionally, the INA3221 sensor is built-in, allowing real-time monitoring of power input and output current and voltage. The unit is equipped with a 0.66-inch OLED display and two side buttons for user interaction, making it easy to view real-time system status and modify settings. Users can set parameters such as power on/off using the side buttons or via the I2C bus through the Grove interface with I2C commands. This product is suitable for smart homes, industrial automation, and timed control devices.

Features

RTC cycle timing control
Battery power supply
Built-in DCDC boost circuit
Current/voltage monitoring
OLED display
Grove interface
Button-controlled power on/off mode

Includes

1x TimerPWR Unit
1x HY2.0-4P Grove cable (20cm)

Applications

Timed control devices
Portable electronic devices
Powering sensor nodes

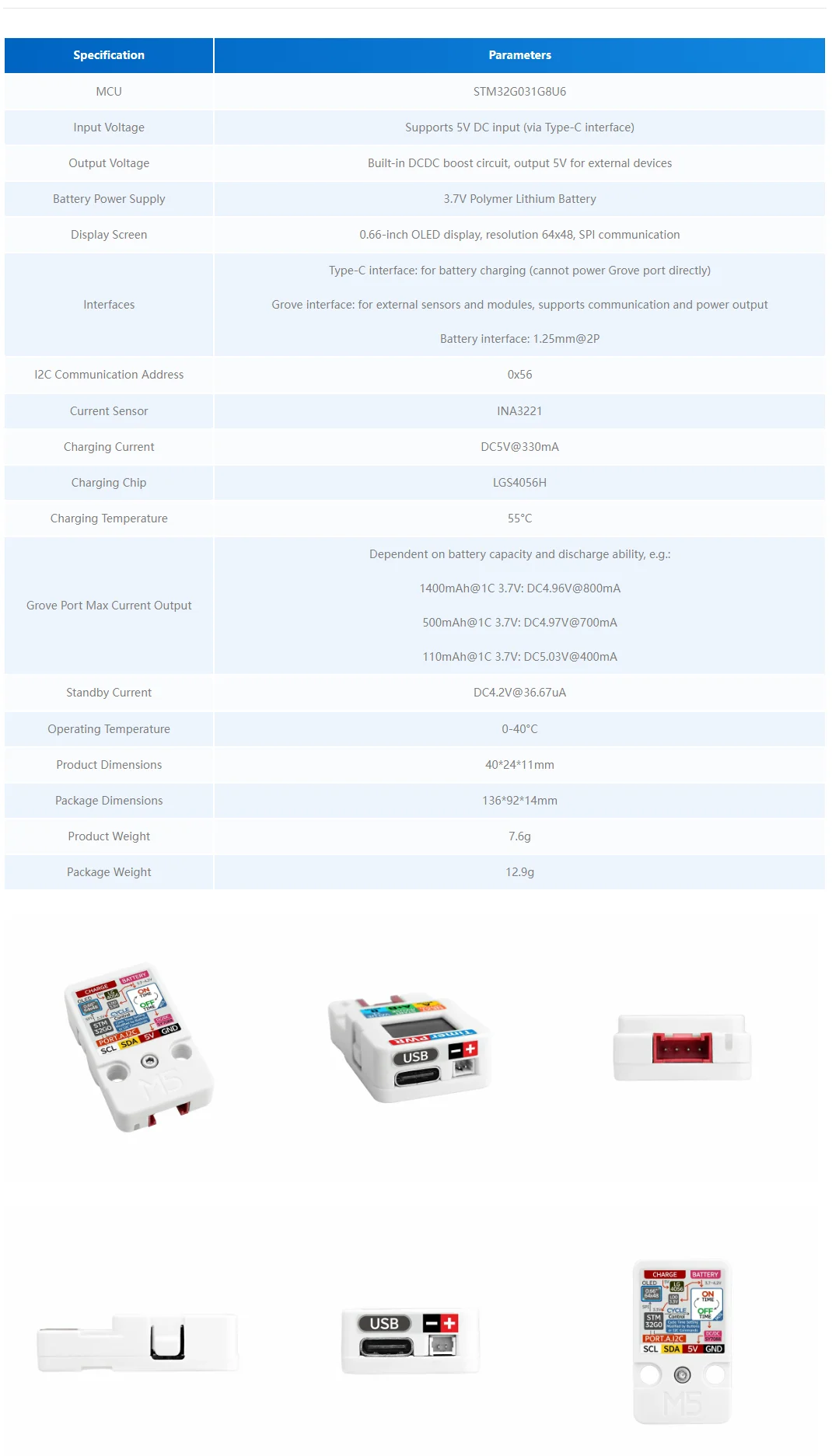

Specifications

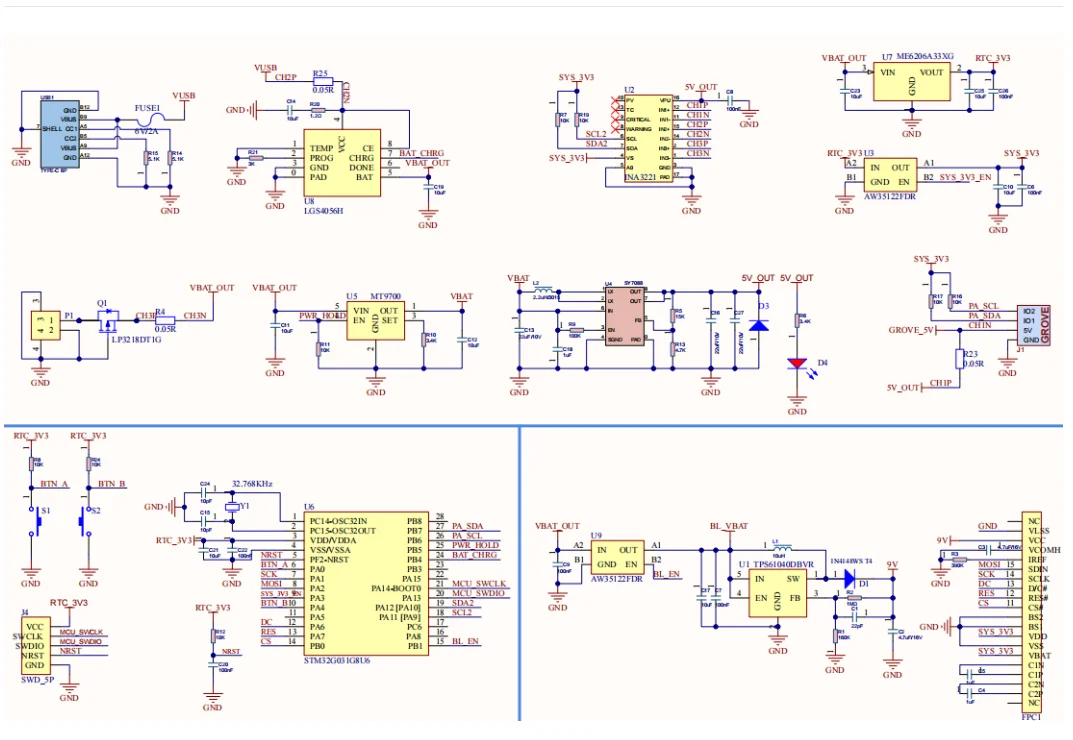

Schematic

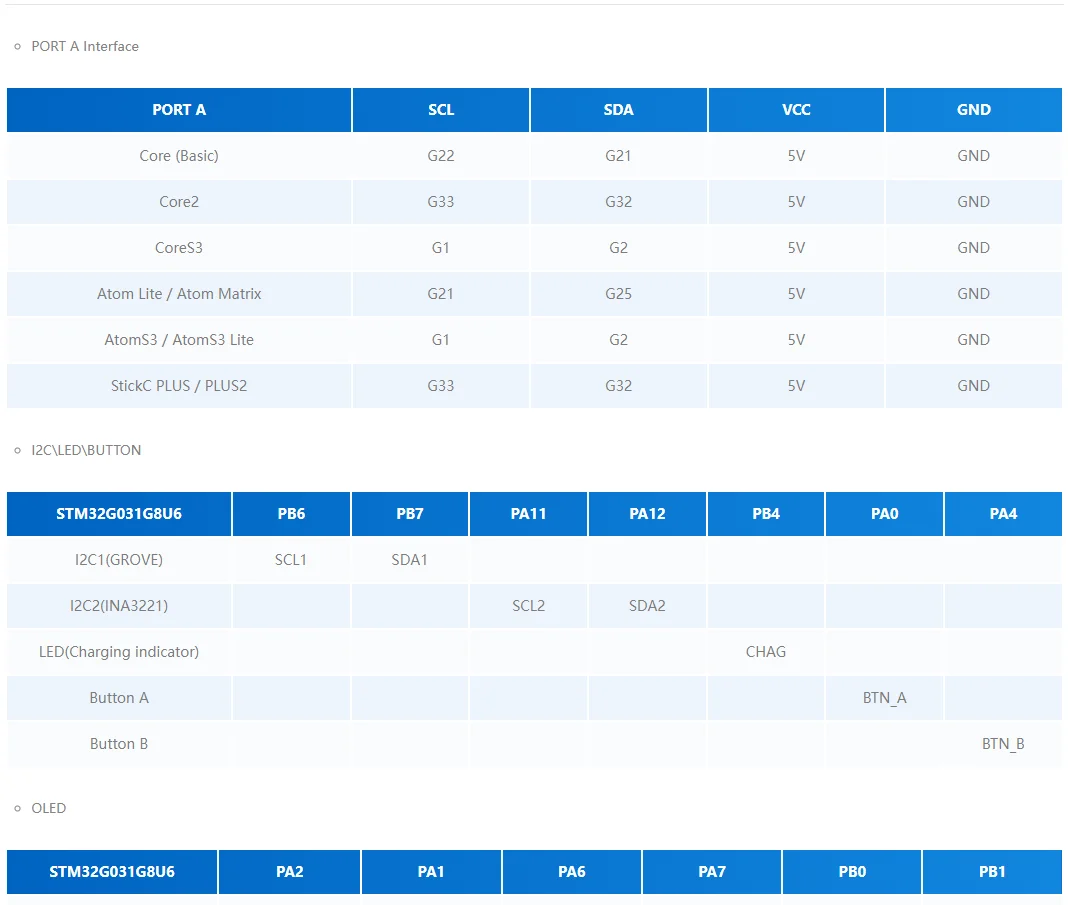

PinMap

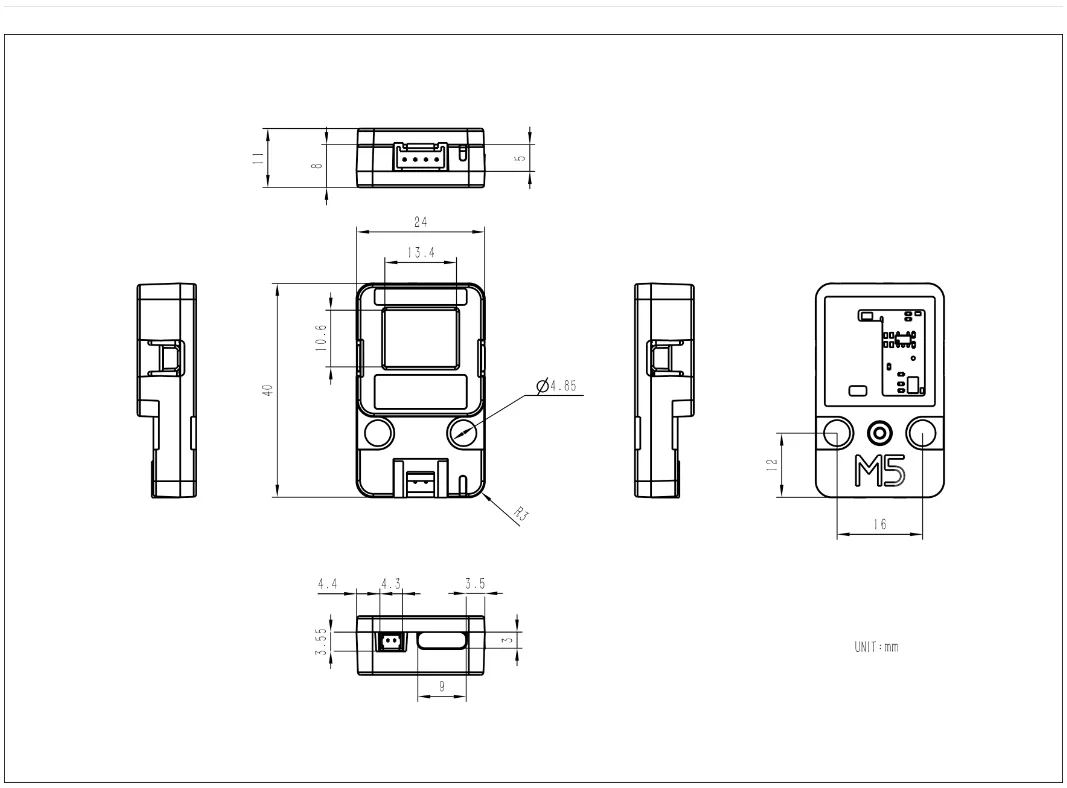

Module Size

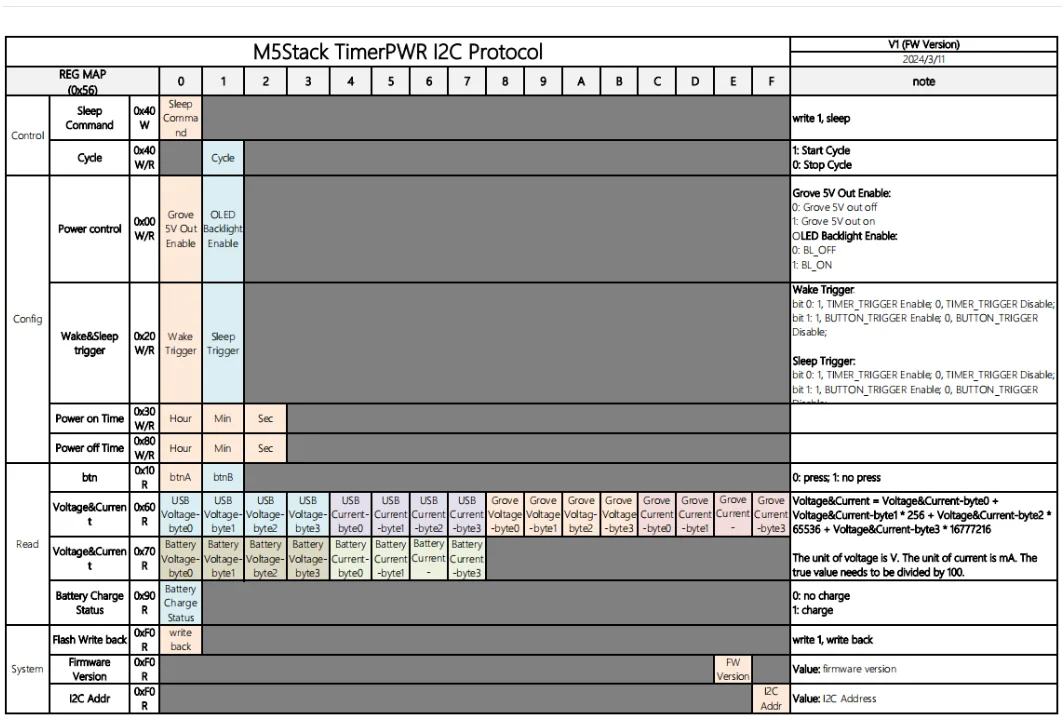

Protocol
