Product Description

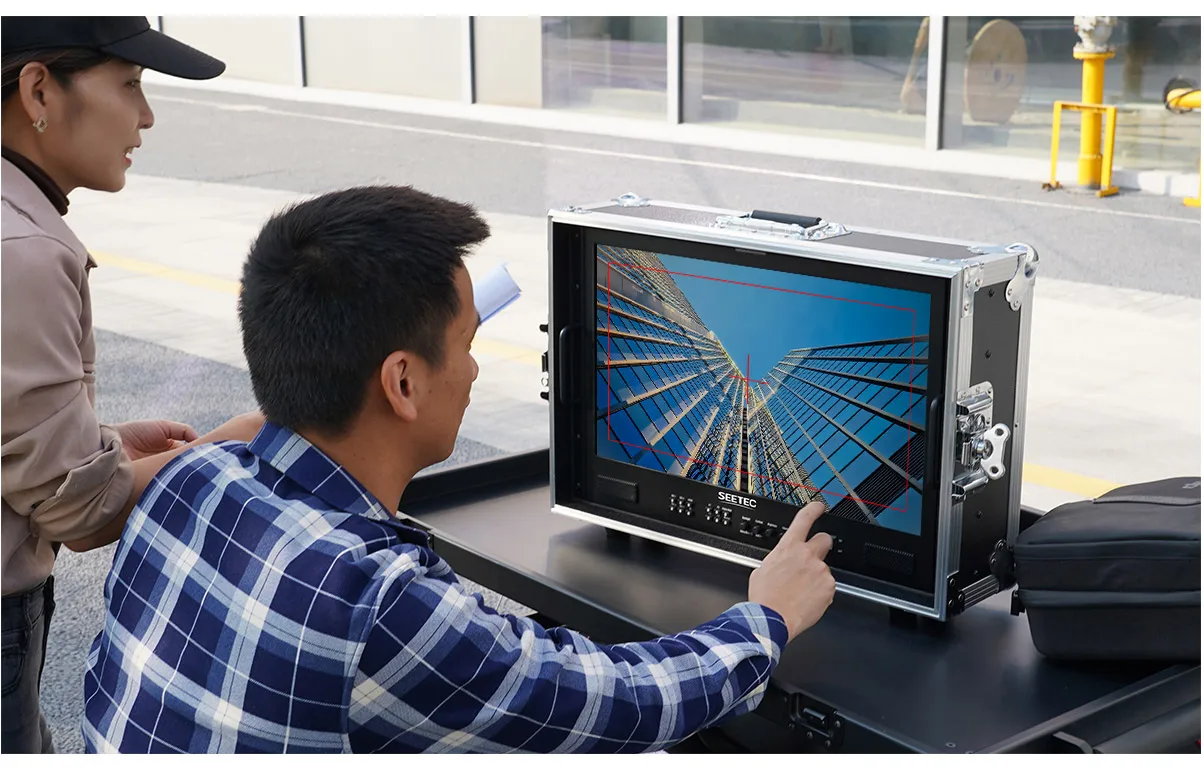

ATEM215S-CO 21.5 Inch Portable Carry-on Multi-camera Director Monitor Full HD 1920x1080 with Sunshade
ATEM215S-CO 21.5 Inch Portable Carry-on Multi-camera Director Monitor Full HD 1920x1080 with Sunshade
21.5” 3G-SDI/HD Broadcast MonitorComplete monitoring solution for live production, broadcast and post productionSEETEC ATEM215S-CO is a full HD broadcast carry-on monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HD input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. The portable aviation aluminum case can easily handle even harsh location shooting. It is an ideal monitor for film and television crews, broadcast and post-production!
Portable Aviation Aluminum CaseTime and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during on-set production. The ATEM215S-CO provides a aviation aluminium case, has the characteristics of dust-proof, waterproof, high temperature resistance, and corrosion resistance and so on. It is suitable for carrying and application in different environments, and provides a safer protection for the monitor.

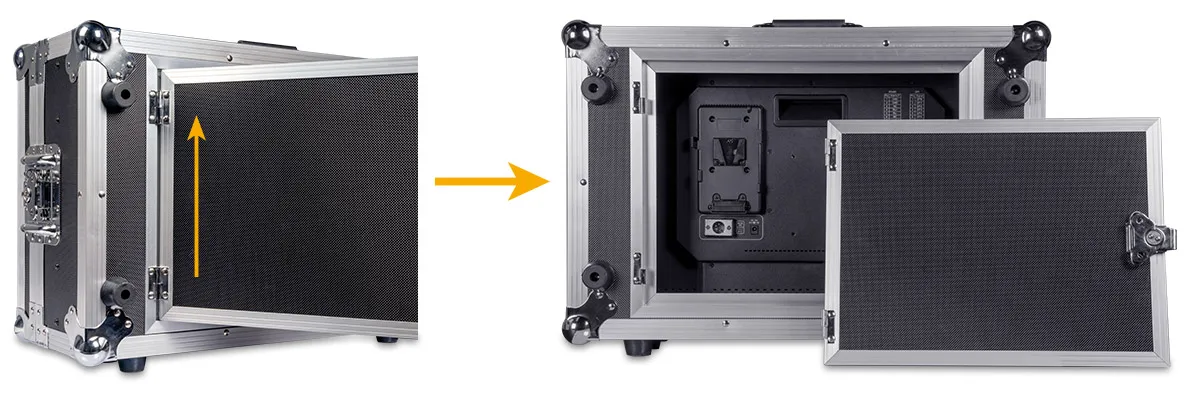

Quickly Disassemble and Assemble, Without Tools RequiredThe innovative combined structure design can quickly complete the disassembly and installation of the monitor, and easily to make the monitor use for both indoor and outdoor.

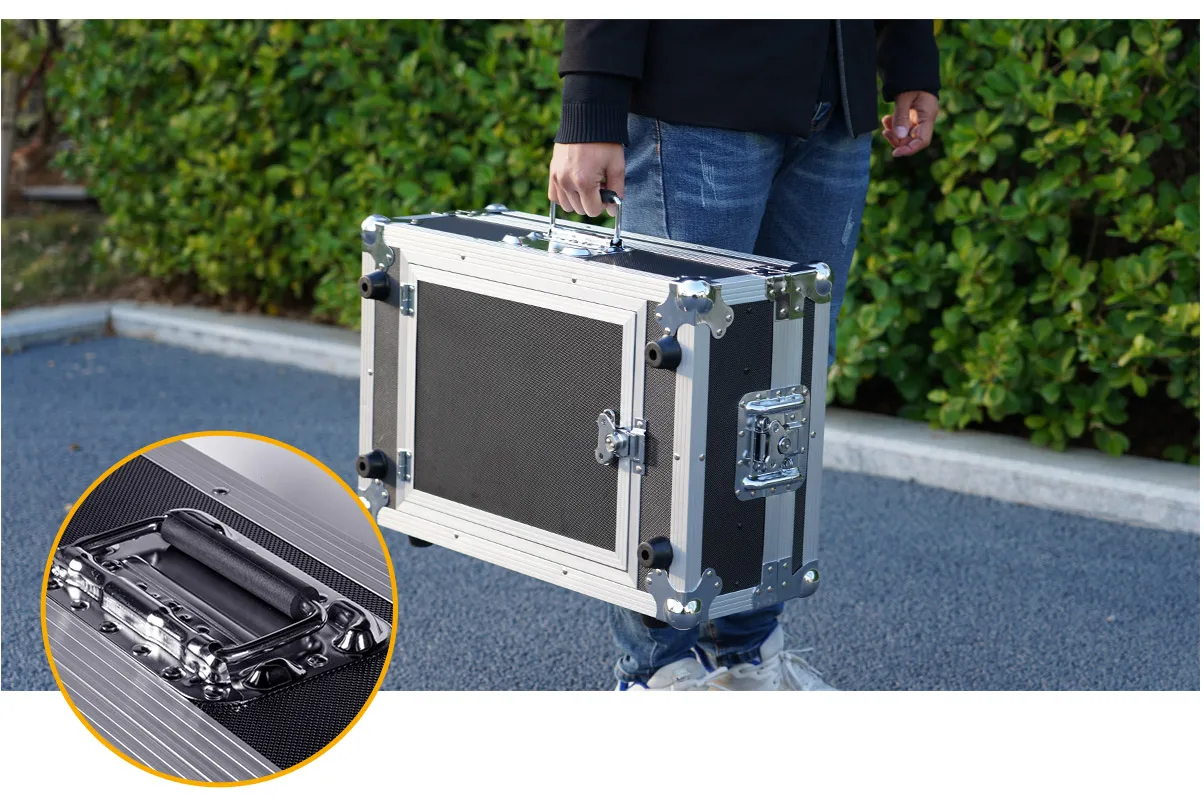

Comfortable HandleThe handle with moderate size and comfortable to hold , effectively relieve the weight-bearing feeling caused by the movement of the device，easy to carry.

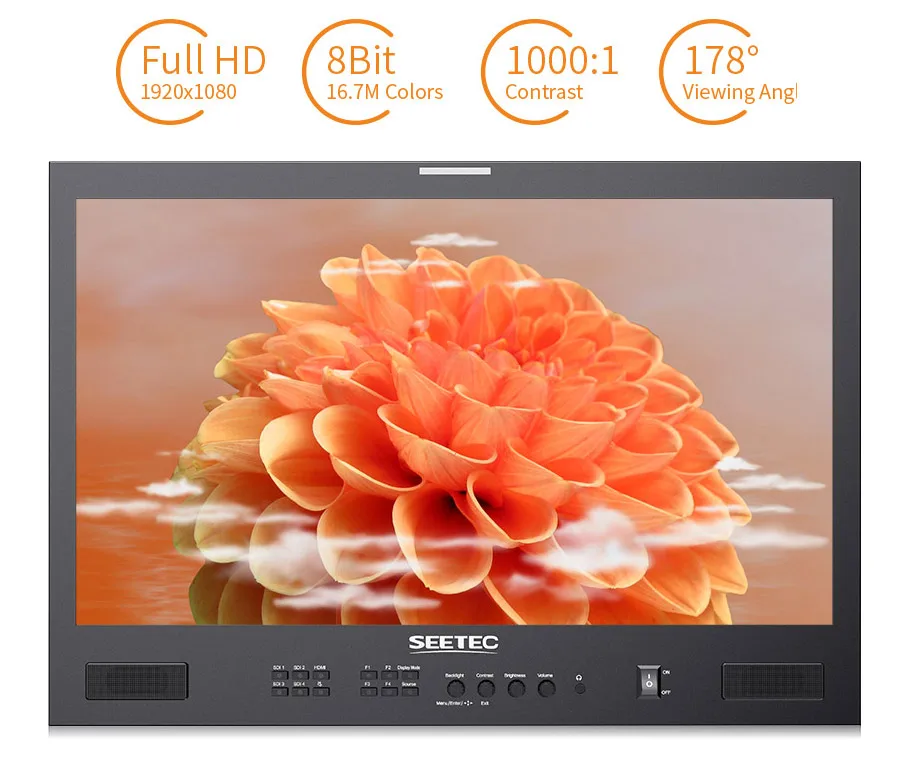

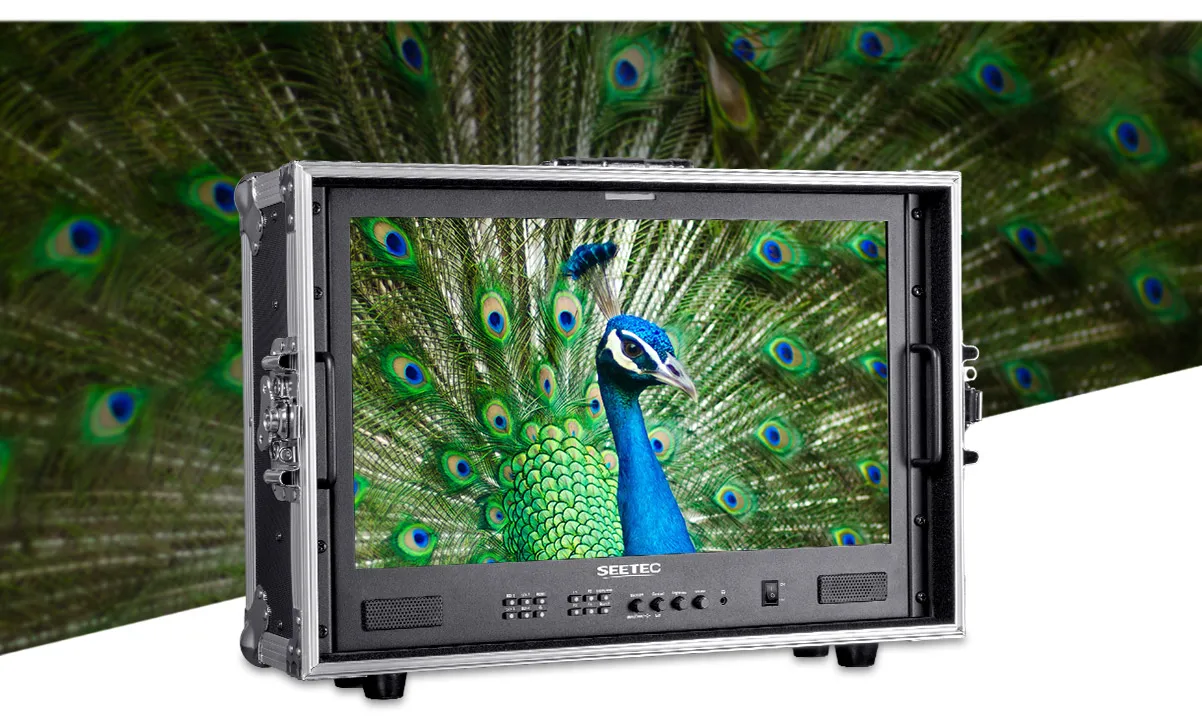

21.5-inch Full HD LCDThe ATEM215S-CO adopts a 21.5-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 250cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.
Accurate Color ReproductionUse Rec.709 color standardAccurate color reproduction is one of the important indicators for measuring professional monitors. ATEM215S built-in 3D-LUT, adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.

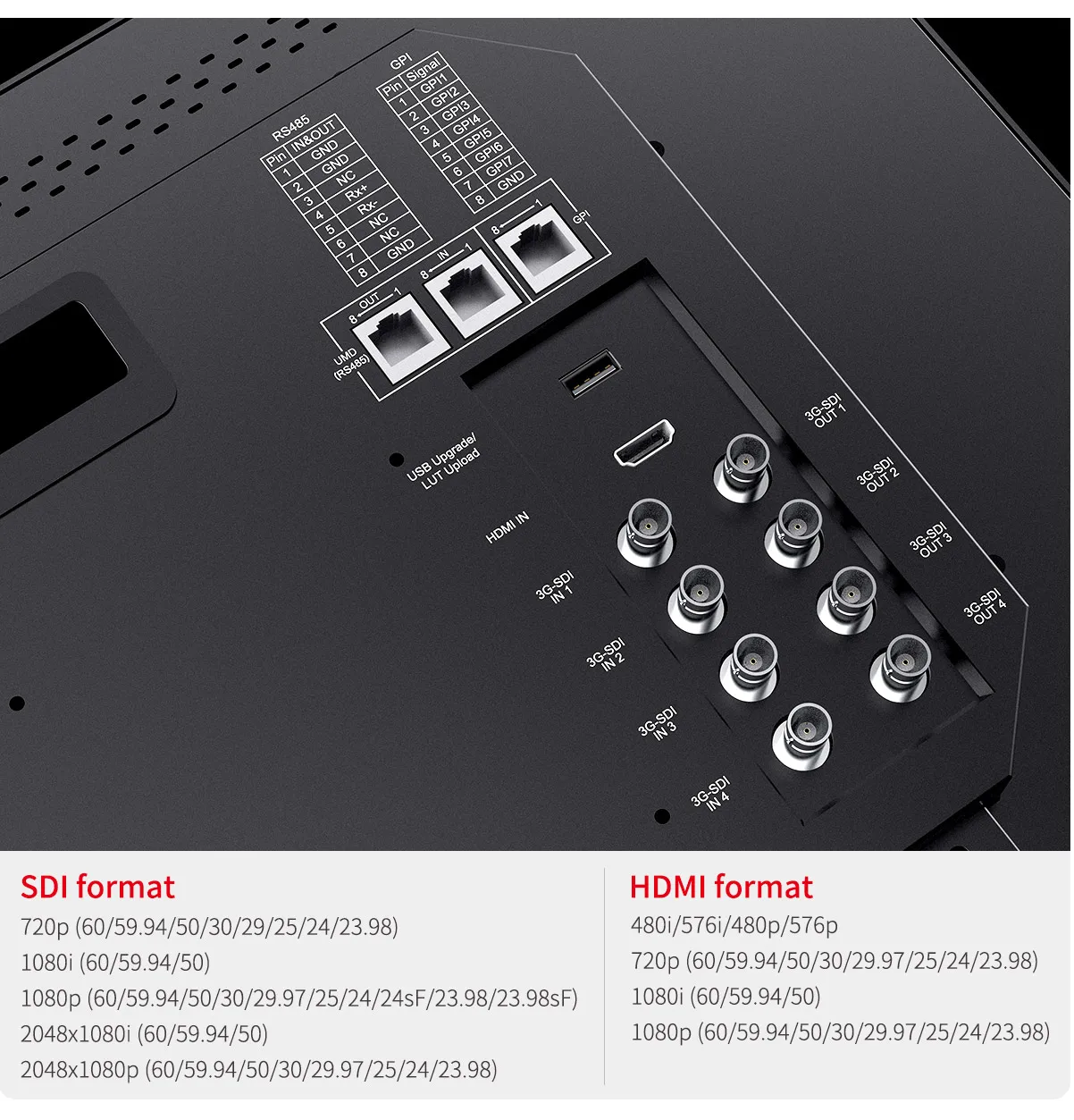

4X3G-SDI Inputs and OutputATEM215S-CO monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HD input, RS485, GPI control interface, meet different needs.

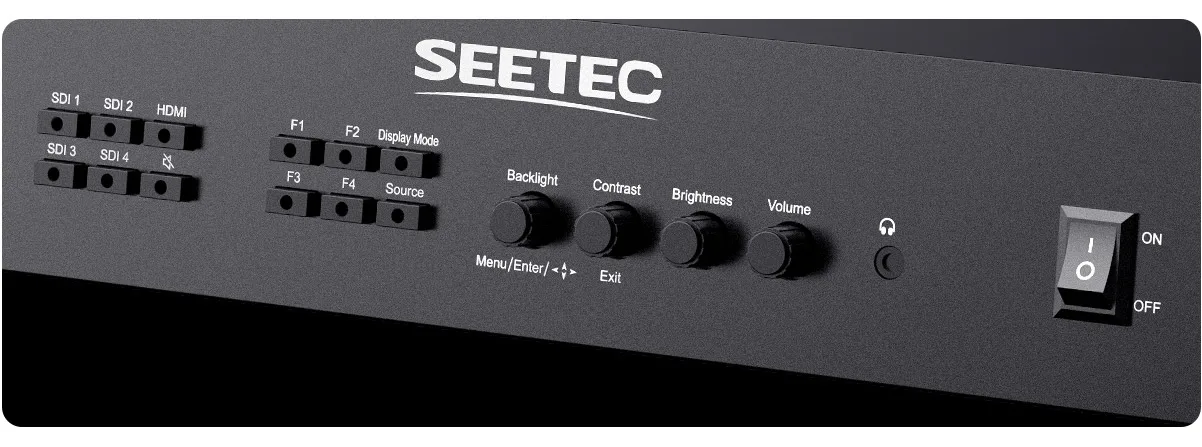

Professional On Set Monitoring ToolsAccurately focus and efficient monitoringThe monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, anamorphic mode, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.
3D LUT, Recreate Film LooksSupports up to load 36 custom LUTs3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).
HDR MonitoringWhat you see is what you getSupports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

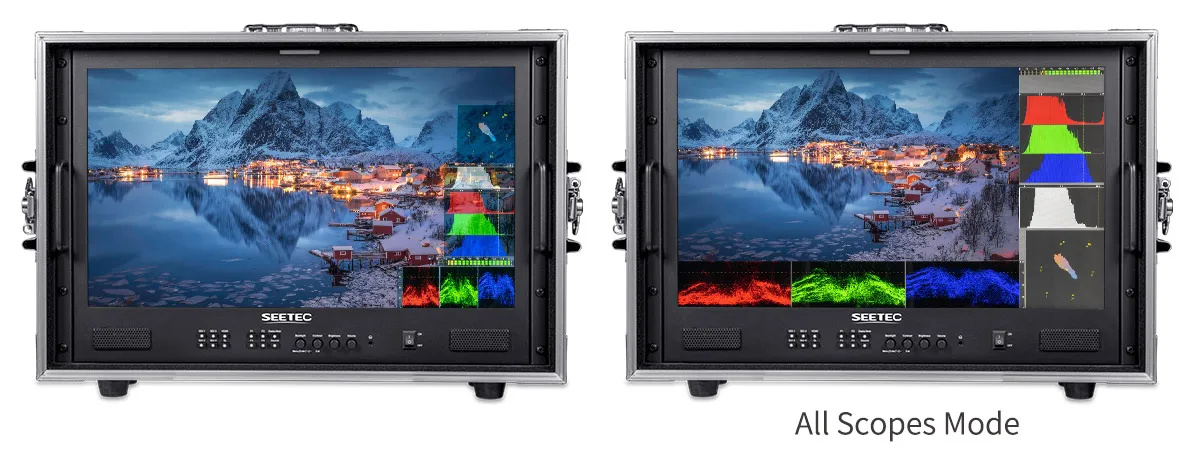

Accurate waveform monitoringSave your budgetBuilt-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode （can be right/left adjustment）. ATEM215S-CO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

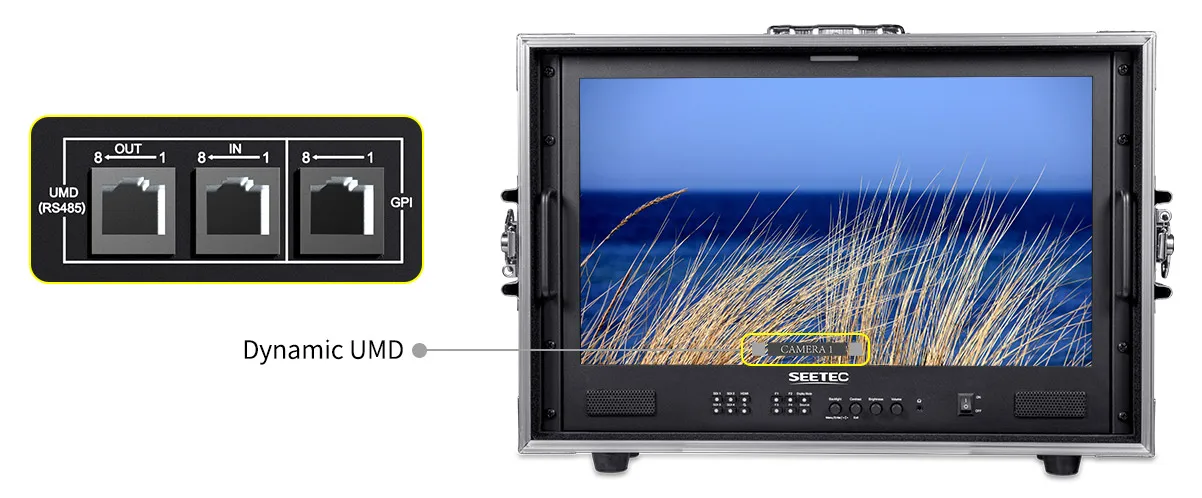

Gynamic UMDTSL3.1/4.0 ProtocolATEM215S-CO supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

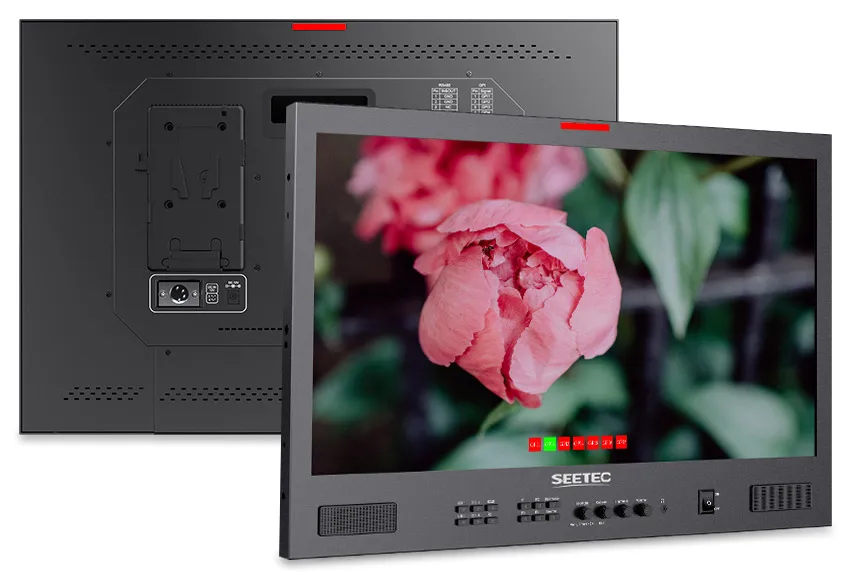

Tally LightsGPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
Multiple Display ModeMeet different monitoring needsThe screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. In the picture-in-picture mode, the size and position of the sub-window can be adjusted. In the quad screen mode, supports SDI signal simultaneously display 4-channel audio meter and 4 time code.multiple display monitor

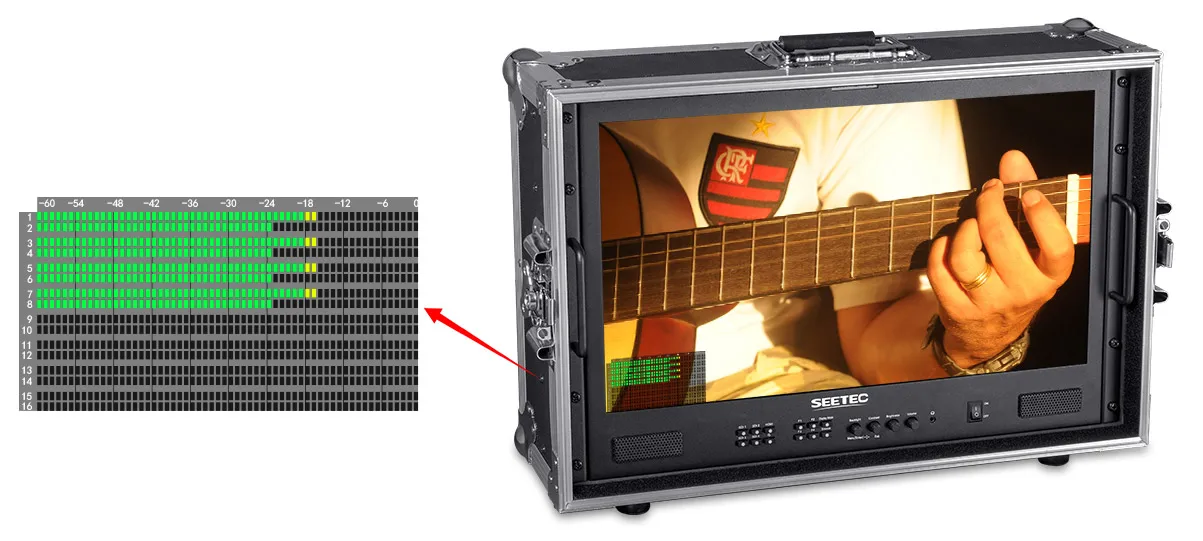

16-Channel Audio Level MetersThe monitor can de-embedded audio from SDI and HD. Support select any 2 channels audio to output via 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display. Under HD audio, only 2 channels audio displays are supported.audio level meter monitor
Custom Menu SettingATEM215S-CO provides 4 groups custom menu setting, which will be automatically saved after setting, and there is no need to reset when you turn on next time, saving time cost.custom menu monitor

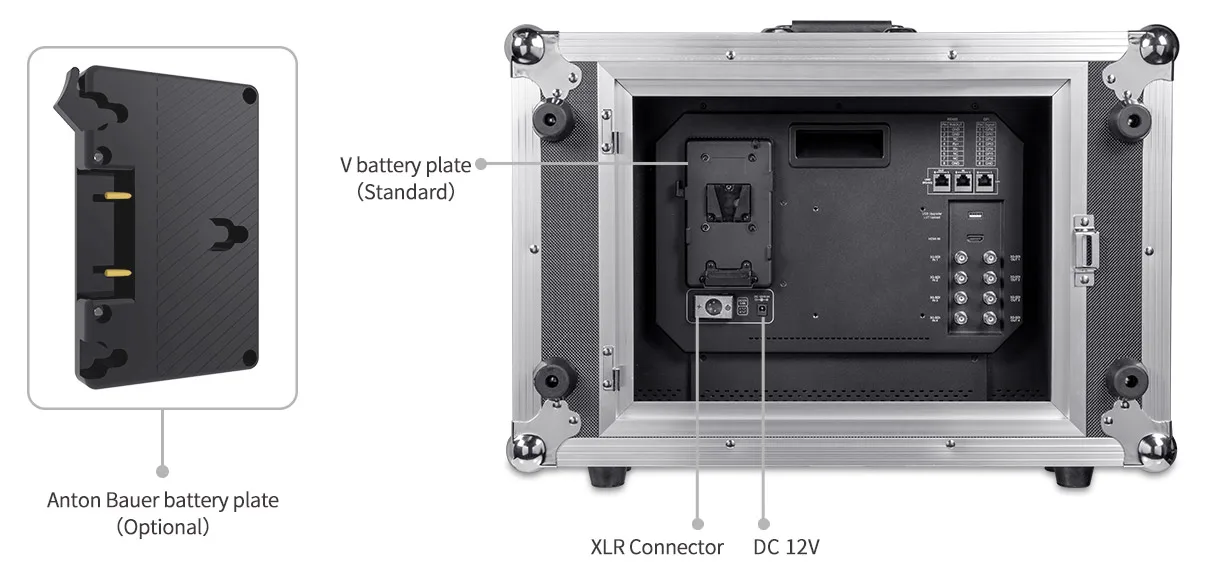

Multiple Power OptionsThe monitor provides DC 12V/4A power, XLR connector and Sony V-mount battery plate for options.Note: The battery plate default is V-mount Plate, the client can choose Panasonic Anton Plate for optional.

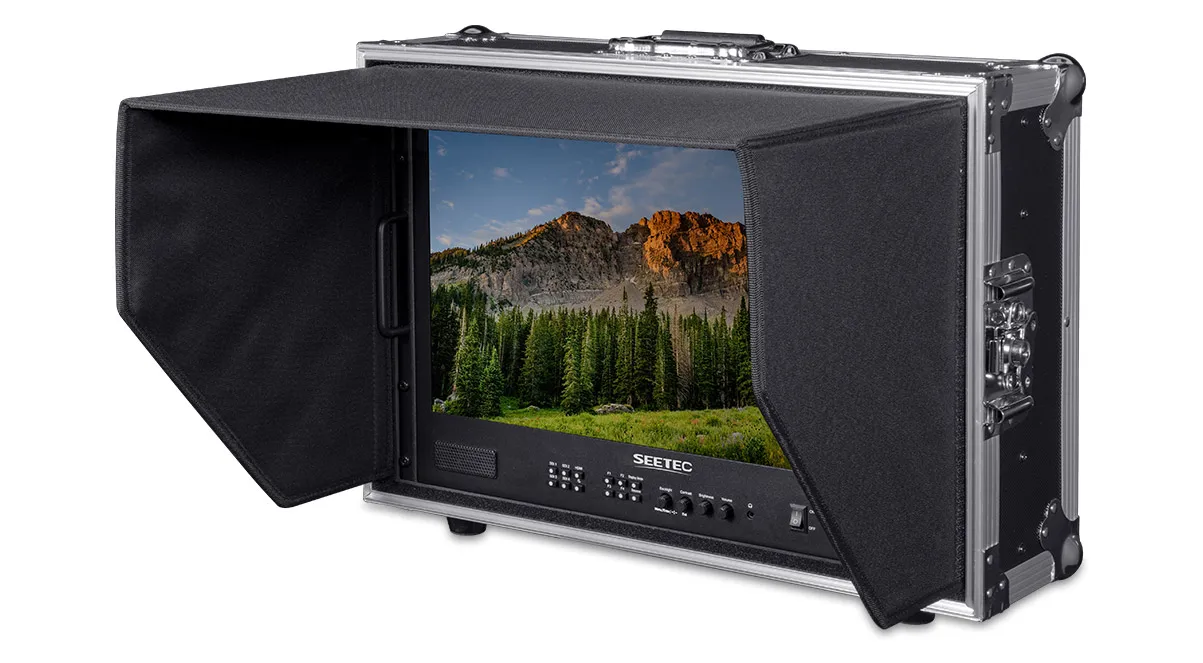

Portable SunshadeNew extended screen sun hood, to acquire the ideal visual effect in almost all environments.portable sunshade monitor
Standard Accessories:1×12V/4A Power Adapter
1× SDI Cable
1× Mini HD Cable
1× V-mount Battery Plate (default to mount on device)
1× Sunshade
1× Aluminium Case
1× User Manual
