Official ATOM HUB AC/DC Remote Control Switch Kit

Product Description

ATOM SWITCH is a bi-directional control programable switch for the M5ATOM. It can be connected to bi-directional AC circuits for simultaneous on-off control. The on-board relay can support up to 250V / 10A AC(Instantaneous current 16A). Built in step-down module can provide 5V / 1A DC power supply for ATOM. In order to ensure safe use, its DC circuit has overheating and short circuit protection functions. In order to facilitate the use of users in industrial scenarios, an SP485EE level-conversion IC is built in. There are also a set of RS485 interfaces provided for the user to connect RS485 equipment.RS485 has the ability to supply power to ATOM, the support voltage is 9-24V. In addition, a set of HY2.0 interfaces is also provided for connecting I2C peripheral equipment or general I/O equipment. With the Wi-Fi functions of M5ATOM, you can easily setup a remote control switch. If you have multiple M5ATOM HUB SWITCH modules, you can set them up in parallel through the RS485 interface.

Product Features

Compatible ATOM Matrix/ATOM Lite
Built-in AC-DC circuit
2-way relay
Built-in RS485 level-conversion, supporting Modbus
HY2.0 port extend
Short circuit protection
Remote control via Wi-Fi and RS485

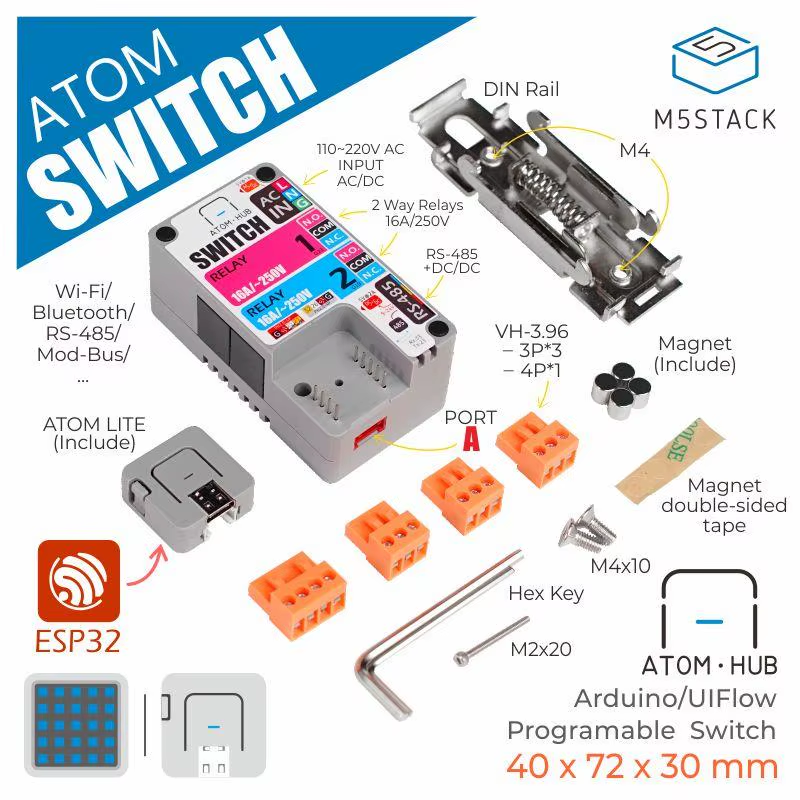

Include

1x ATOM SWITCH
1x ATOM Lite
4x Magnet
1x double-side tape
1x DIN Rail
1x 3.96*4P plug
3x 3.96*3P plug
1x M4 Hex Key
1x M2 Hex Key
2x M4*10mm Hexagon countersunk screw
1x M2*20mm Hexagon socket cup head machine screw

Applications

Intelligent switch
