Official ATOMIC PWM Base (EG27324)

Product Description

Atomic PWM Base is a single-channel PWM adjustable DC driver designed to be compatible with the Atom series main controller. It supports DC power input ranging from 12-24V. The output signal duty cycle is controlled through the built-in MOSFET switch. It has a maximum load capacity of 12V@100W and includes a built-in DCDC step-down circuit. This allows the input power supply to drive the load while also providing power to the entire device, making deployment more convenient.

By utilizing the built-in WiFi functionality of the Atom series main controller, the Atomic PWM Base enables remote control capabilities. It is well-suited for applications such as high-power DC motor PWM speed control and industrial heating wire control.

Features

* Applicable to Atom Lite/Atom Matrix/AtomS3/AtomS3 Lite
* Single channel low latency PWM signal output
* High power MOSFET, output capacity 12V@100W
* Reserved 1xGROVE expansion interface
* Built-in DC-DC (12V->5V) conversion circuit
* Easy installation, simple operation
* All-in-one design with protective cover
* Development platform: Arduino/UIFlow

Includes

1x Atomic PWM Base
1x 3.96-4P terminal

Applications

* DC Motor Control
* LED brightness Adjustment
* Power Supply Control
* Temperature Control

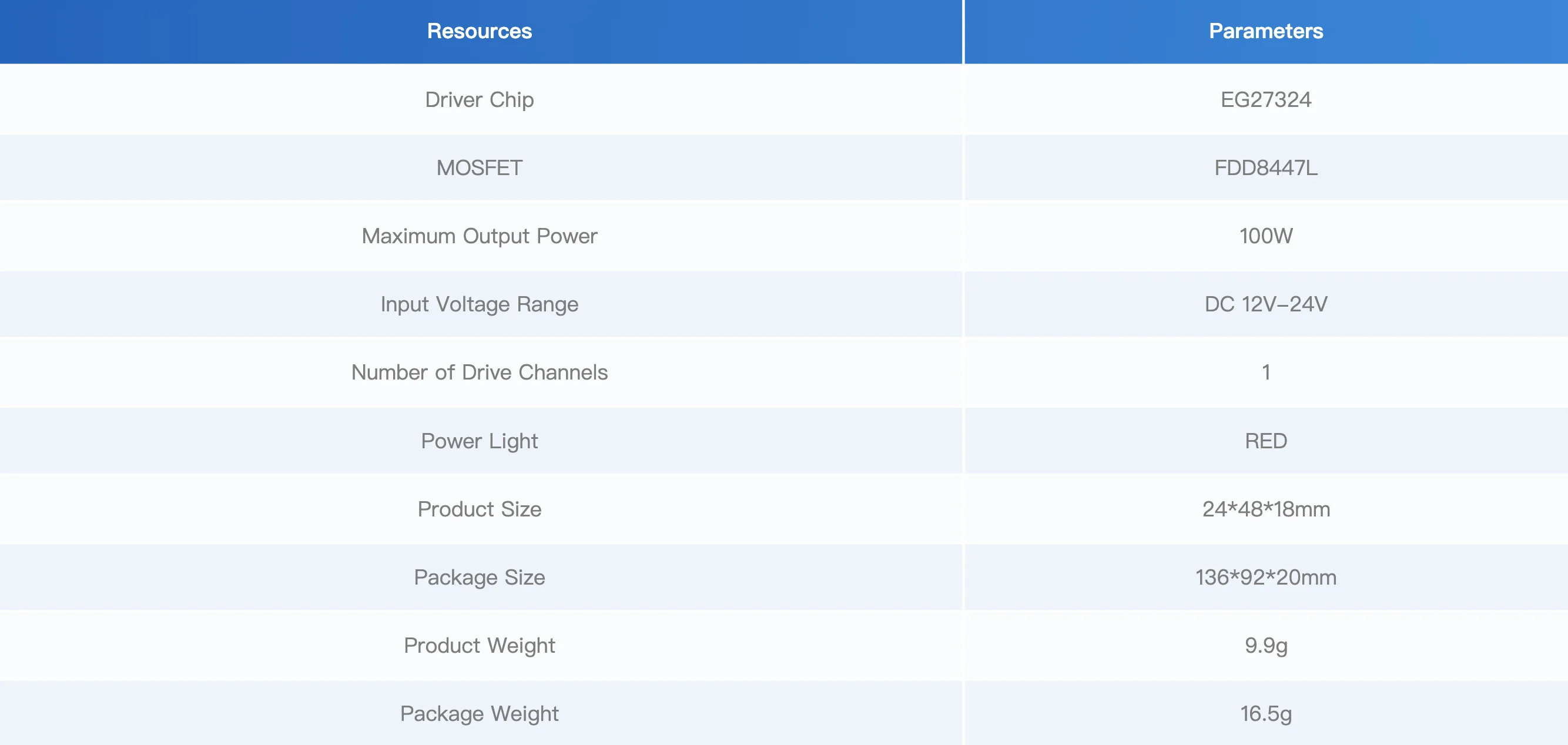

Specification

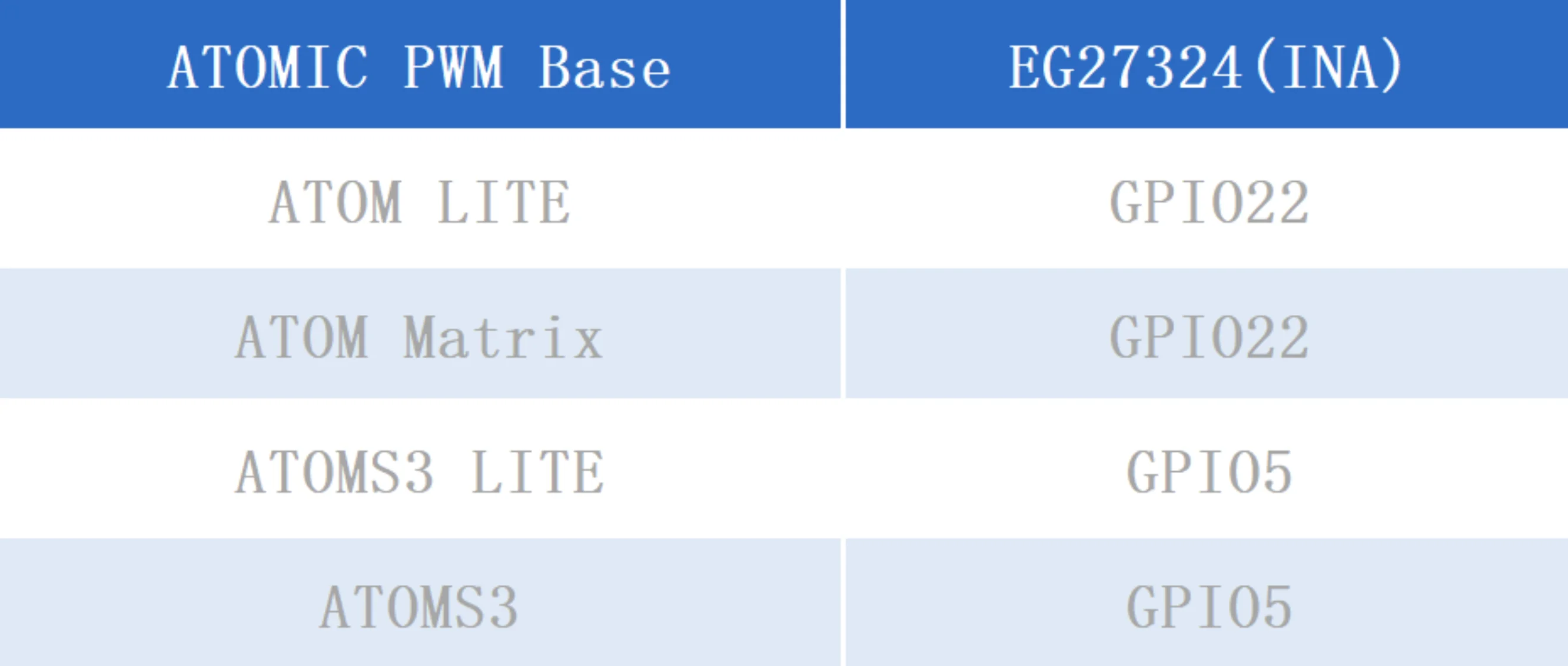

PinMap

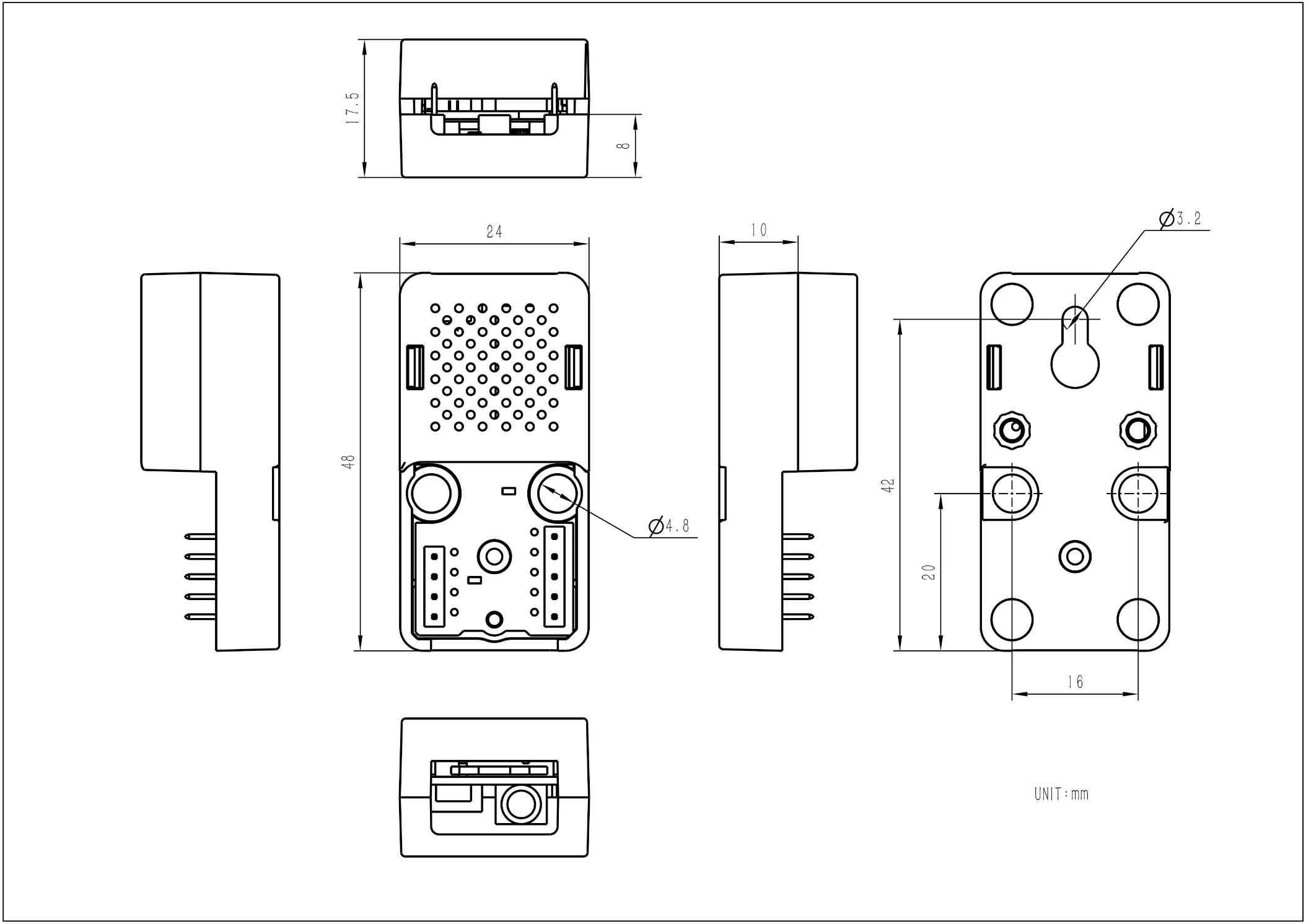

Module Size
