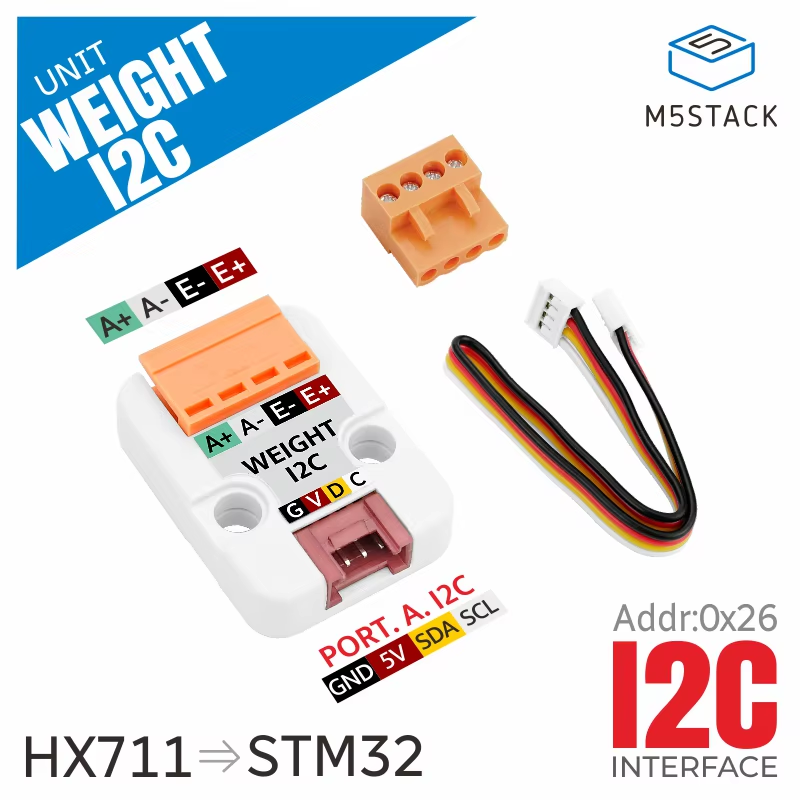

Official Weight I2C Unit (HX711)

Product Description

The Weight I2C Unit is a weight acquisition transducer unit that employs the "STM32+HX711 chip" solution, achieving precision weight measurement with 24-bit accuracy through I2C communication. It supports the parallel connection of multiple devices on the same I2C bus, providing users with greater flexibility in terms of a wider range and more data collection points. It is suitable for various applications such as industrial production, healthcare, logistics, laboratory research, and food processing.

Features

* STM32F030F4P6+HX711
* 24Bit measurement accuracy
* I2C serial communication
* Program platform: Arduino, UIFlow, etc

Includes

1x Weight I2C Unit
1x HY2.0-4P Cable(20cm)
1x VH3.96-4P

Applications

* Microgravimeter
* Food Processing
* Logistics Transportation
* Laboratory Investigation

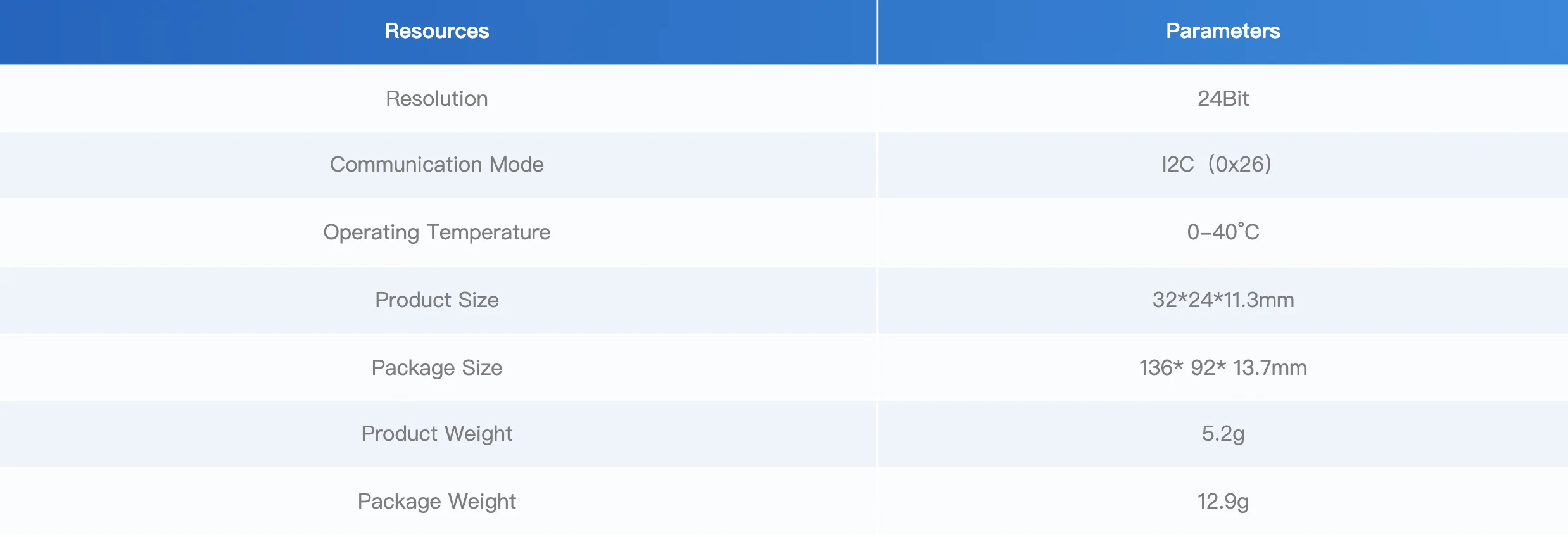

Specification

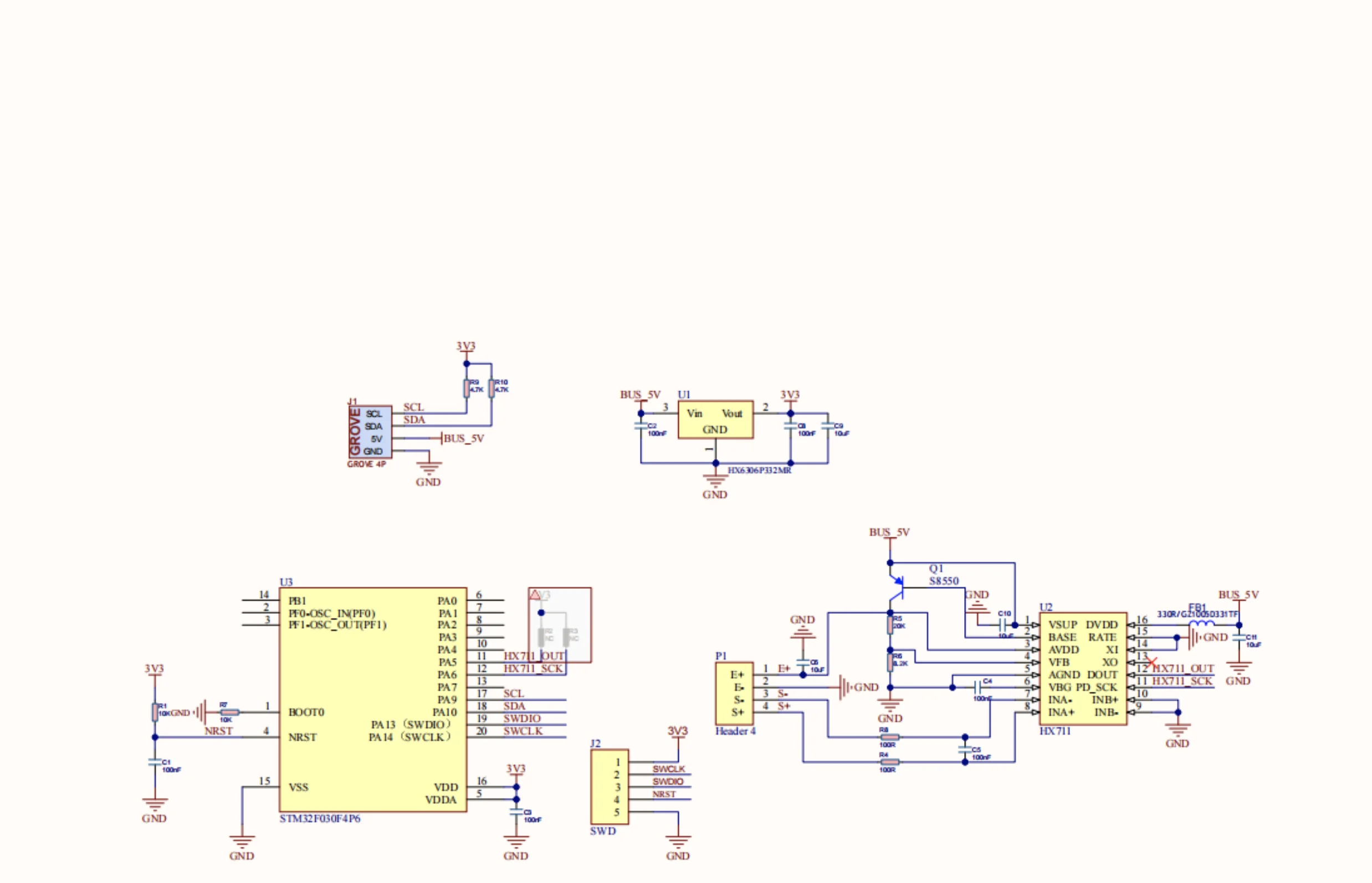

Schematic

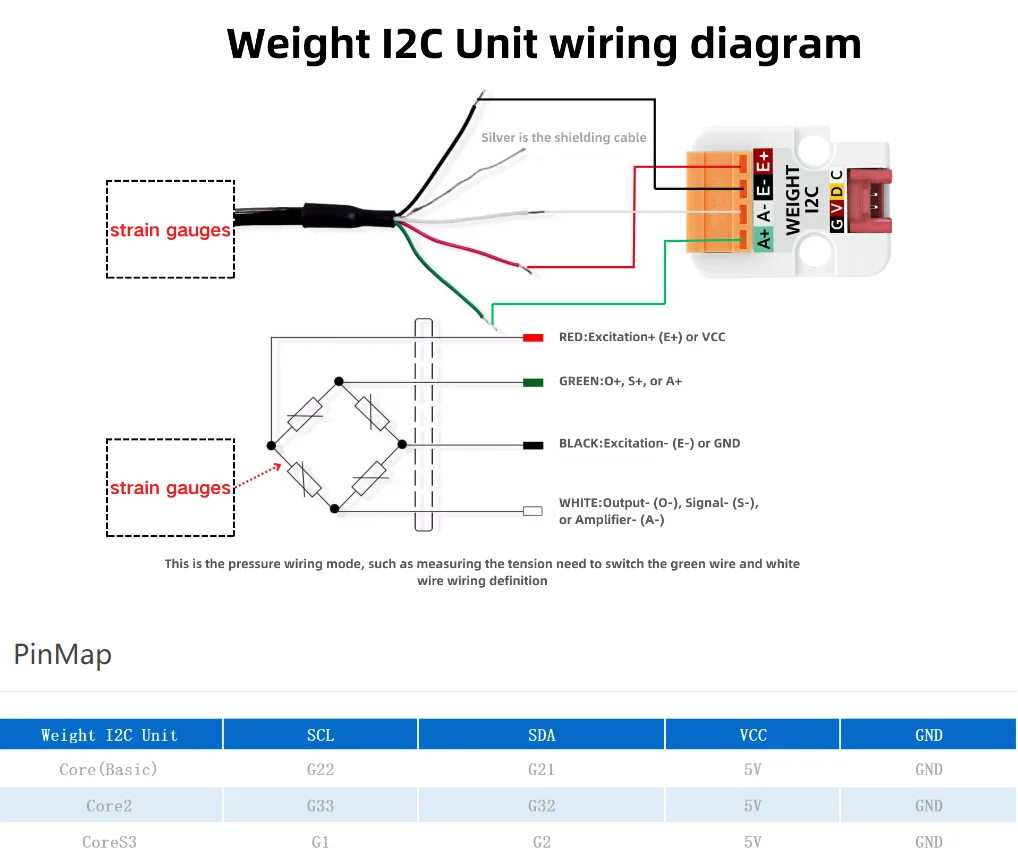

* Connection Schematic Diagram

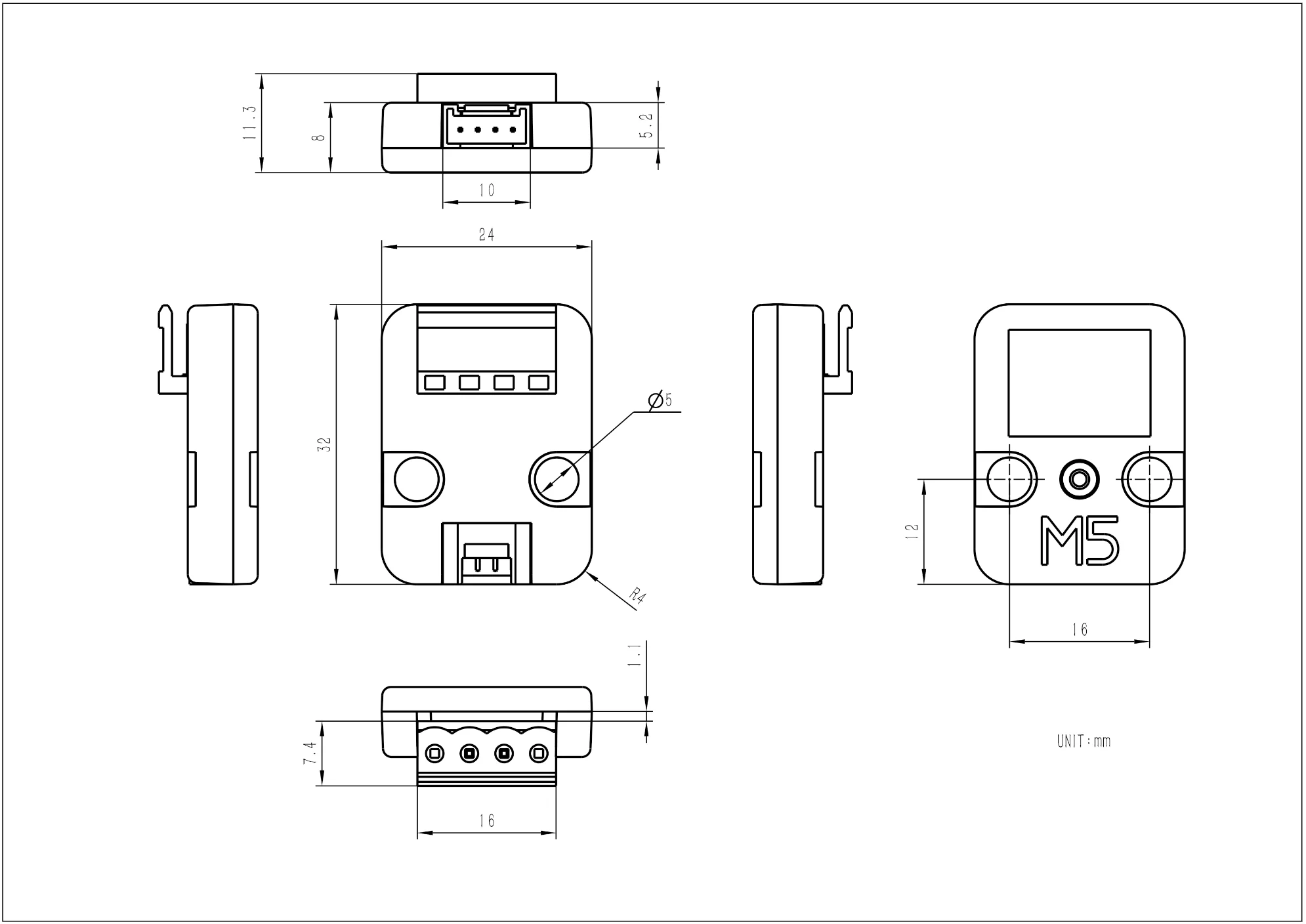

Module Size

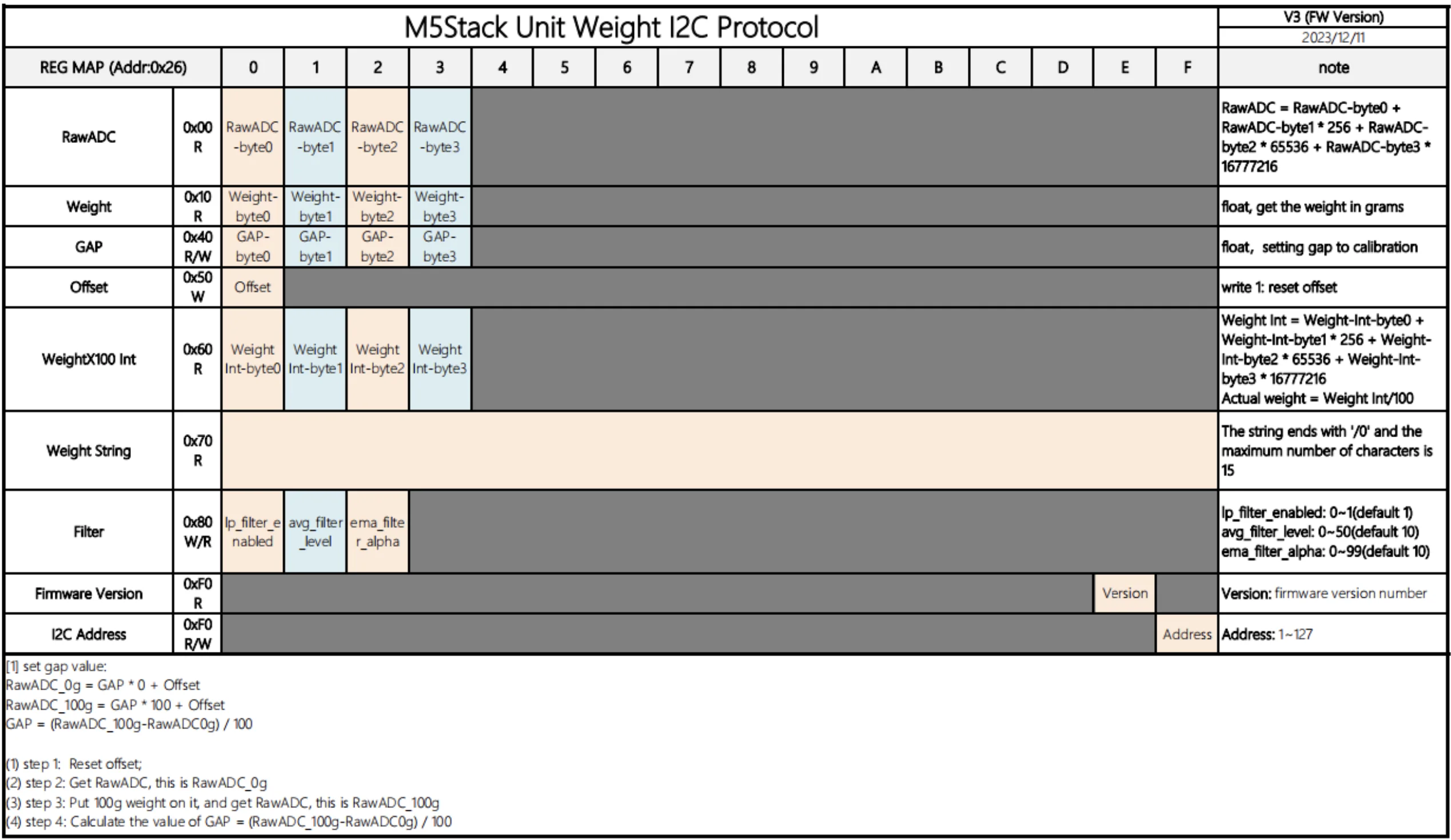

Protocol
