Product Description

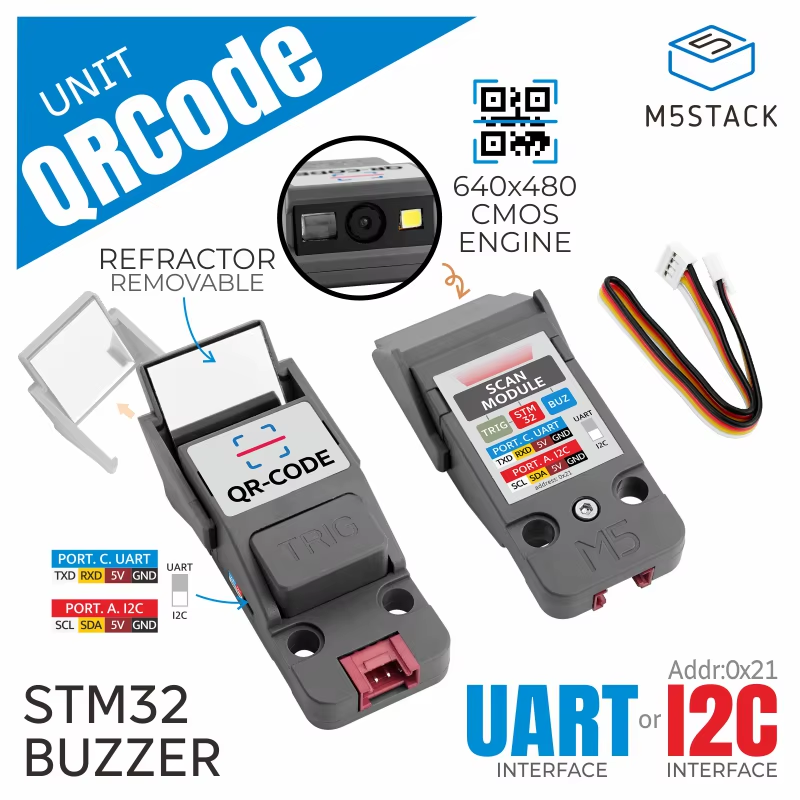

Official QR Code Scanner Unit (STM32F030)Official QR Code Scanner Unit (STM32F030)QRCode Unit is an integrated one-dimensional/two-dimensional code scanning unit that combines a CMOS QR code capture engine with a resolution of 640x480 and a bus conversion MCU (STM32F030). It features a device-side toggle switch that allows for switching between I2C and UART communication interfaces.
The capture engine supports three types of mainstream QR codes and eight types of one-dimensional codes found in the market. It also provides a firmware upgrade interface. The unit includes a scan trigger button, a built-in buzzer, and supplementary LED lights. The buzzer and green LED provide audio and visual cues in different states, assisting with focusing and aiming.
The QRCode Unit can be configured through programming to operate in automatic continuous trigger or manual trigger mode. It is suitable for various fields such as logistics, retail, and manufacturing where barcode scanning is required.
To switch to UART serial communication mode, ensure the device is powered off, toggle the mode switch to the UART serial position. Then, press and hold the TRIG button for 2 seconds while powering on until the device completes startup to successfully switch to UART serial communication mode. If you have any questions, feel free to contact technical support.
Features
* STM32F030F4P6@32 bit ARM Cortex-M0 processor
* Supports 3 types of two-dimensional code and 8 types of one-dimensional code
* Upgradable firmware
* Built-in I2C and UART communication interface switch
* Built-in buzzer sound prompts
* Built-in lighting LED
* High resolution imaging
* Focusing and aiming functions
Includes
The refracting head scan head can be installed to change the scanning Angle, as shown in the picture above.
Applications
* Material Flow
* Retail
* Manufacture
Specification
PinMap
Module Size
