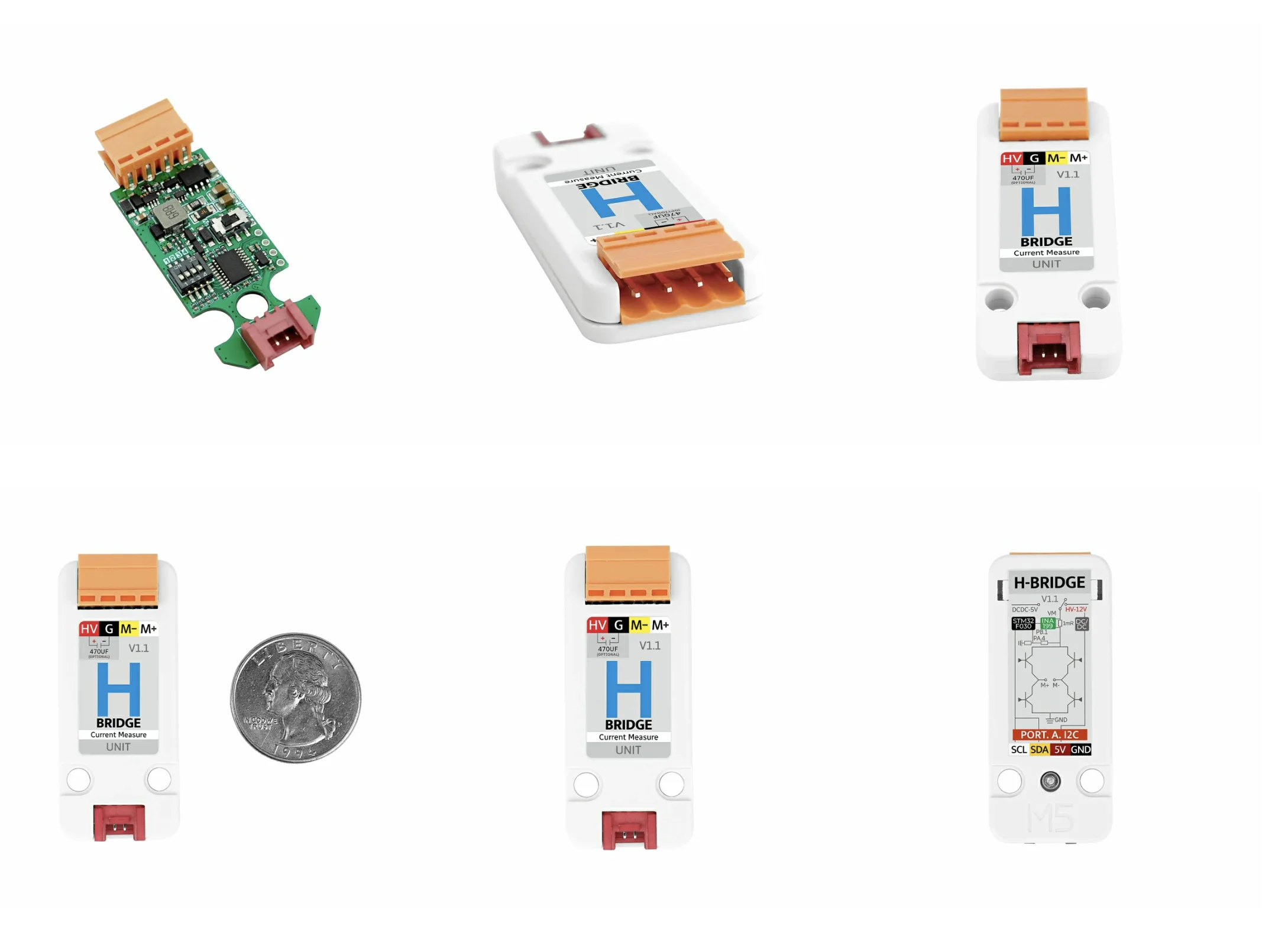

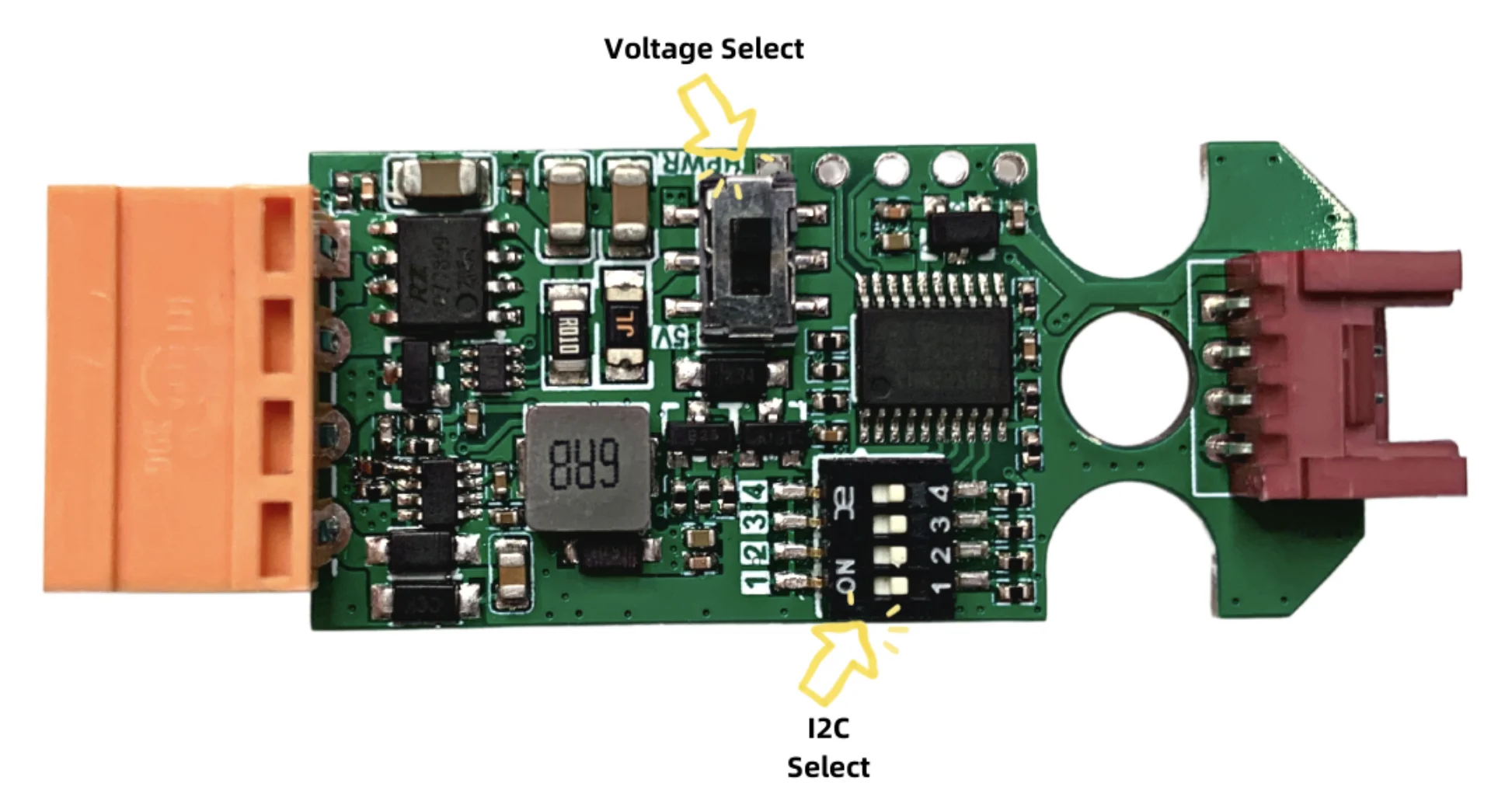

Official H-bridge Unit v1.1 STM32F030+RZ7899

Product Description

HBridge v1.1 Unit is a DC motor drive module, using "STM32F030+RZ7899" scheme to realize the motor drive function, and using I2C communication with the M5 host to realize PWM control speed, forward, backward and braking functions. The module has reliable over-current, over-voltage, over-temperature protection function,it has built-in total power MOSTUBE switch circuit, support programming dynamic control motor release/lock;Built-in total current acquisition circuit, the total circuit parameters can be known, which can ensure the safe operation of the motor, and also has 6-12V and 5V switching circuits in the circuit to adapt to the input power requirements of different motors, which are widely used in 'robots, motor drives, industrial automation, smart homes' and other fields.

Features

* Overcurrent, overvoltage, overtemperature protection
* Power switching
* I2C address: Default 0x20
* Current detech
* Programming platform: Arduino, UIFlow

Includes

1 × Hbridge V1.1 Unit
1 × VH3.96-4P
1x HY2.0-4P Cable(20cm)
1x M2 Hex Wrench
1x 470uf aluminum electrolytic capacitor

Applications

* Robot
* Motor driven
* Industrial automation
* Smart home

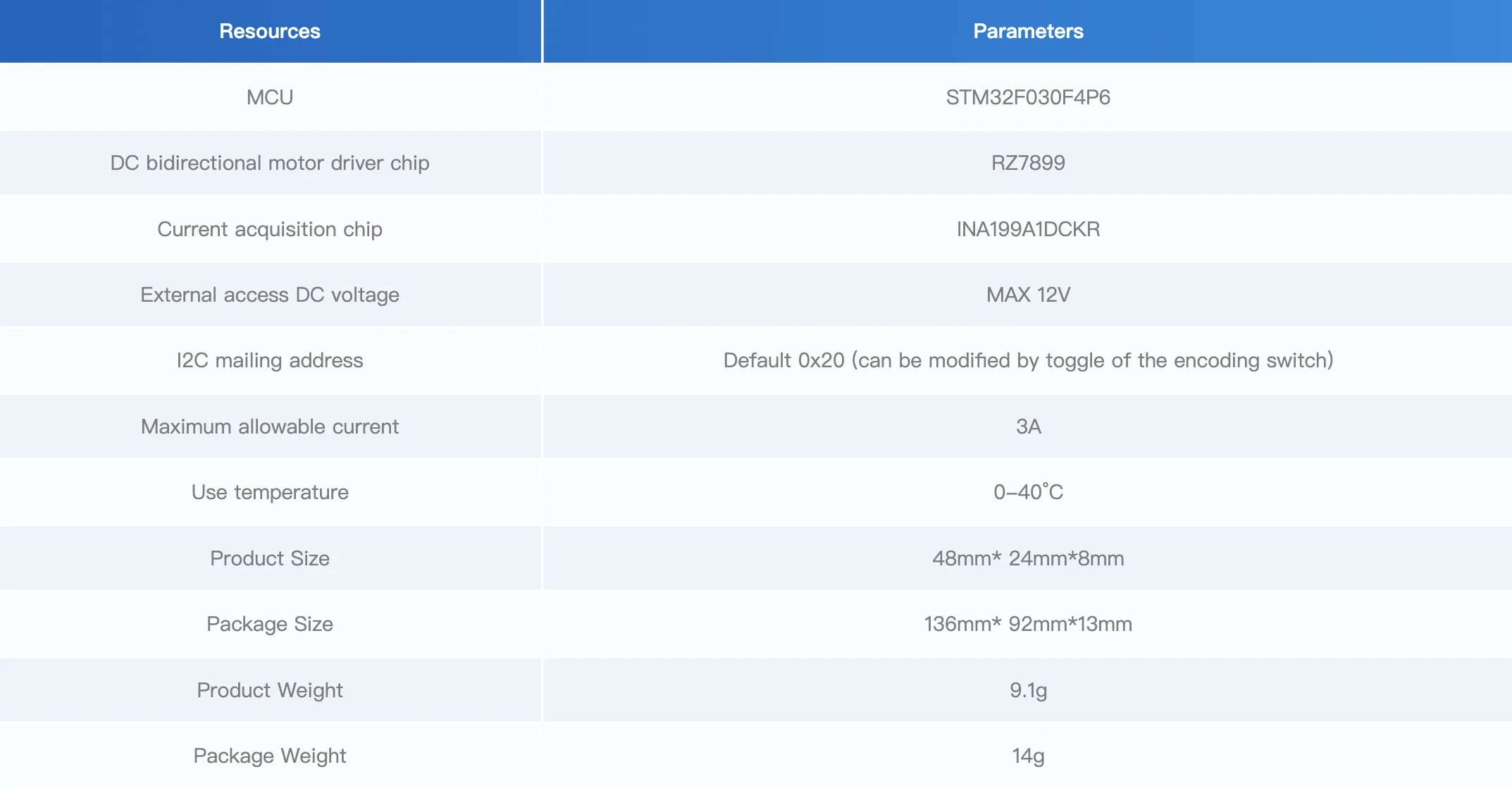

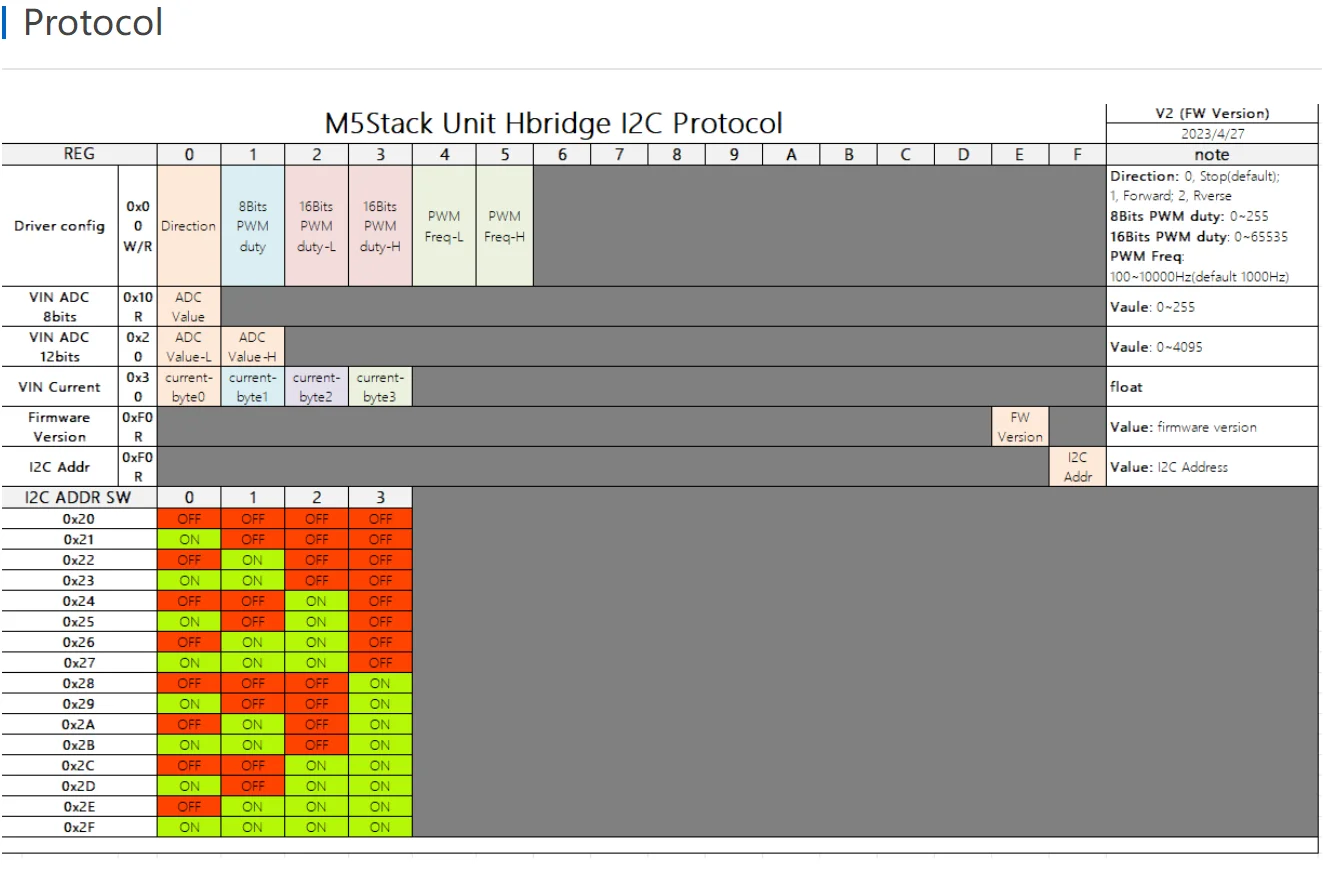

Specification

Products related to this item

CoreS3 (K128)

CORE2 (K010)

TOUGH (K034)

BASIC-V27 (K001-V27)

M5StickC PLUS (K016-P)

ATOM Lite (C008)

AtomS3 Lite (C124)

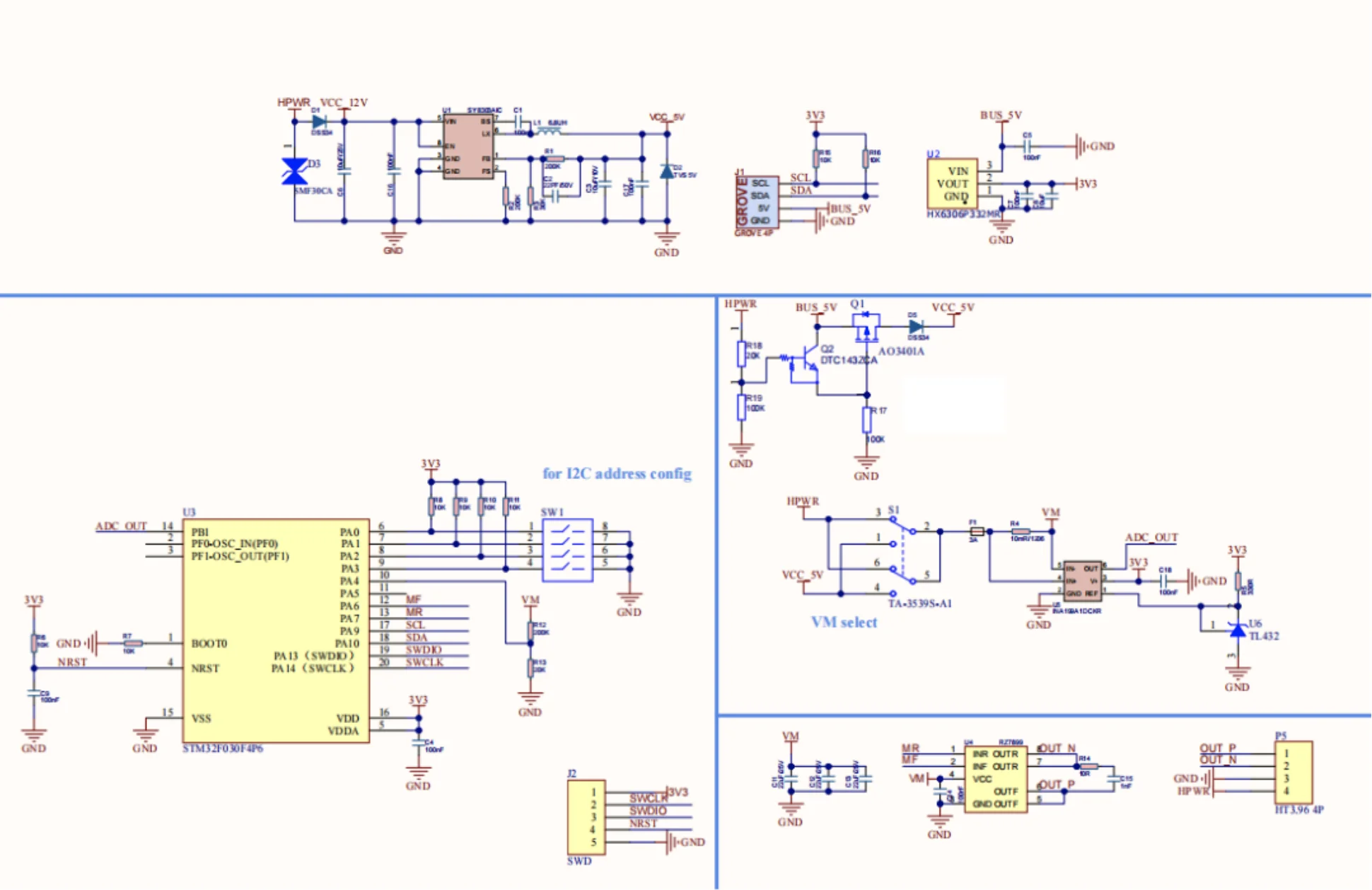

Schematic

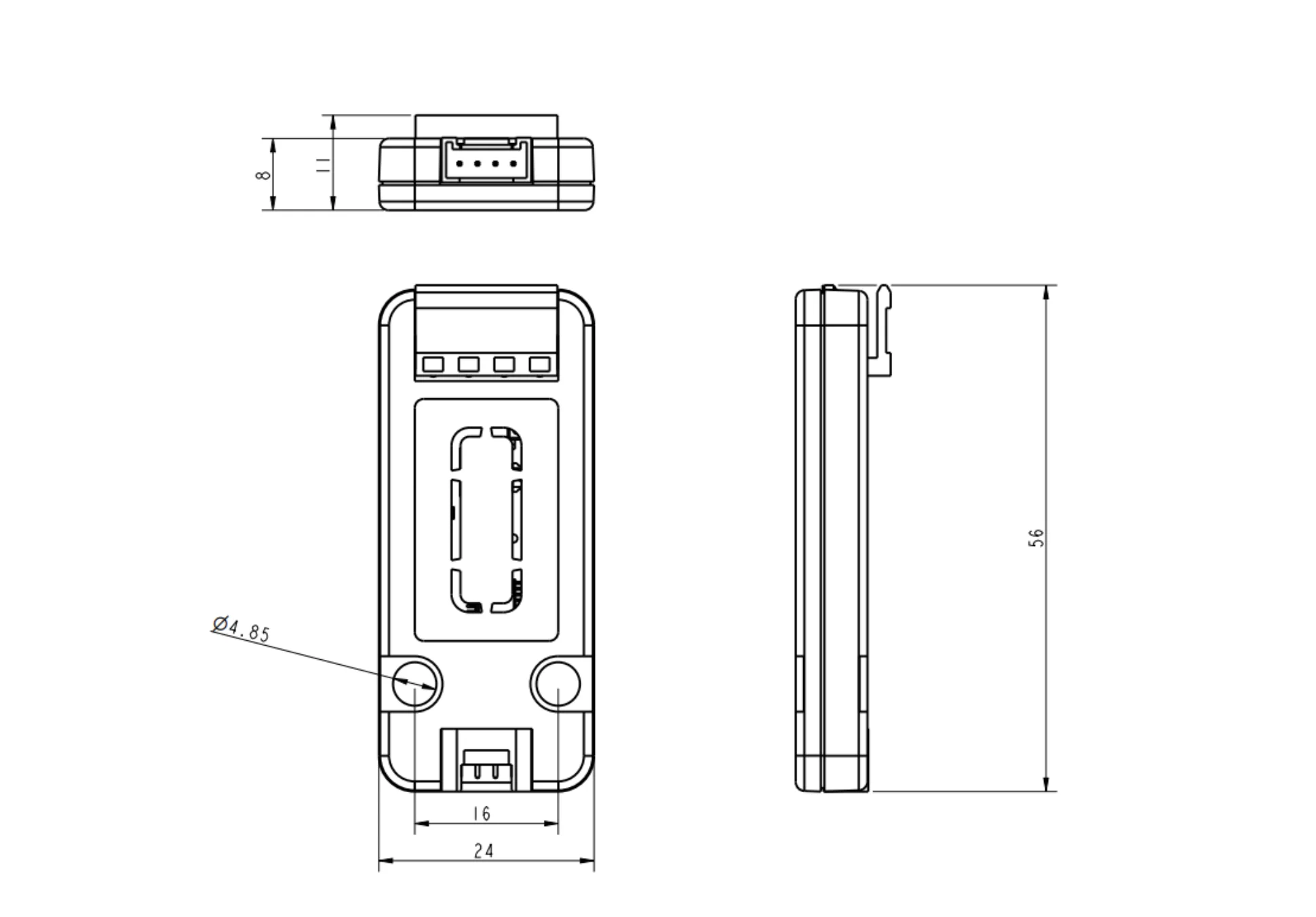

Module Size

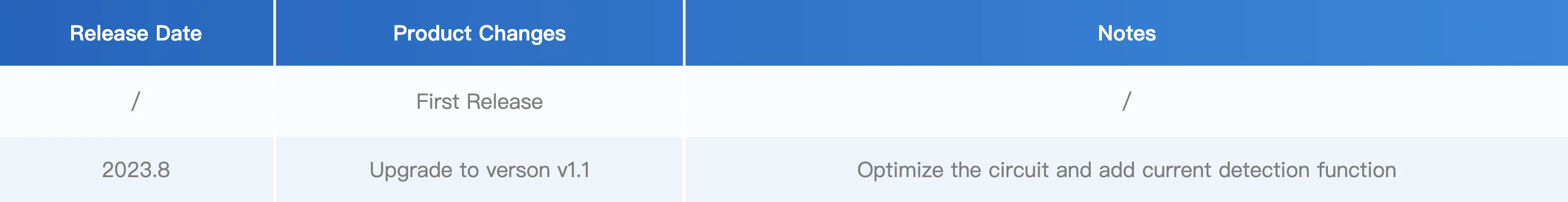

Version Change
