Product Description
Official M5StickC RS485 HAT AOZ1282CI

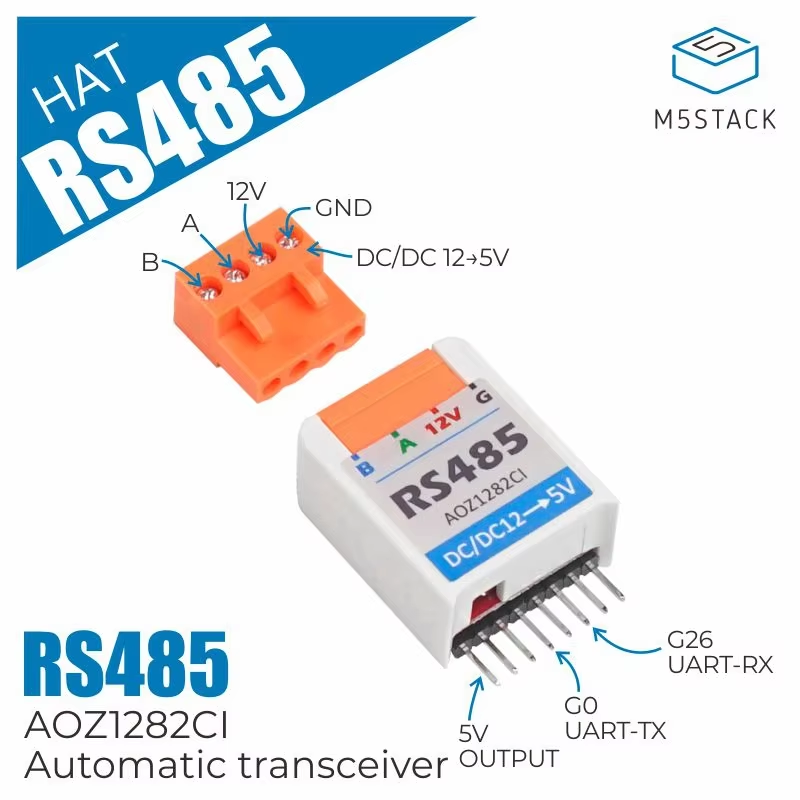

Official M5StickC RS485 HAT AOZ1282CIRS485-HAT is a TTL to RS485 converter for M5StickC. Among M5stack products we have 5 items that include TTL to RS485, they are RS485 unit, RS485 HAT, PLC, LAN, BASE26 they have different input voltage, vary from 5V - 12V.
In this RS485-HAT, it consists of a 485 automatic transceiver circuit and a DC-DC buck circuit which can drop an input 12V to 5V.
RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in the industrial field. multi point systems are supported.
It is used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this hat on top of stickc, therefore, to implement the communication with RS485 device by TTL protocol.
Product Features
Built-in SP485EEN
The built-in automatic transceiver circuit
Built-in DC-DC buck circuit
AOZ1282CI
input DC 12 V
BandRate up to 115200
Program Platform: Arduino, UIFlow(Blockly, Python)
Include
1x RS485 HAT
1x 4 Pin 3.96 Pitch Terminal
Applications
RS485 multi point systems
Serial communication in industrial field.
LEARN AND DOCUMENTS

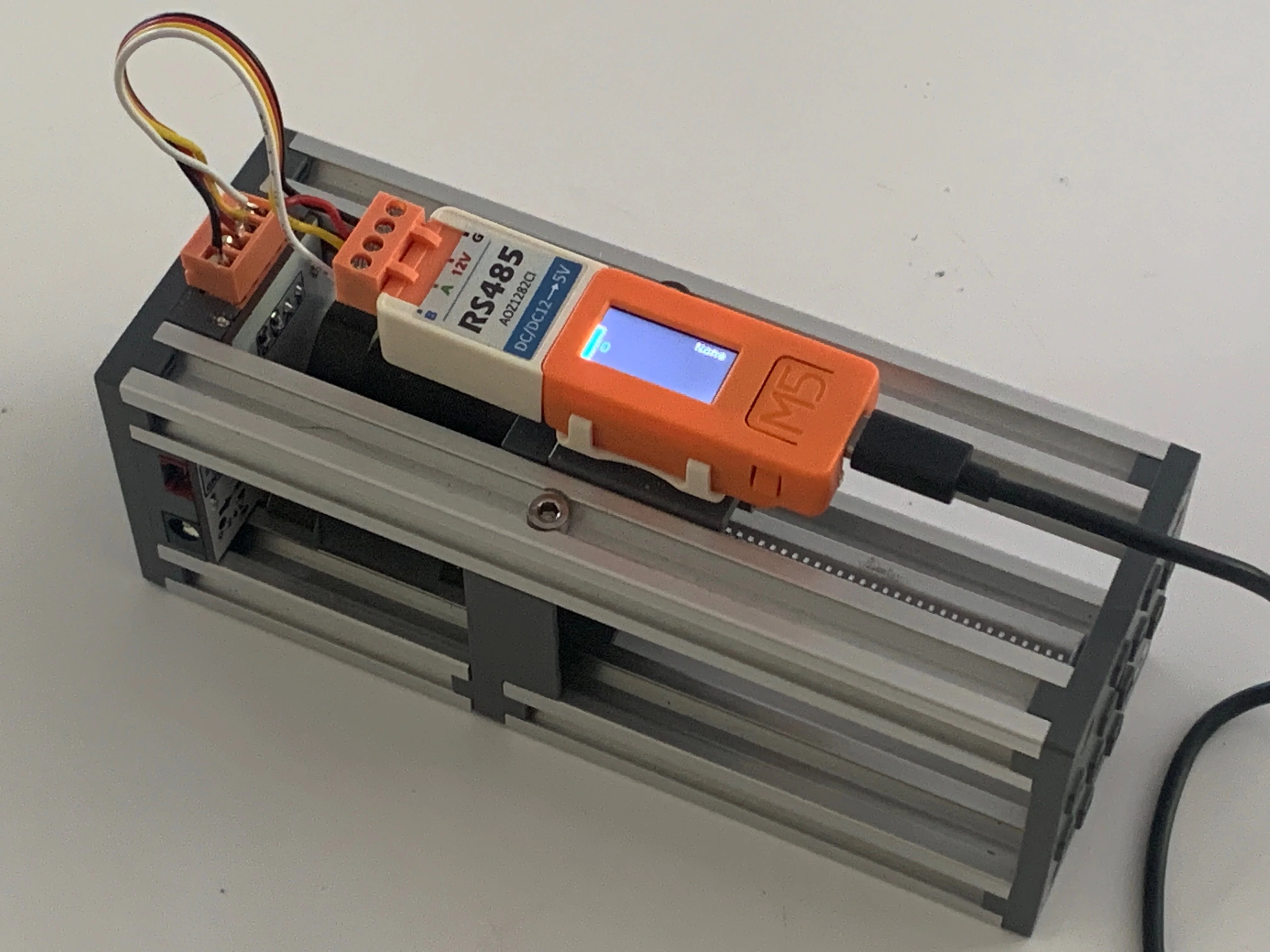

This uses the stepper driven 6060 push and rs485. The movement is based on the tilt of the M5stick which is measured with the built-in IMU.About Prime Living
