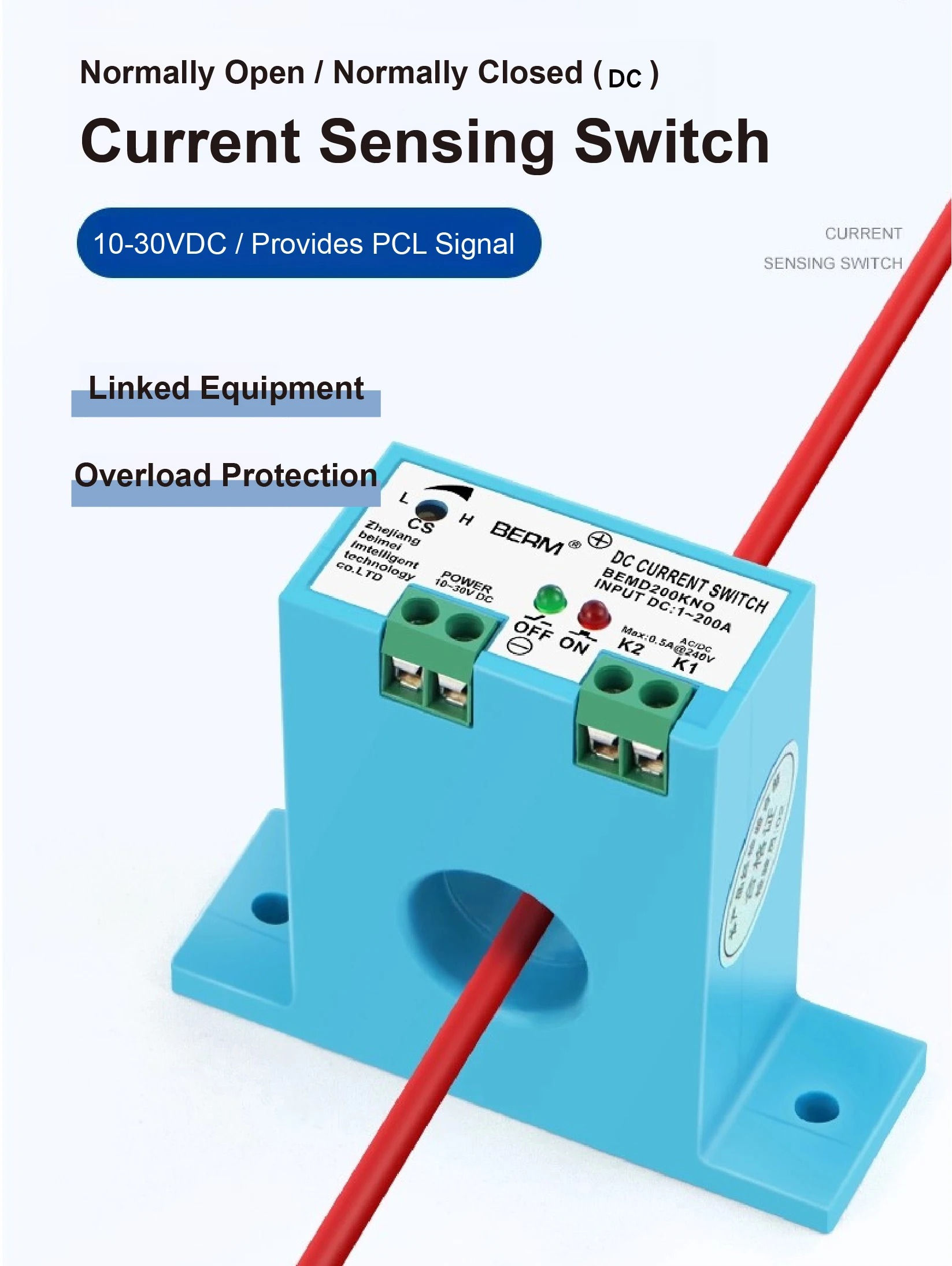

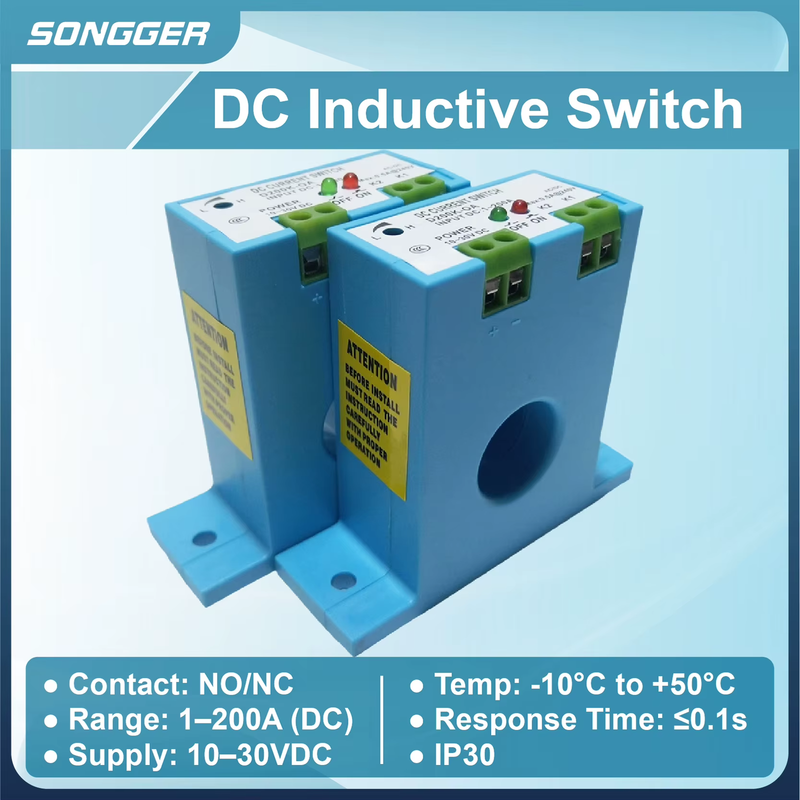

DC Current Sensor Switch 10-30VDC NO NC Relay Overload Protection for Motor Sola

Product Description

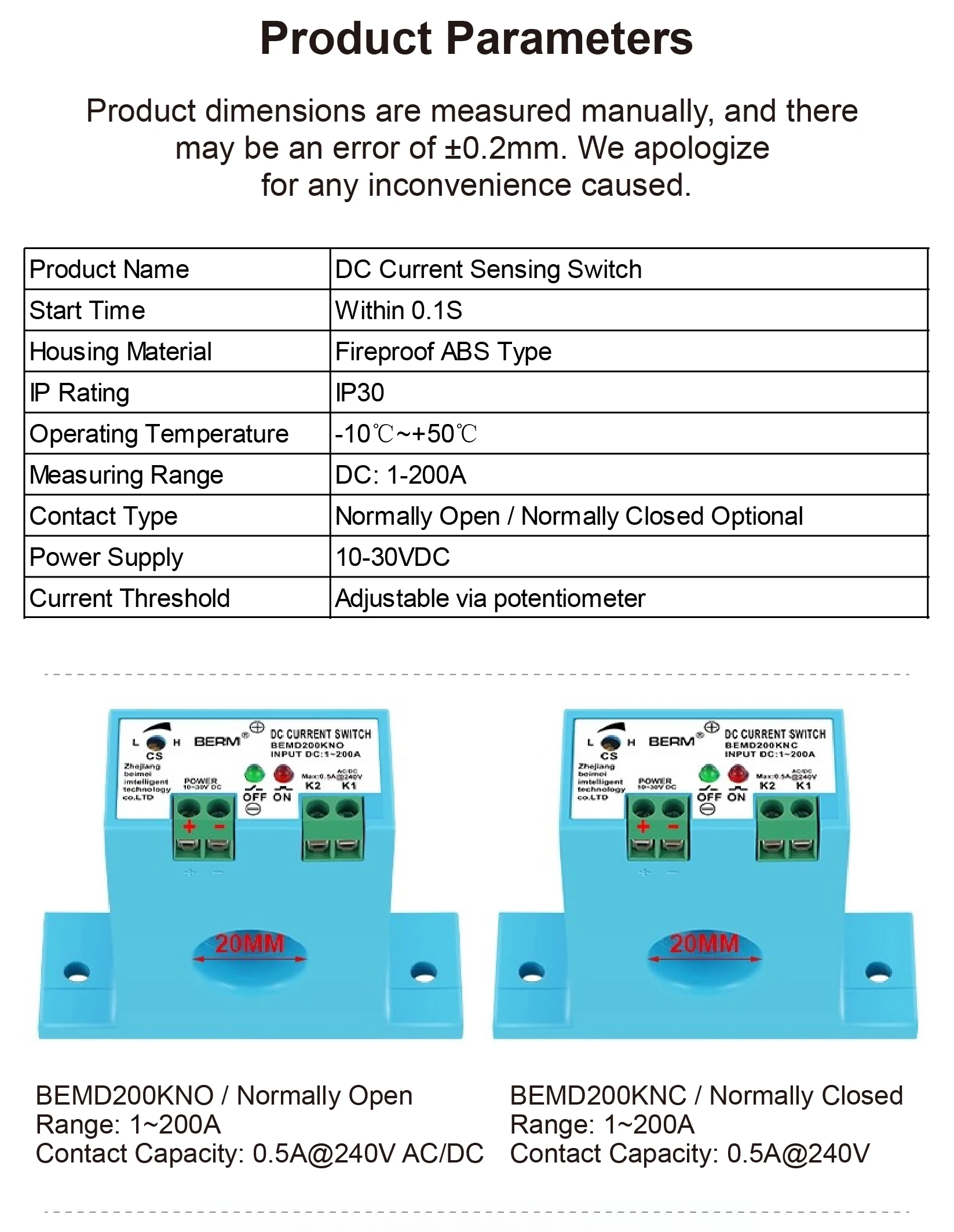

Product Specifications:

Type Options:

• Normally Open (Model: BEMD200KNO)

• Normally Closed (Model: BEMD200KNC)

Startup Time:

• Less than 0.1 seconds

Measuring Range:

• DC 1~200A

Power Supply:

• 10–30VDC

Operating Temperature:

• -10℃ to +50℃

Protection Rating:

• IP30

Housing Material:

• Flame-retardant ABS

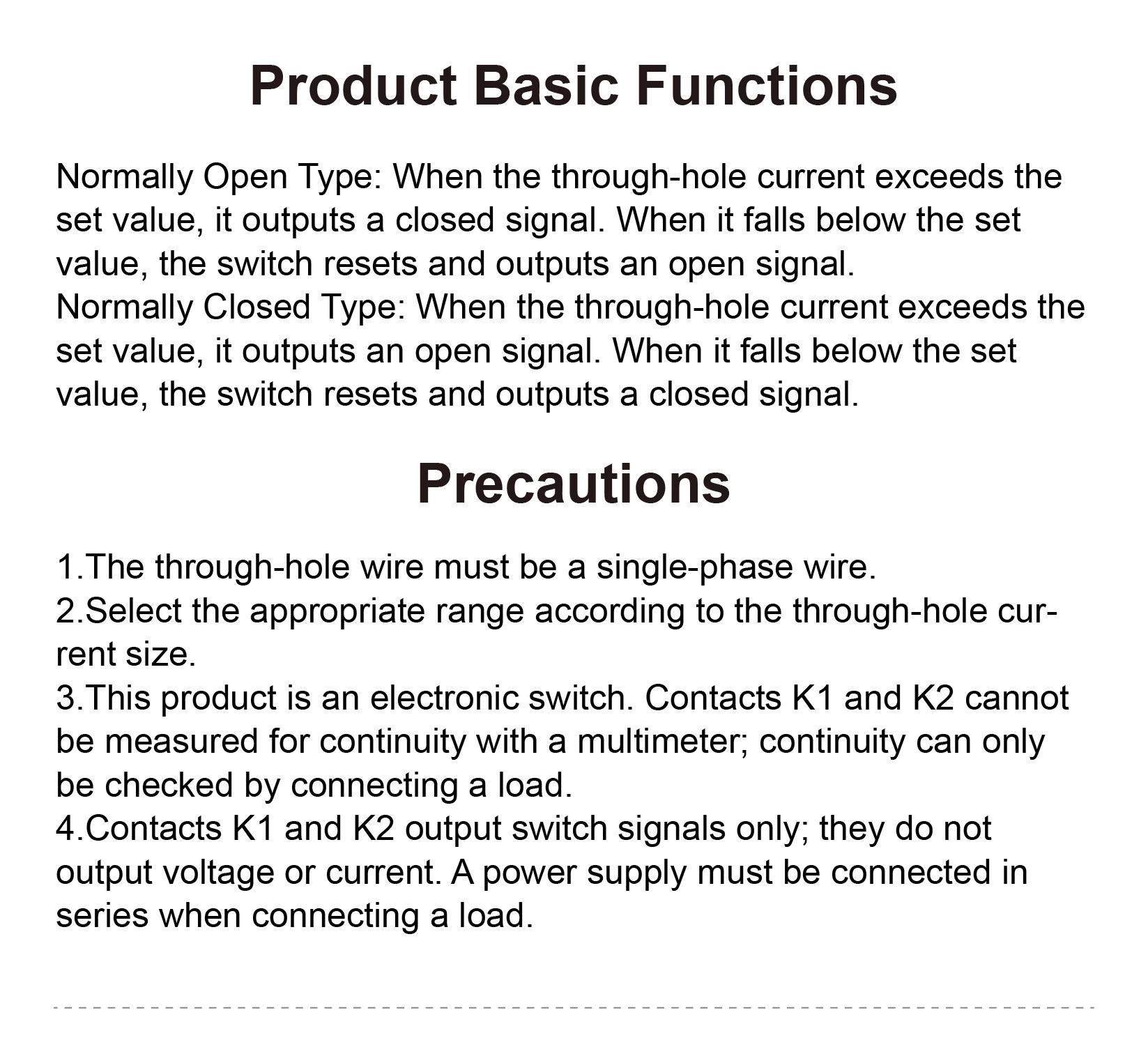

Important Usage Notes:

• The through-core wire must be single-phase only.

• Choose the appropriate model based on the current range of your wire.

• This device is an electronic switch—do not use a multimeter to test K1/K2 terminals.

• Use a load to verify the status of K1/K2 contacts.

• K1/K2 terminals output switch signals only and do not carry voltage or current.

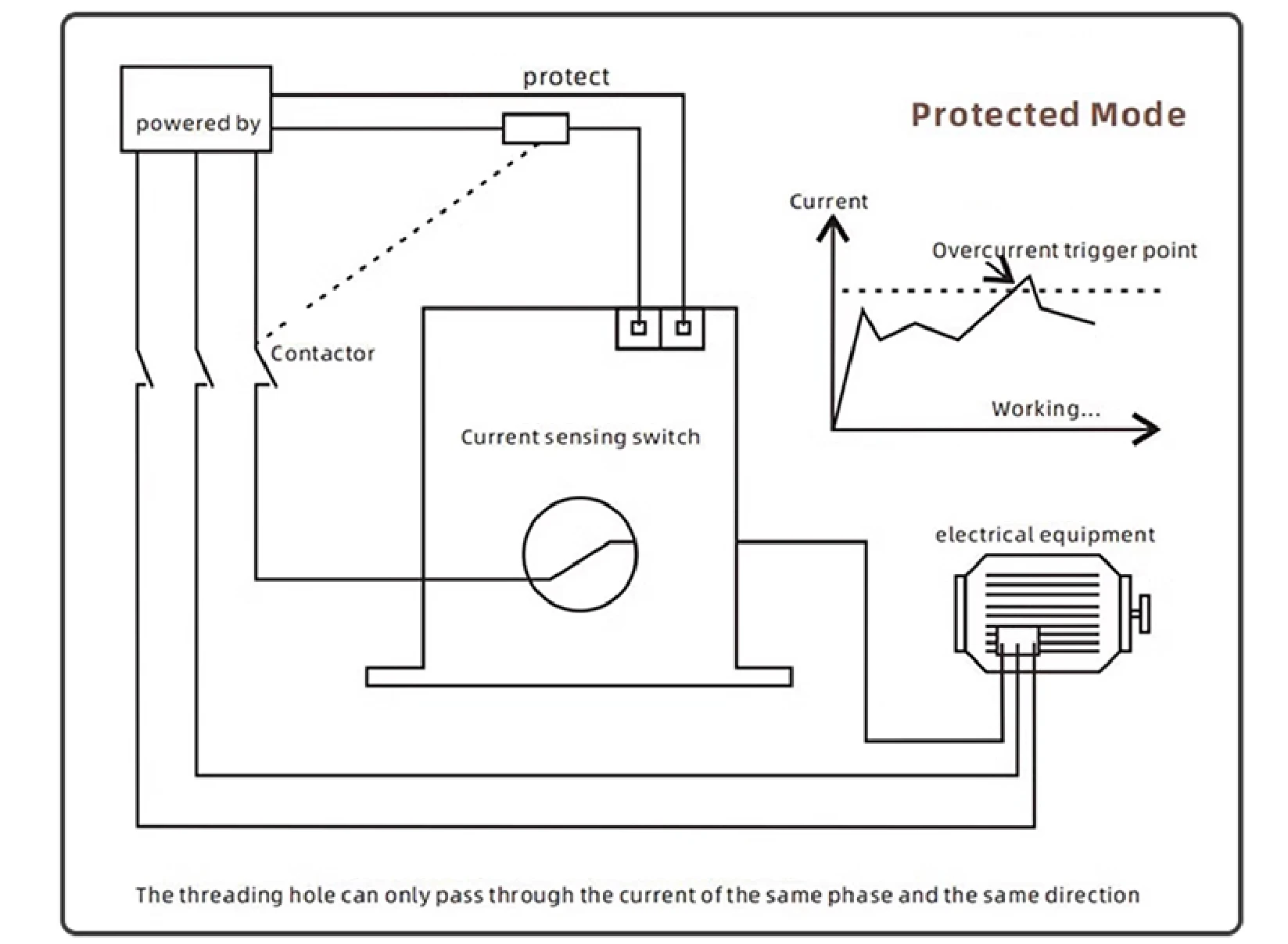

• A power supply must be connected in series with the load for proper operation.

If you have any questions, feel free to contact us.

2. Parameters

Key Features:

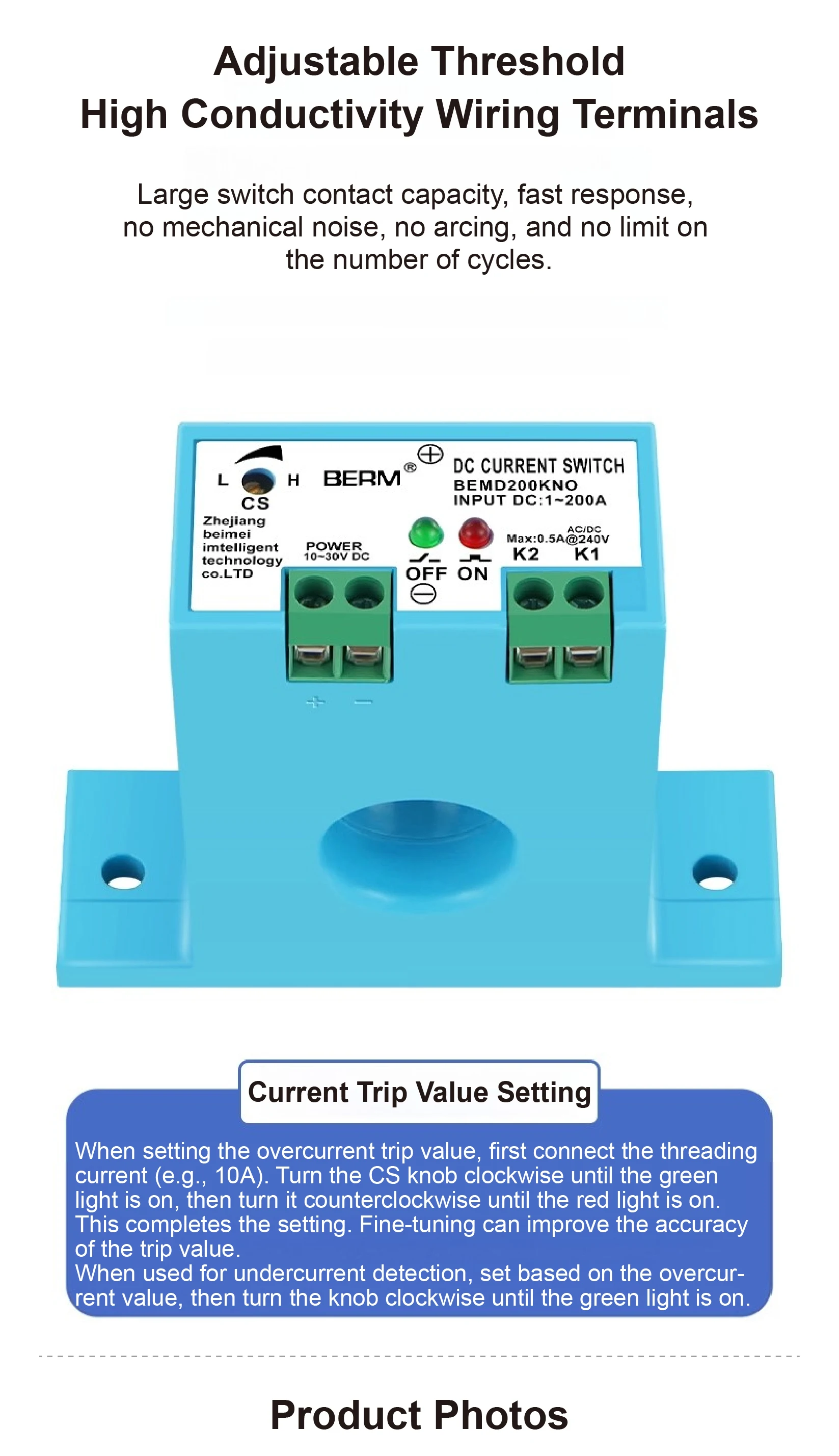

Adjustable Current Threshold
Easily fine-tune the triggering current with the built-in potentiometer for accurate and customized control.

Selectable NO/NC Output
Choose between normally open or normally closed contact output to suit your system requirements.

Fast Response Time (≤0.1s)
Delivers rapid detection and signal output, enhancing the efficiency of your automation setup.

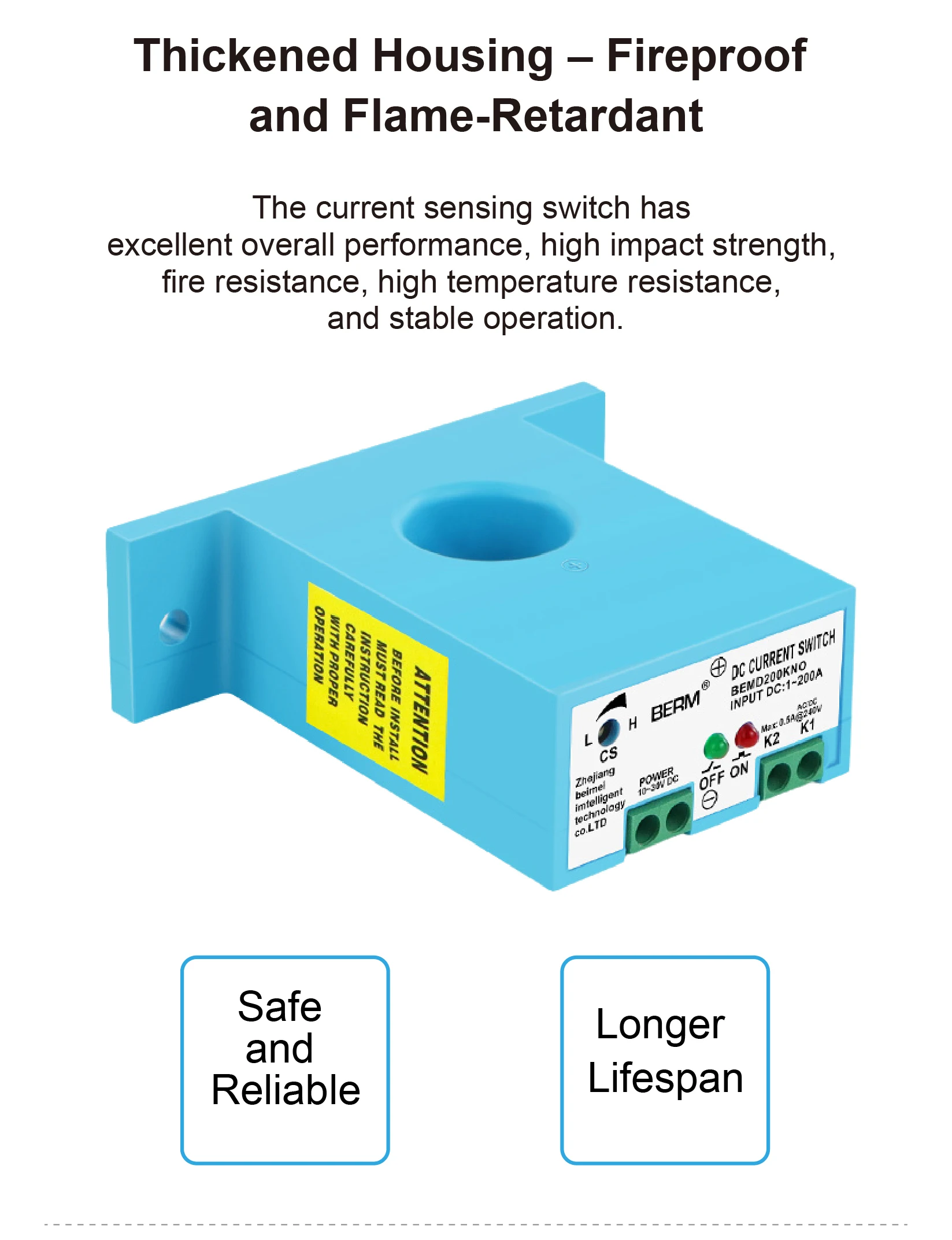

Fire-Retardant ABS Housing
Constructed from durable, heat-resistant ABS material for reliable and safe operation in demanding environments.

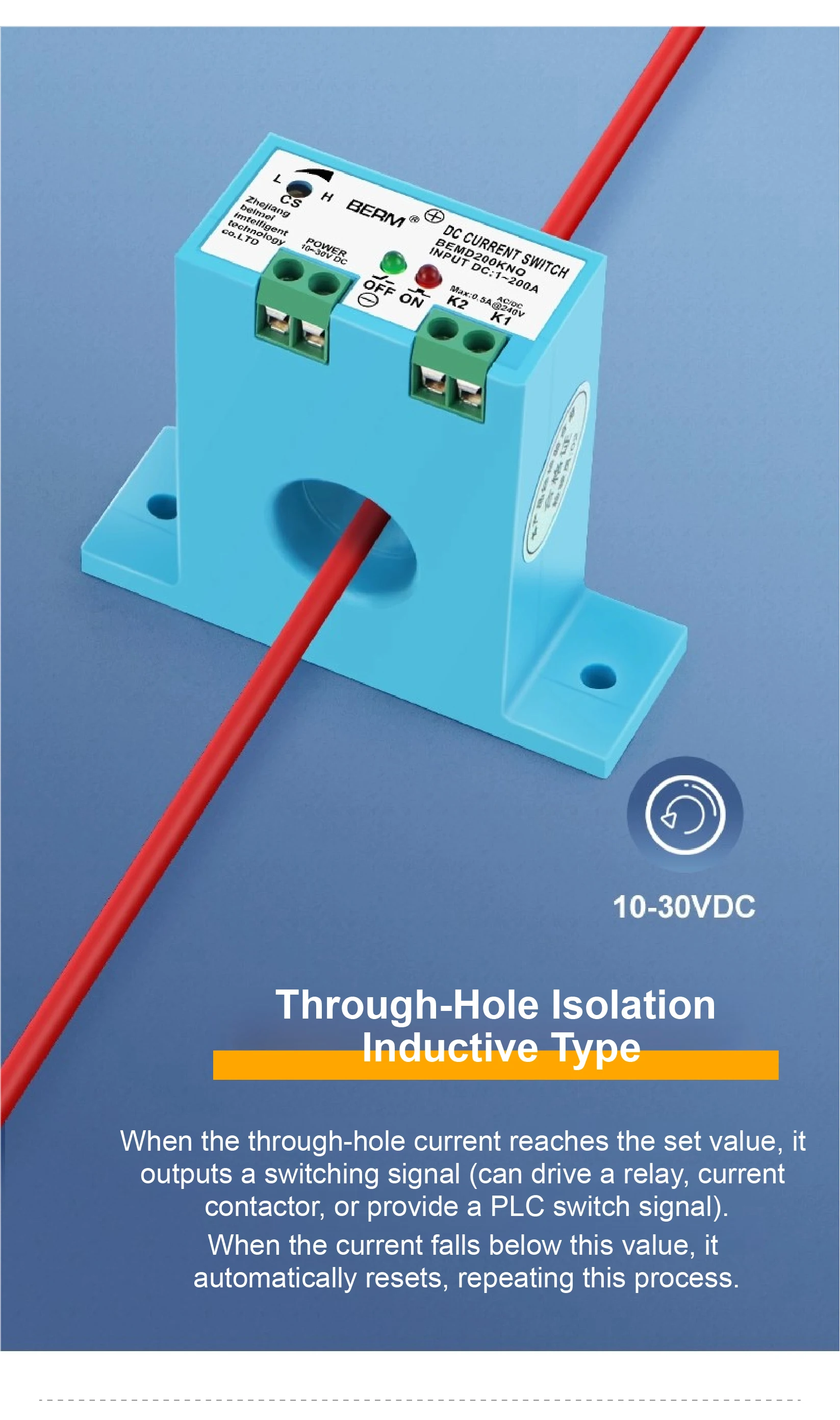

Non-Contact Isolation Sensing
Detects current without physical contact, ensuring safer operation and minimizing mechanical wear.

High Conductivity Terminals
Enables fast, spark-free switching with no mechanical noise—ideal for PLC input and relay control systems.

Applications:

Perfect for a wide range of scenarios, including industrial automation, smart home systems, environmental monitoring equipment, and conveyor line control. Also ideal for PLC signal triggering and overload protection in various DC-powered systems.

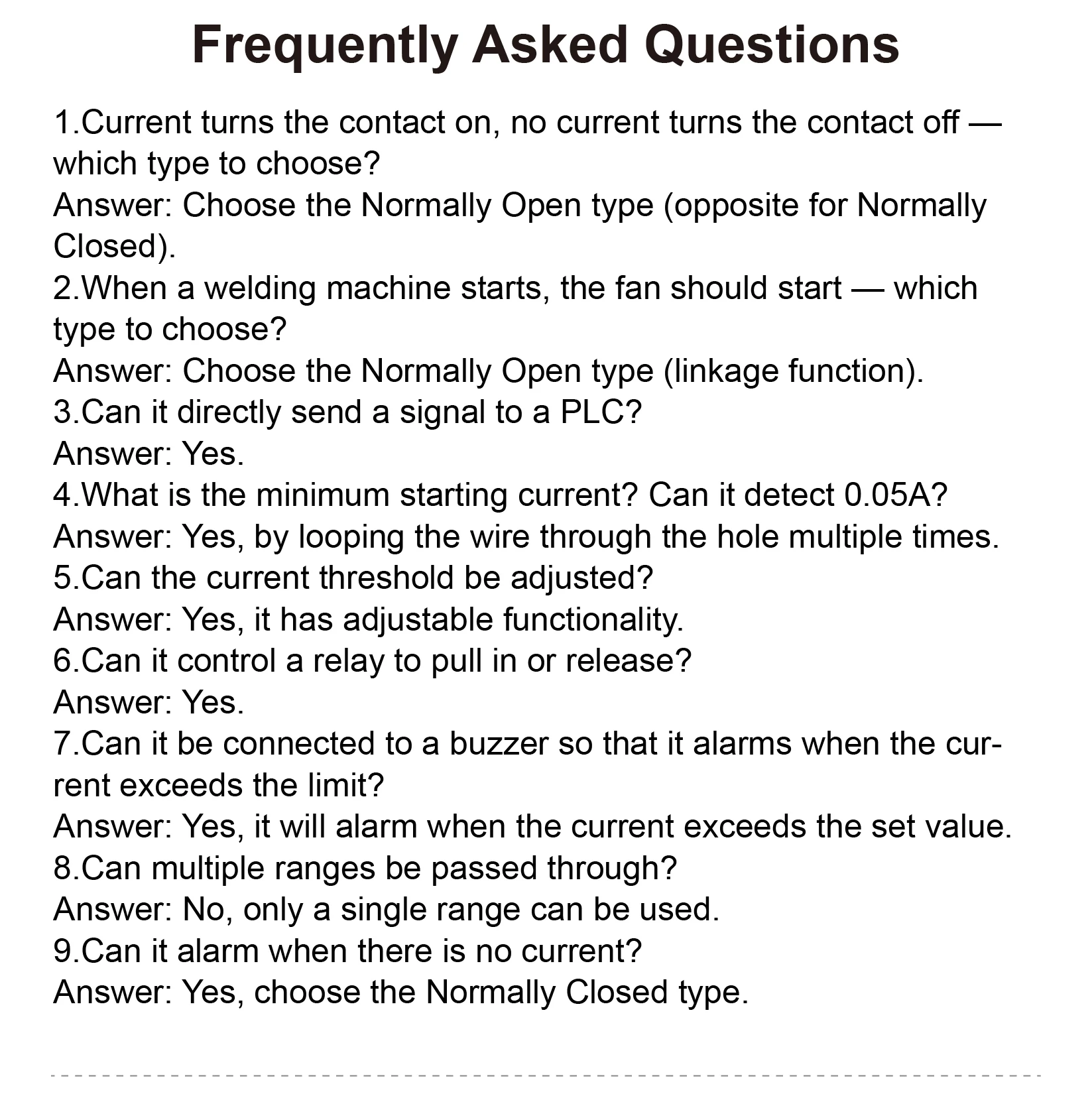

FAQs

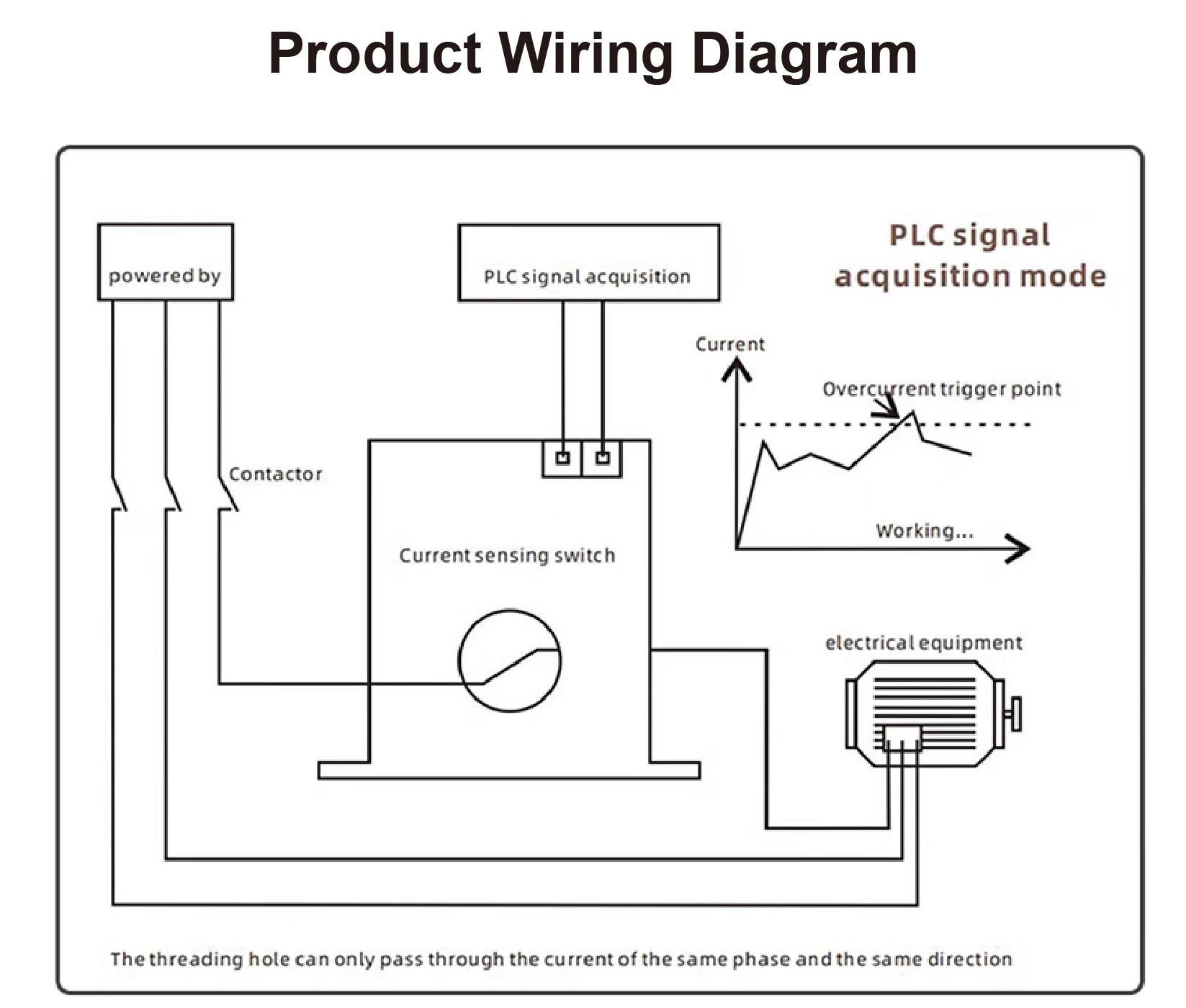

Q1: Can this sensor directly trigger a PLC or relay?
A1: Yes, the output provides a switch signal that is compatible with PLC digital inputs, relays, and contactors.

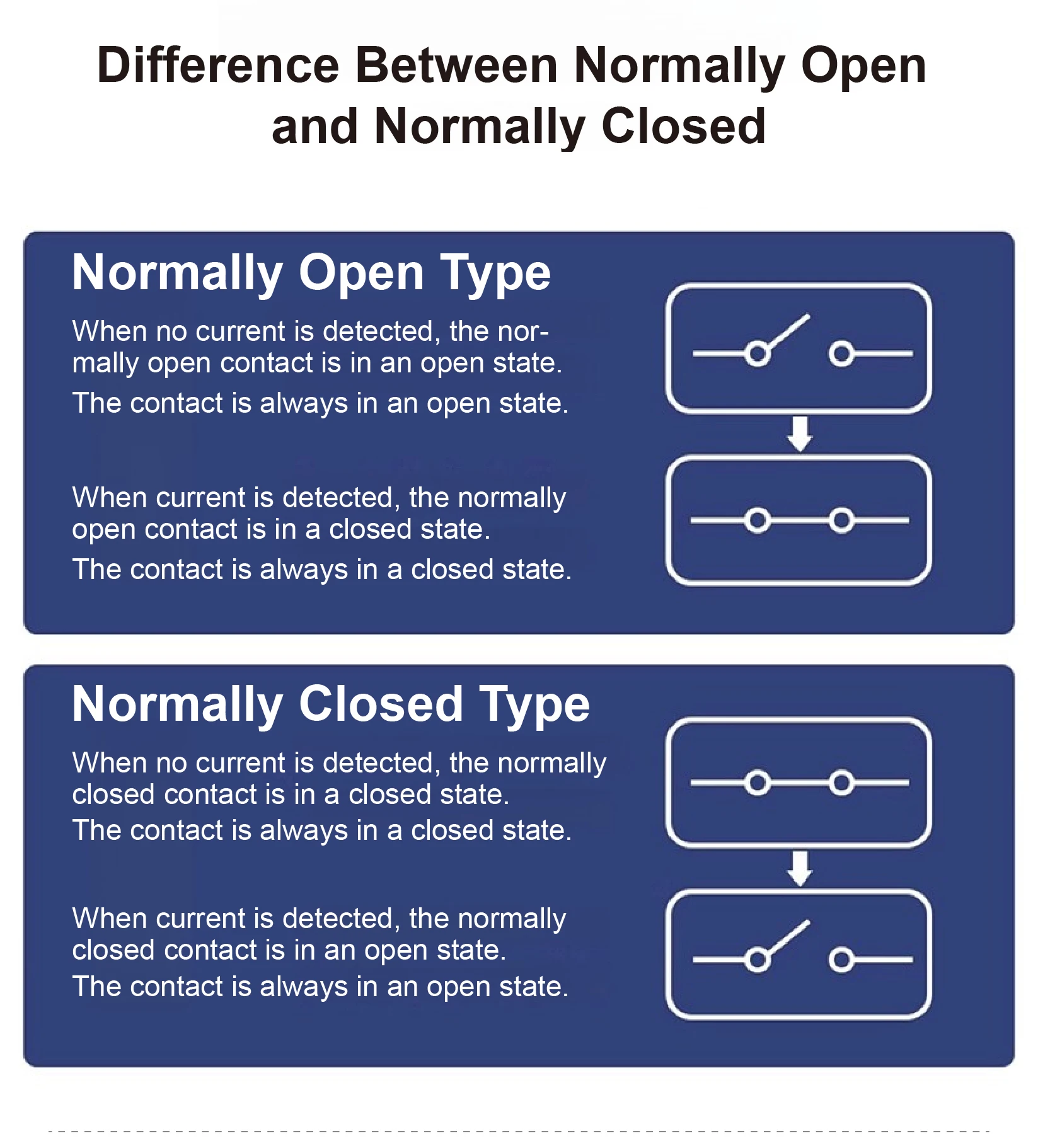

Q2: What’s the difference between NO and NC types?
A2: NO (Normally Open) sends a signal when the current exceeds the set threshold. NC (Normally Closed) stops the signal under the same condition.

Q3: Is the current threshold adjustable?
A3: Yes, the sensing current threshold can be easily adjusted using the built-in potentiometer to match various load requirements.
