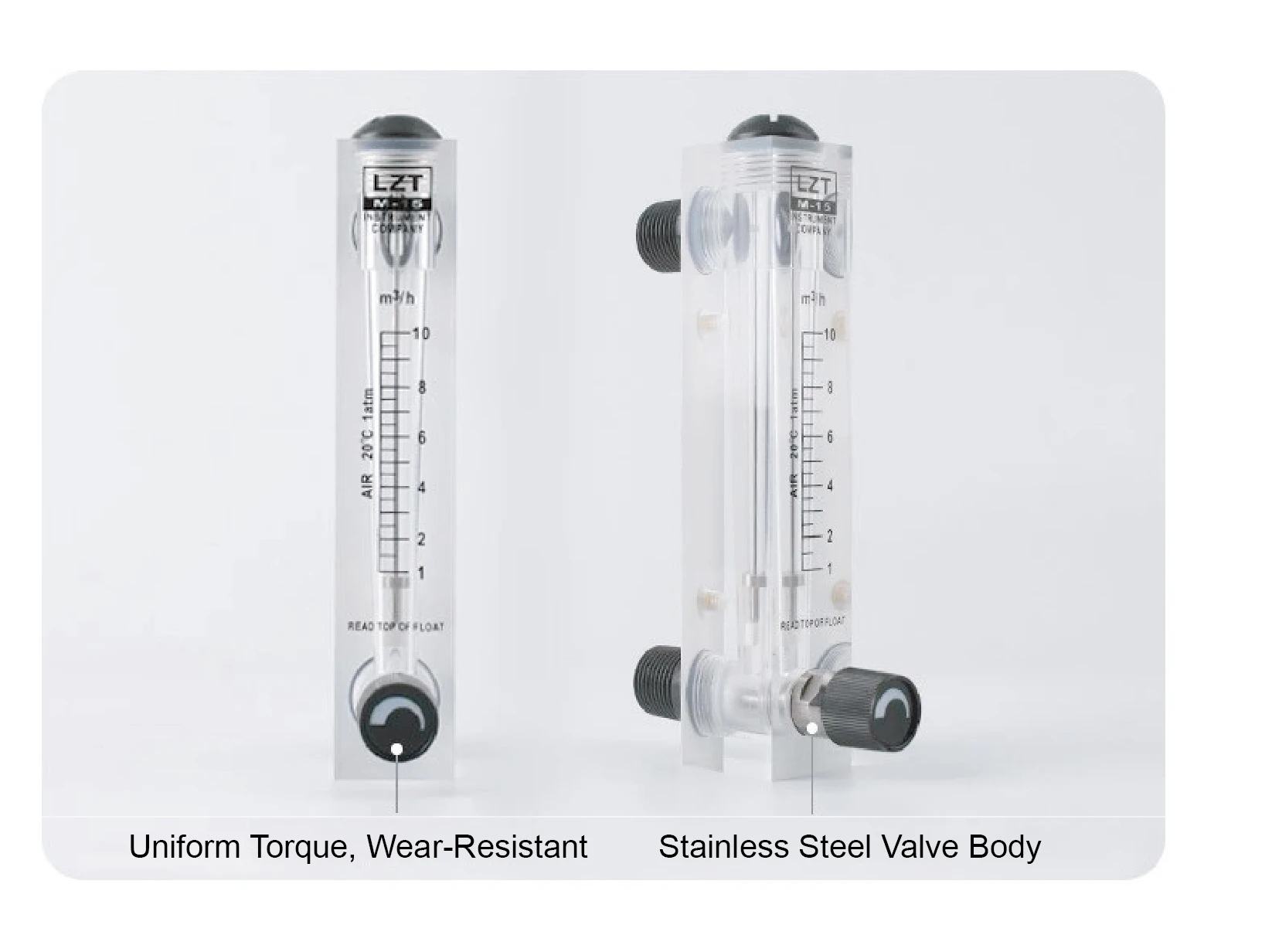

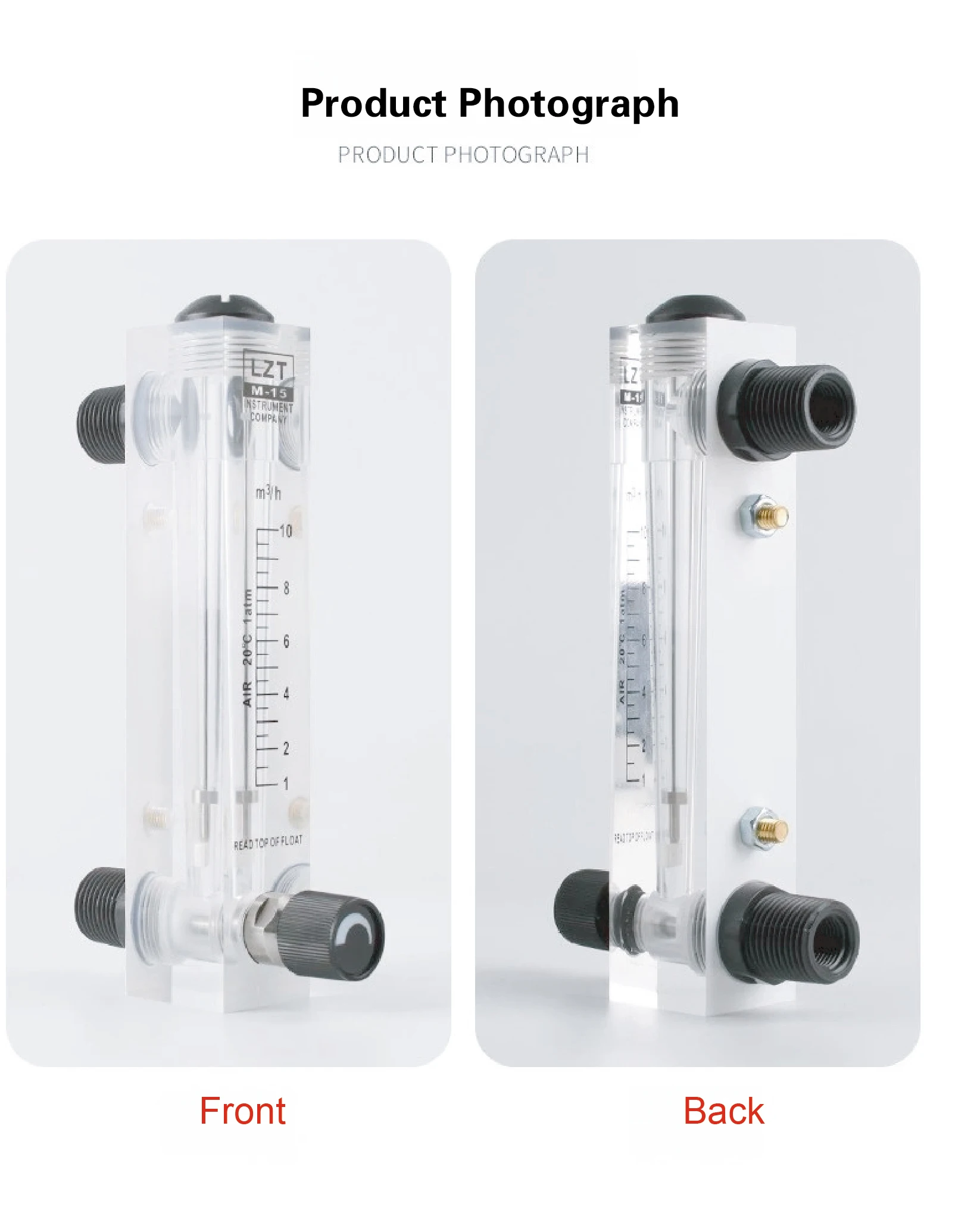

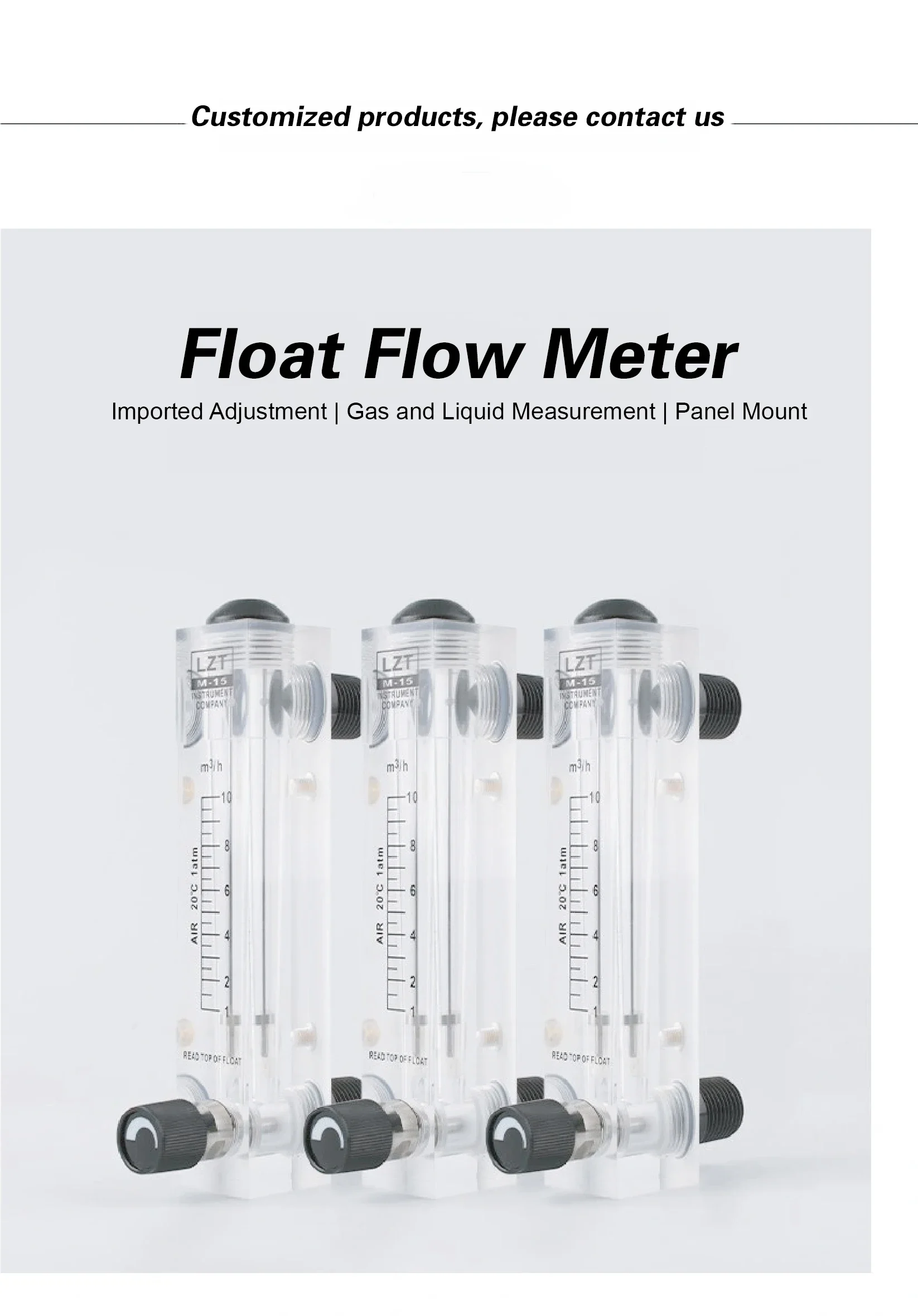

LZM-15ZT Gas Rotameter Flow Meter Acrylic Panel Adjustable Air Flow Meter Low Fl

Product Description

This LZM gas series is calibrated based on air density [for use with air only].
Use with other gases may result in inaccurate measurements or irreversible damage and safety issues!

The liquid series is calibrated based on water density [similarly, for use with pure water only].
Other special media (e.g., mixed gases, hydrogen, ammonia, chlorine, argon, methanol, acetone, etc.)
require a customized flow range → [Please contact customer service for customization].

1.NOTE:

Default Configuration:
The LZM-15ZT panel flowmeter comes with the following features:

· Material: Organic glass (acrylic)

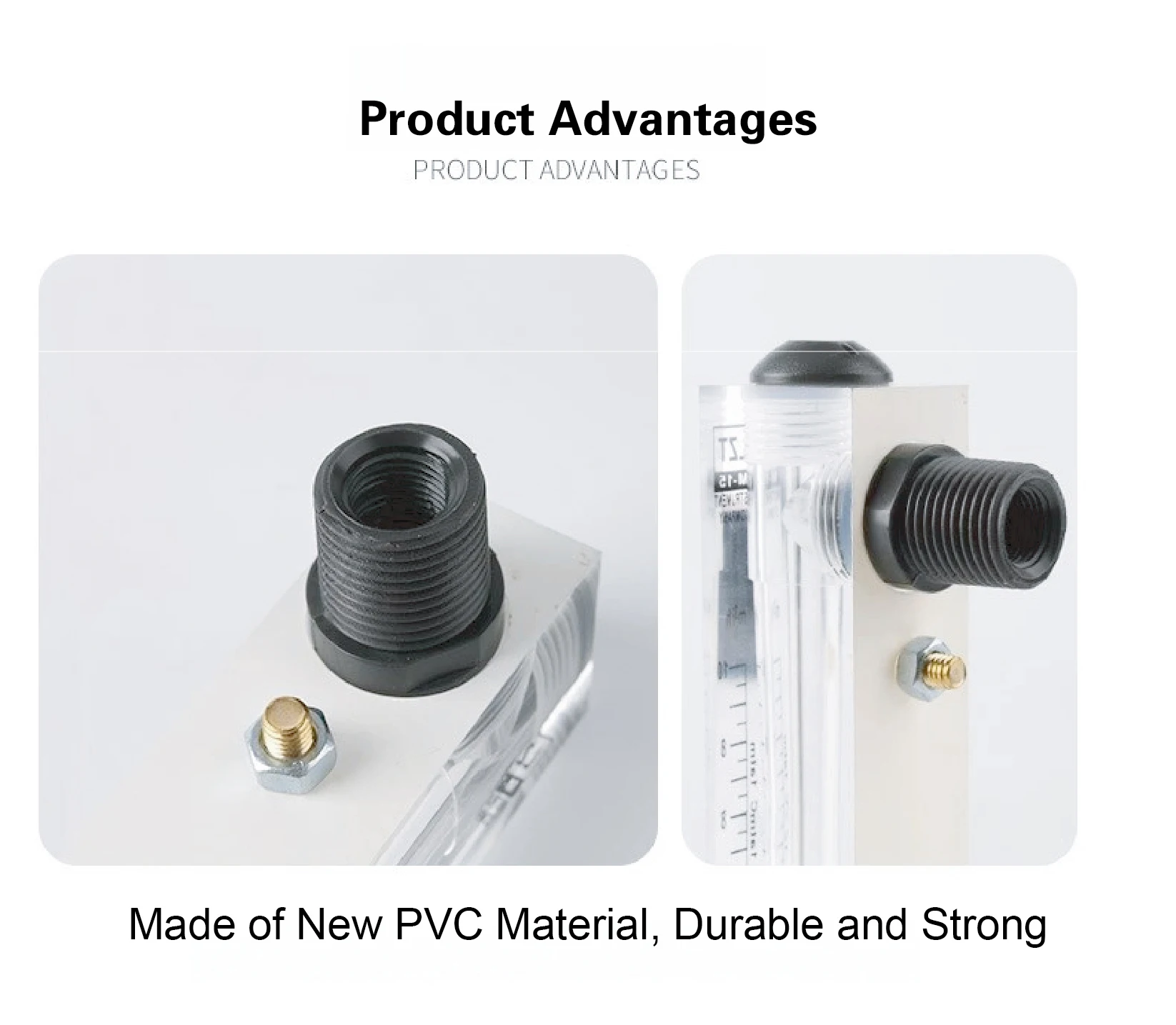

· Connection material: Plastic

· Maximum working temperature: 60°C

· Maximum pressure: ≤1.0MPa

· Accuracy level: ±4%

· Connection Size: External Thread: ZG1/2 Internal Thread: ZG1/4

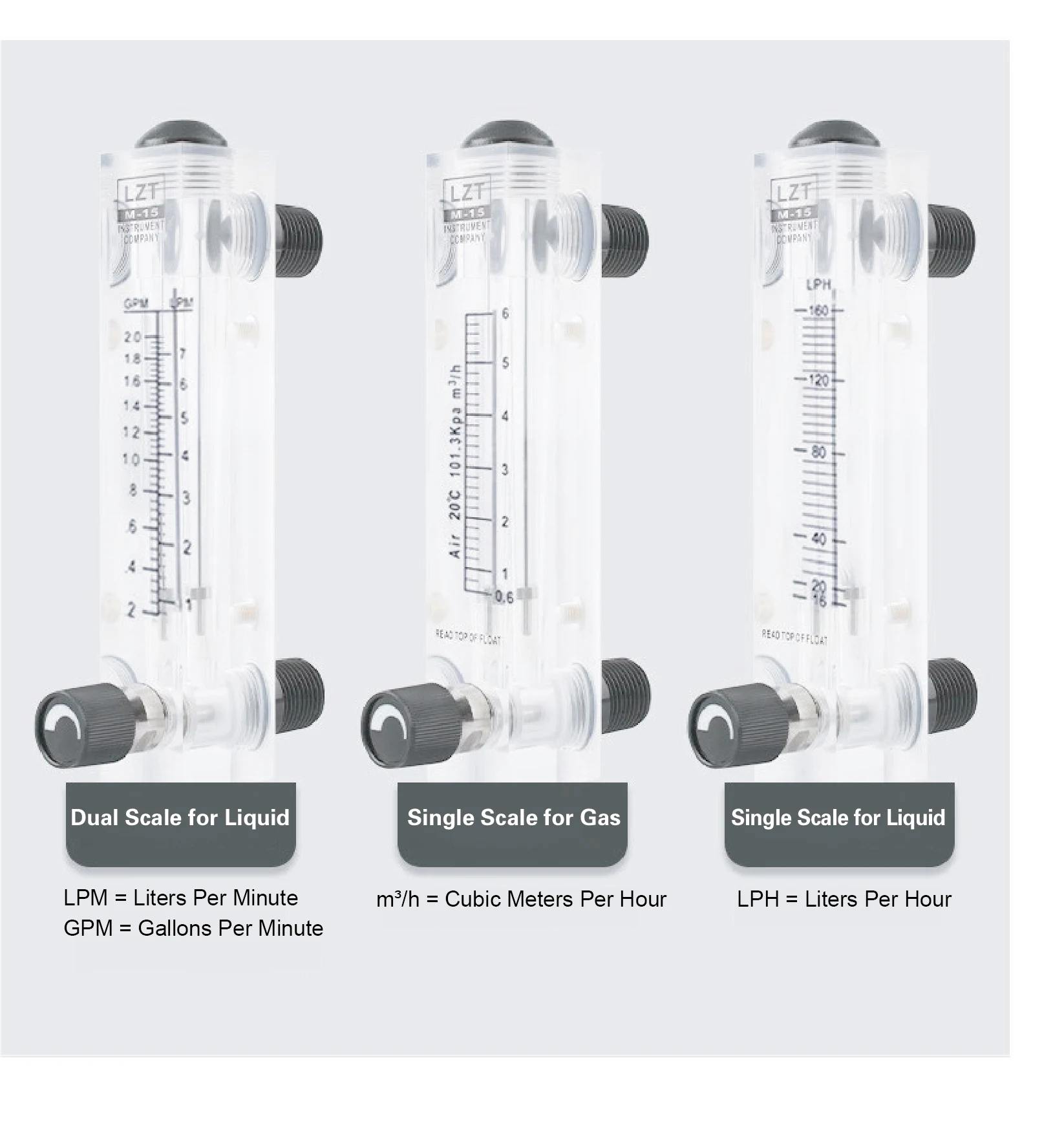

·Liquid flow ranges by model:
0.03–0.35 GPM (0.1–1.4 LPM), 0.05–0.5 GPM (0.2–1.8 LPM), 0.1–1 GPM (0.5–4 LPM),
0.15–1.5 GPM (0.6–6 LPM), 0.2–2 GPM (1–7 LPM), 0.3–3 GPM (1–11 LPM),
0.5–5 GPM (2–18 LPM), 1.5–9 GPM (400–2000 LPH)

·Gas flow ranges by model:
0.04–0.4 Nm³/h, 0.1–1 Nm³/h, 0.16–1.6 Nm³/h, 0.25–2.5 Nm³/h, 0.3–3 Nm³/h,
0.4–4 Nm³/h, 0.6–6 Nm³/h, 0.8–8 Nm³/h, 1–10 Nm³/h, 1.6–16 Nm³/h,
1.8–18 Nm³/h, 2–20 Nm³/h, 2.5–25 Nm³/h, 3–30 Nm³/h, 4–40 Nm³/h

Optional Features:

· Custom fittings: 316 stainless steel, quick-connect options

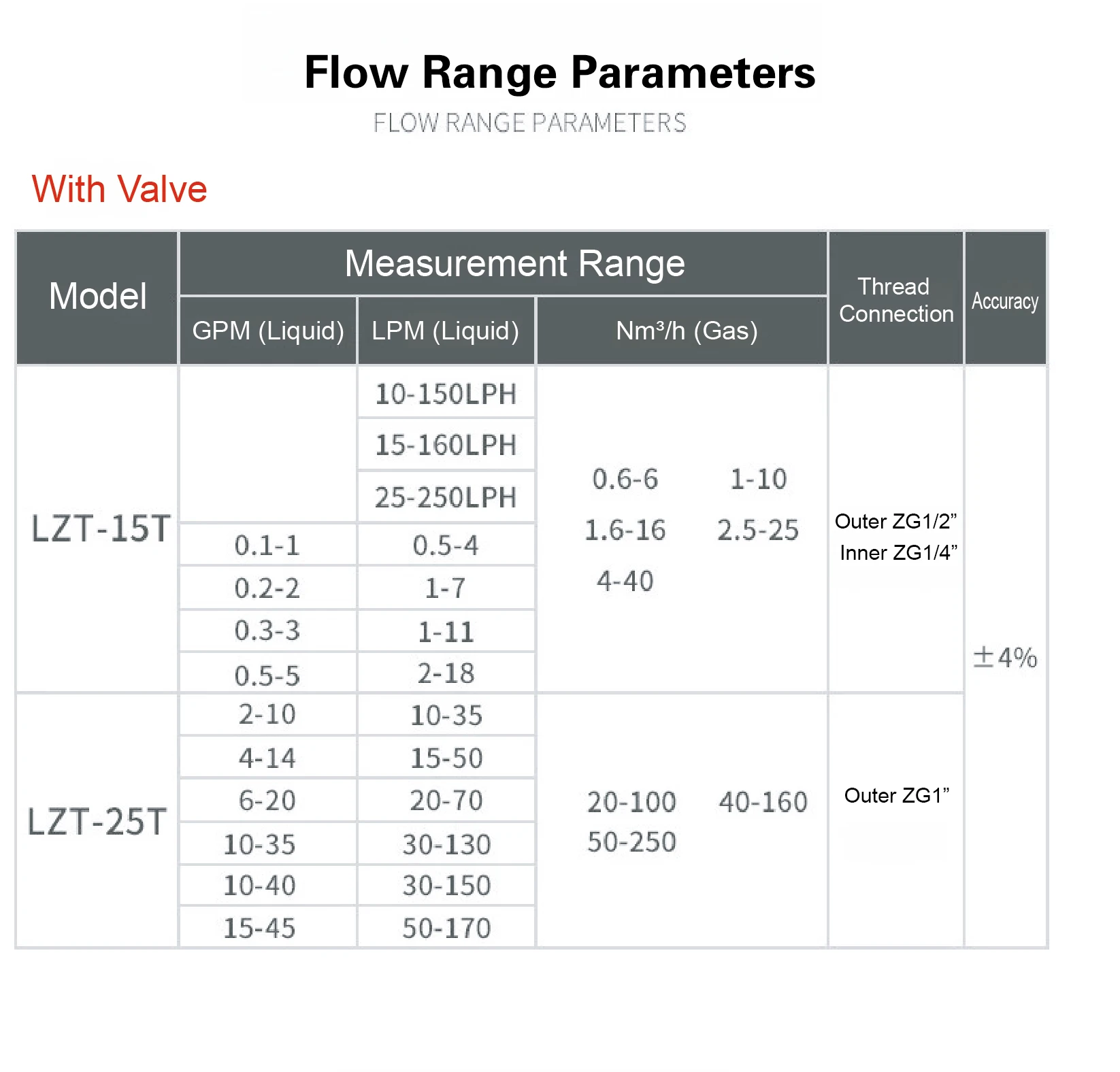

2.Parameters

3.Features

Adjustable Flow Control
Easily regulate flow using the downstream control valve for precise measurement.

Durable Construction
Made from high-quality acrylic (PMMA) for excellent durability and chemical resistance.

Wide Compatibility
Supports a variety of flow ranges, suitable for liquids and gases in industrial environments.

Easy Installation
Vertical mounting design with clear instructions for hassle-free setup.

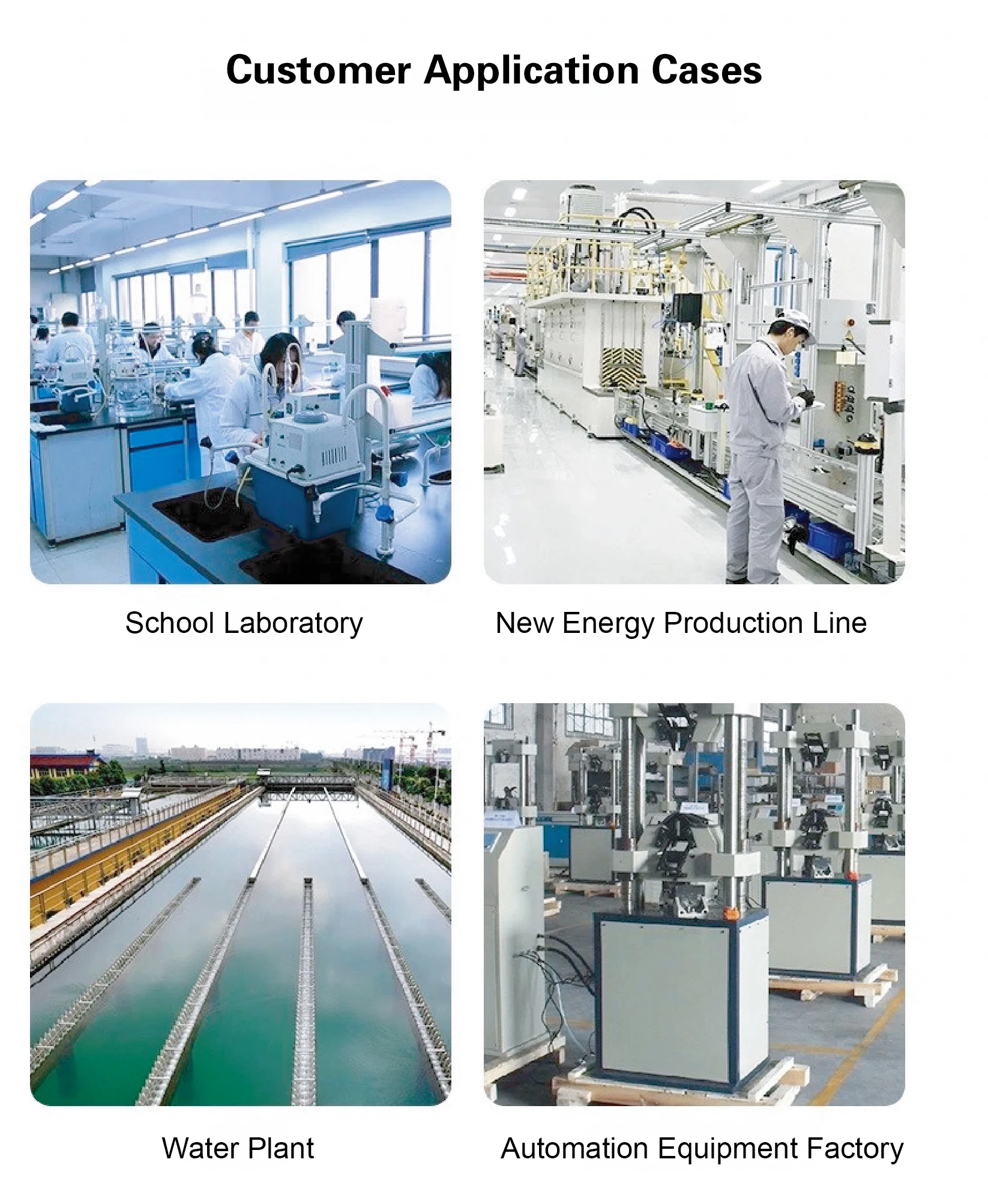

4.Applications

Industrial fluid measurement for liquids and gases.

Compatible with filtration and buffering systems.

Used in chemical, water treatment, and manufacturing industries.

5.FAQs

Q1: Can this flowmeter be used with organic solvents like alcohol or gasoline?
A1: No, it is not suitable for organic solvents such as alcohol, gasoline, or acetone.

Q2: How should I install the flowmeter for optimal performance?
A2: Ensure vertical installation and use a filter for fluids containing particulates.

Q3: What precautions should I take during operation?
A3: Avoid sudden pressure changes and always use within the optimal flow range (40–70% of maximum flow).
