Official AC Measure Unit (HLW8032)

Product Description

AC Measure Unit is a single-phase AC measurement unit with isolation, using the scheme of STM32+HLW8032 to monitor high-precision current, voltage, power and other data in real time; Built-in AC isolation chip B0505ST16-W5, and through EL357 optocoupler isolation chip and stm32 communication, users through I2C communication to read the measured data. This product is suitable for power supply information collection, remote smart home appliances and other fields.

Features

* STM32G030@M0+ 32-bit MCU,64 KB Flash, 8 KB RAM
* Single-phase alternating current 100-240V/10A measurement
* I2C Communication (0x42)
* Programming platforms: UIFlow, Arduino

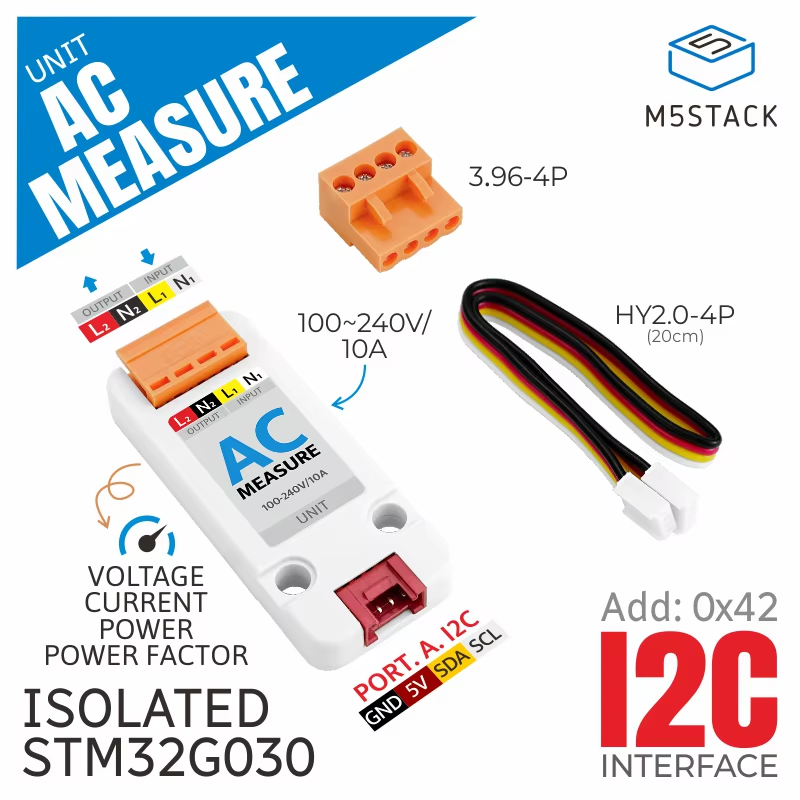

Includes

1*AC Measure Unit
1*HY2.0 Cable(20CM)
1*3.96-4P terminal

Applications

* Smart home appliances
* Metering sockets
* Smart WIFI socket
* Electric vehicle charging pile
* Street lamp control system

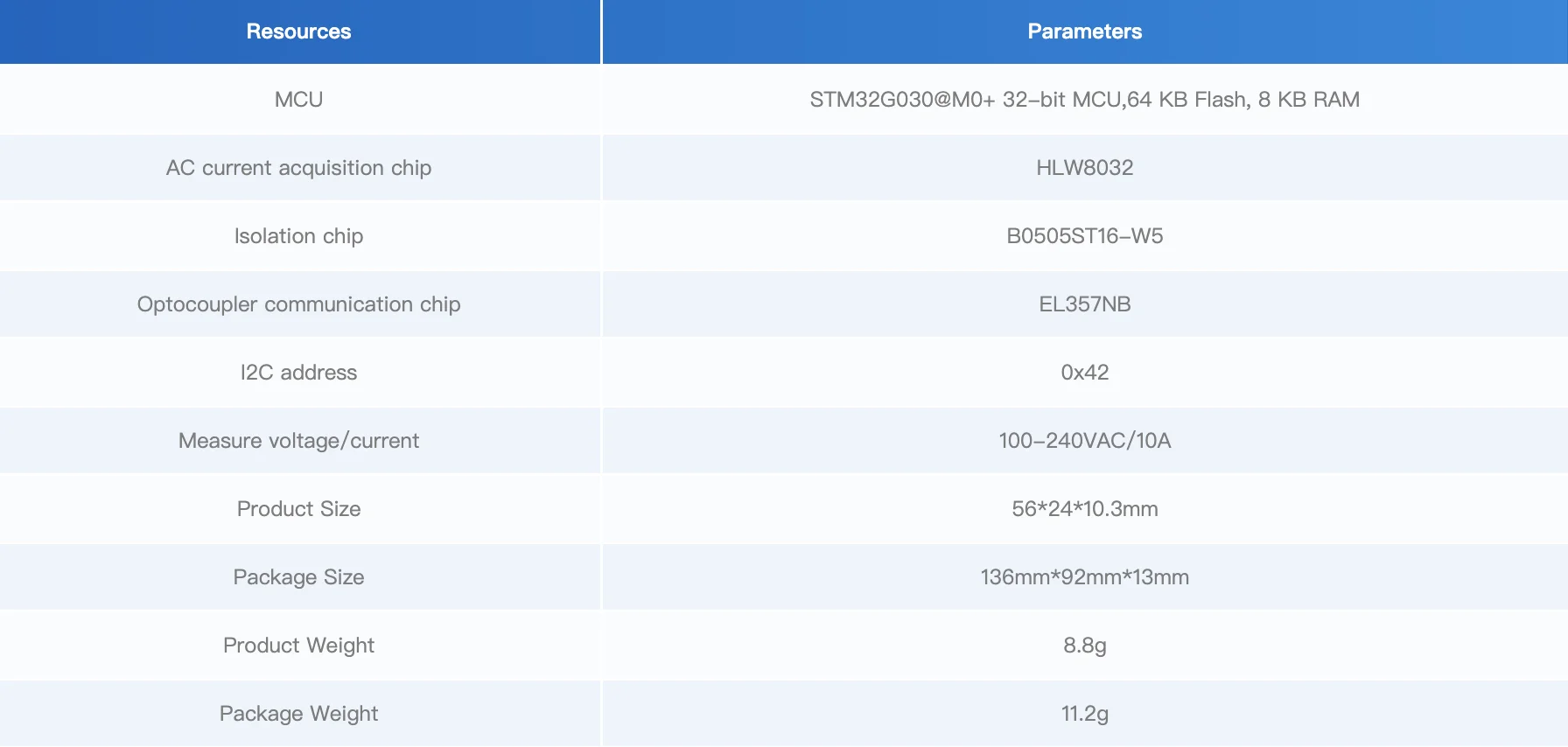

Specification

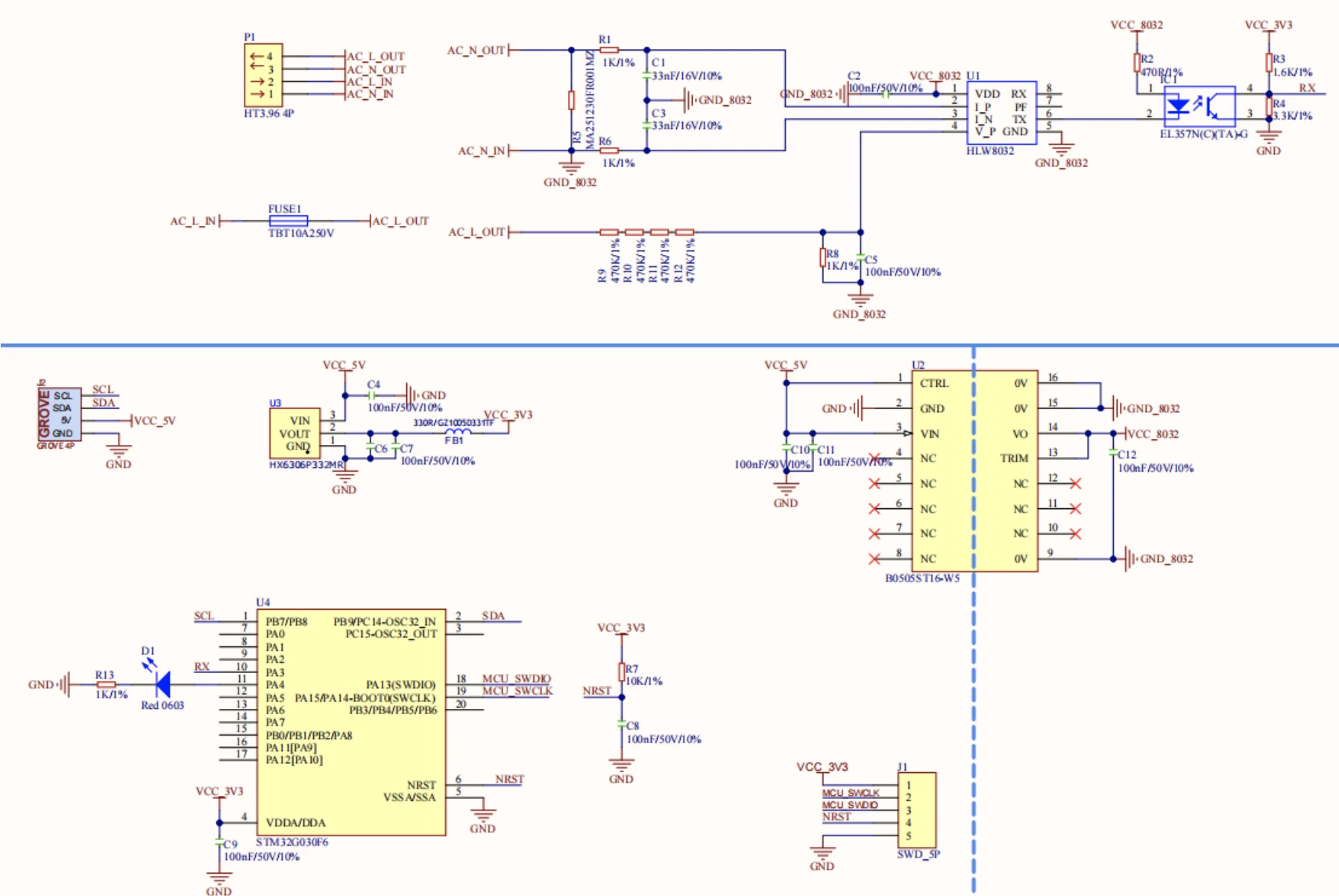

Schematic

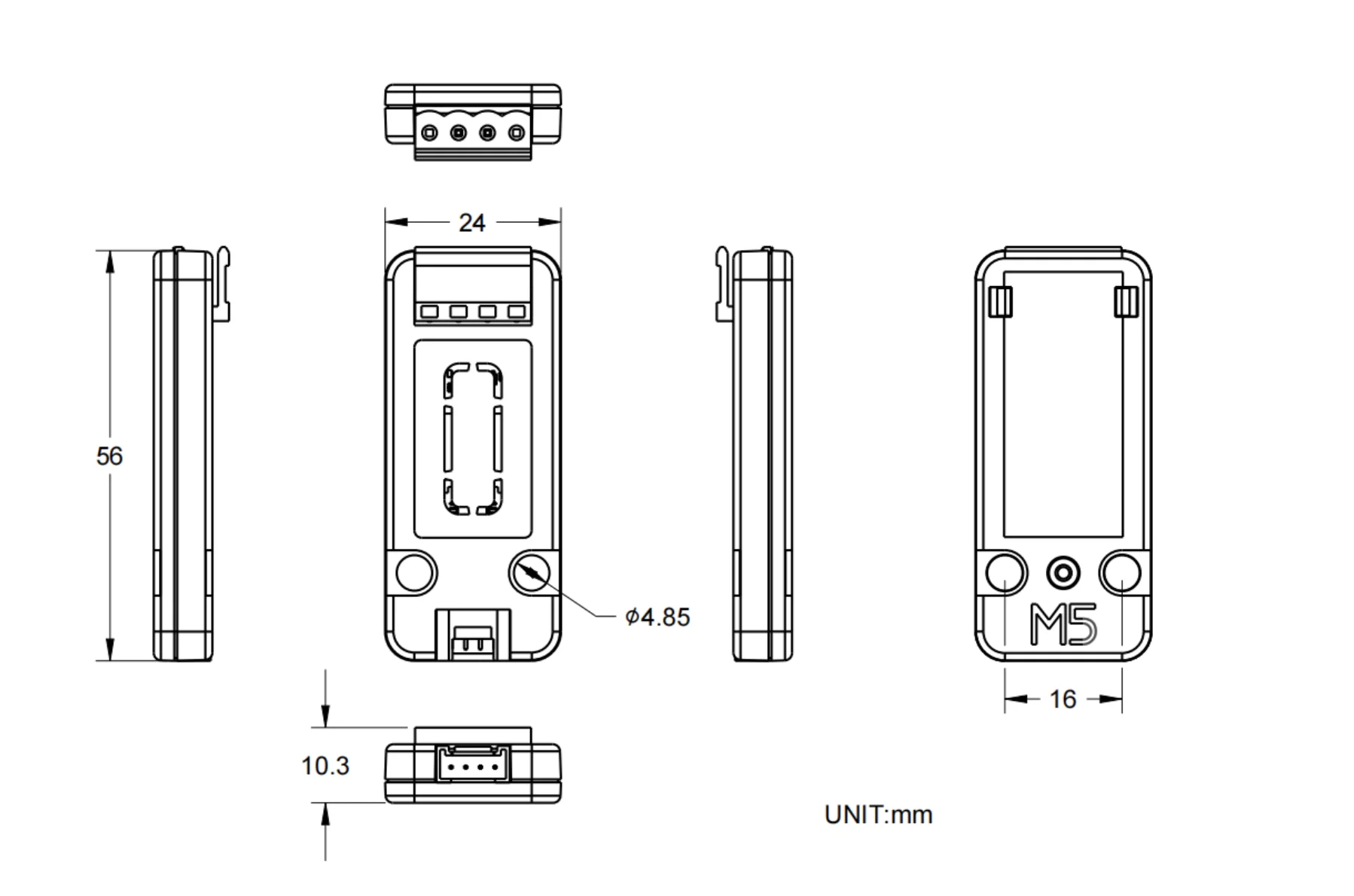

Module Size

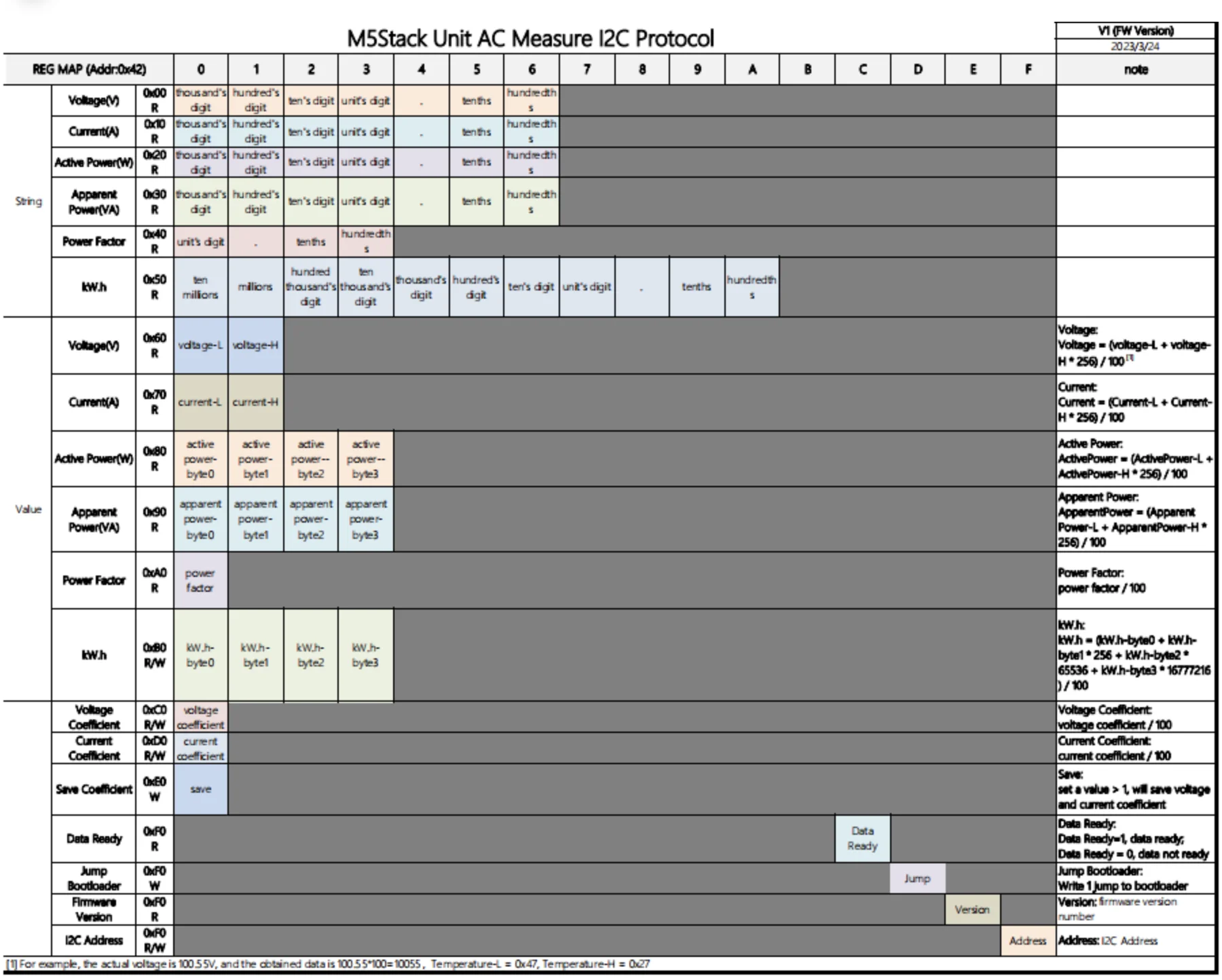

Protocol
